USER MANUAL
INDUCTION COOKTOP
WHI641BCA

Advertisement

Table of Contents
loading

Related Manuals for Westinghouse WHI641BCA

Summary of Contents for Westinghouse WHI641BCA

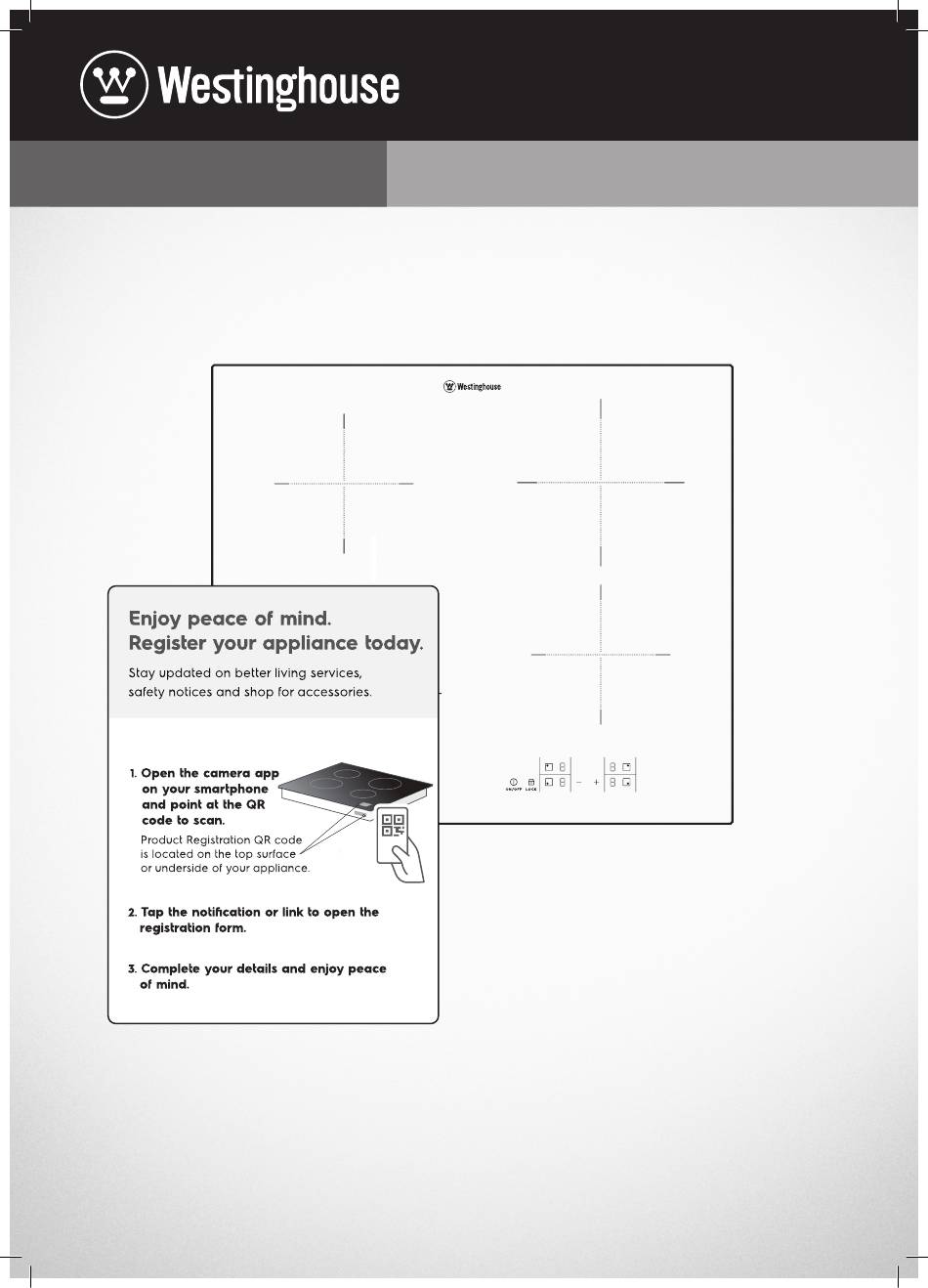

  • Page 1 USER MANUAL INDUCTION COOKTOP WHI641BCA...

  • Page 2: Table Of Contents

    Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual.

  • Page 3: General Safety

    GENERAL SAFETY Safety information How to prevent damage to the appliance. For your safety and correct operation of the appliance, • If objects or cookware fall on the glass, the surface read this manual carefully before the installation and use. can be damaged.

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS WARNING WARNING TIPS & INFORMATION IMPORTANT Risk of injury from electrical current. Carefully obey the Before the installation, note down the serial number instructions for electrical connections. from the rating plate. The rating plate of the appliance is on its lower casing.

  • Page 5: Assembly

    ASSEMBLY min. 600mm min. 50mm min. 50mm NOTE : The clearance must meet or exceed the minimum recommended for both the rangehood and cooktop. Refer to the rangehood installation manual. ASSEMBLY...
  • Page 6 ASSEMBLY (CONTINUED) WHI641BCA Installation above an oven min. 38 mm ASSEMBLY...

  • Page 7: Product Description

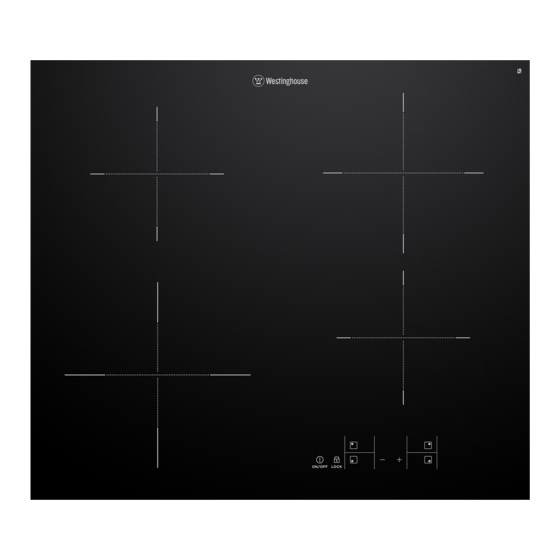

    PRODUCT DESCRIPTION WHI641BCA 1400W Inducton 1800W Inducton cooking zone, cooking zone, with Power with Power function 2500W function 2800W (minimum cookware (minimum cookware diameter=125mm) diameter=145mm) 2300W Inducton 1400W Inducton cooking zone, cooking zone, with Power with Power function 3200W function 2500W...

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS • You spill something or put something on the control Activation and deactivation panel for more than 10 seconds, (a pan, a cloth etc.) Remove the object or clean the control panel. Touch for 1 second to activate or deactivate the appliance.
  • Page 9 The child safety device This function prevents an accidental operation of the appliance. To activate the child safety device: • Activate the appliance with . Do not set the heat settings. • Touch for 4 seconds. The symbol comes on. •...

  • Page 10: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS The noises are normal and do not refer to appliance TIPS & INFORMATION TIPS & INFORMATION malfunction. If unfamiliar with induction units please first compare the operating sounds of a demonstration model Use the correct cookware induction cooktop. at your retailer before calling service.
  • Page 11 The Examples of cooking applications The data in the table is for guidance only. HEAT SETTING TIME HINT Keep food warm As required Keep cookware covered Hollandaise sauce, melt: butter, 1–2 5–25mins Stir from time to time chocolate and gelatine Solidify: fluffy omelettes and baked 1–2 10–40mins...

  • Page 12: Care And Cleaning

    Available at the following web shops: https://shop.westinghouse.com.au Marks which appear to be bubbles under the ceramic will also clean off. Use Ceraseal (ACC018) to help protect the ceramic and allow for easier cleaning. Polish on with a dry clean cloth.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE AND REMEDY REMEDY You cannot activate or operate the hob. The hob is not connected to an electrical Check if the hob is correctly connected to supply or it is connected incorrectly. the electrical supply. Refer to the connection diagram.

  • Page 14: Environment Concerns

    ENVIRONMENTAL CONCERNS For more detailed information about recycling of The symbol on the product or on its packaging this product, please contact your local council, your indicates that this product may not be treated as household waste disposal service or the shop where you household waste.

  • Page 15: Warranty

    (c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products In addition, Electrolux is not liable under this warranty if: Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004...
  • Page 16 NEW ZEALAND phone: 0800 10 66 20 email: customercare@electrolux.co.nz web: westinghouse.co.nz and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. © 2022 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 ANC: A19136411 Rev.B...
