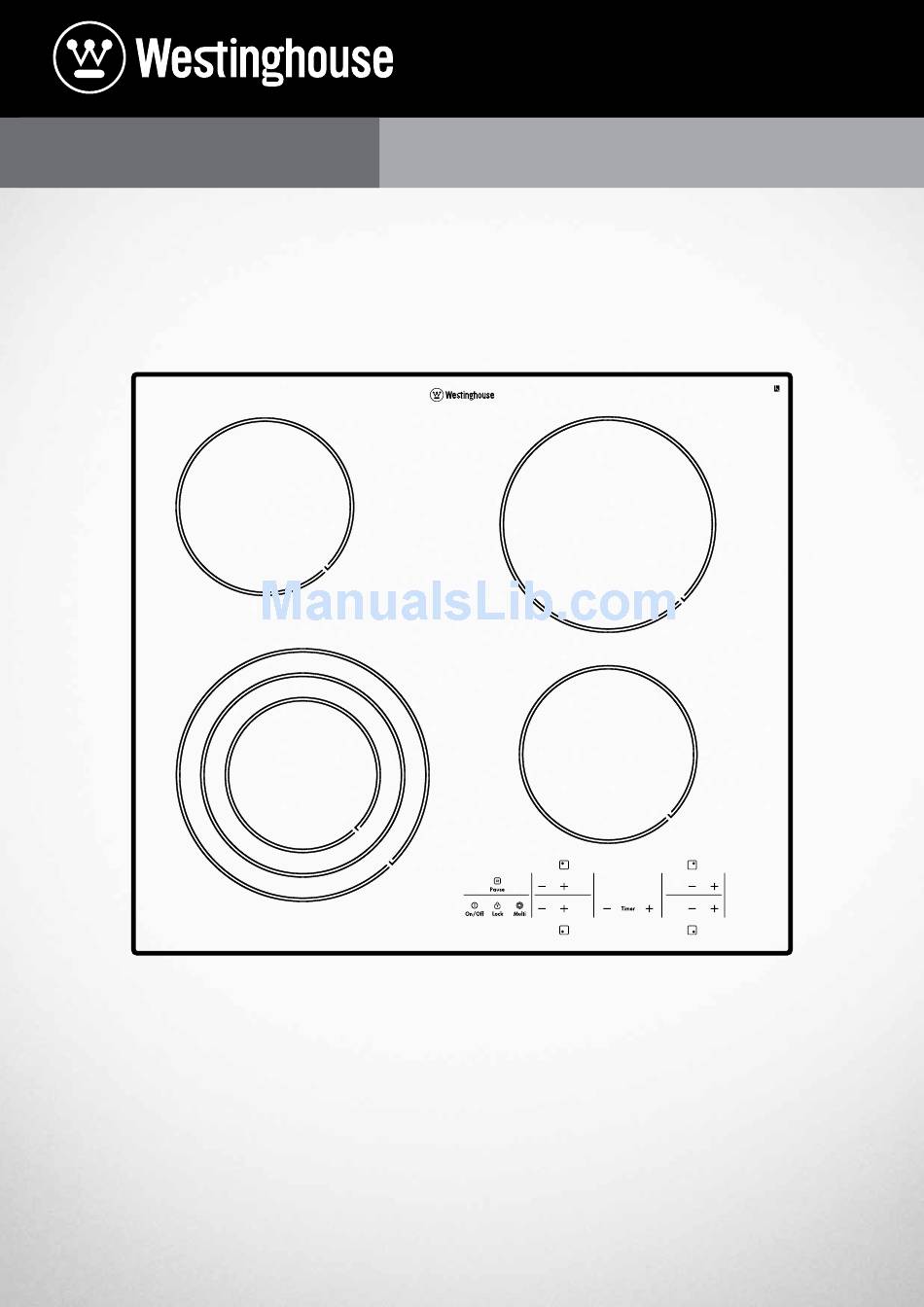

  • Page 1 USER MANUAL CERAMIC COOKTOPS WHC644BA, WHC744BA, WHC944BA, WHC934BA...

  • Page 2: Table Of Contents

    CONGRATULATIONS CONTENTS Dear customer, Important safety instructions ............3 Product description ................4 Congratulations on the purchase of your new cooktop. Operating instructions ..............8 Before you use the cooktop, we recommend that you Helpful hints and tips ..............12 read through the whole user manual which provides the Care and cleaning ................

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS General safety WARNING WARNING • The appliance may only be installed and connected Please comply with these instructions. If you do not, any by trained, registered service engineers. damage resulting is not covered by the warranty. • Built-in appliances may only be used after they have been built into suitable built-in units and work General safety...

  • Page 4: Product Description

    PRODUCT DESCRIPTION Cooking surface layout WHC644BA & WHC744BA Single cooking zone 1200W Single cooking zone 1800W Single cooking zone 1200W Control panel Triple cooking zone 2300/1600/800W WHC944BA Single cooking zone 1200W Single cooking zone 1200W Single cooking zone 1800W Control panel...
  • Page 5 WHC934BA Triple cooking zone 2300/1600/800W Single cooking zone 1200W Single cooking zone 1800W Control panel PRODUCT DESCRIPTION...
  • Page 6 PRODUCT DESCRIPTION (CONTINUED) Control panel layout - WHC644BA, WHC744BA, WHC944BA Control panel layout - WHC934BA Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. SENSOR FIELD FUNCTION It activates and deactivates the appliance...
  • Page 7 Heat setting displays DISPLAY DESCRIPTION The cooking zone is deactivated. The Keep Warm function operates. The cooking zone operates. The Automatic Heat-up function operates. There is a malfunction. A cooking zone is still hot (residual heat). The Lock/Child Safety device operates. The Automatic Switch-Off operates.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS Switching the appliance on and off CONTROL PANEL DISPLAY PILOT LIGHT Switch on lights up Touch for 2 seconds Switch off goes out Touch for 2 seconds / none TIPS & INFORMATION IMPORTANT After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.
  • Page 9 Using the automatic warm-up function All cooking zones are equipped with an automatic warm up function When setting a heat setting using , when starting from , the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.
  • Page 10 OPERATING INSTRUCTIONS (CONTINUED) Using the timer FUNCTION CONDITION OUTCOME AFTER THE TIME HAS ELAPSED Automatic cut-out A heat setting is set Acoustic signal flashes Cooking zone switches off Countdown timer Cooking zones not in use Acoustic signal flashes TIPS & INFORMATION IMPORTANT If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after...
  • Page 11 Changing the time STEP CONTROL PANEL INDICATOR Select cooking Pilot light of the selected cooking zone flashes faster. Time remaining is displayed zone minutes Touch After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Displaying the time remaining for a cooking zone CONTROL PANEL FIELD DISPLAY...

  • Page 12: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Cookware • You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible. • Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolourations on the glass ceramic surface which are difficult or impossible to remove.

  • Page 13: Care And Cleaning

    CARE AND CLEANING WARNING WARNING Watch out! Risk of burns from residual heat. WARNING WARNING Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. WARNING WARNING Sharp cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REMEDY Red rings, limescale or water Cooktop surface has not been cleaned Use a ceramic glass cleaner such • • rings, shiny metallic or other correctly. Cleaning/ maintenance of as Cerapol. discolouration, scratches/ the cooktop surface is not covered shadows, bubbles or other under warranty.

  • Page 15: Technical Data

    TECHNICAL DATA MODEL WHC644BA WHC744BA WHC944BA WHC934BA 949 163 175 949 163 174 949 163 173 949 163 176 Product dimensions 520 x 590 520 x 700 520 x 900 410 x 900 (d x w) mm Cut-out dimensions 490 x 560...

  • Page 16: Installation Instructions

    INSTALLATION INSTRUCTIONS automatic line protecting cut-out, earth leakage trips or WARNING fuse. If this appliance’s mains cable is damaged, it must WARNING be replaced by a special cable (type H05BB-F Tmax This must be read! The laws, ordinances, directives and 90°C;...

  • Page 17: Assembly

    ASSEMBLY WHC644BA & WHC744BA min. 500mm min. 50mm WHC944BA WARNING WARNING Surface temperatures of base exceed 95°C, under bench access must be restricted by use of non-combustible barrier on installation ASSEMBLY...
  • Page 18 ASSEMBLY (CONTINUED) WHC934BA min. 25mm min. 20mm min. 25mm ASSEMBLY...

  • Page 19: Warranty

    Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BUILT-IN OVEN, COOKTOP AND FREESTANDING COOKERS This document sets out the terms and conditions of the product 7. You may not make a claim under this warranty unless the defect claimed warranties for Electrolux Appliances.
  • Page 20 Westinghouse. We are part of the Electrolux family. Share more of our thinking at www.electrolux.com , and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. Part Number: A02346101 Issue A ECN-36240 ©...
