5.4.2

TIG 150, 200

Item Symbol
1
2
3
4
5
6
• Slide the insulator onto the torch head from below.
• Guide the collet body into the torch head from below.
• Insert the electrode into the welding torch with the blunt side from below.
• Screw on the back cap.
• Screw on the gas nozzle by hand.
• Loosen the back cap slightly. Position the electrode correctly and tighten the back cap by hand.
099-011623-EW501
21.03.2023
Description 0
Torch body
Insulation
Collet
Electrode
Back cap
Gas nozzle
Design and function

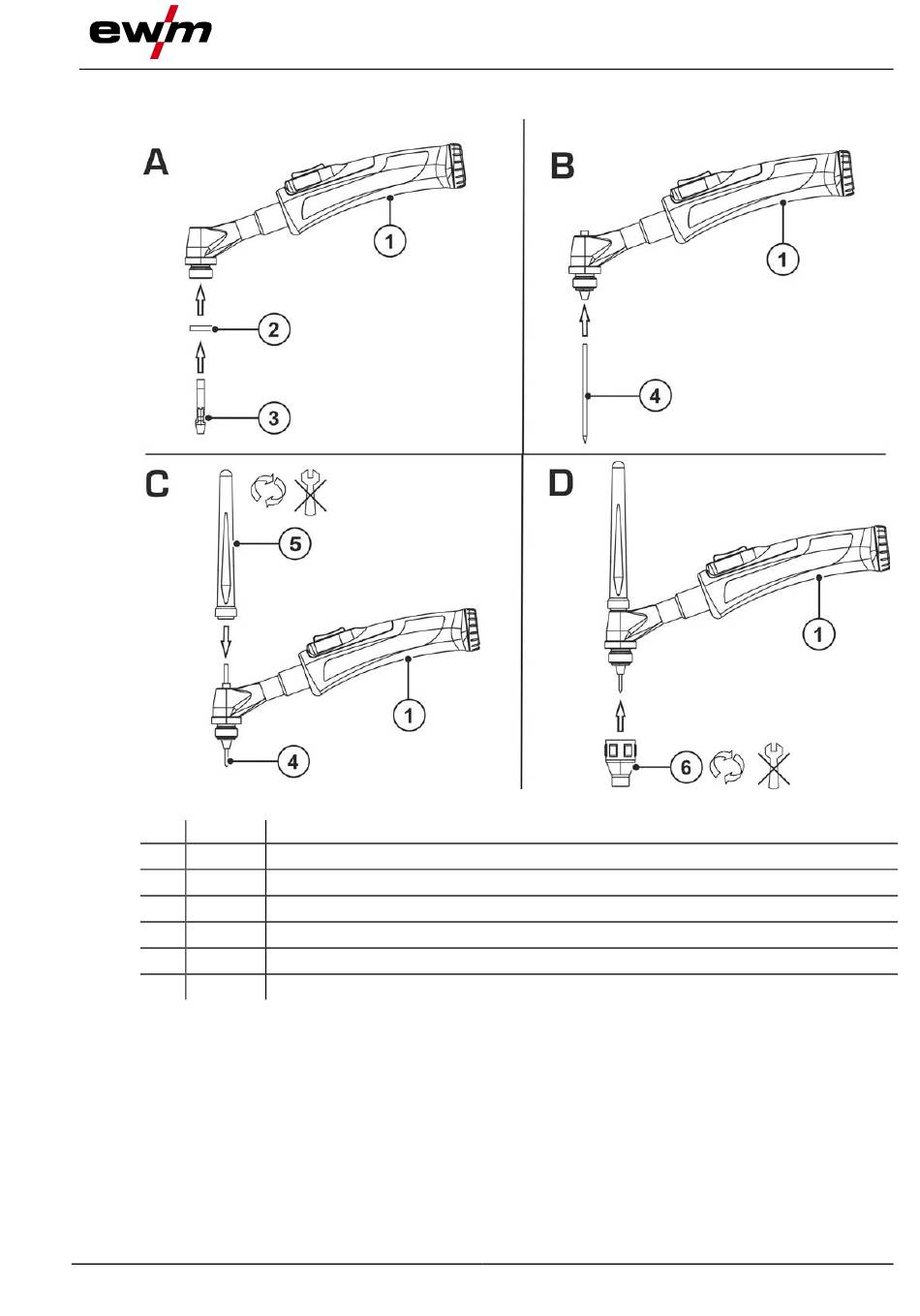

Figure 5-2
Equipping the welding torch
