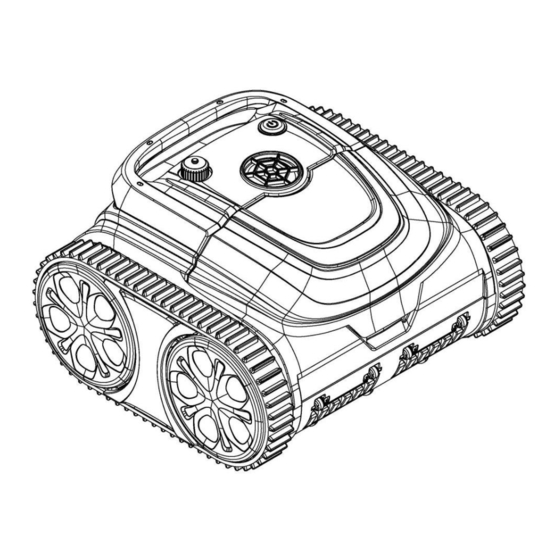

- Page 1 USER MANUAL ROBOTIC POOL FLOOR CLEANER WY200 READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Thank you for purchasing WYBOT Robotic Pool Cleaner. If you have any question or issue, please contact us for customer service.
- Page 2 Important tips: It is strictly forbidden to use this machine outsides the use conditions of this machine. Please read this user manual carefully before use. Please use the product according to the instructions in the user manual. Our company is not responsible for any loss and injury caused by improper use.
- Page 3 When the cleaner is placed on the shore, please do not turn it on, otherwise it will affect the normal use of the cleaner. Clean the filter box in time after each use, so as not to affect the work of the cleaner due to excessive dirt in the filter box.
- Page 4 Attention: 1. When putting the cleaner into the swimming pool, the bottom of the cleaner shall face the pool wall, hold the handle and put the cleaner into the water. At the same time, turn on the switch, and the cleaner will slowly discharge the gas, and after 20s, it starts to work (The gas in the cleaner must be completely discharged, otherwise gas will affect the normal work of the machine).
-
Page 5: Table Of Contents
Contents I. Brief introduction to product ..................6 II. Safety ........................6 III. Specifications and parameters ................7 IV. Instructions for use ....................8 4.1 Description of buttons and indicator lights ..........8 4.2 Battery charging method ................9 4.2.2 Function description of charger indicator lights ........9 4.3 Cleaning of filter box ................... -
Page 6: Brief Introduction To Product
I. Brief introduction to product WY200 series robotic pool floor cleaner is a new and efficient robotic pool floor cleaning equipment. It can automatically clean the swimming pool without discharge of the pool water. At the same time, through the filtration system, it collects the suspended solids and sediments in the water. -
Page 7: Specifications And Parameters
III. Specifications and parameters 1. Input voltage of lithium battery charger: 100Vac-240Vac 2. Rated frequency: 47-63Hz. 3. Nominal voltage: 25.2 V, nominal capacity: 6.4AH 4. Power of the whole machine: 65W 5. Rated output current of charger: 3A 6. Rated output voltage of charger: 29.4V 7. -
Page 8: Instructions For Use
IV. Instructions for use 4.1 Description of buttons and indicator lights Status indicator lights Switch button Symb Description Description of functions Press the ON/OFF button in the shutdown state, the ON/OFF button blue light goes on, it indicates startup, press the button of the machine again, the red light goes on, it indicates shutdown, and after shutdown, the red light goes off. -
Page 9: Battery Charging Method
4.2 Battery charging method 4.2.1 The operation steps of charging Make sure that the machine is turned off (the indicator lights are completely off). When charging, please take the machine out from the swimming pool, and place the charger and the machine indoors or in a splash-resistant facility for charging. - Page 10 Figure 4-1 Figure 4-2 4.2.2 Take out the filter box from the machine (Figure 4-3). Figure 4-3 4.2.3 Cleaning of the filter box Rinse the dirt of the filter screen with clear water (Figure 4-4), Figure 4-4 4.2.4 Installation of the filter box Reinstall the filter box to the machine.
-
Page 11: Acquisition Of Mobile App And Connection
perfectly. V. Acquisition of mobile App and connection: 1. Download the App: 1) In case of Android phones, search google play for winnygo, and download it 2) In case of iPhone, searches the app store for winnygo, download it 2. Turn on the machine, the machine light is blue and always on 3. -
Page 12: Installation Of Top Floating Blocks (Standby)
VI. Installation of top floating blocks (standby) When it is difficult for the machine climb the wall, it cannot clean the waterline, and it tilts seriously when climbing the wall, solve the problems according to the figure. If the machine climbs the wall normally, the following operations are not required. -
Page 13: Packing Details
VII. Packing details Specificatio Quantity Name Purpose Remarks (pieces) Main machine body Put it directly in the WY200 of the cleaner packing box Hook User manual, certificates of conformity Charger Floating block... - Page 14 All WYBOT products have been inspected against defects in materials and workmanship prior to leaving factory. WYBOT is happy to offer warranty for the repair or replacement of pool products for two (2) years on motor and PCB, and one (1) year on battery pack from the date of purchase.
