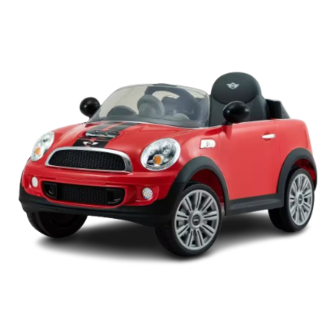

Rollplay MINI COOPER S Owner's Manual And Assembly Instructions
  1. Manuals
  2. Brands
  3. Rollplay Manuals
  4. Motorized Toy Car
  5. Mini Cooper S
  6. Owner's manual and assembly instructions

Rollplay MINI COOPER S Owner's Manual And Assembly Instructions

Hide thumbs Also See for MINI COOPER S:
Table of Contents

Advertisement

Quick Links

®
Owner's Manual and Assembly Instructions
Model #: W456B
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V MINI COOPER S
25701652 05/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI COOPER S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay MINI COOPER S

Summary of Contents for Rollplay MINI COOPER S

  • Page 1 6V MINI COOPER S ® Owner’s Manual and Assembly Instructions Model #: W456B Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please keep your sales receipt and register your product at www.rollplay.com.
  • Page 3 E-mail Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please provide proof of purchase. Keep your sales receipt and register your product at www.rollplay.com, as we require proof of purchase. customerservice@rollplay.com Read this entire manual prior to assembly to ensure safe operation of the vehicle.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Steering Wheel ......13 Attach the Speedometer/Windshield ..14 Attach the Spoiler/Mirrors ......15 Attach the Seat ........16 Battery Removal ........17 Operating Instructions ......18...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines or serious injury or death may occur. NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in the vehicle. Direct adult supervision is REQUIRED. ALWAYS use common sense and safe practices when using the vehicle.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. PROPOSITION 65 WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.

  • Page 8: Parts

    Parts Not Included: • Phillips screwdriver • 2 AA batteries 12 17 1. Manual 8. Rear Wheel (2) 15. Windshield 2. Battery 9. Rims (4) 16. Charger 3. Steering Wheel 10. Small Washers (4+1) 17. Nut 4. Seat 11. Large Washers (4+1) 18.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS (NO MORE THAN 30 HOURS) BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and the Seat power switch is turned off.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels Small washer Front wheel Small washer Snap pin 1. Slide the large washer onto the front axle. 2. Slide the front wheel onto the front axle. 3. Slide the small washer onto the front axle. attached. 5.

  • Page 11: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel Rear wheel Left washer Snap Assemble the Left Rear Wheel 1. Turn the car body upside down, pull the rear axle out of the hole, use scissors to cut off the xing cable tie on the gear box (as shown in gure a).

  • Page 12: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Large washer Rear wheel Large washer Snap Assemble the Right Rear Wheel: 1. Slide the large washer onto the rear axle. 2. Slide the right rear wheel onto the rear axle. The side with the gear teeth faces inward.

  • Page 13: Attach The Steering Wheel

    Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly before attaching. 2. Insert the steering wheel into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod.

  • Page 14: Attach The Speedometer/Windshield

    Attach the Speedometer/Windshield 1. Align the speedometer (13) with the slot on the dashboard. 2. Push the speedometer slightly until you hear the click to complete the assembly. 1. Align the windshield (15) with the two side slots between the dashboard and the body.

  • Page 15: Attach The Spoiler/Mirrors

    Attach the Spoiler/Mirrors 1. Line up the clips on the rear spoiler (5) with the slots on the back of the car body. 2. Push the rear spoiler until it clicks and connects with the car body to complete the assembly. Please note that the left and right mirrors are different.

  • Page 16: Attach The Seat

    Attach the Seat seat Ensure the red battery connector is attached to the red engine connector in the battery compartment before attaching the seat. 1. Position the seat (4) over the battery compartment. 2. Slide the seat onto the guides located in front of the rear spoiler. 3.

  • Page 17: Battery Removal

    Battery Removal Screw Battery strap Battery 1. Unlock and remove the seat. 2. Disconnect the red battery connector (A) from the red engine connector (B). 3. Loosen screw and remove the battery strap. 4. Remove the battery from the vehicle. Note: It is not necessary to remove the battery for charging.

  • Page 18: Operating Instructions

    Operating Instructions Shifter Horn Engine Sound Steering Wheel Pedal Power Switch • To turn on the vehicle, turn the power switch to “I.” To turn off the vehicle, turn the power switch to “O.” • Push the shifter forward to move forward. Pull the shifter backward to go in reverse.

  • Page 19: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst •...

  • Page 20: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Customer Service on Page 24 for more information.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle will not move Low Voltage Recharge the battery for minimum of 8 hours. Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 22 Troubleshooting Guide (Continued) FCC Information Problem Potential Cause Solution Intermittent operation Thermal fuse cutting in, Fuse will automatically rest due to too much weight after 10 seconds or use on unsuitable terrain Loose electrical Check to ensure connections connection are secure Car working but lights are Loose or broken wiring Check to ensure connections...

  • Page 23: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Customer Service

    Hours: 8 AM - 5 PM EST, Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com.

  • Page 25: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 26: Notes

    Notes...

  • Page 27: Product Registration

    City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
