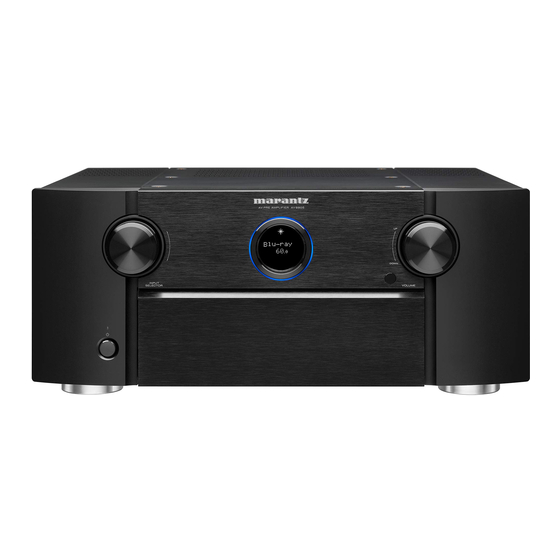

Page 1 Contents Connections Playback Settings Tips Appendix AV Pre Tuner AV8805 Owner’s Manual Front panel Display Rear panel Remote Index...
Page 2 Contents Connections Playback Settings Tips Appendix Accessories Connecting a TV Connection 1 : TV equipped with an HDMI connector and Inserting the batteries compatible with the ARC (Audio Return Channel) / eARC Operating range of the remote control unit (Enhanced Audio Return Channel) Features Connection 2 : TV equipped with an HDMI connector and High quality sound...
Page 3 Contents Connections Playback Settings Tips Appendix Playback Listening to Internet Radio Listening to Internet Radio Basic operation Playing back files stored on a PC or NAS Turning the power on Playing back files stored on a PC or NAS Selecting the input source Getting the HEOS App Adjusting the volume HEOS Account...
Page 4 Contents Connections Playback Settings Tips Appendix Convenience functions Sleep timer function Adding to HEOS Favorites Using the sleep timer Playing back HEOS Favorites Smart select function Deleting a HEOS Favorites Calling up the settings Adjusting the audibility of dialog and vocals (Dialog Enhancer) Changing the settings Adjusting the volume of each channel to match the input source Panel lock function...
Page 5 Contents Connections Playback Settings Tips Appendix Settings Inputs Input Assign Menu map Source Rename Menu operations Hide Sources Audio Source Level Subwoofer Level Adjust Input Select Bass Sync Speakers Surround Parameter Audyssey ® Setup M-DAX Procedure for speaker settings (Audyssey ®...
Page 6 Contents Connections Playback Settings Tips Appendix Network Operating external devices with the remote control unit Information Registering preset codes Connection Operating devices Wi-Fi Setup Checking registered preset codes Settings Initializing registered preset codes Network Control Operating learning function Friendly Name Remembering remote control codes from other devices Diagnostics Delete saved remote control codes...
Page 7 Contents Connections Playback Settings Tips Appendix Tips Appendix Tips About HDMI Troubleshooting Video conversion function Power does not turn on / Power is turned off Playing back a USB memory devices Operations cannot be performed through the remote control unit Playing back a Bluetooth device Display on this unit shows nothing Playing back a file saved on a PC or NAS...
Page 8 Playback Settings Tips Appendix Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. Accessories Check that the following parts are supplied with the product.
Page 9 Contents Connections Playback Settings Tips Appendix Inserting the batteries NOTE 0 To prevent damage or leakage of battery fluid: 0 Do not use a new battery together with an old one. Remove the rear lid in the direction of the arrow and 0 Do not use two different types of batteries.
Page 10 Contents Connections Playback Settings Tips Appendix Features DTS Virtual:X (v p. 329) High quality sound DTS Virtual:X technology features DTS’s proprietary virtual height and virtual surround processing to deliver an immersive sound experience Current feedback amplifier from any type of input source (stereo to 7.1.4 channel) and speaker This unit uses a high-speed current feedback amplifier circuit for its configuration.
Page 11 Contents Connections Playback Settings Tips Appendix Audyssey LFC™ (Low Frequency Containment) (v p. 194) Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 218) Audyssey LFC™ solves the problem of low frequency sounds The unit has two subwoofer output capability and can adjust the level disturbing people in neighboring rooms or apartments.
Page 12 Contents Connections Playback Settings Tips Appendix Auro-3D This unit is equipped with an Auro-3D decoder. With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR), Center Height (CH/optional) and Top Surround (TS/optional) are added to a conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive. You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
Page 13 Contents Connections Playback Settings Tips Appendix Digital video processor upscales analog video signals (SD High performance resolution) to HD (720p/1080p) and 4K (v p. 206) 4K 60Hz input/output supported Up to 1080p Up scaling This unit is equipped with a 4K video upscaling function that allows When 4K Ultra HD (High Definition) is used, an input/output speed of 60 analog video or SD (Standard Definition) video to be output via HDMI at frames per second (60p) is achieved for video signals.
Page 14 Contents Connections Playback Settings Tips Appendix HDMI connections enable connection to various digital AV The device is equipped with a AirPlay ® function in addition to devices (8 inputs, 3 outputs) network functions such as Internet radio etc. (v p. 135) You can enjoy a wide variety of content, including listening to Internet For connection to a broad range of digital sources, this unit features 8 Radio, playing audio files stored on your PC.
Page 15 Contents Connections Playback Settings Tips Appendix Playback of DSD and FLAC files via USB and networks Multi-Room audio (v p. 147) This unit supports the playback of high resolution audio formats such as 【MAIN ZONE】【ZONE2】/【ZONE3】 DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.
Page 16 HEOS App (available for iOS, z Download the appropriate “Marantz 2016 AVR Remote” App for your iOS or Android and Amazon devices), you can explore, browse, and play Android devices. This unit needs to be connected to the same LAN or Wi-Fi music from your own music library or from many online streaming music (wireless LAN) network that the iPhone or iPod touch is connected to.
Page 17 Contents Connections Playback Settings Tips Appendix Easy operation “Setup Assistant” provides easy-to-follow setup instructions First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc. Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability.
Page 18 Contents Connections Playback Settings Tips Appendix Part names and functions Front panel For details, see the next page. Front panel Display Rear panel Remote Index...
Page 19 Contents Connections Playback Settings Tips Appendix C INPUT SELECTOR knob This selects the input source. (v p. 101) D Main display This displays various pieces of information. (v p. 23) E Remote control sensor This receives signals from the remote control unit. (v p. 9) F VOLUME knob This adjusts the volume level.
Page 20 Contents Connections Playback Settings Tips Appendix With the door open C M-DAX button/indicator This enables the M-DAX mode. (v p. 189) This lights when the M-DAX mode is selected. D Dynamic Volume button (DYNAMIC VOL) This switches the Dynamic Volume settings. (v p. 194) E Sub display This displays various pieces of information.
Page 21 Contents Connections Playback Settings Tips Appendix M Information button (INFO) This displays the status information on the TV screen. (v p. 267) N SLEEP button This sets the sleep timer. (v p. 164) O HDMI OUT button This sets the HDMI monitor output. (v p. 199) Q0 Q1 Q2 Q3 Q4 Q6 Q7...
Page 22 Contents Connections Playback Settings Tips Appendix U Headphones jack (PHONES) This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors. NOTE 0 To prevent hearing loss, do not raise the volume level excessively when using headphones.
Page 23 Contents Connections Playback Settings Tips Appendix Display o Main display The input source name, sound mode, setting values and other information are displayed here. n Standard display n Tuner display These light up according to the reception conditions when the input source is set to “Tuner”.
Page 24 Contents Connections Playback Settings Tips Appendix n Sleep timer indicator n ZONE2/ZONE3 power on display G This lights up when ZONE2 (another room) power is turned on. F This lights when the sleep mode is selected. (v p. 164) (v p. 176) H This lights up when ZONE3 (another room) power is turned on.
Page 25 Contents Connections Playback Settings Tips Appendix o Sub display A Input signal indicators D Tuner reception mode indicators The respective indicator will light corresponding to the input signal. These light up according to the reception conditions when the input (v p. 216) source is set to “Tuner”.
Page 26 Contents Connections Playback Settings Tips Appendix L Input/output signal channel indicators The channel for input/output signals is displayed according to the setting configured for “Channel Indicators”. (v p. 262) When “Channel Indicators” is set to “Output” (Default) These light when audio signals are being output from the speakers. When “Channel Indicators”...
Page 27 Contents Connections Playback Settings Tips Appendix Rear panel q Q1 e r t NETWORK NETWORK HDMI IN HDMI IN 4K / HDCP2.2 4K / HDCP2.2 (ASSIGNABLE) (ASSIGNABLE) HDMI OUT HDMI OUT 4K / HDCP2.2 4K / HDCP2.2 1 CBL/SAT 1 CBL/SAT 2 DVD 2 DVD 3 Blu-ray...
Page 28 Contents Connections Playback Settings Tips Appendix B SIGNAL GND terminal Used to connect a ground wire for the turntable. (v p. 90) C USB port (POWER SUPPLY) NETWORK NETWORK HDMI IN HDMI IN 4K / HDCP2.2 4K / HDCP2.2 (ASSIGNABLE) (ASSIGNABLE) HDMI OUT HDMI OUT...
Page 29 Contents Connections Playback Settings Tips Appendix I Video connectors (VIDEO) Used to connect devices equipped with video connectors. “Connection 3 : TV equipped without an HDMI connector” (v p. 84) NETWORK NETWORK HDMI IN HDMI IN 4K / HDCP2.2 4K / HDCP2.2 (ASSIGNABLE) (ASSIGNABLE) HDMI OUT...
Page 30 Contents Connections Playback Settings Tips Appendix Q BALANCED XLR PRE OUT connectors Used to connect a power amp with BALANCED XLR input connectors. NETWORK NETWORK HDMI IN HDMI IN 4K / HDCP2.2 4K / HDCP2.2 (ASSIGNABLE) (ASSIGNABLE) HDMI OUT HDMI OUT 4K / HDCP2.2 4K / HDCP2.2 1 CBL/SAT...
Page 31 Contents Connections Playback Settings Tips Appendix Remote control unit A Display A LEARN indicator This is lit when setting the learning function for the remote control unit. (v p. 278) B Information display This displays “AVP” when operating this unit. This displays the input source name when operating an external device.
Page 32 Contents Connections Playback Settings Tips Appendix E Device operation buttons (DEVICE X / DEVICE MENU) These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. (v p. 269) F Input source select buttons These select the input source.
Page 33 Contents Connections Playback Settings Tips Appendix L HOME button This takes you to the Home screen (Top screen) when the input source is “HEOS Music”. (v p. 104) M System buttons These perform playback related operations. Tuning up / Tuning down buttons (TUNE +, –) These select either FM broadcast or AM broadcast.
Page 34 Contents Connections Playback Settings Tips Appendix S TV operation buttons (TV X / TV MENU / TV INPUT) These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. (v p.
Page 35 Contents Connections Playback Settings Tips Appendix o Contents o Cables used for connections Provide necessary cables according to the devices you want to Speaker installation connect. Connecting a power amp Connecting a TV Speaker cable Connecting a playback device Connecting a USB memory device to the USB port Connecting an FM/AM antenna Subwoofer cable Connecting to a home network (LAN)
Page 36 Contents Connections Playback Settings Tips Appendix Speaker installation Determine the speaker system depending on the number of speakers you Place the FRONT left and right speakers an are using and install each speaker and subwoofer in the room. FL/FR equal distance from the main listening position. Speaker installation is explained using this example of a typical (Front speaker left/ The distance between each speaker and your TV...
Page 37 Contents Connections Playback Settings Tips Appendix Place the FRONT HEIGHT left and right speakers FHL/FHR directly above the front speakers. Mount them as (Front height speaker close to the ceiling as possible and aim them left/right): towards the main listening position. Mount the TOP FRONT left and right speakers on TFL/TFR the ceiling slightly in front of your main listening...
Page 38 Contents Connections Playback Settings Tips Appendix SHL/SHR Place the SURROUND HEIGHT left and right (Surround height speakers directly above the surround speakers. speaker left/right): Place the CENTER HEIGHT speaker directly above the center speaker. Mount them as close to (Center height the ceiling as possible and aim them towards the speaker): main listening position.
Page 39 Contents Connections Playback Settings Tips Appendix About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward- pointing speaker that is placed on the floor. You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
Page 40 Contents Connections Playback Settings Tips Appendix Height speakers layout 0 This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation. 0 Dolby Atmos is not supported in a 5.1-channel or less speaker configuration. 0 IMAX DTS:X / DTS:X can be selected regardless of the speaker configuration.
Page 41 Contents Connections Playback Settings Tips Appendix o When 7.1-channel speakers are installed using o When 9.1-channel speakers are installed using surround back speakers front wide speakers SW C Listening position z1 22° - 30° z2 90° - 110° z3 135° - 150° 1 22°...
Page 42 Contents Connections Playback Settings Tips Appendix o When 5.1-channel speakers are installed o Layout including height speakers and ceiling speakers n Height speaker layout example Combination of 5.1-channel layout and front height/rear height/center height speakers. SW C z1 22° - 30° z2 120° Front panel Display Rear panel...
Page 43 Contents Connections Playback Settings Tips Appendix n Ceiling speaker layout example n Dolby Atmos Enabled speaker layout example Combination of 5.1-channel layout and top front/top middle/top rear Combination of 7.1-channel layout and front Dolby/surround Dolby/ speakers. back Dolby speakers. Front panel Display Rear panel Remote...
Page 44 Contents Connections Playback Settings Tips Appendix n Auro-3D layout example Combination of 5.1-channel speakers with front height/surround height/ center height/top surround speakers. 0 For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
Page 45 Connecting a power amp Before connecting a power amp Connect a power amp (sold separately) to the PRE OUT connector of G AV8805 BALANCED XLR PRE OUT connector PIN arrangement H this unit. This unit has UNBALANCED RCA PRE OUT connector and BALANCED XLR PRE OUT connector.
Page 46 Playback Settings Tips Appendix o Example of connections to Marantz MM8077 and MM7025 power amps Connecting the UNBALANCED RCA PRE OUT connector When using UNBALANCED RCA connectors for connection, set the input change switch to “UNBALANCED” on MM8077. 1 CBL/SAT...
Page 47 Contents Connections Playback Settings Tips Appendix Connecting the BALANCED XLR PRE OUT connector When using BALANCED XLR connectors for connection, set the input change switch to “BALANCED” on MM8077. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT...
Page 48 Contents Connections Playback Settings Tips Appendix o About the cable labels (supplied) for channel identification Attach the cable label corresponding to each speaker to each speaker cable. This makes it easier to connect the speakers to the power amp. Channel Color Channel Color...
Page 49 Contents Connections Playback Settings Tips Appendix Refer to the table and attach the label to each speaker cable. G How to attach the cable labels H Speaker Power amp Front panel Display Rear panel Remote Index...
Page 50 Contents Connections Playback Settings Tips Appendix Speaker configuration and “Amp Assign” settings This system configuration plays back 13-channels. You can create speaker systems such as a bi-amp connection by changing the “Amp Assign” settings. Perform “Amp Assign” settings to suit the speaker configuration to be installed. (v p. 228) Playback speaker in MAIN ZONE “Amp Assign”...
Page 51 Contents Connections Playback Settings Tips Appendix Refer to the example connection for “Example connection for the Auro-3D 9.1-channel system” (v p. 65) when playing Auro-3D with a 9.1- channel system using the basic 5.1-channel system and the front height 0 In addition to the connections described in p.52 - 79, this unit allows for various and surround height speakers.
Page 52 Contents Connections Playback Settings Tips Appendix Connecting 5.1-channel speakers This serves as a basic 5.1-channel surround system. GExampleH UNBALANCED RCA connector connection 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER 1 CBL/SAT...
Page 53 Contents Connections Playback Settings Tips Appendix Connecting 7.1-channel speakers GExampleH UNBALANCED RCA connector connection o Example connections when using surround back speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME...
Page 54 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connections when using front wide speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front wide speakers. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT...
Page 55 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connections when using ceiling speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT...
Page 56 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connections when using height speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT...
Page 57 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connections when using Dolby Atmos Enabled speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT...
Page 58 Contents Connections Playback Settings Tips Appendix Connecting 9.1-channel speakers o Example connection when using surround back and front wide speakers GExampleH UNBALANCED RCA connector connection 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER...
Page 59 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using one set of ceiling speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER 1 CBL/SAT 1 CBL/SAT...
Page 60 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using two sets of ceiling speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER 1 CBL/SAT 1 CBL/SAT...
Page 61 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using one set of height speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER 1 CBL/SAT 1 CBL/SAT...
Page 62 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using two sets of height speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER 1 CBL/SAT 1 CBL/SAT...
Page 63 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using one set of Dolby Atmos Enabled speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER...
Page 64 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using two sets of Dolby Atmos Enabled speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER...
Page 65 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection for the Auro-3D 9.1- channel system This speaker configuration is optimized for Auro-3D playback. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT...
Page 66 Contents Connections Playback Settings Tips Appendix Channels output from the HEIGHT1, HEIGHT2 RCA connectors and HEIGHT1, HEIGHT2 XLR connectors can be changed to the following patterns according to the speaker systems being used. Set this from “Amp Assign” in the menu. (v p. 228) Combination of height speakers to be used Connected connectors Number of height/...
Page 67 Contents Connections Playback Settings Tips Appendix Connecting 13.1-channel speakers GExampleH UNBALANCED RCA connector connection o Example connection when using three sets of ceiling speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER...
Page 68 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using two sets of height speakers and one set of ceiling speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER...
Page 69 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using two sets of height speakers and one set of front wide speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT...
Page 70 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection when using three sets of Dolby Atmos Enabled speakers 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT CENTER CENTER SUBWOOFER SUBWOOFER...
Page 71 Contents Connections Playback Settings Tips Appendix GExampleH UNBALANCED RCA connector connection o Example connection for the Auro-3D 13.1- channel system This speaker configuration is optimized for Auro-3D playback. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK SURROUND BACK FRONT FRONT...
Page 72 Contents Connections Playback Settings Tips Appendix Connecting 15.1-channel speakers This system can connect with up to 15.1-channel speakers and simultaneously play up to 13.1-channels for Dolby Atmos and Auro-3D playback. Use the Front Height, Top Middle or Rear Height speakers for Dolby Atmos playback. Use the Front Height, Rear Height, Center Height or Top Surround speakers for Auro-3D playback.
Page 73 Contents Connections Playback Settings Tips Appendix Combinations of height speakers to be used Connected pre-out connectors Number of Number of HEIGHT 4/ height / ceiling Dolby Combination pattern HEIGHT 1 HEIGHT 2 HEIGHT 3 FRONT speakers Speakers WIDEz1 Front Height Front Height Top Front Top Front...
Page 74 Contents Connections Playback Settings Tips Appendix Combinations of height speakers to be used Connected pre-out connectors Number of Number of HEIGHT 4/ height / ceiling Dolby Combination pattern HEIGHT 1 HEIGHT 2 HEIGHT 3 FRONT speakers Speakers WIDEz1 Front Dolby & Top Rear Front Dolby Top Rear Front Dolby &...
Page 75 Contents Connections Playback Settings Tips Appendix Combinations of height speakers to be used Connected pre-out connectors Number of Number of HEIGHT 4/ height / ceiling Dolby Combination pattern HEIGHT 1 HEIGHT 2 HEIGHT 3 FRONT speakers Speakers WIDEz1 Front Height & Rear Height & Top Front Height Rear Height L: Top Surround...
Page 76 Contents Connections Playback Settings Tips Appendix Combinations of height speakers to be used Connected pre-out connectors Number of Number of HEIGHT 4/ height / ceiling Dolby Combination pattern HEIGHT 1 HEIGHT 2 HEIGHT 3 FRONT speakers Speakers WIDEz1 Front Height & Surr. Height & Front Height Rear Height Surr.
Page 77 Contents Connections Playback Settings Tips Appendix Combinations of height speakers to be used Connected pre-out connectors Number of Number of HEIGHT 4/ height / ceiling Dolby Combination pattern HEIGHT 1 HEIGHT 2 HEIGHT 3 FRONT speakers Speakers WIDEz1 Front Height & Top Middle & Rear Front Height Rear Height Top Middle...
Page 78 Contents Connections Playback Settings Tips Appendix Connecting 11.1-channel speakers: Bi-amp connection of front speakers This system plays back 11.1-channels. You can use the bi-amp GExampleH UNBALANCED RCA connector connection connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification.
Page 79 Contents Connections Playback Settings Tips Appendix Connecting 11.1-channel speakers: Second pair of front speakers This system enables switching playback between front speakers A and B GExampleH UNBALANCED RCA connector connection as desired. 1 CBL/SAT 1 CBL/SAT 4 GAME 4 GAME FRONT FRONT SURROUND BACK...
Page 80 Contents Connections Playback Settings Tips Appendix Connecting a TV Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
Page 81 Contents Connections Playback Settings Tips Appendix Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) Use an HDMI cable to connect a TV that is compatible with the ARC / eARC function to this unit. Set “HDMI Control”...
Page 82 Contents Connections Playback Settings Tips Appendix 0 When using the ARC / eARC function, connect to the HDMI MONITOR 1 connector. 0 eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this setting exists on your television.
Page 83 Contents Connections Playback Settings Tips Appendix Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
Page 84 Contents Connections Playback Settings Tips Appendix Connection 3 : TV equipped without an HDMI connector Use a component video or a video cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL VIDEO COMPONENT VIDEO...
Page 85 Contents Connections Playback Settings Tips Appendix Connecting a playback device This unit is equipped with three types of video input connectors (HDMI, component video and composite video) and three types of audio input connectors (HDMI, digital audio and audio). Select input connectors on this unit according to the connectors equipped on the device you want to connect. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.
Page 86 This unit is equipped with BALANCED XLR IN connectors. Use these connectors if your device has an XLR connector as an audio output connector. When using BALANCED XLR IN connectors, assign “XLR” for “Input Assign” – “ANALOG”. (v p. 213) By default, these connectors are disabled. G AV8805 BALANCED XLR IN connector PIN arrangement H A GND (Ground) B HOT (+) C COLD (–)
Page 87 Contents Connections Playback Settings Tips Appendix Connecting a set-top box (Satellite tuner/cable TV) This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Satellite tuner/ Satellite tuner/...
Page 88 Contents Connections Playback Settings Tips Appendix Connecting a DVD player or Blu-ray Disc player This explanation uses the connection with a DVD player or Blu-ray Disc player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) DVD player DVD player...
Page 89 Contents Connections Playback Settings Tips Appendix Connecting a video camcorder or game console This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console. (HDMI incompatible device) Video Video camcorder...
Page 90 Contents Connections Playback Settings Tips Appendix Connecting a turntable This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer. If you set this unit’s input source to “Phono”...
Page 91 Contents Connections Playback Settings Tips Appendix Connecting a device with a multi-channel output connector You can connect this unit to an external device fitted with multi-channel sound audio output connectors to enjoy music and video. To play analog signals input from 7.1CH IN connectors, set “Input Mode” to “7.1CH IN”. (v p. 216) Devices with a multi-channel output connector (Blu-ray Disc player, DVD player, External decoder etc.)
Page 92 USB memory device 0 Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter. 0 The USB port on the rear panel can only be used to supply power (5 V/1.5 A). It cannot be used to play music files. (v p. 28) NOTE 0 USB memory devices will not work via a USB hub.
Page 93 Contents Connections Playback Settings Tips Appendix Connecting an FM/AM antenna Connect the antenna, tune in to a broadcast and then move the antenna to AM loop antenna the location where there is least noise. Then use tape, etc. to fix the (supplied) antenna in this location.
Page 94 Contents Connections Playback Settings Tips Appendix o AM loop antenna assembly o Using the AM loop antenna Suspending on a wall Put the stand section through the bottom of the loop Suspend directly on a wall without assembling. antenna from the rear and bend it forward. Insert the projecting part into the square hole in the stand.
Page 95 Contents Connections Playback Settings Tips Appendix Connecting to a home network (LAN) This unit can connect to a network using a wired LAN or wireless LAN. Wired LAN You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.
Page 96 Contents Connections Playback Settings Tips Appendix Wireless LAN 0 When using this unit, we recommend you use a router equipped with the following When connecting to the network via wireless LAN, connect the external functions: antennas for Bluetooth/wireless connectivity connection to the rear panel 0 Built-in DHCP server and stand them upright.
Page 97 Remotely connecting Marantz devices without visual contact When you are using a Marantz device other than this unit that supports remote connection, you can transmit remote control signals just by You can connect an external IR receiver to the REMOTE CONTROL...
Page 98 Contents Connections Playback Settings Tips Appendix DC OUT jacks When a device with DC IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The DC OUT jack outputs a maximum 12 V DC/150 mA electrical signal. 12 V DC/150 mA trigger-compatible device NETWORK NETWORK...
Page 99 Contents Connections Playback Settings Tips Appendix Connecting the power cord After completing all the connections, insert the power plug into the power outlet. HDMI OUT HDMI OUT 4K / HDCP2.2 4K / HDCP2.2 5 MEDIA PLAYER 6 AUX2 6 AUX2 7 CD 7 CD ZONE2...
Page 100 Contents Connections Playback Settings Tips Appendix o Contents Playback network audio/service Listening to Internet Radio Basic operation Playing back files stored on a PC or NAS Turning the power on Getting the HEOS App Selecting the input source AirPlay function Adjusting the volume Spotify Connect function Turning off the sound temporarily (Muting)
Page 101 Contents Connections Playback Settings Tips Appendix Basic operation Turning the power on Press POWER X to turn on power to the unit. POWER X 0 You can press the input source select button when the unit is in standby mode to turn on the power.
Page 102 Contents Connections Playback Settings Tips Appendix Adjusting the volume Playback a DVD player/Blu-ray Disc player Use VOLUME df to adjust the volume. The following describes the procedure for playing DVD player/Blu-ray Disc player. 0 The variable range differs according to the input signal and channel level setting. Prepare for playback.
Page 103 Contents Connections Playback Settings Tips Appendix Playing a USB memory device Playing back music files stored on a USB memory device. Only USB memory devices conforming to mass storage class standards can be played on this unit. This unit is compatible with USB memory devices in “FAT16” or “FAT32”...
Page 104 Contents Connections Playback Settings Tips Appendix Playing files stored on USB memory Browse the music on your USB memory device and devices select something to play. Insert a USB memory device into the USB port. 0 When you select something to play you will be asked how you want to queue up your music.
Page 105 2:45 -2:21 playing the file. NOTE 0 Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device. Front panel...
Page 106 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Adjusting the audibility of dialog and vocals (Dialog Enhancer)” (v p. 142) “Adjusting the volume of each channel to match the input source (Channel Level Adjust)” (v p. 143) “Adjusting the tone (Tone)”...
Page 107 Contents Connections Playback Settings Tips Appendix Listening to music on a Bluetooth device Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device. Communication is possible up to a range of about 98.4 ft/30 m.
Page 108 Contents Connections Playback Settings Tips Appendix Playing music from Bluetooth device Activate the Bluetooth settings on your mobile device. In order to enjoy music from a Bluetooth device on this unit, the Bluetooth Select this unit when its name appears in the list of device must first be paired with this unit.
Page 109 Contents Connections Playback Settings Tips Appendix Operation buttons Function Playback Pause Stop Skip to previous track / Skip to next track 0 Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc. Front panel Display Rear panel...
Page 110 Contents Connections Playback Settings Tips Appendix Pairing with other Bluetooth devices NOTE 0 To operate the Bluetooth device with the remote control of this unit, the Bluetooth Pair a Bluetooth device with this unit. device needs to support the AVRCP profile. 0 The remote control of this unit is not guaranteed to work with all Bluetooth devices.
Page 111 Contents Connections Playback Settings Tips Appendix Reconnecting to this unit from a Bluetooth device After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit. This operation also needs to be performed when switching the Bluetooth device for playback.
Page 112 Contents Connections Playback Settings Tips Appendix Listening to FM/AM broadcasts You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts. Make sure the FM antenna and AM loop antenna are connected to this unit first.
Page 113 Contents Connections Playback Settings Tips Appendix Listening to FM/AM broadcasts Use o p to select “FM” or “AM”, then press ENTER. When listening to an FM broadcast. Connect the antenna. (“Connecting an FM/AM antenna” (v p. 93)) When listening to an AM broadcast. Press TUNER to switch the input source to “Tuner”.
Page 114 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option Tuning in by entering the frequency menu (Direct Tune) “Tuning in by entering the frequency (Direct Tune)” (v p. 114) You can enter the receiving frequency directly to tune in. “Changing the tune mode (Tune Mode)”...
Page 115 Contents Connections Playback Settings Tips Appendix Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto Preset You can change the mode for tuning into FM and AM broadcasts. If you Memory) cannot tune in automatically with “Auto” mode, change the mode to “Manual”...
Page 116 Contents Connections Playback Settings Tips Appendix Presetting the current broadcast Channel Default settings 92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10 station (Preset Memory) 1 – 8 94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70 Your favorite broadcast stations can be preset so that you can tune them 9 –...
Page 117 Contents Connections Playback Settings Tips Appendix Specify a name for the preset Use ui to select a name label, then press ENTER. broadcast station (Preset Name) The screen that lets you edit the Preset Name is displayed. If you select “Set Defaults”, then the unit returns to displaying the You can set the name to the preset broadcast station or change it.
Page 118 Contents Connections Playback Settings Tips Appendix Skipping preset broadcast stations To set the stations you want to skip by stations (Preset Skip) A Use o p to select the group of broadcast stations you want to skip. Perform auto preset memory to save all the broadcasting stations that can B Use ui to select the broadcast station you want to skip.
Page 119 Contents Connections Playback Settings Tips Appendix Cancelling Preset Skip While the “Preset Skip” screen is displayed, use o p to select a group containing a broadcast station to cancel the skip for. Use ui to select a broadcast station to cancel the skip for.
Page 120 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Internet Radio refers to radio broadcasts distributed over the Internet. Internet Radio stations from around the world can be received. The Internet Radio station list on this unit the database service provided by TuneIn Radio service.
Page 121 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio 0 The display switches between track title and radio station name etc. each time the main unit’s STATUS is pressed. Press INTERNET RADIO. You can also press R (HEOS Music). Use ui to select “TuneIn NOTE Internet Radio”, then press ENTER.
Page 122 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or NAS This unit can play back music files and playlists (m3u, wpl) from DLNA compatible servers including PCs and NAS devices on your network. Supported file formats: For details, see “Playing back a file saved on a PC or NAS”...
Page 123 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or Browse the music on your PC/NAS and select something to play. Use this procedure to play music files or playlists stored on DLNA files servers on your local network. 0 When you select something to play you will be asked how you want to queue up your music.
Page 124 Contents Connections Playback Settings Tips Appendix Use ui to select the “Play Now” or “Play Now & 0 The display switches between track title, artist name, and album title each time the Replace Queue”, then press ENTER. main unit’s STATUS is pressed. Playback starts.
Page 125 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Adjusting the audibility of dialog and vocals (Dialog Enhancer)” (v p. 142) “Adjusting the volume of each channel to match the input source (Channel Level Adjust)” (v p. 143) “Adjusting the tone (Tone)”...
Page 126 Contents Connections Playback Settings Tips Appendix Getting the HEOS App You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from. Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”. Front panel Display Rear panel...
Page 127 Contents Connections Playback Settings Tips Appendix o Changing your HEOS Account HEOS Account HEOS Accounts can be registered in “HEOS Account” (v p. 256) in the Tap the “Music” tab. menu of this unit or by tapping “Music” tab - “Settings” icon a in the HEOS App.
Page 128 Selecting a room/device Song Name 2 AV8805 Tap the “Rooms” tab, and select “AV8805” if there are Song Name 3 multiple HEOS devices. 0 Tap the Pencil icon e at the top right to switch edit mode. You can change the displayed name.
Page 129 Contents Connections Playback Settings Tips Appendix o Selecting the music track or station from music sources Music Tap the “Music” tab and select a music source. 0 All music services displayed may not be available in your location. This Phone USB Music Music Servers Playlists...
Page 130 Contents Connections Playback Settings Tips Appendix Browse the music to play. Album Now Playing After selecting a music track or radio station the app will Artist Album automatically change to the “Now Playing” screen. 10 Tracks,60 Mins.,2014 Track 01 0 When you select a music track to play you will be asked how you want to Rooms queue up your music.
Page 131 Contents Connections Playback Settings Tips Appendix Listening to the same music in multiple Rooms Rooms rooms Drag one room into another to group them Drag one room into another to group them Dining Dining The HEOS system is a true multi-room audio system that automatically Song Name 1 Song Name 1 synchronizes audio playback between multiple HEOS devices so that the...
Page 132 Contents Connections Playback Settings Tips Appendix o Ungrouping rooms Rooms Rooms Press and hold your finger on room that you want to Drag one room into another to group them Drag one room into another to group them remove from the group. Dining Dining Song Name 1...
Page 133 Contents Connections Playback Settings Tips Appendix o Grouping all rooms (party mode) Rooms Rooms You can easily group 16 rooms together into Party Mode by using a Drag one room into another to group them Drag one room into another to group them "pinch"...
Page 134 Contents Connections Playback Settings Tips Appendix o Ungrouping all rooms Rooms Rooms You can easily ungroup all of your rooms and exit Party Mode by using Drag one room into another to group them Drag one room into another to group them a "spread"...
Page 135 Contents Connections Playback Settings Tips Appendix AirPlay function Music files stored on your iPhone, iPod touch, iPad or iTunes can be Router played on this unit via the network. This unit 0 Source input will be switched to “HEOS Music” when AirPlay playback is started. 0 You can stop AirPlay playback by choosing other input source.
Page 136 Contents Connections Playback Settings Tips Appendix Playing songs from your iPhone, iPod Playing iTunes music with this unit touch or iPad Install iTunes 10, or later, on a Mac or Windows PC that If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can is connected to the same network as this unit.
Page 137 Contents Connections Playback Settings Tips Appendix Perform iTunes playback operations NOTE with the remote control unit of this unit 0 In playback using the AirPlay function, the sound is output at the iPhone, iPod touch, iPad or iTunes volume setting level. You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to With this unit’s remote control unit, you can perform iTunes song play, playback and then adjust it to a suitable level.
Page 138 Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can be synced with multiple AirPlay 2 supported devices for simultaneous iPhone playback. Marantz xxxxxxxx Speakers Play the song on your iPhone, iPod touch or iPad. AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
Page 139 Contents Connections Playback Settings Tips Appendix Spotify Connect function Spotify is the world’s most popular streaming service. If you subscribe to Playing Spotify music with this unit Spotify Premium, you can control your new speaker with your phone or tablet. Because Spotify is built-in to your speaker, you can still take calls or Download the “Spotify App”...
Page 140 Contents Connections Playback Settings Tips Appendix Convenience functions This section explains how to use convenient functions that can be used for each input source. These functions can only be set in the MAIN ZONE. (HEOS Music) OPTION uio p ENTER Front panel Display Rear panel...
Page 141 Contents Connections Playback Settings Tips Appendix Playing back HEOS Favorites Adding to HEOS Favorites Press R (HEOS Music). While content is playing, press OPTION. The option menu screen is displayed. Use ui to select “HEOS Favorites”, then press ENTER. Use ui to select “Add to HEOS Favorites”, then press ENTER.
Page 142 Contents Connections Playback Settings Tips Appendix Deleting a HEOS Favorites Adjusting the audibility of dialog and vocals (Dialog Enhancer) While the HEOS Favorites content list is displayed, use ui to select the item you want to remove from HEOS This function adjusts the center channel frequency band to enhance the Favorites, then press OPTION.
Page 143 Contents Connections Playback Settings Tips Appendix Adjusting the volume of each channel Use o p to adjust the volume. to match the input source (Channel –12.0 dB – +12.0 dB (Default: 0.0 dB) Level Adjust) Use uio p to select “Exit”, then press ENTER. The volume of each channel can be changed while listening to music.
Page 144 Contents Connections Playback Settings Tips Appendix Adjusting the tone (Tone) Select “On” in step 3 and press i to select the sound range to be adjusted. Adjusts the tonal quality of the sound. Bass: Adjust bass. Press OPTION. Treble: Adjust treble. An option menu screen is displayed.
Page 145 Contents Connections Playback Settings Tips Appendix Displaying your desired video during If you selected “On” in step 3, press i and select audio playback (Video Select) “Source”. Use o p to select the input source for video you want This unit can display video from a different source on TV during audio to play back, then press ENTER.
Page 146 Contents Connections Playback Settings Tips Appendix Adjusting the picture quality for your Use o p to select the picture mode. viewing environment (Picture Mode) No picture quality adjustment is done (Default): with this unit. n Supported input sources : The standard mode suited for most CBL/SAT / DVD / Blu-ray / Game / AUX1 / Standard: living room viewing environments.
Page 147 Contents Connections Playback Settings Tips Appendix o Stopping the All Zone Stereo mode Playing the same music in all zones (All Zone Stereo) During playback in All Zone Stereo mode, press OPTION. You can play back the music being played back in MAIN ZONE An option menu screen is displayed.
Page 148 Contents Connections Playback Settings Tips Appendix Selecting a sound mode This unit allows you to enjoy various kinds of surround and stereo playback modes. Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from internet-based subscription services.
Page 149 Contents Connections Playback Settings Tips Appendix o Switching the sound mode Selecting a sound mode Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, Press MOVIE, MUSIC or GAME to select a sound mode.
Page 150 Contents Connections Playback Settings Tips Appendix Direct playback Pure Direct playback Sound recorded in source is played as is. This mode is for playback with higher sound quality than in Direct playback mode. Press PURE to select “Direct”. This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.
Page 151 Contents Connections Playback Settings Tips Appendix Auto surround playback This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback. Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.
Page 152 Contents Connections Playback Settings Tips Appendix Description of sound mode types Dolby sound mode Sound mode type Description Please select this mode to play back the contents encoded with Dolby Atmos. If you have selected a different sound mode Dolby Atmos previously, please select again this mode for Dolby Atmos content play back.
Page 153 Contents Connections Playback Settings Tips Appendix DTS sound mode Sound mode type Description DTS Surround This mode can be selected when playing sources recorded in DTS. This mode is suitable for playing discs recorded in DTS-ES. DTS ES Dscrt6.1 The surround back channel added using the discrete method is played as an independent channel. Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.
Page 154 Contents Connections Playback Settings Tips Appendix Auro-3D sound mode Sound mode type Description Auro-3D This mode uses an Auro-3D decoder to create three-dimensional audio output using the Height Channel. It is ideal for playback of signals encoded as Auro-3D with a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to create highly realistic three-dimensional audio output.
Page 155 Contents Connections Playback Settings Tips Appendix Auto sound mode Sound mode type Description Auto In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
Page 156 Contents Connections Playback Settings Tips Appendix Sound mode that can be selected for each input signal The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons. Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. (v p. 184) Sound mode MOVIE button MUSIC button...
Page 157 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button Multi-channel z9 Stereo Dolby Digital z8 Dolby Digital Dolby Digital + Dolby Surround z8 Dolby Digital + Neural:X z8 Dolby Digital Plus z8 Dolby Digital Plus + Dolby Surround z8z11 Dolby Digital Plus Dolby Digital Plus + Neural:X z8 Dolby Atmos z8z11...
Page 158 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button DTS Surround z8 DTS ES Dscrt 6.1 z8 DTS ES Mtrx 6.1 z8 DTS 96/24 z8 DTS + Dolby Surround z8 DTS + Neural:X z8 DTS + Virtual:X z4 IMAX DTS z9z12 IMAX DTS + Neural:X z9z12...
Page 159 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button DTS:X z8 DTS:X DTS:X MSTR z8 DTS:X + Virtual:X z4 IMAX DTS z9z13 IMAX DTS IMAX DTS + Neural:X z9z13 IMAX DTS + Virtual:X z4z13 IMAX DTS:X z9z13 IMAX DTS:X IMAX DTS:X + Virtual:X z4z13...
Page 160 Contents Connections Playback Settings Tips Appendix o Views on the display Blu-ray Dolby D + A Shows a decoder to be used. In the case of the Dolby Digital Plus decoder, “y” is displayed. B Shows a decoder that creates sound output. “k”...
Page 161 Contents Connections Playback Settings Tips Appendix HDMI Control function A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection. Setting procedure Enable the HDMI Control function of this unit.
Page 162 Contents Connections Playback Settings Tips Appendix Smart Menu function This function can be used to configure the settings of this unit, select an o Now Playing input source and set Tuner and Internet Radio stations using the TV remote control. Enjoy content from the input source currently selected on this unit.
Page 163 Contents Connections Playback Settings Tips Appendix o Setup Menu Displays a setup menu for configuring the settings of this unit. o Smart Select Calls up the “Smart Select” items registered to this unit. NOTE 0 If the “HDMI Control” or “Smart Menu” settings have been changed, always reset the power to connected devices after the change.
Page 164 Contents Connections Playback Settings Tips Appendix Sleep timer function You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. The sleep timer function can be set for each zone. ZONE SELECT SLEEP Front panel...
Page 165 Contents Connections Playback Settings Tips Appendix o Checking the remaining time Using the sleep timer Press SLEEP when the sleep timer is in operation. The remaining time appears on the display. Press ZONE SELECT to switch “MAIN”, “ZONE2” or “ZONE3”. o To cancel the sleep timer The button for the selected zone is lit.
Page 166 Contents Connections Playback Settings Tips Appendix Smart select function Settings such as the input source, volume level and sound mode can be registered to the SMART SELECT 1 - 4 buttons. You can simply press one of the registered SMART SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch.
Page 167 Contents Connections Playback Settings Tips Appendix Calling up the settings Press ZONE SELECT to switch “MAIN”, “ZONE2” or “ZONE3”. The button for the selected zone is lit. Press SMART SELECT. The Smart Select settings registered to the button you pressed are called up.
Page 168 Contents Connections Playback Settings Tips Appendix Changing the settings Press ZONE SELECT to switch “MAIN”, “ZONE2” or “ZONE3”. The button for the selected zone is lit. Set the items below to the settings you want to register. Press and hold the desired SMART SELECT until The following settings from A to I can be memorized for MAIN “Smartz Memory”, “Z2 Smartz Memory”...
Page 169 Contents Connections Playback Settings Tips Appendix Panel lock function To prevent accidental operation of this unit, you can disable operation of Disabling all key button operations the buttons on the front panel. ui ENTER Press X while you press and hold BACK and ENTER with the unit in standby mode.
Page 170 Contents Connections Playback Settings Tips Appendix Canceling the Panel lock function Press X while you press and hold BACK and ENTER with the unit in standby mode. Use ui to select “FP LOCK zOff”. (z The currently set mode.) Press ENTER to enter the setting. The Panel lock function is canceled.
Page 171 Contents Connections Playback Settings Tips Appendix Remote lock function When connecting an IR receiver, enable the Remote lock function. When Disabling the sensor function of the the function is enabled, you can not perform operations with the remote remote control unit control unit.
Page 172 Contents Connections Playback Settings Tips Appendix Switches light illumination on/off You can switch the light illumination around the main display on or off. Light illumination The default setting is “On”. Press and hold DIMMER on the main unit for 3 seconds.
Page 173 Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 (Another room) You can operate this unit to enjoy video and audio in a room (ZONE2 and ZONE3) that is different from the room where this unit is placed (MAIN ZONE). You can simultaneously play back the same source in both the MAIN ZONE, ZONE2 and ZONE3.
Page 174 Contents Connections Playback Settings Tips Appendix o Connection 2 : Connection through the video output connector and external power amplifiers The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers. MAIN ZONE ZONE2 ZONE3...
Page 175 Contents Connections Playback Settings Tips Appendix 0 The analog audio signal and the 2-channel PCM signal input from HDMI connector or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2. 0 If you want to play back HDMI signals other than 2-channel PCM in ZONE2, set “HDMI Audio” to “PCM”. (v p. 257) 2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2.
Page 176 Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 Press ZONE SELECT to switch “ZONE2” or “ZONE3”. Press POWER X to turn on the ZONE2 or ZONE3 power. The multi zone power indicator on the display lights. Power in ZONE2 or ZONE3 can be turned on or off by pressing ZONE2 ON/OFF or ZONE3 ON/OFF on the main unit.
Page 177 Contents Connections Playback Settings Tips Appendix o Adjusting the volume (ZONE2/ZONE3) Use VOLUME df to adjust the volume. At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. (v p. 259) 0 Turn VOLUME after pressing ZONE SELECT on the main unit to adjust the volume.
Page 178 Contents Connections Playback Settings Tips Appendix Menu map When using menu operations, connect this unit to a TV and operate this unit while viewing the TV. The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences. Setting items Detailed items Description...
Page 179 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page Input Assign Changes input connector assignment. Source Rename Changes the display name for input source. Hide Sources Removes from the display input sources that are not used. Source Level Adjusts the playback level of the audio input.
Page 180 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page 【When the user is signed out the HEOS Account】 I have a HEOS Account Selects to sign in. Create Account Creates new HEOS Account. Forgot Password If you forgot your password, we'll send you an email with instructions about how to reset HEOS Account 【When the user is signed in the HEOS Account】...
Page 181 Information Shows information about this unit settings, input signals, etc. Usage Data Selects whether or not to send anonymous usage data to Marantz. Save & Load Save and restore device settings by using a USB memory device. Setup Lock Protects settings from inadvertent changes.
Page 182 Contents Connections Playback Settings Tips Appendix Menu operations Press ZONE SELECT to switch “MAIN”. ZONE SELECT Press SETUP. The menu is displayed on the TV screen. Use ui p to select the menu to be set or operated, then press ENTER. Use o p to change to desired setting.
Page 183 Contents Connections Playback Settings Tips Appendix Audio Make audio-related settings. Subwoofer Level Adjust Bass Sync For contents recorded in multi-channel such as Blu-ray discs, the Adjusts the subwoofer channel volume for all input sources. recorded low frequency effects (LFE) may be out of synch and delayed. This function corrects such a delay of low frequency effects (LFE).
Page 184 Contents Connections Playback Settings Tips Appendix o Loudness Management Surround Parameter This sets whether to output as specified in “Dynamic Compression” or You can adjust the surround audio sound field effects to match your output directly without compressing the dynamic range of audio preferences.
Page 185 Contents Connections Playback Settings Tips Appendix o Dynamic Compression o Dialog Control Compress dynamic range (difference between loud and soft sounds). Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily. Automatic dynamic range compression Auto: on/off control according to source.
Page 186 Contents Connections Playback Settings Tips Appendix o Center Spread o IMAX Center Spread expands the center channel signal to left and right front Sets the audio mode for IMAX playback. speakers to create a wider frontal audio image for the listener. It is Auto Automatically enables the IMAX mode optimized and designed primary for playback of stereo music content.
Page 187 Contents Connections Playback Settings Tips Appendix o Auro-Matic 3D Preset o Auro-Matic 3D Strength Selects the Auro-Matic 3D Preset for fine tuning the Auro-3D Changes the level of the up-mixed channels in relation to the original experience to specific audio material. input signal.
Page 188 Contents Connections Playback Settings Tips Appendix o Speaker Select Makes settings for the speakers outputting sound. Floor: Plays back without height speakers. Floor & Height Plays back with height speakers. (Default): 0 This can be set when the sound mode is the original sound mode. o Subwoofer Turn subwoofer output on and off.
Page 189 Contents Connections Playback Settings Tips Appendix M-DAX 0 The M-DAX indicator lights. Compressed audio formats such as MP3, WMA (Windows Media Audio) 0 This item can be set with analog signals or PCM signal (Sample Rate = and MPEG-4 AAC reduce the amount of data by eliminating signal 44.1/48 kHz) is input.
Page 190 Contents Connections Playback Settings Tips Appendix o Adjust Audio Delay The timing mismatch between the picture and sound needs to be Compensates for incorrect timing between video and audio. corrected manually. 0 ms – 500 ms (Default : 0 ms) 0 Audio Delay for game mode can be set when “Video Mode”...
Page 191 Contents Connections Playback Settings Tips Appendix o Power On Level Volume Define the volume setting that is active when the power is turned on. Set the MAIN ZONE (room where the unit is located) volume setting. Last Use the memorized setting from the last o Scale (Default): session.
Page 192 Contents Connections Playback Settings Tips Appendix o MultEQ ® XT32 Audyssey ® MultEQ ® XT32 compensates for both time and frequency Set Audyssey MultEQ XT32, Audyssey Dynamic EQ , Audyssey ® ® characteristics of the listening area based on Audyssey ®...
Page 193 Contents Connections Playback Settings Tips Appendix o Dynamic EQ o Reference Level Offset Solves the problem of deteriorating sound quality as volume is Audyssey Dynamic EQ ® is referenced to the standard film mix level. It decreased by taking into account human perception and room makes adjustments to maintain the reference response and surround acoustics.
Page 194 Contents Connections Playback Settings Tips Appendix o Dynamic Volume o Audyssey LFC™ Solves the problem of large variations in volume level between TV, Adjusts the low frequency band to prevent bass and vibration from movies and other content (between quiet passages and loud being conveyed to neighboring rooms.
Page 195 Contents Connections Playback Settings Tips Appendix o Speaker Selection Graphic EQ Select whether to adjust tones for individual speakers or for all Uses the graphic equalizer to adjust the tone of each speaker. speakers. All: Adjust all speaker tones together. 0 Speakers for which “Graphic EQ”...
Page 196 Contents Connections Playback Settings Tips Appendix o Curve Copy Copy the Flat correction curve created in Audyssey ® Setup. 0 “Curve Copy” is displayed after Audyssey ® Setup has been performed. 0 “Curve Copy” cannot be used when using headphones. o Set Defaults The “Graphic EQ”...
Page 197 Contents Connections Playback Settings Tips Appendix Video Make video-related settings. o Picture Mode Picture Adjust Select the desired picture mode according to the video content and Picture quality can be adjusted. your viewing environment. The standard mode suited for most living Standard: room viewing environments.
Page 198 Contents Connections Playback Settings Tips Appendix o Contrast Adjust picture contrast. 0 The two special adjustment modes, “ISF Day” and “ISF Night”, should be used by a certified technician to adjust the color calibration to match the installation -50 – +50 (Default : 0) conditions.
Page 199 Contents Connections Playback Settings Tips Appendix o Vertical Stretch HDMI Setup Sets whether video signals are vertically stretched or not. Make settings for HDMI Audio Out, HDMI Pass Through and HDMI Stretches video signals vertically. Control settings. NOTE Does not stretch video signals vertically. (Default): 0 When “HDMI Pass Through”...
Page 200 Contents Connections Playback Settings Tips Appendix o Pass Through Source o RC Source Select Sets the HDMI connector that inputs HDMI signals when in standby. Set whether to allow this unit to be turned on by the input source select button on the remote control when this unit is on standby.
Page 201 Contents Connections Playback Settings Tips Appendix o HDMI Control o ARC You can link operations with devices connected to HDMI and On the TV connected to the HDMI MONITOR 1 connector, set whether compatible with HDMI Control. to receive sound from the TV via HDMI. Use HDMI Control function.
Page 202 Contents Connections Playback Settings Tips Appendix o TV Audio Switching o Power Off Control Sets automatic switching to the “TV Audio” input when a TV connected Links the power standby of this unit to external devices. via HDMI sends an appropriate CEC control command to this unit. If power to a connected TV is turned off independently of the input source, power Select the “TV Audio”...
Page 203 Contents Connections Playback Settings Tips Appendix o Power Saving o Smart Menu If “TV Speaker” is set as the audio output setting of your TV, this unit is This function can be used to configure the settings of this unit, select automatically set to standby mode to reduce power consumption.
Page 204 Contents Connections Playback Settings Tips Appendix o HDMI Video Output Output Settings Select the HDMI monitor connector to be used. Makes settings for video output. The presence of a TV connected to the Auto(Dual) HDMI MONITOR 1 or HDMI MONITOR 2 (Default): connector is detected automatically, and 0 This can be set when “HDMI”, “COMP”...
Page 205 Contents Connections Playback Settings Tips Appendix o Video Mode o Video Conversion Configure the video processing method to match the type of video The input video signal is converted automatically in conjunction with content. the connected TV. (v p. 311) Auto Process video automatically based on The input video signal is converted.
Page 206 Contents Connections Playback Settings Tips Appendix o Resolution o Sharpness Set the output resolution. You can set “Resolution” separately for Enables the sharpness feature which enhances the edges of images HDMI output of the analog video input and HDMI input. when up-scaling video to 4K.
Page 207 Contents Connections Playback Settings Tips Appendix o Progressive Mode o Aspect Ratio Set an appropriate progressive conversion mode for the source video Set the aspect ratio for the video signals output to the HDMI. signal. 16:9 Output at 16:9 aspect ratio. The video signal is automatically (Default): Auto...
Page 208 Contents Connections Playback Settings Tips Appendix Analog Video Out On Screen Display Selects the zone that uses component video output and video output. Select the on-screen display user interface preferences. o Component o Volume Selects the zone that uses component video output. Sets where to display the volume level.
Page 209 Contents Connections Playback Settings Tips Appendix o Now Playing 4K Signal Format Sets the display time for the playback display when the input source is Set the 4K signal format to be played back by this unit when the TV or “HEOS Music”...
Page 210 Contents Connections Playback Settings Tips Appendix GRelation between the “4K Signal Format” setting and supported resolutionsH 0 When setting this to “Enhanced”, we recommend using a “Premium High Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that 4K Signal Format Support Color...
Page 211 Contents Connections Playback Settings Tips Appendix TV Format Set the video signal format to be output for the TV you are using. o Format NTSC Select NTSC output. (Default): PAL: Select PAL output. 0 “Format” can also be set by the following procedure. However, the menu screen is not displayed.
Page 212 Contents Connections Playback Settings Tips Appendix Inputs Perform settings related to input source playback. You do not have to change the settings to use the unit. Make settings when needed. Input Assign 0 By default, each item is set as follows. By making connections as indicated by the input sources printed on the Input connector audio/video input connectors of this unit, you can just press one of the...
Page 213 Contents Connections Playback Settings Tips Appendix o HDMI o ANALOG Set this to change the HDMI input connectors assigned to the input Set this to change the analog audio input connectors assigned to the sources. input sources. 1 / 2 / 3 / 4 / 5 / 6 / Front / Assign a analog audio input connector to 1 / 2 / 3 / 4 / 5 / 6 / 7 / Assign an HDMI input connector to the...
Page 214 Contents Connections Playback Settings Tips Appendix o VIDEO Source Rename Set this to change the composite video input connectors assigned to Change the display name for input source. the input sources. This is convenient when the name of your device and the input source Assign the video input connector to the name of this unit are different.
Page 215 Contents Connections Playback Settings Tips Appendix Hide Sources Source Level Remove from the display input sources that are not used. This function corrects the playback level of the selected input source’s audio input. Show Use this source. Make this setting if there are differences in the input volume levels (Default): between the different sources.
Page 216 Contents Connections Playback Settings Tips Appendix o Input Mode Input Select Set the audio input modes for the different input sources. Set the audio input mode of each input source. It is normally recommended to set the audio input mode to “Auto”. The input modes available for selection may vary depending on the input Auto Automatically detect input signal and...
Page 217 Contents Connections Playback Settings Tips Appendix Speakers The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey ® Setup”. You do not have to perform Audyssey Setup when you have already performed “Speaker Calibration” in “Setup Assistant”. ®...
Page 218 Contents Connections Playback Settings Tips Appendix o About the main listening position NOTE The main listening position is the position where listeners would 0 Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices normally sit or where one would normally sit alone within the listening (radios, air conditioners, fluorescent lights, etc.).
Page 219 Contents Connections Playback Settings Tips Appendix Procedure for speaker settings Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it (Audyssey Setup) ® at the main listening position. When installing the Sound calibration microphone, point the tip of Preparation the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.
Page 220 Contents Connections Playback Settings Tips Appendix Connect the Sound calibration microphone to the Select “Start”, then press ENTER. SETUP MIC jack of this unit. Audyssey ® Setup can also make the following settings. Amp Assign The signals output from the SURROUND BACK, HEIGHT1, HEIGHT2, HEIGHT3 and HEIGHT4/FRONT WIDE PRE OUT connectors can be switched in accordance with your speaker environment.
Page 221 Contents Connections Playback Settings Tips Appendix When the following screen is displayed, select “Begin When the detected speaker is displayed, select “Next” Test” and then press ENTER. and then press ENTER. Start the measurement of the first position. Audyssey Setup Speaker Detection Audyssey Setup Select “Begin Test”...
Page 222 Contents Connections Playback Settings Tips Appendix Move the Sound calibration microphone to position 2, Repeat step 8, measuring positions 3 to 8. select “Continue”, then press ENTER. The measurement of the second position starts. Measurements can be made in up to eight positions. 0 To skip measuring the fourth and subsequent listening position, press o to select “Complete”...
Page 223 Contents Connections Playback Settings Tips Appendix When the analysis and storage ends, unplug the Sound Perform the settings for Audyssey Dynamic EQ ® calibration microphone from the SETUP MIC jack on the Audyssey Dynamic Volume ® main unit and then press “Next”. The following screen is displayed during the analysis.
Page 224 Contents Connections Playback Settings Tips Appendix Select “Details” and press ENTER to verify the measurement results. Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers. NOTE 0 Do not change the speaker connection or subwoofer volume after Audyssey ®...
Page 225 Contents Connections Playback Settings Tips Appendix Error messages An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections. Examples Error details Measures...
Page 226 Contents Connections Playback Settings Tips Appendix o Subwoofer level error message and how to Select “SW Level Matching” and then press ENTER. adjust Adjust the volume control on your subwoofer so that The optimal level of each subwoofer channel for Audyssey ®...
Page 227 Contents Connections Playback Settings Tips Appendix Retrieving Audyssey ® Setup settings If you set “Restore...” to “Restore”, you can return to Audyssey Setup ® measurement result (value calculated at the start by MultEQ XT32) even ® when you have changed each setting manually. Audyssey Setup Your AV preamp can automatically measure the acoustics of your room then optimize your speakers using the included...
Page 228 Contents Connections Playback Settings Tips Appendix Manual Setup All Pre Amplifiers of this unit are used for MAIN ZONE. Perform when setting the speakers manually or when changing settings You can connect speakers for up to made in Audyssey ® Setup.
Page 229 Contents Connections Playback Settings Tips Appendix o Pre-out for Bi-Amp / Pre-out for Front B o Floor n Layout When “Assign Mode” is set to “11.1ch (Bi-Amp)” or “11.1ch + Front B” in the menu, select the PRE OUT connectors used for bi-amp or Select the floor speakers location.
Page 230 Contents Connections Playback Settings Tips Appendix n Dolby Sp o Height n Height Sp Select the number of the Dolby Atmos Enabled speakers used in MAIN ZONE. Select the number of the height speakers and ceiling speakers used in None MAIN ZONE.
Page 231 Contents Connections Playback Settings Tips Appendix n Layout Set the speaker layout when installing 1 set (2-channels) of Height, Ceiling or Dolby Atmos Enabled speakers. The layouts that can be selected differ depending on the combinations of “Assign Mode” and “Floor” - “Layout” in the menu. (“ Assign Mode ”...
Page 232 Contents Connections Playback Settings Tips Appendix n Front Layout / Middle Layout / Rear Layout Set the speaker layout when installing 2 sets (4-channels) or more of Height, Ceiling or Dolby Atmos Enabled speakers. The layouts that can be selected differ depending on the combinations of “Assign Mode” and “Floor” - “Layout” in the menu. (“ Assign Mode ”...
Page 233 Contents Connections Playback Settings Tips Appendix Settings AUDIO OUT connectors Height Middle HEIGHT 4/ Dolby Sp NOTE Front Layout Rear Layout HEIGHT 1 HEIGHT 2 HEIGHT 3 Layout FRONT WIDE Surround Surround Front Dolby Front Dolby Dolby Dolby None Front Dolby Front Dolby Back Dolby Back Dolbyz1...
Page 234 Contents Connections Playback Settings Tips Appendix Settings AUDIO OUT connectors Height Middle HEIGHT 4/ Dolby Sp NOTE Front Layout Rear Layout HEIGHT 1 HEIGHT 2 HEIGHT 3 Layout FRONT WIDE Surround Surround Front Height Rear Height Front Height Rear Height Dolby Dolby Surround...
Page 235 Contents Connections Playback Settings Tips Appendix Settings AUDIO OUT connectors Height Middle HEIGHT 4/ Dolby Sp NOTE Front Layout Rear Layout HEIGHT 1 HEIGHT 2 HEIGHT 3 Layout FRONT WIDE L: Top Front Height & Top Middle & Surround None Rear Height Front Height Rear Height...
Page 236 Contents Connections Playback Settings Tips Appendix o Center Speaker Config. Set the presence and size of the center speaker. Select whether or not speakers are present, playback capacity for low Use a large speaker that can adequately bass frequencies and speaker size. Large: play back very low bass frequencies.
Page 237 Contents Connections Playback Settings Tips Appendix o Surround o Surr. Back Set the presence and size of the surround speakers. Set the presence, size and number of surround back speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 238 Contents Connections Playback Settings Tips Appendix o Front Wide o Front Dolby Set the presence and size of the front wide speakers. Set the presence and size of the front Dolby speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 239 Contents Connections Playback Settings Tips Appendix o Top Middle o Top Rear Set the presence and size of the top middle speakers. Set the presence and size of the top rear speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 240 Contents Connections Playback Settings Tips Appendix o Rear Height o Back Dolby Set the presence and size of the rear height speakers. Set the presence and size of the back Dolby speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 241 Contents Connections Playback Settings Tips Appendix o Center Height o Top Surround Set the presence and size of the center height speaker. Set the presence and size of the top surround speaker. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 242 Contents Connections Playback Settings Tips Appendix o Set the distance Distances 0.0 ft – 60.0 ft / 0.00 m – 18.00 m Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker. 0 The speakers that can be selected differ depending on the “Amp Assign”...
Page 243 Contents Connections Playback Settings Tips Appendix o Dolby Speaker Setup Levels Set the distance between the Dolby Atmos Enabled speaker and the Set the volume of the test tone to be the same at the listening position ceiling. when it is output from each speaker. 3.0 ft - 11.0 ft / 0.90 m - 3.30 m (Default: 6.0 ft / 1.80 m) o Test Tone Start A test tone is output from the selected speaker.
Page 244 Contents Connections Playback Settings Tips Appendix o Set the crossover frequency Crossovers 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / Set in accordance with the lower limit frequency of the base frequencies 200 Hz / 250 Hz (Default: 80 Hz) that can be played back through each speaker.
Page 245 Contents Connections Playback Settings Tips Appendix o LPF for LFE Bass Set LFE signal playback range. Set this when you want to change the Set subwoofer and LFE signal range playback. playback frequency (low pass filter point) of the subwoofer. o Subwoofer Mode 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 120 Hz)
Page 246 Contents Connections Playback Settings Tips Appendix Front Speaker 2ch Playback Set the front speaker A/B to use for every sound mode. Select the method for setting the speakers used in the 2-channel direct and stereo playback modes. Front speaker A is used. (Default): o Setting Front speaker B is used.
Page 247 Contents Connections Playback Settings Tips Appendix o Subwoofer o SW Mode Set the presence of a subwoofer. Select low range signals to be reproduced by subwoofer. When “2ch Playback” - “Front” is set to Use a subwoofer. (Default): “Large”, only LFE signals are output from the subwoofer.
Page 248 Contents Connections Playback Settings Tips Appendix o Crossover o Level FL / Level FR Set the maximum frequency of the bass signal output from each Adjust the level of each channel. channel to the subwoofer. -12.0 dB – +12.0 dB (Default: 0.0 dB) 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 80 Hz) 0 This can be set when “2ch Playback”...
Page 249 Contents Connections Playback Settings Tips Appendix Network To use this unit by connecting it to a home network (LAN), you must configure network settings. If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address”...
Page 250 2. Check that your iOS device is connected to the wireless LAN (Wi- o Scan Networks Fi) router and select “Marantz AV8805” from “SET UP NEW Select the network you wish to connect to from the list of possible AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration networks shown on the TV screen.
Page 251 Contents Connections Playback Settings Tips Appendix o WPS Router o Manual Use a WPS-compatible router to connect using the push button Enter the name (SSID) and password of the network you wish to method. connect to. 1. Select “Push Button” on the TV screen. 1.
Page 252 3 seconds when the power of the unit is on. automatically configured since the DHCP function is set to “On” in the 2. Connect the wireless LAN of the PC or tablet used to “Marantz AV8805” when default settings of this unit.
Page 253 Contents Connections Playback Settings Tips Appendix o DHCP o Default Gateway Selects how to connect to the network. When connected to a gateway (router), input its IP address. Configure the network settings o DNS (Default): automatically from your router. Enter the DNS address indicated in the documentation supplied by Off: Configure the network settings manually.
Page 254 Home Theater /Living Room / Family Room / Guest Room / 0 When using the Marantz 2016 AVR Remote App or HEOS App, use with the Kitchen / Dining Room / Master Bedroom / Bedroom / Den / “Network Control”...
Page 255 Contents Connections Playback Settings Tips Appendix o Internet Access Diagnostics Checks whether this unit has access to the Internet (WAN). Used to check the network connection. o Physical Connection Failed to connect to the Internet. Check Error: the Internet connection environment or Checks the physical LAN port connection.
Page 256 Contents Connections Playback Settings Tips Appendix HEOS Account Make HEOS Account-related settings. HEOS Account is needed in order to use HEOS Favorites. The menu displayed differs depending on the status of the HEOS Account. You have not signed in You have already signed in o I have a HEOS Account o Signed in As If you already have a HEOS Account, enter the current account name...
Page 257 Contents Connections Playback Settings Tips Appendix General Make various other settings. Language ZONE2 Setup / ZONE3 Setup Set the language for display the menu on the TV screen. Makes settings for audio playback with ZONE2 and ZONE3. English / Français / Español (Default: English) 0 Values set for “Volume Limit”...
Page 258 Contents Connections Playback Settings Tips Appendix o Lch Level o HDMI Audio (ZONE2 only) Adjust the left channel output level. Selects the audio signal format for playing an HDMI source in ZONE2. -12 dB – +12 dB (Default : 0 dB) Through The HDMI audio signal is passed through (Default):...
Page 259 Contents Connections Playback Settings Tips Appendix o Volume Limit o Mute Level Make a setting for maximum volume. Set the amount of attenuation when muting is on. Full 60 (-20 dB) / 70 (-10 dB) / 80 (0 dB) The sound is muted entirely. (Default : 70 (-10 dB)) (Default): Off:...
Page 260 Contents Connections Playback Settings Tips Appendix Zone Rename Trigger Out 1 / Trigger Out 2 Change the display title of each zone to one you prefer. Select the conditions for activating trigger out. For details about how to connect the DC OUT jacks, see “DC OUT MAIN ZONE / ZONE2 / ZONE3 jacks”...
Page 261 Contents Connections Playback Settings Tips Appendix o ZONE2 / ZONE3 Auto Standby When there are no operations for a certain period of time as set here, Set so the unit power automatically switches to standby. the power is automatically shut off even if there is audio or video input. o MAIN ZONE Switches ZONE2/ZONE3 the standby 8 hours:...
Page 262 Contents Connections Playback Settings Tips Appendix o Channel Indicators Front Display Sets whether to use the input signal display or output signal display for Makes settings related to the display on this unit. the channel indication on the display. o Dimmer Uses the input signal display for the Input: channel indication on the display.
Page 263 Contents Connections Playback Settings Tips Appendix o Auto-Update Firmware Turns on Automatic Updates so that futures updates are automatically Checks for the latest firmware information about updates and upgrades, downloaded and installed when this unit is in standby mode. updates the firmware, and sets up the notification message display for upgrades.
Page 264 Contents Connections Playback Settings Tips Appendix o Allow Update o Upgrade Notification Enable or disable updates and upgrades for this unit. When the latest Upgrade firmware is available, a notification message is displayed on the TV screen at power on. Enables this unit to receive updates and The notification message is displayed for about 40 seconds when the (Default):...
Page 265 If the error continues, check the network environment. 0 Information regarding the “Update” function and “Add New Feature” will be announced on the Marantz website each time related plans are defined. See the Marantz website for details about upgrades.
Page 266 Contents Connections Playback Settings Tips Appendix o Video Information Show the HDMI input/output signals and HDMI monitor information for Show information about this unit settings, input signals, etc. MAIN ZONE. o Audio HDMI Signal Info. Resolution / Color Space / Pixel Depth Show the audio information for MAIN ZONE.
Page 267 Usage Data Displays and sets notifications. To help us improve our products and customer service, Marantz collects Also, sets whether or not to display the notification when the power is anonymous information about how you use this unit (such as frequently turned on.
Page 268 Contents Connections Playback Settings Tips Appendix Save & Load Setup Lock Save and restore device settings by using a USB memory device. Protect settings from inadvertent changes. o Lock 0 Use a USB memory device that has at least 128 MB of free space and is formatted to FAT32.
Page 269 Contents Connections Playback Settings Tips Appendix Operating external devices with the remote control unit When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players or TVs made by different manufacturers.
Page 270 There are two methods for registering preset codes; the simple method for indicator on the remote control display is flashing, then registering preset codes of Marantz players, the method for registering the preset numbers of other manufacturers’ devices, and the method for release.
Page 271 OPTION until “OK” indicator on the remote control the device you want to register beforehand in the “Remote Control display is flashing, then release. Preset Codes” file. http://manuals.marantz.com/AV8805/preset/AV8805PresetCodes.pdf Devices to be registered at the same time Press and hold down...
Page 272 0 If the unit does not operate even when the preset code is registered, use the learning function. Remote codes for different devices can be remembered for use for the appliance. by the Marantz remote control included with this unit. (v p. 278) The preset code is shown in the remote control display. NOTE Stop when the appliance turns off.
Page 273 0 If the unit does not operate even when the preset code is registered, use the learning function. Remote codes for different devices can be remembered for use by the Marantz remote control included with this unit. (v p. 278) NOTE 0 Depending on the model and year of manufacture of your device, some buttons may not operate.
Page 274 Contents Connections Playback Settings Tips Appendix Operating devices n TV group (TV) operation To operate an external device, press the input source button registered with the preset code, followed by one of the buttons in the following tables. Operation buttons Function 0 When operating an external device, the display on the remote control unit shows TV X...
Page 275 Contents Connections Playback Settings Tips Appendix n DVD group n CD group (DVD player / DVD recorder) operation (CD player / CD recorder) operation Operation buttons Function Operation buttons Function Power on/off Power on/off DEVICE X DEVICE X DEVICE MENU (Popup) Menu DEVICE MENU (Popup) Menu...
Page 276 Contents Connections Playback Settings Tips Appendix n CBL/SAT group n BD group (Set top box for satellite (SAT)/cable TV (CBL)/ (Blu-ray Disc player) operation Media player/IP TV) operation Operation buttons Function Operation buttons Function Power on/off DEVICE X DEVICE X Power on/off DEVICE MENU (Popup) Menu...
Page 277 Contents Connections Playback Settings Tips Appendix Checking registered preset codes Initializing registered preset codes Press and hold an input source select button for which Press and hold down AVP and OPTION until “OK” you want to check the preset code and the SET button indicator on the remote control display is flashing, then until the display on the remote control unit shows release.
Page 278 If the unit does not operate even when the preset code is registered, use the learning function. Remote codes for different devices can be remembered for use by the Marantz remote control included with this unit. POWER X Input source...
Page 279 When programming of the remote control unit is Place the Marantz remote control and remote control completed, press SET. from the other device approximately 5 cm apart, with The LEARN indicator turns off, and the remote control unit exits the remote control signal transmission sections facing learn mode.
Page 280 Contents Connections Playback Settings Tips Appendix o Delete remote control codes for each input Delete saved remote control codes source Codes can be erased in three ways: by buttons, sources, and by all memory contents. Press and hold SET until the LEARN indicator blinks. o Delete remote control codes for each button Press and hold POWER X and press the learned input source select buttons to be erased twice.
Page 281 Contents Connections Playback Settings Tips Appendix Setting the back light You can turn off the backlight of the remote control unit. Backlight is set on in the factory settings. Disabling the backlight Press and hold both SET and Light button until “OFF” indicator flashes twice.
Page 282 Contents Connections Playback Settings Tips Appendix Specifying the zone used with the remote control unit When the ZONE SELECT is pressed, only the set zone can be operated with the remote control unit. This is useful for preventing mistaken operation. The factory setting is “M23”.
Page 283 Contents Connections Playback Settings Tips Appendix o Contents Troubleshooting Power does not turn on / Power is turned off Tips Operations cannot be performed through the remote control unit I want the volume not to become too loud by mistake Display on this unit shows nothing I want to keep the volume at the same level when I turn the power No sound comes out...
Page 284 Contents Connections Playback Settings Tips Appendix Tips I want the volume not to become too loud by mistake Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone.
Page 285 Contents Connections Playback Settings Tips Appendix I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new Perform Audyssey ® Setup. This automatically makes the optimized speaker settings for the new listening environment. (v p. 217) I want to combine a desired video with the current music Set “Video Select”...
Page 286 Contents Connections Playback Settings Tips Appendix Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? 0 If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Page 287 Contents Connections Playback Settings Tips Appendix Power does not turn on / Power is turned off Power does not turn on. Check whether the power plug is correctly inserted into the power outlet. (v p. 99) Power automatically turns off. The sleep timer is set.
Page 288 Contents Connections Playback Settings Tips Appendix Operations cannot be performed through the remote control unit Operations cannot be performed through the remote control unit. Batteries are worn out. Replace with new batteries. (v p. 9) Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 9) Remove any obstacle between this unit and the remote control unit.
Page 289 Contents Connections Playback Settings Tips Appendix No sound comes out No sound comes out of speakers. Check the connections for all devices. (v p. 45) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 290 Contents Connections Playback Settings Tips Appendix Desired sound does not come out The volume does not increase. The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 191) Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit. No sound comes out with the HDMI connection.
Page 291 Contents Connections Playback Settings Tips Appendix No sound is produced from subwoofer. Check the subwoofer connections. Turn on the subwoofer’s power. Set “Speaker Config.” - “Subwoofer” in the menu to “1 spkr” or “2 spkrs”. (v p. 236) When “Speaker Config.” - “Front” in the menu is set to “Large”, depending on the input signal and the sound mode, no sound may be output from the subwoofer.
Page 292 Contents Connections Playback Settings Tips Appendix Audyssey MultEQ ® XT32, Audyssey Dynamic EQ ® , Audyssey Dynamic Volume ® and Audyssey LFC™ cannot be selected. These cannot be selected when you have not performed Audyssey Setup. (v p. 217) ® Switch to a sound mode other than “Direct”...
Page 293 Contents Connections Playback Settings Tips Appendix Sound is interrupted or noise occurs During playback from the Internet radio or USB memory device, sound is occasionally interrupted. When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted. The network communication speed is slow or the radio station is busy.
Page 294 Contents Connections Playback Settings Tips Appendix No video is shown on the TV No picture appears. Check the connections for all devices. (v p. 81) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 295 Contents Connections Playback Settings Tips Appendix No video from an input source such as a game console is shown on the TV. When special video signals are input from a game console, etc., the Video Conversion function may not function. Connect the input connector to the monitor output connector of the same type.
Page 296 Contents Connections Playback Settings Tips Appendix The menu screen is not displayed on the TV The menu screen or status information screen is not displayed on the TV. The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is connected to a TV using a different video output connector, operate while watching the display on this unit.
Page 297 Contents Connections Playback Settings Tips Appendix AirPlay cannot be played back The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad. This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 95) The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay.
Page 298 Contents Connections Playback Settings Tips Appendix USB memory devices cannot be played back USB memory device is not recognized. Disconnect and reconnect the USB memory device. (v p. 92) Mass storage class compatible USB memory devices are supported. This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port. The USB memory device must be formatted to FAT16 or FAT32.
Page 299 Contents Connections Playback Settings Tips Appendix Bluetooth cannot be played back Bluetooth devices cannot be connected to this unit. The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function. Bring the Bluetooth device near to this unit.
Page 300 Contents Connections Playback Settings Tips Appendix The Internet radio cannot be played back A list of broadcasting stations is not displayed. The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 95) Perform the network diagnostic mode.
Page 301 Contents Connections Playback Settings Tips Appendix Music files on PC or NAS cannot be played back Files stored on a computer cannot be played. Files are stored in a non-compatible format. Record in a compatible format. (v p. 315) Files that are copyright protected cannot be played on this unit. The USB port of this unit cannot be used for connection to a computer.
Page 302 Contents Connections Playback Settings Tips Appendix Various online services cannot be played Various online services cannot be played. The online service may have been discontinued. The HDMI Control function does not work The HDMI Control function does not work. Check that “HDMI Control” in the menu is set to “On”. (v p. 201) You cannot operate devices that are not compatible with the HDMI Control function.
Page 303 Contents Connections Playback Settings Tips Appendix Cannot connect to a wireless LAN network Cannot connect to the network. The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting details of this unit.
Page 304 Contents Connections Playback Settings Tips Appendix When using HDMI ZONE2, the devices does not function properly When using MAIN ZONE, video output is interrupted in HDMI ZONE2. With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video may be interrupted in HDMI ZONE2. When using HDMI ZONE2, no video or audio is output from the TV in ZONE2.
Page 305 Contents Connections Playback Settings Tips Appendix Update/upgrade error messages If an update/upgrade is interrupted or fails, an error message appears. Display Description Connection failed. Please check your network, then try The network connection is unstable. again. Connection to the server failed. Check your network environment and try the update again.
Page 306 Contents Connections Playback Settings Tips Appendix Resetting factory settings If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 286) If the operations are not improved by restarting the unit, follow the steps below.
Page 307 Contents Connections Playback Settings Tips Appendix Resetting network settings If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 286) If the operations are not improved by restarting the unit, follow the steps below.
Page 308 Contents Connections Playback Settings Tips Appendix About HDMI HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. This unit supports input and output of 3D (3 dimensional) video signals With the HDMI connection, high definition video and high quality audio of HDMI.
Page 309 Contents Connections Playback Settings Tips Appendix Auto Lip Sync ARC (Audio Return Channel) This function can automatically correct delay between the audio and This function transmits audio signals from the TV to this unit through video. the HDMI cable and plays back the audio from the TV on this unit Use a TV that is compatible with the Auto Lip Sync function.
Page 310 Contents Connections Playback Settings Tips Appendix o Supported audio formats Copyright protection system In order to play back digital video and audio such as BD video or DVD 2-channel Linear 2-channel, 32 kHz – 192 kHz, 16/20/24 bit video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (High- Multi-channel 7.1-channel, 32 kHz –...
Page 311 Contents Connections Playback Settings Tips Appendix Video conversion function This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV. This unit HDMI-compatible TV Video device Output Input (IN) (MONITOR OUT) Output HDMI signal HDMI signal HDMI connector...
Page 312 Contents Connections Playback Settings Tips Appendix This unit can convert the input video signals to the resolution that is set for “Resolution” in the menu before outputting them to the TV. (v p. 206) HDMI Output signal Input signal 480i/576i 480p/576p 720p 1080i...
Page 313 Contents Connections Playback Settings Tips Appendix Playing back a USB memory devices This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags. If the image size (pixels) of an album artwork exceeds 500 ×...
Page 314 Contents Connections Playback Settings Tips Appendix Playing back a Bluetooth device o Maximum number of playable files and folder The limits on the number of folders and files that can be displayed by This unit supports the following Bluetooth profile. this unit are as follows.
Page 315 Contents Connections Playback Settings Tips Appendix Playing back a file saved on a PC or NAS This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags.
Page 316 Contents Connections Playback Settings Tips Appendix Playing back Internet Radio Personal memory plus function The most recently used settings (input mode, HDMI output mode, sound o Playable broadcast station specifications mode, tone control, channel level, MultEQ ® XT32, Dynamic EQ, Dynamic Volume, M-DAX and audio delay, etc.) are saved for each input source.
Page 317 Contents Connections Playback Settings Tips Appendix Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. (v p. 236) Channel output Front Surround...
Page 318 Contents Connections Playback Settings Tips Appendix z1 The applicable sound mode includes “Dolby Surround” and sound modes that have “+Dolby Surround” in the sound mode name. z2 Audio can be played through a maximum of 11-channels when 11 speakers or more (excluding the subwoofer) are installed. z3 The applicable sound mode includes “DTS Neural:X”...
Page 319 Contents Connections Playback Settings Tips Appendix Sound modes and surround parameters Surround Parameter Loudness Dynamic Sound mode Dialog Control Frequency Speaker Select Auro-Matic 3D Auro-Matic 3D Cinema EQ Management Compression Center Spread DTS Neural:X IMAX Preset Strength Direct/Pure Direct (2-channel) z1 Direct/Pure Direct (Multi-channel) z1 DSD Direct (2-channel) DSD Direct (Multi-channel)
Page 320 Contents Connections Playback Settings Tips Appendix Surround Parameter Audyssey Subwoofer Dialog Tone M-DAX Bass Sync Dynamic Audyssey Sound mode Level Adjust MultEQ® XT32 Dynamic EQ Enhancer Auro-3D Mode Subwoofer Volume LFC™ z10z11 z12z13 z12z13 z12z13 Direct/Pure Direct (2-channel) z1 Sz16 Sz16 Direct/Pure Direct (Multi-channel) z1 DSD Direct (2-channel)
Page 321 Contents Connections Playback Settings Tips Appendix z1 During playback in Pure Direct mode, the surround parameters are the same as in Direct mode. z2 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played. z3 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X or DTS signal is played.
Page 322 Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super Dolby Dolby...
Page 323 Contents Connections Playback Settings Tips Appendix 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super Dolby Dolby IMAX IMAX DTS ES DTS ES (Super Digital Digital Digital DTS:X DTS-HD Auro-3D multi- (-HD) Audio Atmos TrueHD DTS:X Express Dscrt6.1 Mtrx6.1...
Page 324 Contents Connections Playback Settings Tips Appendix z1 This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker. z2 The default sound mode for the AirPlay playback is “Direct”. z3 This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.
Page 325 Contents Connections Playback Settings Tips Appendix Explanation of terms o Audyssey Audyssey LFC™ (Low Frequency Containment) Audyssey LFC™ solves the problem of low frequency sounds disturbing Audyssey Dynamic EQ ® people in neighboring rooms or apartments. Audyssey LFC™ dynamically Audyssey Dynamic EQ ®...
Page 326 Contents Connections Playback Settings Tips Appendix o Auro-3D o Dolby Dolby Atmos Auro-3D ® Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of The Auro-3D technology suite is a groundbreaking new audio technology ® dimension and immersion to the Home Theater experience. Dolby Atmos that combines height-based listening formats with powerful creative tools is an adaptable and scalable object based format that reproduces audio to deliver an unrivaled three-dimensional sound experience.
Page 327 Contents Connections Playback Settings Tips Appendix Dolby Digital Dolby Speaker Technology (Dolby Atmos Enabled speakers) Dolby Digital is a multi-channel digital signal format developed by Dolby A convenient alternative to speakers built into the ceiling, Dolby Atmos Laboratories. Enabled speakers employ the ceiling above you as a reflective surface for reproducing audio in the height plane above the listener.
Page 328 Contents Connections Playback Settings Tips Appendix o DTS DTS-ES™ Discrete 6.1 DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format Dialog Control adding a surround back (SB) channel to the DTS digital surround sound. Gives you control of the listening experience. You can lift the dialog out Decoding of conventional 5.1-channel audio signals is also possible from the background sounds when clarity and intelligibility are desired.
Page 329 Contents Connections Playback Settings Tips Appendix DTS-HD High Resolution Audio DTS Neural:X DTS-HD High Resolution Audio is an improved version of the conventional Enables an immersive audio experience for older content. DTS Neural:X DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling can upmix your stereo, 5.1 or 7.1 content to take full advantage of all frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital speakers in your surround sound system.
Page 330 Contents Connections Playback Settings Tips Appendix o Audio FLAC (Free Lossless Audio Codec) FLAC stands for Free lossless Audio Codec, and is a lossless free audio Apple Lossless Audio Codec file format. Lossless means that the audio is compressed without any loss This is a codec for lossless audio compression method developed by in quality.
Page 331 Contents Connections Playback Settings Tips Appendix THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4 CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED These are the names for digital compression format standards used for WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED the encoding of video and audio.
Page 332 Contents Connections Playback Settings Tips Appendix o Video Speaker impedance This is an AC resistance value, indicated in Ω (ohms). Greater power can be obtained when this value is smaller. ISF (Imaging Science Foundation) is an organization that certifies video technicians who are then qualified to carry out calibration and adjustment Dialogue normalization function to match the installation conditions.
Page 333 Contents Connections Playback Settings Tips Appendix o Network WPA-PSK/WPA2-PSK (Pre-shared Key) This is a simple authentication system for mutual authentication when a AirPlay preset character string matches on the wireless LAN access point and AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod client.
Page 334 Contents Connections Playback Settings Tips Appendix o Others HDCP When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization. MAIN ZONE The room where this unit is placed is called the MAIN ZONE. Pairing Pairing (registration) is an operation that is required in order to connect a Bluetooth device to this unit using Bluetooth.
Page 335 Contents Connections Playback Settings Tips Appendix Trademark information Manufactured under license from Audyssey Laboratories™. U.S. and Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of foreign patents pending. Audyssey MultEQ ® XT32, Audyssey Dynamic Apple Inc., registered in the U.S. and other countries. ®...
Page 336 Contents Connections Playback Settings Tips Appendix The Bluetooth ® word mark and logos are registered trademarks owned Manufactured under license from IMAX Corporation. IMAX® is a by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. registered trademark of IMAX Corporation in the United States and/or is under license.
Page 337 Contents Connections Playback Settings Tips Appendix Specifications o Audio section Analog Input sensitivity: Unbalanced RCA input : 200 mV Balanced XLR input : 400 mV Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode) S/N: 105 dB (IHF–A weighted, Direct mode) Distortion: 0.005 % (20 Hz –...
Page 338 Contents Connections Playback Settings Tips Appendix o Video section Standard video connectors Input/output level and impedance: 1 Vp-p, 75 Ω/ohms Frequency response: 5 Hz – 10 MHz — 0, –3 dB Color component video connector Input/output level and impedance: Y signal — 1 Vp-p, 75 Ω/ohms signal —...
Page 339 Contents Connections Playback Settings Tips Appendix o Wireless LAN section Network type (wireless LAN standard): Conforming to IEEE 802.11a/b/g/n (Wi-Fi ® compliant) Security: WEP 64 bit, WEP 128 bit WPA/WPA2-PSK (AES) WPA/WPA2-PSK (TKIP) Used frequency range: 2.4 GHz, 5 GHz z1 The Wi-Fi CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Page 340 Contents Connections Playback Settings Tips Appendix o Bluetooth section Communications system: Bluetooth Specification Version 3.0 + EDR (Enhanced Data Rate) Transmission power: Bluetooth Specification Power Class 1 Maximum communication range: Approx. 98.4 ft/30 m in line of sight Used frequency range: 2.4 GHz Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Page 341 Contents Connections Playback Settings Tips Appendix Dimensions (Unit : in. (mm)) 17 3/8 (440) 2 1/4 (56) 2 (50) 13 1/2 (340) 2 (50) o Weight: 30 lbs 3 oz (13.7 kg) Front panel Display Rear panel Remote Index...
Page 342 Contents Connections Playback Settings Tips Appendix Index Bi-amp ............78 Game console ..........89 Bluetooth device .......... 108 General settings ........181, 257 v Numerics Blu-ray Disc player ......... 88, 102 11.1-channel ..........78, 79 13.1-channel ..........67 HDCP ............310 15.1-channel ..........
Page 343 Contents Connections Playback Settings Tips Appendix M-DAX ............189 Queue .......... 104, 123, 130 Tips .............. 284 Menu map ............ 178 Troubleshooting ........... 286 Muting ............102 TV ............81, 83, 84 Rear panel ............27 Remote control unit ........31 NAS .............
Page 344 Contents Connections Playback Settings Tips Appendix Wi-Fi settings ..........250 Wired LAN ..........95, 249 Wireless LAN ......... 96, 250 ZONE2/ZONE3 ..........173 Front panel Display Rear panel Remote Index...
