RCA CC615 User Manual

RCA CC615 User Manual

Rca cc615: users guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

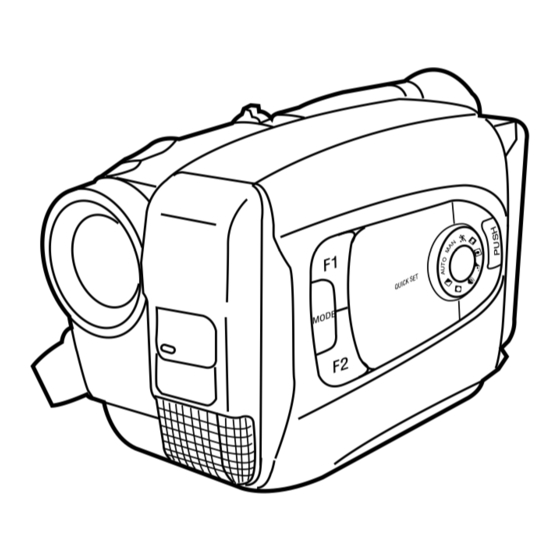

CC615
USER'S
GUIDE
C A M C O
R D E R

Advertisement

Table of Contents
loading

Related Manuals for RCA CC615

Summary of Contents for RCA CC615

  • Page 1 CC615 USER‘S GUIDE C A M C O R D E R...

  • Page 2: Important Safety Information

    Purchased From: _____________________________________ This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Pour éviter les chocs électriques, introduire la lame _____________________________________ CC615 _____________________________________ _____________________________________...

  • Page 3: Table Of Contents

    Assistance We want to make sure you enjoy your new camcorder. If you have any questions, call: Camcorder Exchange Warranty...800-283-6503 Customer Service...800-336-1900 (page 65) Accessories...800-338-0376 (pages 52-57) Table of Contents Safety Information ...i Product Registration ...i Table of Contents ...1-2 First-Time Operation •...

  • Page 4: Table Of Contents

    Table of Contents Recording • Making a Recording...18-19 • Recording Tips ...20 • Traveling Tips ...20 • Viewfinder...21 • Viewfinder Displays...22-24 • Tally Light ...25 • Microphone...25 • Flying Erase Head ...25 • Tape Positioning...25 • Electronic Indexing ...25 • Quick Review ...26 •...

  • Page 5: First-Time Operation

    • Save the packing materials and box in case you ever need to ship or store your camcorder. • The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your dealer immediately. Model CC615 AC Adapter/Charger Part No. 221339 or 217010 WARNING: NICKEL...

  • Page 6: Attach The Adapter/Charger

    First-Time Operation To AC 100- 240V, 50/60 Hz Adapter/Charger POWER Indicator DC OUT Jack 2. Attach the adapter/charger. Since the battery must be charged before it can be used the first time, attach the adapter/charger to the camcorder. A. Connect the power connector’s small plug into the DC OUT jack on the adapter/charger.

  • Page 7: Open Lens Cover

    First-Time Operation EJECT Button PUSH Here to Close Tape Window 4. Slide LENS COVER control to open lens cover. 5. Adjust the handstrap to fit your hand. • Lift the flap on the handstrap and separate the velcro strip. • Insert your hand, adjust the strap to fit snugly, and refasten the strap.

  • Page 8: Select A Recording Speed

    First-Time Operation 7. Select a recording speed and tape length using SP•SLP/T20•30•40 switch. Select SP or SLP recording speed. • SP – Standard play provides the best picture, but the shortest recording time (20 minutes with a TC-20 tape). • SLP – Extended play provides three times the recording time as SP (60 minutes with a TC-20 tape).

  • Page 9: Set The Quick Set Dial

    First-Time Operation Eyepiece Focus Control 8. Set the QUICK SET dial to AUTO. • This places the camcorder in the AUTO mode. • In the AUTO mode, the fade, 16X9, manual focus, exposure, display, and titler controls will not operate. Electronic Viewfinder QUICK SET Dial 9.

  • Page 10: Start And Stop Recording

    First-Time Operation 10. Start and stop recording. • Press and release the thumb trigger to start recording. REC appears in the viewfinder, and the tally light will light when the camcorder is recording. • Press and release the thumb trigger again to stop recording.

  • Page 11: Unpack Camcorder & Operating Controls

    First-Time Operation 13. Review camcorder’s operating controls. Power Zoom Lever “W” - Wide Angle “T” - Telephoto Lens LENS COVER Control Tally Light Microphone MODE Button Viewfinder Eyepiece Focus Control Eyepiece EJECT Button Cassette Door PUSH here to close. QUICK SET Dial F1 Button F2 Button (continued on next page)

  • Page 12: Operating Controls

    First-Time Operation 13. Review camcorder’s operating controls. DATE/TIME/CHAR + and – Buttons (Also TRACKING Buttons) SP•SLP/T20•30•40 Button (Also COUNTER R/M Button) MAN.W.BAL (Manual White Balance) Button B (Bright) and C (Color) Controls on the Bottom of Viewfinder (See Trouble Checks for Details.) Shoulder Strap Attachment Ring Clock Cell...

  • Page 13: Powering Your Camcorder

    Powering Your Camcorder Using the Adapter/Charger to Power Your Camcorder The power connector attaches to the camcorder and lets you power your camcorder directly from standard household power. The adapter/charger operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery.

  • Page 14: Using Rechargeable Battery

    Powering Your Camcorder Hold Battery Indicator Flush and Slide POWER Indicator Indicator REFRESH Button REFRESH Indicator Charge the Battery If the power connector is attached to the DC OUT jack on the adapter/charger, remove its plug. 1. Align reference mark on battery with mark on adapter/charger.

  • Page 15: Attach The Charged Battery

    There are no user-serviceable parts inside. Use the battery only with specified adapter/chargers and camcorders. Throwing the battery into a fire or exposing to excessive heat – over 149ºF (65ºC) could be hazardous. the battery down until it locks into place.

  • Page 16: Battery Level Indicator

    Powering Your Camcorder Battery Level Indicator The battery level indicator appears in the viewfinder and shows you the amount of power in the rechargeable battery. Battery Level Indicator in Viewfinder • When appears, the battery is fully charged. Battery Care and Storage •...

  • Page 17: Using Optional Car Cord Adapter

    Powering Your Camcorder Optional Car Cord Adapter The optional DCC08 car cord shown on page 52 allows you to power your camcorder from the cigarette lighter socket of a car, truck, or RV. It converts 12-volts to a 6-volt output. Note: Consult the installation and operating instructions enclosed with the DCC08 for complete operating instructions.

  • Page 18: Video Cassettes

    Video Cassettes We recommend that our cassettes be used with your camcorder. Use of poor quality tapes or tapes that have been damaged or mishandled can contaminate the video heads, resulting in a snowy picture or no picture at all during playback. Because there is no control over the type of tape purchased or rented by consumers, head cleaning is not covered under warranty.

  • Page 19: Video Cassettes

    Video Cassettes Inserting and Removing Cassettes PUSH Here to Close Cassette Compartment Door Before inserting a cassette, turn the tape wheel on the side of the cassette in the direction shown to remove any slack in the tape. Tape Wheel Cassette Care and Storage •...

  • Page 20: Making A Recording

    Recording Making a Recording The steps below tell you how to make a recording and suggest using some of the recording features. Each feature is described in detail on the following pages. SP•SLP/T20•30•40 Switch Eyepiece Focus Control VCR/OFF/CAMERA Switch Tally Light 1.
  • Page 21 Recording 6. Select a recording speed and tape length using the SP•SLP/T20•30•40 switch. • Select SP or SLP recording speed. • Set the length of the tape you are using (T20, T30, or T40) so the camcorder can correctly calculate time remaining.

  • Page 22: Recording Tips

    Recording Recording Tips • In case of fire or theft, make a video recording of your home and contents to store in a safe place. • Try to make sure indoor scenes are well-lit. • Do not move the camcorder rapidly from side-to-side while recording.

  • Page 23: Viewfinder

    Recording Viewfinder The camcorder’s viewfinder is a miniature monitor that displays the picture seen by the camcorder when recording. Adjust Viewfinder for Convenient Viewing For convenient viewing, you can slide the viewfinder out from the camcorder and rotate it up and down. Cautions Do not force the viewfinder to rotate completely around.

  • Page 24: Viewfinder Displays

    Recording Viewfinder Displays SPORTS LENS COVER HAPPY HOLIDAYS Zoom Level This indicator tells you whether you are zoomed in or zoomed out. Details are on page 36. Exposure Indicator Bar This indicator appears when you are adjusting brightness manually. Details are on page 36. Preset Title •...
  • Page 25 Recording Cassette Warning • The indicator flashes when the VCR/OFF/CAMERA switch is set to CAMERA and the safety tab has been removed from the cassette. • The indicator also flashes when the VCR/OFF/CAMERA switch is set to CAMERA and there is no cassette in the camcorder.
  • Page 26 Recording Viewfinder Displays (continued) FADE White Balance • The indicator for the manual white balance selected with the MAN.W.BAL (manual white balance) button appears here. • No indicator appears for automatic white balance. • Details are on page 30. Dew Warning ( The dew indicator appears when excessive moisture (condensation) has entered the camcorder.

  • Page 27: Tally Light

    Recording Tally Light Microphone Tally Light The tally light lights when the camcorder is recording. Microphone The microphone picks up the sound during a recording. It is more sensitive to sounds coming from the direction the lens is pointed. Flying Erase Head A separate erase head is mounted on the spinning headwheel (hence the term “flying”).

  • Page 28: Quick Review

    Recording Quick Review Feature Press and release EDIT SEARCH – when the camcorder is in record pause to review the last few seconds of a recording. The VCR/OFF/CAMERA switch must be in CAMERA. The camcorder will play back the last few seconds of the recording, return the tape to its previous position, and return to record pause.

  • Page 29: Time Counter With Memory Stop

    Recording Time Counter The time-counter display shows the actual time elapsed when playing back a segment of a prerecorded tape. The memory-stop feature helps locate a certain point on the tape. When memory stop is on, the tape will stop automatically during rewind or fast forward when the time counter reaches M 0:00:00.

  • Page 30: Tape Time-Remaining Display

    Recording Tape Time-Remaining Display The approximate time remaining on the tape in the camcorder is automatically displayed in the viewfinder. The SP•SLP/T20•30•40 switch must be set for the correct recording speed and tape length before the camcorder can correctly calculate time remaining.

  • Page 31: Quick Set Dial

    Recording QUICK SET Dial The QUICK SET dial lets you select one of several different effects. Turn the dial to select the effect you want. The indicator for the effect will appear in the viewfinder. Set the dial to MAN for normal recording. Mode Indicator Uses...

  • Page 32: White Balance

    Recording White Balance Making colors look natural is what white balance is all about. This is achieved by adjusting the way the camcorder “sees” and records the light source in the scene you wish to record. Your camcorder is equipped with automatic white balance. However, under certain conditions, such as recording an object with various shades of the same color or when recording a predominant red or brown object outdoors, you may want to adjust white balance manually.

  • Page 33: Mode Button

    Recording MODE Button When the QUICK SET dial is in any position except AUTO, you can select any one of six functions using the MODE, F1, and F2 buttons. Repeatedly press MODE to select a function. The function selected appears in the viewfinder: Functions Selected Repeatedly...

  • Page 34: Fading In And Out

    Recording Fading In and Out You can add a professional touch to your recordings when you fade in and out of scenes. The picture will gradually appear or disappear. The speed of the fade is automatically controlled by the camcorder. Fade In 1.

  • Page 35: 16X9 Mode

    Recording 16X9 Mode The camcorder has a 16X9 recording mode that lets you make recordings compatible with the 16X9 format. When 16X9 is activated, the camcorder records black bars at the top and bottom of the picture to produce the wide-screen effect. This is also known as “letter box”...

  • Page 36: Focusing (Auto And Manual)

    Recording Focusing the Camcorder Auto Focus During auto focus the camcorder will focus automatically on the object located in the center area of the viewfinder. • Place the QUICK SET dial in AUTO to turn on the auto focus feature. Note: The low-contrast indicator ( in the viewfinder indicates the auto-focus system may not operate correctly due to low...

  • Page 37: Manual Focus

    Recording Manual Focus Under certain conditions, such as those listed, you may need to focus manually. 1. Make sure the QUICK SET dial is not set to AUTO. 2. Slide the power zoom lever toward T to zoom in on your subject. To maintain proper focus throughout the zoom range, you must zoom in on the subject before adjusting the focus.

  • Page 38: Exposure Control (Iris)

    Recording Exposure Control (Iris) The camcorder automatically adjusts the iris to provide the best picture. Under certain conditions, you may want to brighten or darken the image manually. To Manually Control Brightness 1. Make sure the QUICK SET dial is not set to AUTO.

  • Page 39: Attaching The Optional Shoulder Strap

    Recording Attaching an Optional Shoulder Strap The optional ACS091 shoulder strap shown on page 52 is designed to let you carry the camcorder from your shoulder and – when you are ready to shoot – bring the camcorder to shooting position in one quick movement. To Attach the Optional Shoulder Strap 1.

  • Page 40: Titler

    Recording Titler You can superimpose one of the eight preset titles stored in memory over the scene being recorded. You can also create your own title (up to 18 characters), store it, and record it alone or with one of the preset titles. Recording a Title Stored in Memory 1.
  • Page 41 Recording Creating Your Own Title After you create a title you can store it and record it alone or with one of the preset titles as described on pages 42-43. 1. Place VCR/OFF/CAMERA switch in CAMERA. Power indicator will light. 2.

  • Page 42: Install The Clock's Cell

    Recording Install the Clock Lithium Cell The clock cell indicator will appear in the viewfinder when the cell has not been installed or needs to be replaced. The cell should last approximately one year. Insert object here to remove cell. Clock Cell (+ Side Facing Out) Clock Cell...

  • Page 43: Set The Time And Date

    Recording Set the Date and Time After the date and time have been set, they can be displayed and recorded on your tapes. The clock cell must be installed. DATE/TIME/CHAR + and – Buttons VCR/OFF/CAMERA Switch and Power Indicator 1. Make sure the clock cell is installed. 2.
  • Page 44 Recording Select the Date, Time, or Title You Want to Record on Your Tape The clock cell must be installed, and the date and time set before they can be selected and recorded. When the QUICK SET dial is in AUTO, the auto date mode is automatically selected.
  • Page 45 Recording Date and Time Displays Viewfinder Displays Press F2 to select mode. NOV 18. 95 Date Display AUTO DATE Auto Date Display NOV 18. 95 PM 11:59 Date/Time Display The mode selected will be recorded. To Record the Date, Time, or Title Display on Your Tape 1.

  • Page 46: Playback

    Playback Viewfinder Playback and Playback Features EJECT Button Viewfinder Playback To Play Back a Tape 1. Place VCR/OFF/CAMERA switch in VCR. The power indicator will light. 2. Slide EJECT and insert the cassette you want to play back. Close the cassette compartment.

  • Page 47: Visual Searching

    • Press PLAY/PAUSE to return to normal playback. TRACKING Buttons • Simultaneously press both TRACKING buttons to return tracking to its preset center. Note: The TRACKING buttons may have no effect on tapes recorded on other camcorders or VCRs.

  • Page 48: Using The Cassette Adapter

    Playback Using the Cassette Adapter The camcorder uses a smaller size cassette, but records in standard VHS format. The cassette adapter allows you to play your VHS-C cassettes in a VCR just like other standard VHS cassettes. Insert the VHS-C cassette into the cassette adapter. Insert the cassette adapter into the VHS VCR like a normal VHS cassette.
  • Page 49 Playback Load Detector 4. Gently close the cassette compartment lid until it locks into place. Make sure the cassette reel area under the adapter is free to turn while the cassette is loading. Note: You should hear a whirring sound while the tape loads.

  • Page 50: Playback On Tv (Or Vcr) With Audio/Video In Jacks

    Playback Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks, you will need an optional audio/video cable such as AH075G shown on page 54. If your TV is already connected to a VCR, you can attach the camcorder to the VCR and watch what the camcorder is recording or playing on the TV.
  • Page 51 Playback Playback Operation and How to Copy Tapes on the VCR 1. A. Camcorder connected directly to TV: Turn on the TV and tune it to the video input channel. B. Camcorder connected to VCR that is already connected to TV: Turn on VCR and place it in the “line”...
  • Page 52 Playback Playback on a TV Without Audio/Video Inputs To connect your camcorder to a TV without audio/video inputs, you will need an optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as AH065G or AH066G shown on page 54. If your TV has AUDIO and VIDEO IN jacks (or is connected to a VCR), refer to pages 48-49.
  • Page 53 Playback Playback Operation 1. Set the CH3/CH4 switch on the RF output adapter to channel 3 or 4. 2. Turn on the TV, and tune it to the same channel you selected with the RF output adapter’s CH3/CH4 switch. 3. Place adapter’s VCR/TV switch in VCR.

  • Page 54: Optional Accessories

    Optional Accessories We invite you to take a look at some great ideas for sparking creativity and adding to the fun of using your compact VHS camcorder. The following pages have a selection of accessories to help make your memorable moments look and sound even better. These accessories are designed to make the process of recording and watching your videos more enjoyable.
  • Page 55 Optional Accessories FB1260 and FB120 Rechargeable Batteries These rechargeable nickel-cadmium batteries are designed specifically for long life. The FB1260 powers your camcorder approximately 65 minutes and the FB120 approximately 135 minutes (with video light off – depending on how much you use zoom and pause).
  • Page 56 Optional Accessories 1CVA147C RF Output Adapter This RF output adapter is used with a coaxial RF cable, such as AH065G or AH066G, to connect your camcorder to a standard TV (one without audio/video inputs) for playback. If your antenna cable is the flat twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as 193983.

  • Page 57: Accessory Order Form

    Accessory Order Form Order Form for Camcorder Model CC615 Description Soft Camcorder Case Super Lightweight Tripod Shoulder Strap 75-300 Cable Transformer Y-Adapter Coaxial RF Cable Coaxial RF Cable Audio/Video Cable AC Battery Charger Car Cord Adapter Rechargeable Battery (2 Hr.) Rechargeable Battery (1 Hr.)
  • Page 58 Accessory Order Form Charge your order on your VISA or MasterCard by filling in below USE YOUR CREDIT CARD IMPORTANT: Copy complete account number from your VISA card My card expires: IMPORTANT: Copy complete account number from your MasterCard Copy Number above your name on MasterCard...
  • Page 59 Accessory Order Form To order accessories, contact your local Dealer. If a dealer is not nearby, you can also follow the directions below to order by telephone or direct-by-mail. United States and Canada Orders To place your order by phone, have your Visa or MasterCard ready and call the toll-free number listed below between 8AM and 8PM Eastern Standard Time.

  • Page 60: Care And Maintenance

    Care and Maintenance Cleaning the Camcorder To clean the camcorder’s exterior, remove any power source connected to the camcorder and gently wipe it with a clean soft cloth. Cleaning the Camcorder’s Lens To clean the camcorder’s lens, blow it with a blower brush, and then gently wipe the lens with cleaning tissue and commercially prepared cleaning solution designed for use on camera lens.
  • Page 61 • Do not expose the camcorder or adapter/charger to rain or moisture. If either component becomes wet, turn off the power and take the unit to an Authorized RCA Camcorder Servicenter. • Do not use an adapter/charger or batteries other than the ones specified for the camcorder.

  • Page 62: Trouble Checks

    Before you call or take your camcorder to an Authorized RCA Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that trouble.
  • Page 63 Trouble Checks Trouble Checks and Adjustments • Place VCR/OFF/CAMERA switch to OFF and then Camcorder turns CAMERA or VCR to turn back on. If camcorder is left in itself off record pause or play pause for several minutes, it will turn itself off to prevent tape wear.
  • Page 64 Trouble Checks Trouble Checks and Adjustments Viewfinder displays • Lens is smudged, and image appears unfocused. are out of focus • Eyepiece focus control is misadjusted. • The small controls on the bottom of the viewfinder control the brightness and color of the viewfinder. These controls have been set at the factory and should require no adjustment.

  • Page 65: Trouble Checks

    Error number • Try disconnecting power source. Wait ten seconds and then (E01, E02, etc.) connect power source again. If error number does not appears in disappear from viewfinder, consult your Authorized RCA viewfinder Camcorder Servicenter.

  • Page 66: Specifications

    Specifications General Power requirement: 6VDC Power consumption: 5.7 watts (normal) Weight: 1.3 lbs. (790g) Dimensions – Including Viewfinder 4-3/8"(W) x 4-1/2"(H) x 8" (D) 110 (W) x 112 (H) x 213 (D) mm Video Recorder Section Format: VHS-C Record/Playback System: Four video record/playback heads One flying erase head Video Signal: EIA Standard NTSC...

  • Page 67: Customer Assistance And Service

    Customer Assistance and Service You can reach Thomson at the following number: 800-283-6503 (Toll free inside U.S.A.) Our toll-free Camcorder number operates from 8 a.m. to 5 p.m., CST Monday – Friday for U.S. customers only Returning equipment to Thomson for repair or exchange If we are unable to resolve your problem over the phone, we will gladly service your unit or exchange it for a new or...

  • Page 68: Limited Warranty

    Limited Warranty What your warranty covers: • Any defect in materials or workmanship. For how long after your purchase: • 90 days for labor charges. • One year for parts. What we will do: During the initial 90 days • Exchange your camcorder with a new or, at our option, a refurbished unit or at your option, repair your camcorder at no cost to you.

  • Page 69: Limited Warranty

    • Check with your dealer or call 1-800- 336-1900 for the Authorized RCA Camcorder Servicenter nearest you. • Take your unit to the Authorized RCA Camcorder Servicenter of your choice. • Show the Authorized RCA Camcorder Servicenter representative your sales receipt or other, evidence of purchase.

  • Page 70: Index (Alphabetical)

    Index 16x9 Mode & Indicator ....33 Accessories, Included ....3 Accessories, Optional ... . .52-57 Accessory, Order Form .
  • Page 71 Index Mode Displays .....24 MWB Indicator .....30 Operation, First-Time .
  • Page 72 This will only add delays in service for your product. 10330 North Meridian Street Indianapolis, IN 46290 © 1995 Thomson Consumer Electronics, Inc. Trademark(s) ® Registered Marca(s) Registrada(s) Printed in Japan Part Number 95-CC615-1...
