Page 1: Table Of Contents
® X2 850.5 FULL-RANGE CLASS D AMPLIFIER OWNER’S MANUAL Table of Contents Topic Page Introduction Finding a Suitable Location Supplying Power The Ground Connection Running Cables Class D Amplifier Recommendations Diagnostic Fault Codes Speaker Level Input Pigtails Input Section... -
Page 2: Introduction
If the amp can’t get the power it needs form your alternator and battery, it will not be able to produce its full output. Your ARC Audio amplifier will produce full output for longer than other amps on the market today. If the Voltage or Current drops too low, even our amplifiers will drop below their rated output. -
Page 3: Class D Amplifier Recommendations
Speaker Level Input Pigtails All ARC Audio X2-Series amplifiers include a set of high-level speaker input RCA pigtails. These pigtails include a resistive voltage divider network to reduce the signal from a high-power source unit or factory amplifier so that it can be used with the differential Inputs on your X2-Series Amp. -
Page 4: Input Section
DC DETECT no over- or under-lap. Crossover Function Controls The X2 850.5 includes the option for full-range or high- CH 1/2 CH 3/4 pass filtering on the four main channels and an adjustable crossover on the subwoofer channels. -
Page 5: Bass Boost
SIGNAL DETECT DC DETECT Input Select Switches The X2 850.5 features a pair of Input Select switches to help simplify installations and system configuration where only one CH 1/2 CH 3/4 or two sets of speaker wires or RCA’s is available to connect to the amplifier. -
Page 6: Power, Ground And Turn-On Connections
FM tuner, your amp may connected to the wrong wire. Fuses The X2 850.5 includes three 30 amp ATC/ATO fuses on the left side of the end-panel. These fuses exist to protect the internal circuitry of the amplifier from damage and are not a replacement for a proper fuse at the battery in your vehicle. -
Page 7: Accessing Controls And Mounting Provisions

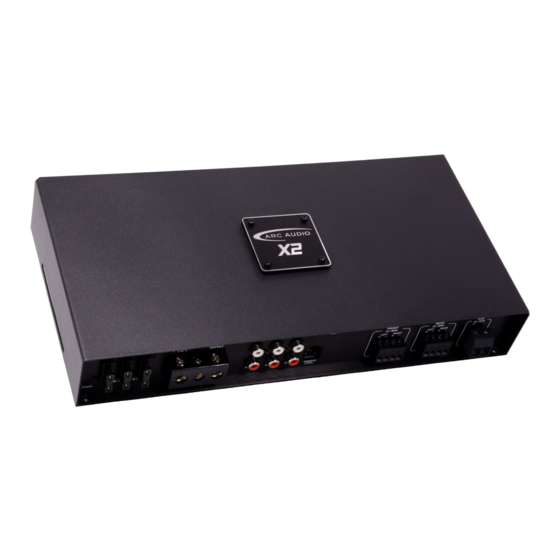

Accessing Controls and Mounting Provisions The X2 850.5 features our Level 2 X2-Series cosmetics. The amplifier shroud features an elegant new silver brushed- aluminum extruded aluminum design. An acrylic plastic badge in the center of the amp illuminates in blue when the amp is on, and can flash diagnostic codes as required. -
Page 8: Installation Instructions
In cases where multiple amplifiers share a common power wire, ensure each device has proper protection with a fuse. The fuses built-in to the ARC Audio X2-Series amplifiers satisfy this need. Processors, lighting, etc. will require dedicated fuses for safe operation. -
Page 9: Stereo 4-Channel High-Pass Configuration
X2 850.5 STEREO 4-CHANNEL HIGH-PASS with SUBWOOFER Use this Control Set CH 1/2 Use this Control Set CH 3/4 to adjust CH 1/2 Crossover to adjust CH 3/4 Crossover HP Frequency Function HP Frequency Function to HIGH to HIGH CH 1/2... -
Page 10: Specifications
“Out of Warranty” repair cost. In no event will ARC AUDIO be liable for incidental, consequential, or other damages resulting from the use or miss-use of this product. This includes but is not limited to, damage of hearing, property or person, damage based upon inconvenience or in loss of use of the product, and to the extent permitted by law, damages for personal injury.
