Summary of Contents for ARC Audio X2 1100.5
-
Page 1: Table Of Contents
® X2 1100.5 FULL-RANGE CLASS D AMPLIFIER OWNER’S MANUAL Table of Contents Topic Page Introduction Finding a Suitable Location Supplying Power The Ground Connection Running Cables Class D Amplifier Recommendations Diagnostic Fault Codes Speaker Level Input Pigtails Input Section... -
Page 2: Introduction
If the amp can’t get the power it needs form your alternator and battery, it will not be able to produce its full output. Your ARC Audio amplifier will produce full output for longer than other amps on the market today. If the Voltage or Current drops too low, even our amplifiers will drop below their rated output. -
Page 3: Class D Amplifier Recommendations
Speaker Level Input Pigtails All ARC Audio X2-Series amplifiers include a set of high-level speaker input RCA pigtails. These pigtails include a resistive voltage divider network to reduce the signal from a high-power source unit or factory amplifier so that it can be used with the differential Inputs on your X2-Series Amp. -
Page 4: Input Section
Crossover Range and Function Controls The X2 1100.5 includes the option for High-Pass, Low-Pass, Band-Pass or full range operation from Channels 1 and 2. CH3-4... -
Page 5: Bass Boost
SUB Channel can be used in lieu of RCA Interconnect Y-Cables to route signals from Channels 1 and 2 to these respective outputs. Load Impedance A unique feature of the X2 1100.5 is it’s adjustable rail voltage system. Each pair of channels includes a LOAD SELECT switch. CH 1/2 CH 3/4 Under 4Ω... -
Page 6: Speaker Output Connections
Power, Ground and Turn-On Connections The X2 1100.5 features a terminal block that is designed to secure 4 AWG power and ground connections to the amp. We recommend the use of pure copper power and ground wires in order to achieve the most reliable connections. -
Page 7: Remote Level Control

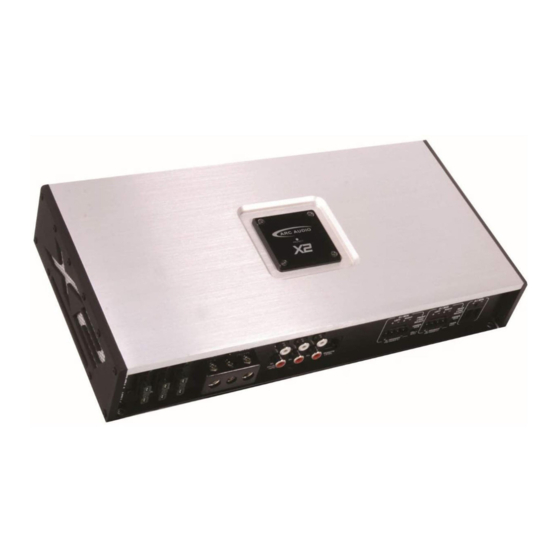

Accessing Controls and Mounting Provisions The X2 1100.5 features our Level 2 X2-Series cosmetics. The amplifier shroud features an elegant new silver brushed- aluminum extruded aluminum design. An acrylic plastic badge in the center of the amp illuminates in blue when the amp is on, and can flash diagnostic codes as required. -
Page 8: Installation Instructions
In cases where multiple amplifiers share a common power wire, ensure each device has proper protection with a fuse. The fuses built-in to the ARC Audio X2-Series amplifiers satisfy this need. Processors, lighting, etc. will require dedicated fuses for safe operation. -
Page 9: Stereo 4-Channel High-Pass W/ Sub Configuration
X2 1100.5 STEREO 4-CHANNEL HIGH-PASS with SUBWOOFER Use this Control Set CH 1/2 Use this Control Set CH 3/4 to adjust CH 1/2 Crossover to adjust CH 3/4 Crossover HP Frequency Function HP Frequency Function to HIGH to HIGH CH3-4... -
Page 10: Bridged 2-Channel High-Pass W/ Sub Configuration
X2 1100.5 BRIDGED 2-CHANNEL HIGH-PASS with SUBWOOFER Use this Control Set CH 1/2 to adjust CH 1/2 Crossover HP Frequency Function to HIGH CH3-4 CH1-2 BANDPASS LP RANGE FREQ Hz FREQ Hz CH1-2 LOW-BP FULL CH3-4 HIGH (CH 1/2) AUTO SENSE... -
Page 11: Stereo 3-Way Active Configuration
X2 1100.5 STEREO 3-WAY ACTIVE Use this Control Use this Control Set CH 1/2 Use this Control Set CH 3/4 to adjust CH 1/2 BANDPASS to adjust CH 1/2 Crossover to adjust CH 1/2 Crossover HP Frequency to ON LP Frequency... -
Page 12: Specifications
“Out of Warranty” repair cost. In no event will ARC AUDIO be liable for incidental, consequential, or other damages resulting from the use or miss-use of this product. This includes but is not limited to, damage of hearing, property or person, damage based upon inconvenience or in loss of use of the product, and to the extent permitted by law, damages for personal injury.
