Summary of Contents for ARC Audio XDi 450.4
-
Page 1: Table Of Contents

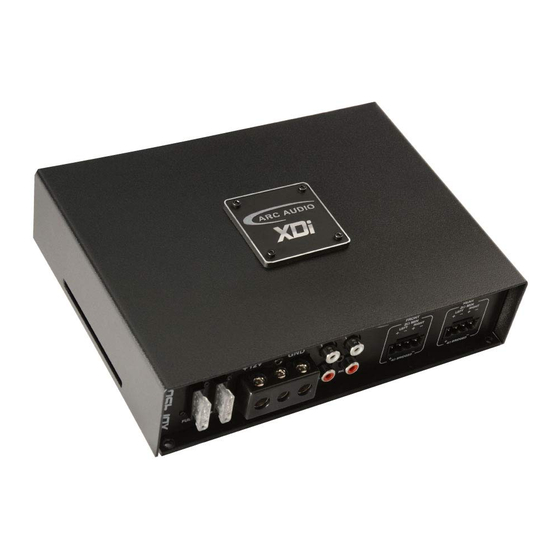

OWNER’S MANUAL ® www.arcaudio.com XDi 450. 4 Full Range Class D Amplifier Introduction Finding a Suitable Location Supplying Power The Ground Running the Cables Class D amplifiers Diagnostic Fault Codes Controls and Features Inputs Gains Crossovers Bass Boost Ohm Loads Speaker Outputs Installation Instructions System Diagrams... -
Page 2: Introduction
Your amplifier Does NOT make power. It converts power, or current, from your cars electrical system and turns it into a high power musical energy. If the amp can't get all the power it needs it will not produce its full output. Your ARC Audio ampli- fier will produce Full output for longer then other amps on the market today. -
Page 3: Running The Cables
Running the Cables Carefully run the power and signal cables through the passenger compartment of the vehicle. Running power down one side and signal down the other is the preferred method. If this isn’t possible, keep them separated as much as possible. When running through any metal, always use a rubber grommet to prevent the power wire from shorting and to reduce the risk of fire. -
Page 4: Inputs
Gain Because of the wide range of head unit output configurations all ARC Audio amplifiers have an adjustable input sensitivity or “Gain” . The gain is not a volume or a power limiting control like a throttle. It makes the amp more sensitive to input from the stereo. -
Page 5: Bass Boost
Bass Boost This amp has an adjustable Bass Boost that is directed to the front speakers. When laying out your system, if you plan to use Bass Boost (Example: Running a Bridged Subwoofer), connect those speakers to the front channels. Begin your adjust- ments at a low volume. -
Page 6: Installation Instructions
Installation Instructions Below is a very abbreviated set of installation instructions. This is not meant as a step by step procedure but is intended to give you a general idea of what is involved and which steps come first. Every installation will be different and may require reordering of these steps. -
Page 7: Channel Stereo
XDi 450. 4 STEREO 4 CHANNEL HIGH PASS Use this Recommended Crossover Set to BASS BOOST to 0dB for HIGH HIGH LOW/BP FULL BASS HP FREQ Hz LP FREQ Hz GAIN HIGH BOOST FREQ Hz INPUT AUTO SENSE GAIN FULL Set to Use this HIGH... -
Page 8: Stereo With Bridged Subwoofer
XDi 450. 4 STEREO HIGH PASS With MONO SUBWOOFER Use this Use this BASS BOOST Crossover Set to Crossover With Care for LOW for SUB SONIC LOW/BP FULL BASS HP FREQ Hz LP FREQ Hz GAIN HIGH BOOST FREQ Hz INPUT AUTO SENSE GAIN... -
Page 9: Channel Bandpass
XDi 450. 4 4 CHANNEL HIGHPASS With BANDPASS Recommended Use this Use this Set to BASS BOOST Crossover Crossover LOW/BP to 0dB for LOWPASS for HIGHPASS LOW/BP FULL BASS HP FREQ Hz LP FREQ Hz GAIN HIGH BOOST FREQ Hz INPUT AUTO SENSE GAIN... -
Page 10: Auto Detect
XDi 450. 4 AUTO DETECT SPEAKER LEVEL INPUT AUTO SENSE The XDi 600.4 uses BTLD (Bridge Tied Load Detect) Turn-on circuit that offers a significant improvement in reliability over previous LOW/BP FULL BASS HP FREQ Hz LP FREQ Hz designs. Instead of relaying on the music to supply enough signal to GAIN HIGH BOOST... -
Page 11: Specifications
ARC AUDIO retailer. Upon inspection by ARC AUDIO should services be necessary under this warranty for any reason due to manufacture defects ARC AUDIO will, at its sole discretion, repair or replace the defective product with new or similar conditioned product at no charge.
