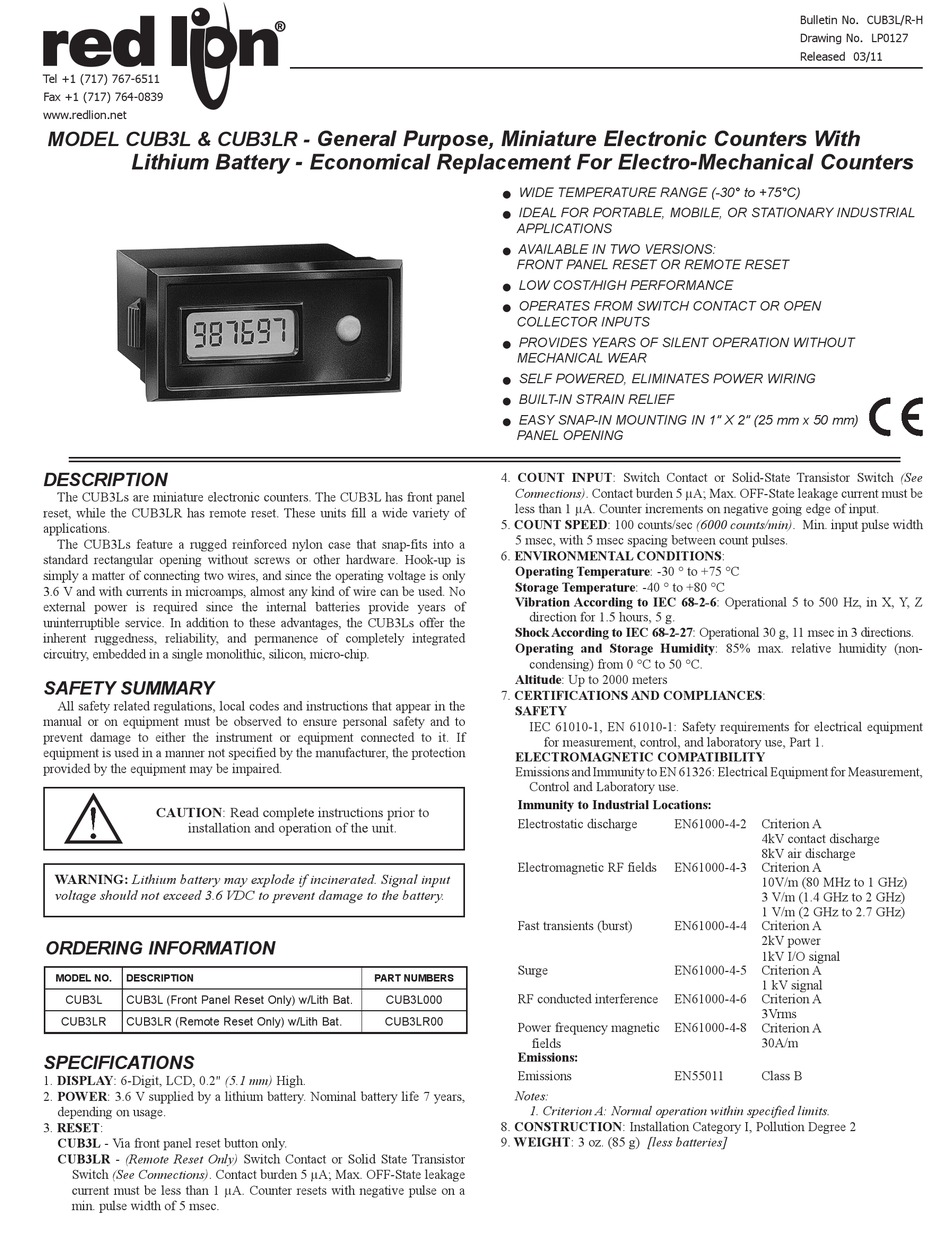

MODEL CUB3L & CUB3LR -
Lithium Battery - Economical Replacement For Electro-Mechanical Counters
DESCRIPTION

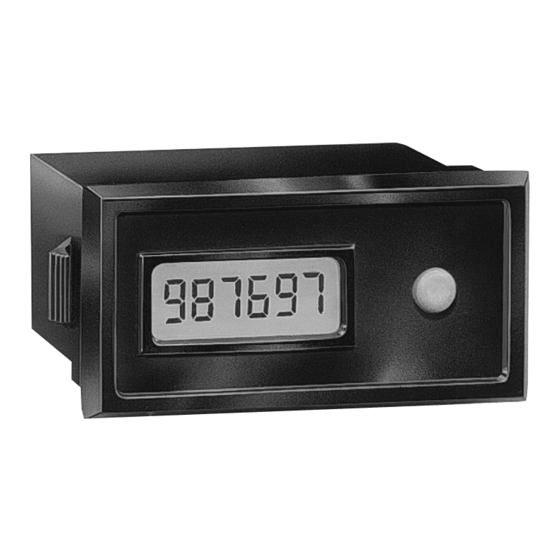

The CUB3Ls are miniature electronic counters. The CUB3L has front panel
reset, while the CUB3LR has remote reset. These units fill a wide variety of
applications.
The CUB3Ls feature a rugged reinforced nylon case that snap-fits into a
standard rectangular opening without screws or other hardware. Hook-up is
simply a matter of connecting two wires, and since the operating voltage is only
3.6 V and with currents in microamps, almost any kind of wire can be used. No
external power is required since the internal batteries provide years of
uninterruptible service. In addition to these advantages, the CUB3Ls offer the
inherent ruggedness, reliability, and permanence of completely integrated
circuitry, embedded in a single monolithic, silicon, micro-chip.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Read complete instructions prior to
installation and operation of the unit.
WARNING: Lithium battery may explode if incinerated. Signal input
voltage should not exceed 3.6 VDC to prevent damage to the battery.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
CUB3L CUB3L (Front Panel Reset Only) w/Lith Bat.
CUB3LR CUB3LR (Remote Reset Only) w/Lith Bat.
SPECIFICATIONS
1. DISPLAY: 6-Digit, LCD, 0.2" (5.1 mm) High.
2. POWER: 3.6 V supplied by a lithium battery. Nominal battery life 7 years,
depending on usage.
3. RESET:
CUB3L - Via front panel reset button only.
CUB3LR - (Remote Reset Only) Switch Contact or Solid State Transistor
Switch (See Connections). Contact burden 5 µA; Max. OFF-State leakage
current must be less than 1 µA. Counter resets with negative pulse on a
min. pulse width of 5 msec.
General Purpose, Miniature Electronic Counters With
PART NUMBERS
CUB3L000
CUB3LR00
WIDE TEMPERATURE RANGE (-30° to +75°C)

IDEAL FOR PORTABLE, MOBILE, OR STATIONARY INDUSTRIAL

APPLICATIONS
AVAILABLE IN TWO VERSIONS:

FRONT PANEL RESET OR REMOTE RESET
LOW COST/HIGH PERFORMANCE

OPERATES FROM SWITCH CONTACT OR OPEN

COLLECTOR INPUTS
PROVIDES YEARS OF SILENT OPERATION WITHOUT

MECHANICAL WEAR
SELF POWERED, ELIMINATES POWER WIRING

BUILT-IN STRAIN RELIEF

EASY SNAP-IN MOUNTING IN 1" X 2" (25 mm x 50 mm)

PANEL OPENING
4. COUNT INPUT: Switch Contact or Solid-State Transistor Switch (See
Connections). Contact burden 5 µA; Max. OFF-State leakage current must be
less than 1 µA. Counter increments on negative going edge of input.
5. COUNT SPEED: 100 counts/sec (6000 counts/min). Min. input pulse width
5 msec, with 5 msec spacing between count pulses.
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature: -30 ° to +75 °C
Storage Temperature: -40 ° to +80 °C
Vibration According to IEC 68-2-6: Operational 5 to 500 Hz, in X, Y, Z
direction for 1.5 hours, 5 g.
Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions.
Operating and Storage Humidity: 85% max. relative humidity (non-
condensing) from 0 °C to 50 °C.
Altitude: Up to 2000 meters
7. CERTIFICATIONS AND COMPLIANCES:
SAFETY
IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control, and laboratory use, Part 1.
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for Measurement,
Control and Laboratory use.
Immunity to Industrial Locations:
Electrostatic discharge EN61000-4-2
Electromagnetic RF fields EN61000-4-3
Fast transients (burst) EN61000-4-4
Surge EN61000-4-5
RF conducted interference EN61000-4-6
Power frequency magnetic EN61000-4-8
fields
Emissions:
Emissions EN55011
Notes:
1. Criterion A: Normal operation within specified limits.
8. CONSTRUCTION: Installation Category I, Pollution Degree 2
9. WEIGHT: 3 oz. (85 g) [less batteries]
Bulletin No. CUB3L/R-H
Drawing No. LP0127
Released 03/11
Criterion A
4kV contact discharge
8kV air discharge
Criterion A
10V/m (80 MHz to 1 GHz)
3 V/m (1.4 GHz to 2 GHz)
1 V/m (2 GHz to 2.7 GHz)
Criterion A
2kV power
1kV I/O signal
Criterion A
1 kV signal
Criterion A
3Vrms
Criterion A
30A/m
Class B
