MODEL CUB7P PROGRAMMABLE ELECTRONIC 8-DIGIT COUNTER
U
L
C US LISTED US LISTED
4
IND. CONT . EQ.
51EB
DESCRIPTION

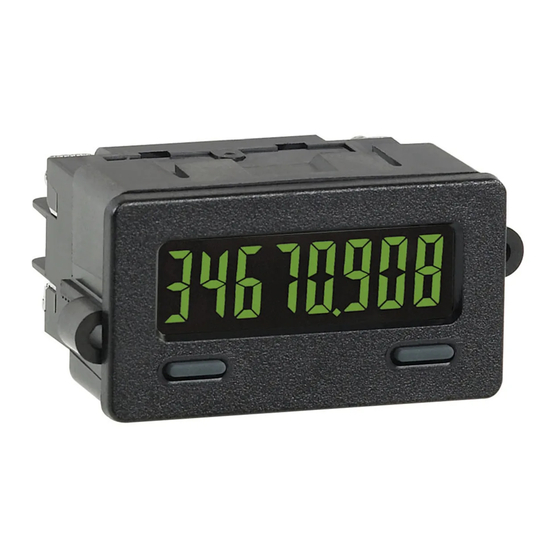

The CUB7P is an 8-digit miniature programmable counter with large 0.35
inch (8.90 mm) high digits. It has an LCD read-out available in Positive Image
Reflective, Negative Image Transmissive with yellow/green backlighting, or red
backlighting. Backlight units require an external 9 to 28 VDC power supply.
The CUB7P is available in either Low Speed Contact or High Speed Logic.
The Contact versions (CUB7P0xxx) operate from a switch contact or an NPN
open collector transistor. The Logic versions (CUB7P2xx) operate from 3 VDC
logic output or from an NPN open collector transistor.
The CUB7P has a programmable prescaler that can be set for any value
between 0.0001 and 1.9999. The decimal point position can be set anywhere
from 0 (no D.P.) to 0.000000 or no Leading Zero Blanking. Both the prescaler
and DP selection are accessed using the front panel PGM and RESET push
buttons. See Programming for details. Note that the count, prescaler and DP
values will be lost if the battery is removed. See BATTERY INSTALLATION
for additional information.
The CUB7P counters use a CMOS LSI chip, mounted on a gold-plated
substrate, that is electrically connected by ultrasonic wire-bonding. Proven
micro-electronic assembly and manufacturing techniques provide these units
with the reliability and dependability required for industrial service.
The CUB7P series is housed in a lightweight, high impact plastic case with a
clear viewing window. The sealed front panel with the silicone rubber buttons
meets NEMA 4X/IP65 specifications for wash-down and/or dusty
environments, when properly installed.

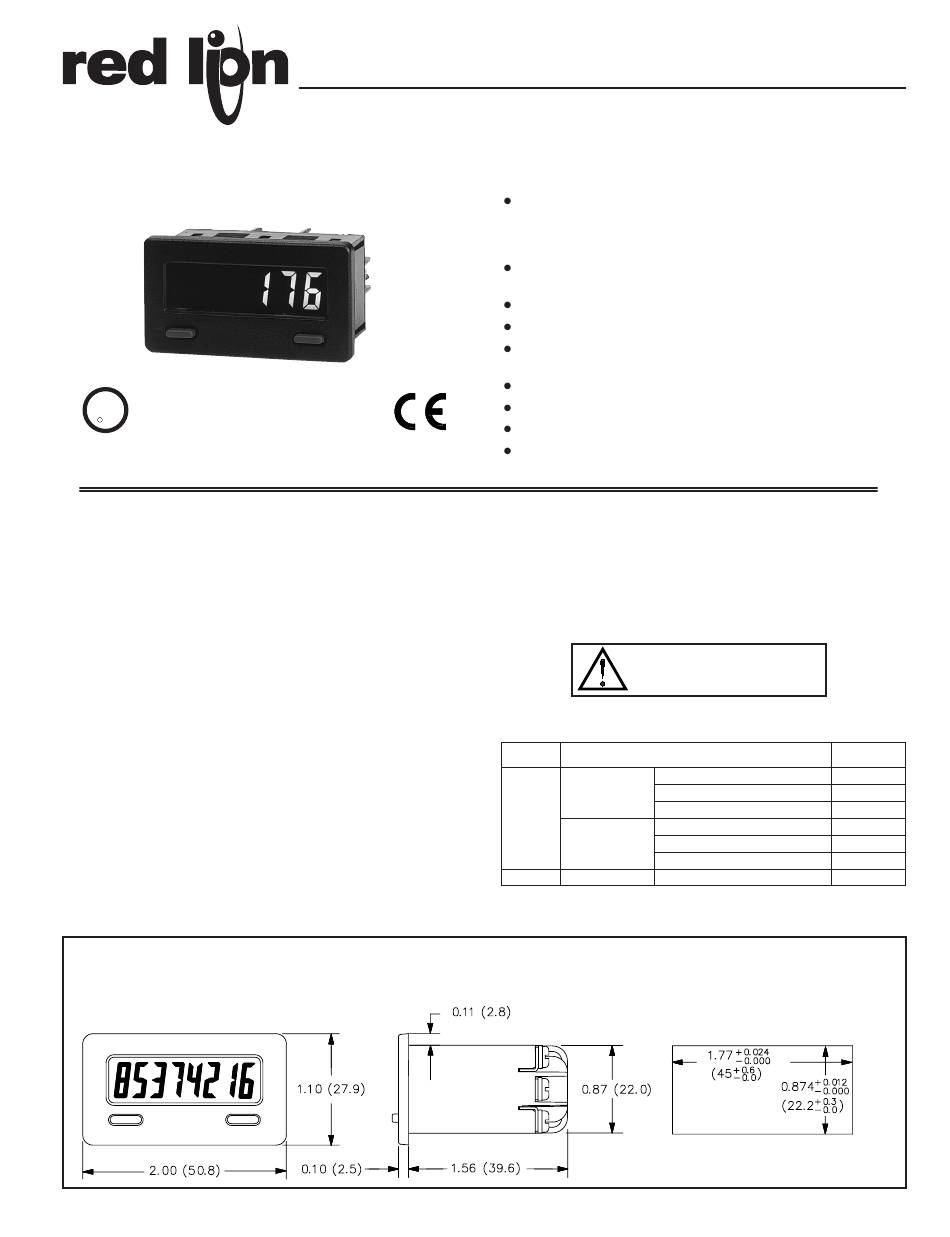

DIMENSIONS In inches (mm)
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
LCD, POSITIVE IMAGE REFLECTIVE OR NEGATIVE IMAGE
TRANSMISSIVE WITH YELLOW/GREEN OR RED LED
BACKLIGHTING (9-28 VDC power supply required for versions with
LED backlighting)
AVAILABLE WITH LOW SPEED CONTACT (30 Hz MAX.), HIGH
SPEED LOGIC (10 KHz MAX.)
PRESCALER FROM 0.0001 TO 1.9999
SELECTABLE DECIMAL POINTS
REPLACEABLE INTERNAL LITHIUM BATTERY PROVIDES UP
TO 6 YEARS OF UNINTERRUPTED OPERATION (Battery Included)
WIRE CONNECTIONS VIA SCREW CLAMP TYPE TERMINALS
FRONT PANEL AND REMOTE RESET INPUT
NEMA 4X/IP65 SEALED FRONT BEZEL
BOTH FRONT PANEL PROGRAM AND RESET BUTTONS ARE
INDIVIDUALLY ENABLED
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
LOW SPEED
CONTACT INPUT
*CUB7P
HIGH SPEED
LOGIC INPUT
BNL
* Battery is included with unit.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation
is 2.15" (54.6) H x 3.00" (76.2) W.
1
Bulletin No. CUB7P-B
Drawing No. LP0647
Released 3/07
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
Counter; Positive Image Reflective
Counter, w/Yel-Grn Backlighting
Counter; w/Red Backlighting
Counter; Positive Image Reflective
Counter, w/Yel-Grn Backlighting
Counter; w/Red Backlighting
Replacement 3 V Lithium Battery
PANEL CUT-OUT
PART NUMBER
CUB7P000
CUB7P010
CUB7P020
CUB7P200
CUB7P210
CUB7P220
BNL10000
