red lion CUB4L Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

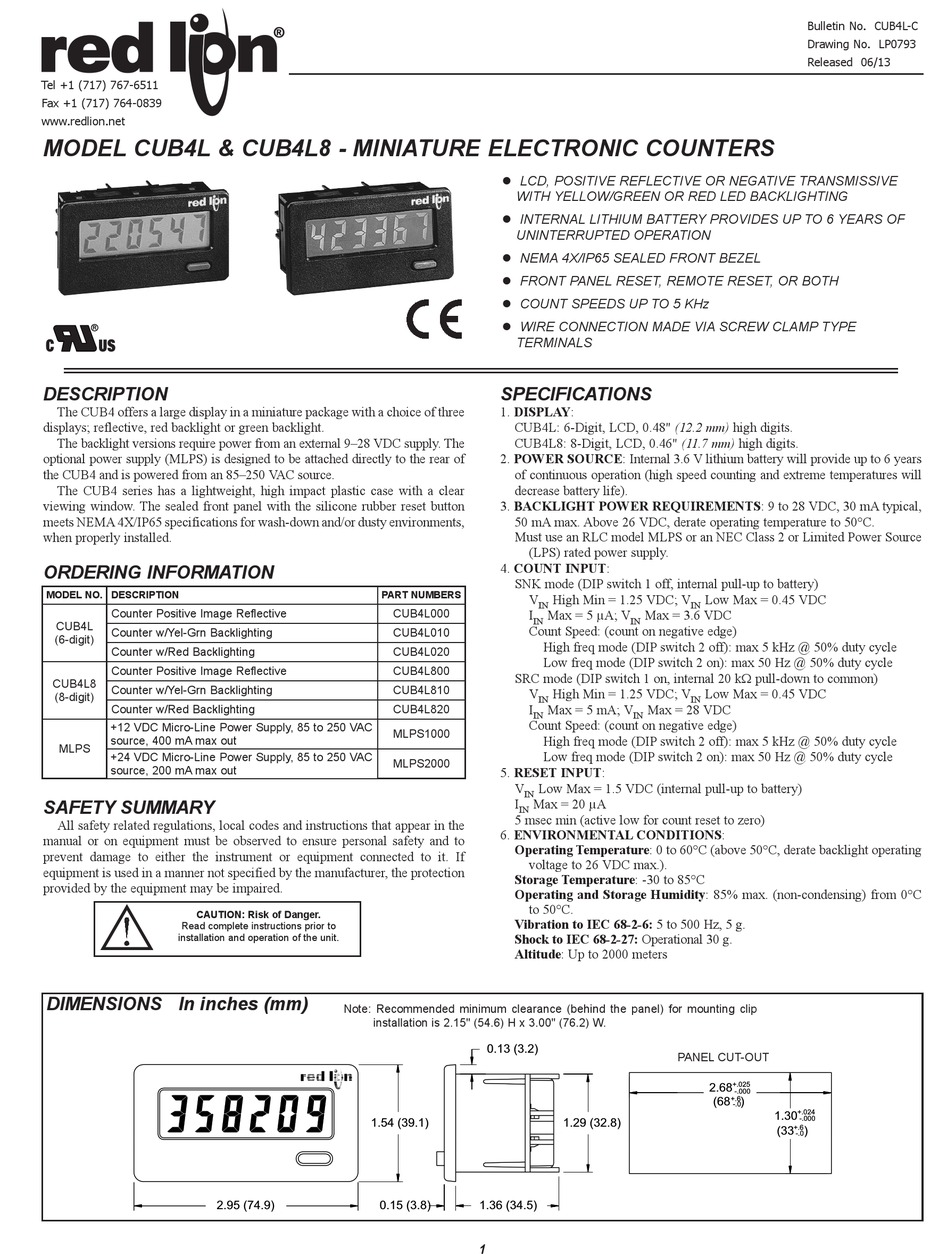

MODEL CUB4L & CUB4L8 - MINIATURE ELECTRONIC COUNTERS
DESCRIPTION

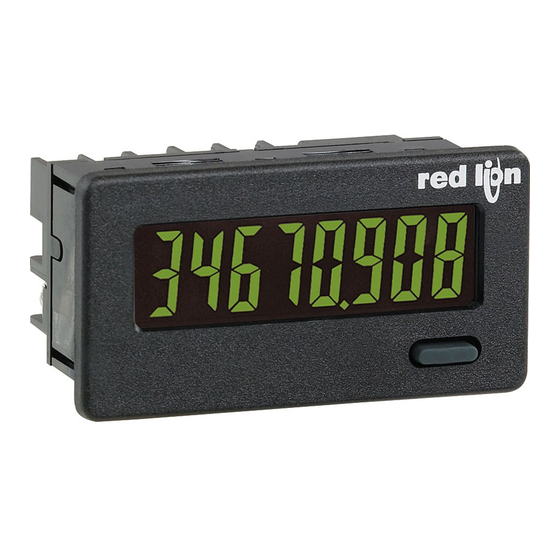

The CUB4 offers a large display in a miniature package with a choice of three
displays; reflective, red backlight or green backlight.
The backlight versions require power from an external 9–28 VDC supply. The
optional power supply (MLPS) is designed to be attached directly to the rear of
the CUB4 and is powered from an 85–250 VAC source.
The CUB4 series has a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel with the silicone rubber reset button
meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments,
when properly installed.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
Counter Positive Image Reflective
CUB4L
Counter w/Yel-Grn Backlighting
(6-digit)
Counter w/Red Backlighting
Counter Positive Image Reflective
CUB4L8
Counter w/Yel-Grn Backlighting
(8-digit)
Counter w/Red Backlighting
+12 VDC Micro-Line Power Supply, 85 to 250 VAC
source, 400 mA max out
MLPS
+24 VDC Micro-Line Power Supply, 85 to 250 VAC
source, 200 mA max out
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
2.95 (74.9)
 LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED LED BACKLIGHTING
 INTERNAL LITHIUM BATTERY PROVIDES UP TO 6 YEARS OF
UNINTERRUPTED OPERATION
 NEMA 4X/IP65 SEALED FRONT BEZEL
 FRONT PANEL RESET, REMOTE RESET, OR BOTH
 COUNT SPEEDS UP TO 5 KHz
 WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
TERMINALS
SPECIFICATIONS
1. DISPLAY:
CUB4L: 6-Digit, LCD, 0.48" (12.2 mm) high digits.
CUB4L8: 8-Digit, LCD, 0.46" (11.7 mm) high digits.
2. POWER SOURCE: Internal 3.6 V lithium battery will provide up to 6 years
of continuous operation (high speed counting and extreme temperatures will
decrease battery life).
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC, 30 mA typical,
50 mA max. Above 26 VDC, derate operating temperature to 50°C.
Must use an RLC model MLPS or an NEC Class 2 or Limited Power Source
4. COUNT INPUT:
SNK mode (DIP switch 1 off, internal pull-up to battery)
PART NUMBERS
CUB4L000
CUB4L010
CUB4L020
CUB4L800
SRC mode (DIP switch 1 on, internal 20 kW pull-down to common)
CUB4L810
CUB4L820
MLPS1000
MLPS2000
5. RESET INPUT:
V
I
IN
5 msec min (active low for count reset to zero)
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 60°C (above 50°C, derate backlight operating
Storage Temperature: -30 to 85°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
Vibration to IEC 68-2-6: 5 to 500 Hz, 5 g.
Shock to IEC 68-2-27: Operational 30 g.
Altitude: Up to 2000 meters
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
0.13 (3.2)
1.54 (39.1)
0.15 (3.8) 1.36 (34.5)
1
(LPS) rated power supply.
V High Min = 1.25 VDC; V
IN IN
I Max = 5 µA; V Max = 3.6 VDC
IN IN
Count Speed: (count on negative edge)
High freq mode (DIP switch 2 off): max 5 kHz @ 50% duty cycle
Low freq mode (DIP switch 2 on): max 50 Hz @ 50% duty cycle
V High Min = 1.25 VDC; V
IN IN
I Max = 5 mA; V Max = 28 VDC
IN IN
Count Speed: (count on negative edge)
High freq mode (DIP switch 2 off): max 5 kHz @ 50% duty cycle
Low freq mode (DIP switch 2 on): max 50 Hz @ 50% duty cycle
Low Max = 1.5 VDC (internal pull-up to battery)
IN
Max = 20 µA
voltage to 26 VDC max.).
to 50°C.
PANEL CUT-OUT
1.29 (32.8)
Bulletin No. CUB4L-C
Drawing No. LP0793
Released 06/13
Low Max = 0.45 VDC
Low Max = 0.45 VDC
2.68
+.025
-.000
(68 ) +.6
-.0
+.024
1.30
-.000
(33 ) +.6
-.0
