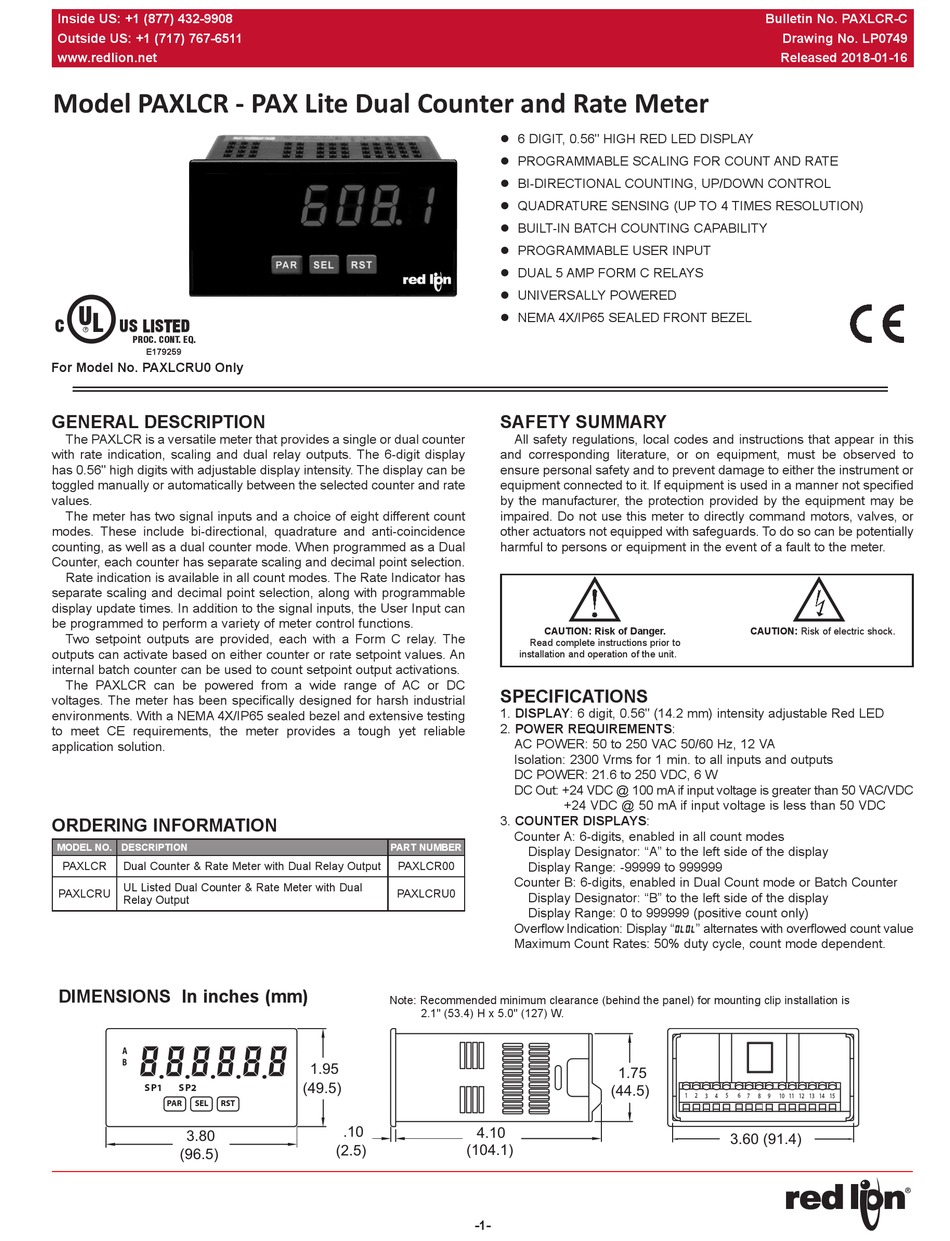

Model PAXLCR - PAX Lite Dual Counter and Rate Meter
U L
C US LISTED
R
PROC. CONT. EQ.
E179259
For Model No. PAXLCRU0 Only
GENERAL DESCRIPTION

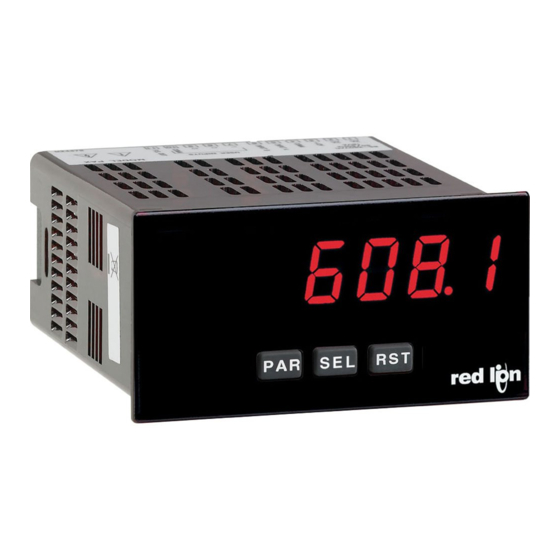

The PAXLCR is a versatile meter that provides a single or dual counter
with rate indication, scaling and dual relay outputs. The 6-digit display
has 0.56" high digits with adjustable display intensity. The display can be
toggled manually or automatically between the selected counter and rate
values.
The meter has two signal inputs and a choice of eight different count
modes. These include bi-directional, quadrature and anti-coincidence
counting, as well as a dual counter mode. When programmed as a Dual
Counter, each counter has separate scaling and decimal point selection.
Rate indication is available in all count modes. The Rate Indicator has
separate scaling and decimal point selection, along with programmable
display update times. In addition to the signal inputs, the User Input can
be programmed to perform a variety of meter control functions.
Two setpoint outputs are provided, each with a Form C relay. The
outputs can activate based on either counter or rate setpoint values. An
internal batch counter can be used to count setpoint output activations.
The PAXLCR can be powered from a wide range of AC or DC
voltages. The meter has been specifically designed for harsh industrial
environments. With a NEMA 4X/IP65 sealed bezel and extensive testing
to meet CE requirements, the meter provides a tough yet reliable
application solution.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
PAXLCR Dual Counter & Rate Meter with Dual Relay Output
UL Listed Dual Counter & Rate Meter with Dual
PAXLCRU
Relay Output
DIMENSIONS In inches (mm)
A
8. 8 . 8 . 8 . 8 . 8
B
S 1 P S 2 P
PAR SEL RST
3.80
(96.5)
PART NUMBER
PAXLCR00
PAXLCRU0
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5.0" (127) W.
1.95
(49.5)
.10
4.10
(2.5) (104.1)
-1-
 6 DIGIT, 0.56" HIGH RED LED DISPLAY
 PROGRAMMABLE SCALING FOR COUNT AND RATE
 BI-DIRECTIONAL COUNTING, UP/DOWN CONTROL
 QUADRATURE SENSING (UP TO 4 TIMES RESOLUTION)
 BUILT-IN BATCH COUNTING CAPABILITY
 PROGRAMMABLE USER INPUT
 DUAL 5 AMP FORM C RELAYS
 UNIVERSALLY POWERED
 NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety regulations, local codes and instructions that appear in this
and corresponding literature, or on equipment, must be observed to
ensure personal safety and to prevent damage to either the instrument or
equipment connected to it. If equipment is used in a manner not specified
by the manufacturer, the protection provided by the equipment may be
impaired. Do not use this meter to directly command motors, valves, or
other actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the meter.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
SPECIFICATIONS
1. DISPLAY: 6 digit, 0.56" (14.2 mm) intensity adjustable Red LED
2. POWER REQUIREMENTS:
AC POWER: 50 to 250 VAC 50/60 Hz, 12 VA
Isolation: 2300 Vrms for 1 min. to all inputs and outputs
DC POWER: 21.6 to 250 VDC, 6 W
DC Out: +24 VDC @ 100 mA if input voltage is greater than 50 VAC/VDC
+24 VDC @ 50 mA if input voltage is less than 50 VDC
3. COUNTER DISPLAYS:
Counter A: 6-digits, enabled in all count modes
Display Designator: "A" to the left side of the display
Display Range: -99999 to 999999
Counter B: 6-digits, enabled in Dual Count mode or Batch Counter
Display Designator: "B" to the left side of the display
Display Range: 0 to 999999 (positive count only)
Overflow Indication: Display "" alternates with overflowed count value
Maximum Count Rates: 50% duty cycle, count mode dependent.
1.75
(44.5)
Bulletin No. PAXLCR-C
Drawing No. LP0749
Released 2018-01-16
CAUTION: Risk of electric shock.
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
3.60 (91.4)
