red lion CUBC Series Technical Bulletin

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion-controls.com

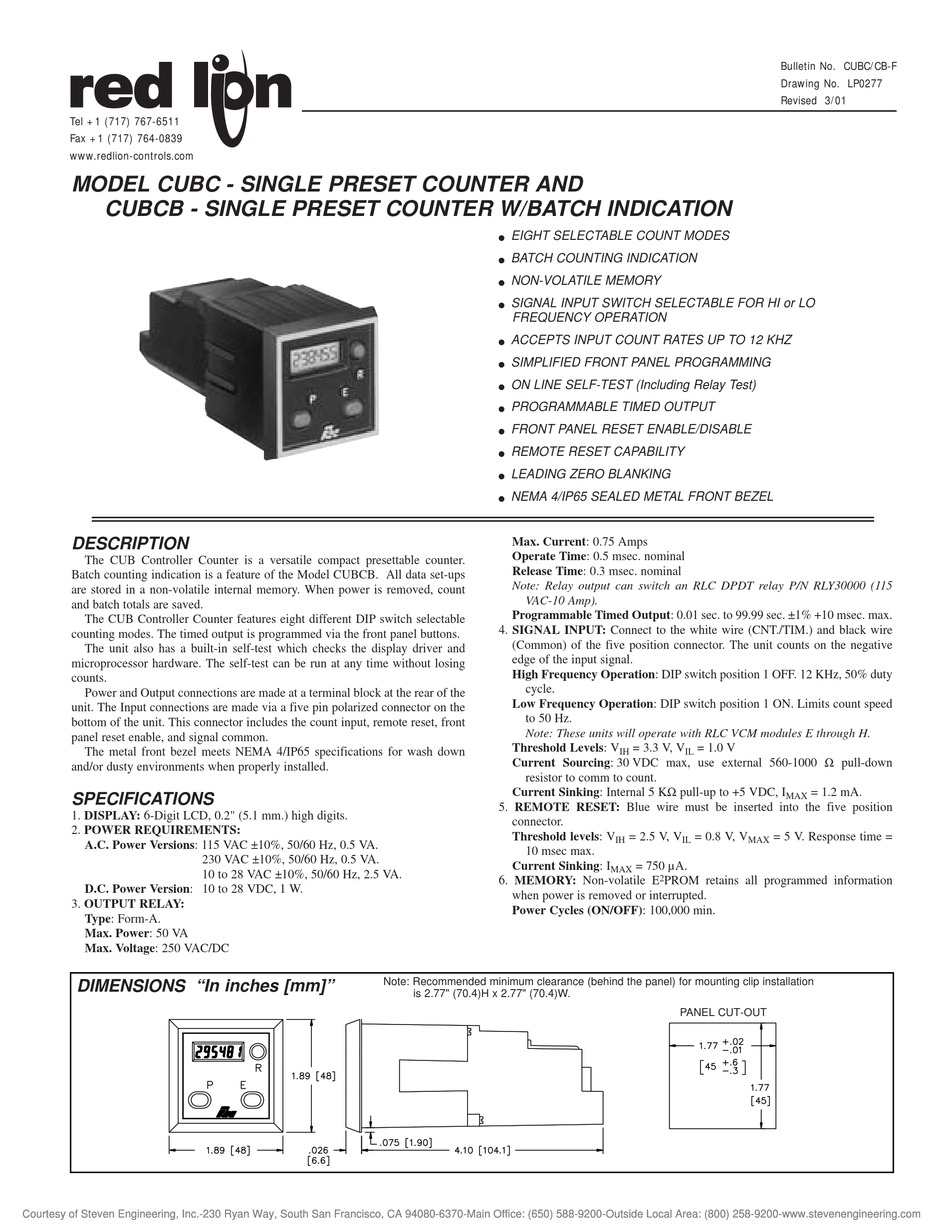

MODEL CUBC - SINGLE PRESET COUNTER AND
CUBCB - SINGLE PRESET COUNTER W/BATCH INDICATION
DESCRIPTION

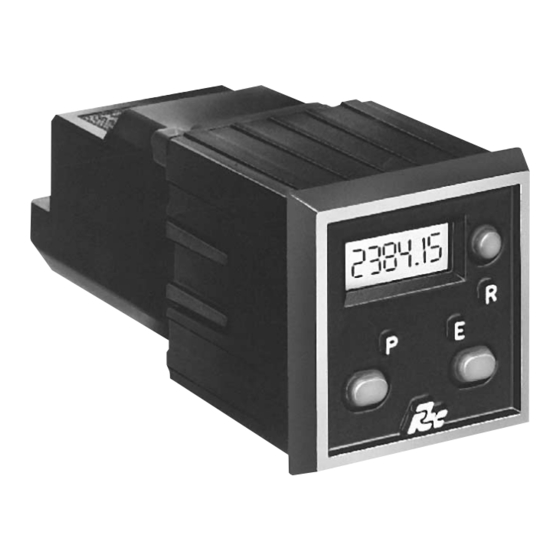

The CUB Controller Counter is a versatile compact presettable counter.
Batch counting indication is a feature of the Model CUBCB. All data set-ups
are stored in a non-volatile internal memory. When power is removed, count
and batch totals are saved.
The CUB Controller Counter features eight different DIP switch selectable
counting modes. The timed output is programmed via the front panel buttons.
The unit also has a built-in self-test which checks the display driver and
microprocessor hardware. The self-test can be run at any time without losing
counts.
Power and Output connections are made at a terminal block at the rear of the
unit. The Input connections are made via a five pin polarized connector on the
bottom of the unit. This connector includes the count input, remote reset, front
panel reset enable, and signal common.
The metal front bezel meets NEMA 4/IP65 specifications for wash down
and/or dusty environments when properly installed.
SPECIFICATIONS
1. DISPLAY: 6-Digit LCD, 0.2" (5.1 mm.) high digits.
2. POWER REQUIREMENTS:
A.C. Power Versions: 115 VAC ±10%, 50/60 Hz, 0.5 VA.
D.C. Power Version: 10 to 28 VDC, 1 W.
3. OUTPUT RELAY:
Type: Form-A.
Max. Power: 50 VA
Max. Voltage: 250 VAC/DC
DIMENSIONS "In inches [mm]"
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
230 VAC ±10%, 50/60 Hz, 0.5 VA.
10 to 28 VAC ±10%, 50/60 Hz, 2.5 VA.
EIGHT SELECTABLE COUNT MODES
!
BATCH COUNTING INDICATION
!
NON-VOLATILE MEMORY
!
SIGNAL INPUT SWITCH SELECTABLE FOR HI or LO
!
FREQUENCY OPERATION
ACCEPTS INPUT COUNT RATES UP TO 12 KHZ
!
SIMPLIFIED FRONT PANEL PROGRAMMING
!
ON LINE SELF-TEST (Including Relay Test)
!
PROGRAMMABLE TIMED OUTPUT
!
FRONT PANEL RESET ENABLE/DISABLE
!
REMOTE RESET CAPABILITY
!
LEADING ZERO BLANKING
!
NEMA 4/IP65 SEALED METAL FRONT BEZEL
!
Max. Current: 0.75 Amps
Operate Time: 0.5 msec. nominal
Release Time: 0.3 msec. nominal
Note: Relay output can switch an RLC DPDT relay P/N RLY30000 (115
VAC-10 Amp).
Programmable Timed Output: 0.01 sec. to 99.99 sec. ±1% +10 msec. max.
4. SIGNAL INPUT: Connect to the white wire (CNT./TIM.) and black wire
(Common) of the five position connector. The unit counts on the negative
edge of the input signal.
High Frequency Operation: DIP switch position 1 OFF. 12 KHz, 50% duty
cycle.
Low Frequency Operation: DIP switch position 1 ON. Limits count speed
to 50 Hz.
Note: These units will operate with RLC VCM modules E through H.
Threshold Levels: V
Current Sourcing: 30 VDC max, use external 560-1000 Ω pull-down
resistor to comm to count.
Current Sinking: Internal 5 KΩ pull-up to +5 VDC, I
5. REMOTE RESET: Blue wire must be inserted into the five position
connector.
Threshold levels: V
10 msec max.
Current Sinking: I
6. MEMORY: Non-volatile E
when power is removed or interrupted.
Power Cycles (ON/OFF): 100,000 min.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation
is 2.77" (70.4)H x 2.77" (70.4)W.
Bulletin No. CUBC/CB-F
Drawing No. LP0277
Revised 3/01
= 3.3 V, V = 1.0 V
IH IL
MAX
= 2.5 V, V = 0.8 V, V = 5 V. Response time =
IH IL MAX
= 750 µA.
MAX
2
PROM retains all programmed information
PANEL CUT-OUT
= 1.2 mA.
