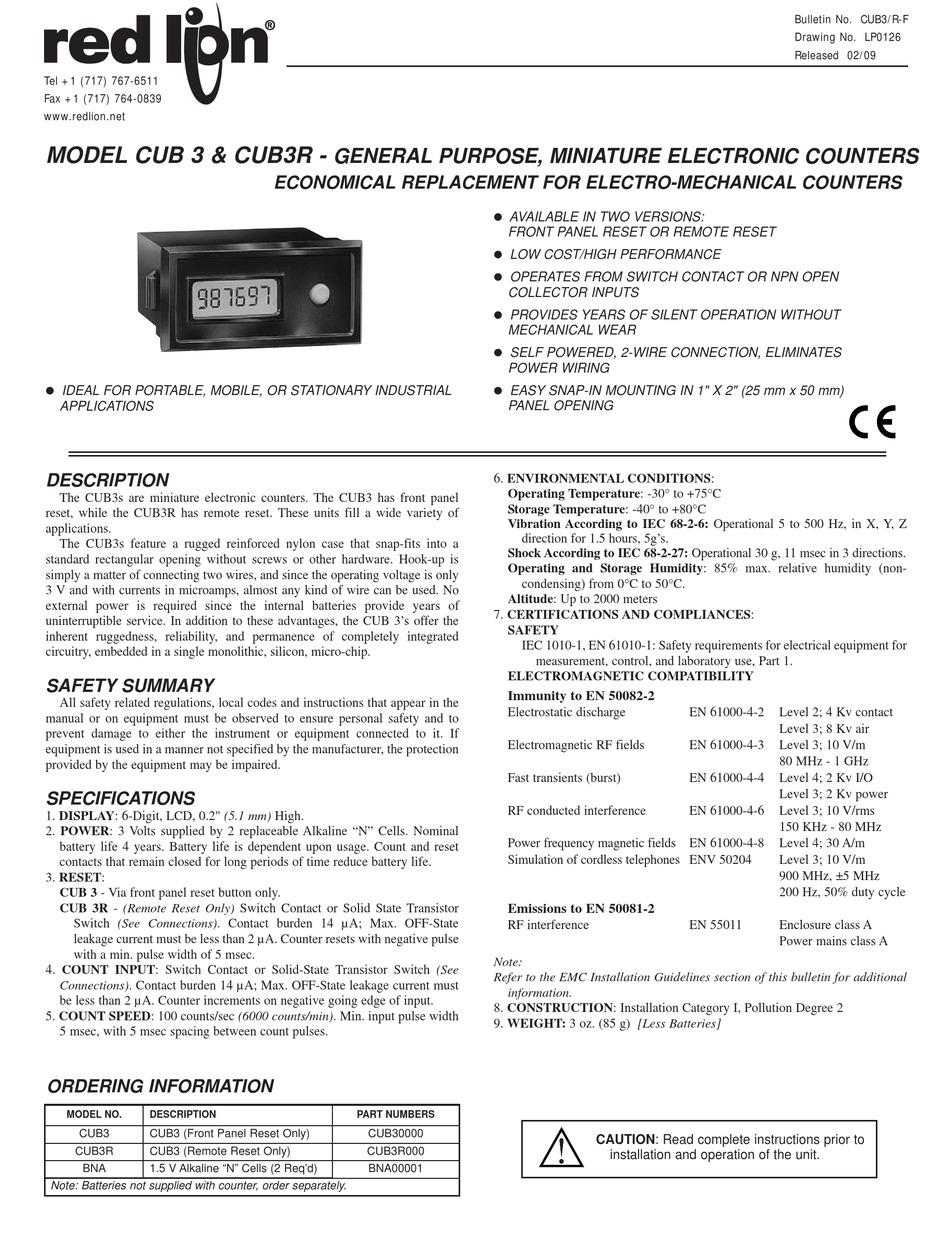

MODEL CUB 3 & CUB3R -
IDEAL FOR PORTABLE, MOBILE, OR STATIONARY INDUSTRIAL

APPLICATIONS
DESCRIPTION

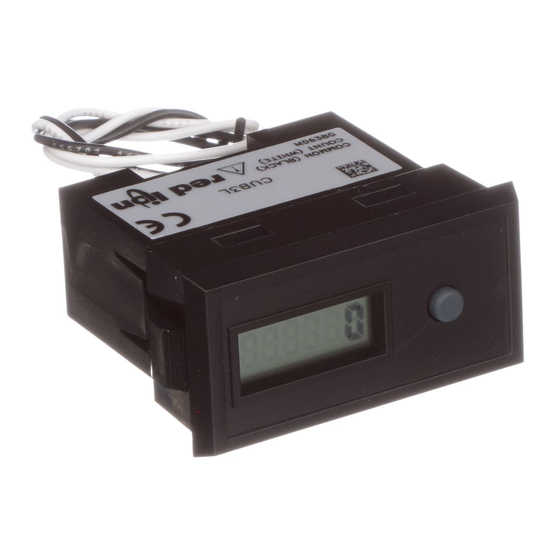

The CUB3s are miniature electronic counters. The CUB3 has front panel
reset, while the CUB3R has remote reset. These units fill a wide variety of
applications.
The CUB3s feature a rugged reinforced nylon case that snap-fits into a
standard rectangular opening without screws or other hardware. Hook-up is
simply a matter of connecting two wires, and since the operating voltage is only
3 V and with currents in microamps, almost any kind of wire can be used. No
external power is required since the internal batteries provide years of
uninterruptible service. In addition to these advantages, the CUB 3's offer the
inherent ruggedness, reliability, and permanence of completely integrated
circuitry, embedded in a single monolithic, silicon, micro-chip.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. DISPLAY: 6-Digit, LCD, 0.2" (5.1 mm) High.
2. POWER: 3 Volts supplied by 2 replaceable Alkaline "N" Cells. Nominal
battery life 4 years. Battery life is dependent upon usage. Count and reset
contacts that remain closed for long periods of time reduce battery life.
3. RESET:
CUB 3 - Via front panel reset button only.
CUB 3R - (Remote Reset Only) Switch Contact or Solid State Transistor
Switch (See Connections). Contact burden 14 µA; Max. OFF-State
leakage current must be less than 2 µA. Counter resets with negative pulse
with a min. pulse width of 5 msec.
4. COUNT INPUT: Switch Contact or Solid-State Transistor Switch (See
Connections). Contact burden 14 µA; Max. OFF-State leakage current must
be less than 2 µA. Counter increments on negative going edge of input.
5. COUNT SPEED: 100 counts/sec (6000 counts/min). Min. input pulse width
5 msec, with 5 msec spacing between count pulses.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
CUB3 CUB3 (Front Panel Reset Only)
CUB3R CUB3 (Remote Reset Only)
BNA 1.5 V Alkaline "N" Cells (2 Req'd)
Note: Batteries not supplied with counter, order separately.
GENERAL PURPOSE, MINIATURE ELECTRONIC COUNTERS
ECONOMICAL REPLACEMENT FOR ELECTRO-MECHANICAL COUNTERS
PART NUMBERS
CUB30000
CUB3R000
BNA00001
AVAILABLE IN TWO VERSIONS:

FRONT PANEL RESET OR REMOTE RESET
LOW COST/HIGH PERFORMANCE

OPERATES FROM SWITCH CONTACT OR NPN OPEN

COLLECTOR INPUTS
PROVIDES YEARS OF SILENT OPERATION WITHOUT

MECHANICAL WEAR
SELF POWERED, 2-WIRE CONNECTION, ELIMINATES

POWER WIRING
EASY SNAP-IN MOUNTING IN 1" X 2" (25 mm x 50 mm)

PANEL OPENING
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature: -30° to +75°C
Storage Temperature: -40° to +80°C
Vibration According to IEC 68-2-6: Operational 5 to 500 Hz, in X, Y, Z
direction for 1.5 hours, 5g's.
Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions.
Operating and Storage Humidity: 85% max. relative humidity (non-
condensing) from 0°C to 50°C.
Altitude: Up to 2000 meters
7. CERTIFICATIONS AND COMPLIANCES:
SAFETY
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment for
measurement, control, and laboratory use, Part 1.
ELECTROMAGNETIC COMPATIBILITY
Immunity to EN 50082-2
Electrostatic discharge
Electromagnetic RF fields
Fast transients (burst)
RF conducted interference
Power frequency magnetic fields EN 61000-4-8
Simulation of cordless telephones
Emissions to EN 50081-2
RF interference
Note:
Refer to the EMC Installation Guidelines section of this bulletin for additional
information.
8. CONSTRUCTION: Installation Category I, Pollution Degree 2
9. WEIGHT: 3 oz. (85 g) [Less Batteries]
CAUTION: Read complete instructions prior to
installation and operation of the unit.
Bulletin No. CUB3/R-F
Drawing No. LP0126
Released 02/09
EN 61000-4-2 Level 2; 4 Kv contact
Level 3; 8 Kv air
EN 61000-4-3 Level 3; 10 V/m
80 MHz - 1 GHz
EN 61000-4-4 Level 4; 2 Kv I/O
Level 3; 2 Kv power
EN 61000-4-6 Level 3; 10 V/rms
150 KHz - 80 MHz
Level 4; 30 A/m
ENV 50204 Level 3; 10 V/m
900 MHz, ±5 MHz
200 Hz, 50% duty cycle
EN 55011 Enclosure class A
Power mains class A
