red lion CUB4L Quick User Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL CUB4L, CUB4L8 & CUB4L8W - MINIATURE ELECTRONIC COUNTERS
UL Recognized Component,
File # E179259
DESCRIPTION

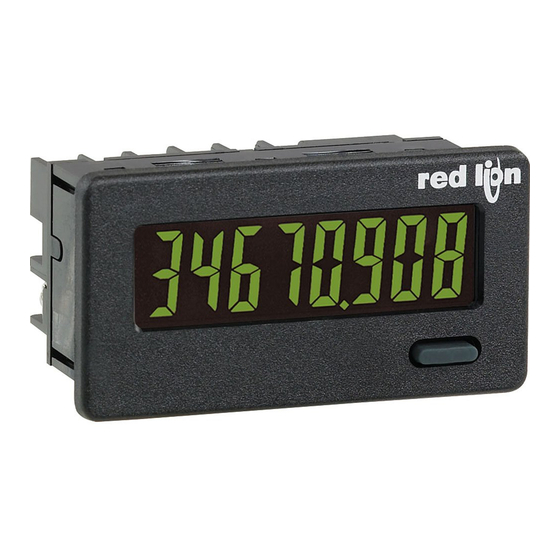

The CUB4 offers a large display in a miniature package. There are three
CUB4 counters to choose from; the CUB4L (6-digit counter), CUB4L8 (8-digit
counter), and the CUB4L8W (8-digit counter with voltage input). You also have
a choice of three displays; reflective, red backlight or green backlight.
The backlight versions require power from an external 9–28 VDC supply. The
optional power supply (MLPS1000) is designed to be attached directly to the rear
of the CUB4 and is powered from an 85–250 VAC source. The power supply
provides 12 VDC @ 400 mA to power the backlight and sensor, if required.
The CUB4 series has a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel with the silicone rubber reset button
meets NEMA 4X/IP65 specifications for wash-down and/or dusty
environments, when properly installed.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
Counter Positive Image Reflective
Counter w/Yel-Grn Backlighting
CUB4L
(6-digit)
Counter w/Red Backlighting
Counter Positive Image Reflective w/V+ Terminal
Counter Positive Image Reflective
Counter w/Yel-Grn Backlighting
CUB4L8
(8-digit)
Counter w/Red Backlighting
Counter Positive Image Reflective w/V+ Terminal
Counter Positive Image Reflective
CUB4L8W
Counter w/Yel-Grn Backlighting
(8-digit
Counter w/Red Backlighting
w/VCM)
Counter Positive Image Reflective w/V+ Terminal
Micro Line/Sensor Power Supply
MLPS
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC
Catalog or contact your local RLC distributor.
DIMENSIONS In inches (mm)
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED LED BACKLIGHTING
INTERNAL LITHIUM BATTERY PROVIDES UP TO 6 YEARS OF
UNINTERRUPTED OPERATION
NEMA 4X/IP65 SEALED FRONT BEZEL
FRONT PANEL RESET, REMOTE RESET, OR BOTH
COUNT SPEEDS UP TO 5 KHz (Model Dependent)
COUNT INPUT FROM 10 to 300 VAC/DC (CUB4L8W)
WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
TERMINALS
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. DISPLAY:
CUB4L: 6-Digit, LCD, 0.48" (12.2 mm) high digits.
CUB4L8 & CUB4L8W: 8-Digit, LCD, 0.46" (11.7 mm) high digits.
PART NUMBERS
2. POWER SOURCE: Internal 3.0 V lithium battery to provide up to 6 years
CUB4L000
of continuous operation. Battery life is dependent upon usage. Count and reset
CUB4L010 contacts that remain closed for long periods of time will reduce battery life.
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC, 35 mA typical,
CUB4L020
50 mA max. Above 26 VDC, derate operating temperature to 50°C.
CUB4LM00
Must use the MLPS or a Class 2 or SELV rated power supply.
CUB4L800
4. INPUTS:
CUB4L810
All Inputs: V
CUB4L820 Low Speed Input (CUB4L & CUB4L8): 30 Hz from switch contact or open
collector transistor with a 50% duty cycle.
CUB4L80M
Low Speed Input (CUB4L8W): 10 to 300 VAC/DC, 50/60 Hz, 30 cps max.
CUB4L8W0
V
CUB4L8W1
with Triac outputs.
CUB4L8W2
High Speed Input (CUB4L): 5 KHz from 4.0 V to 28.0 V bipolar output
with a 50% duty cycle.
CUB4L8WM
High Speed Input (CUB4L8): 5 KHz at 2.0 V (3 V max) bipolar output with
MLPS1000
a 50% duty cycle.
Remote Reset:
CUB4L: 15 msec min. pulse width (active low) from 4.0 V to 28.0 V bipolar
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
1
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
(low) = 0.5 V max.
IL
= 0.5 VDC max. Unit counts on positive going edge. Will not operate
IL
output or an open collector transistor or a switch contact to common.
PANEL CUT-OUT
Bulletin No. CUB4-B
Drawing No. LP0585
Released 3/07
