Heating and Air Conditioning

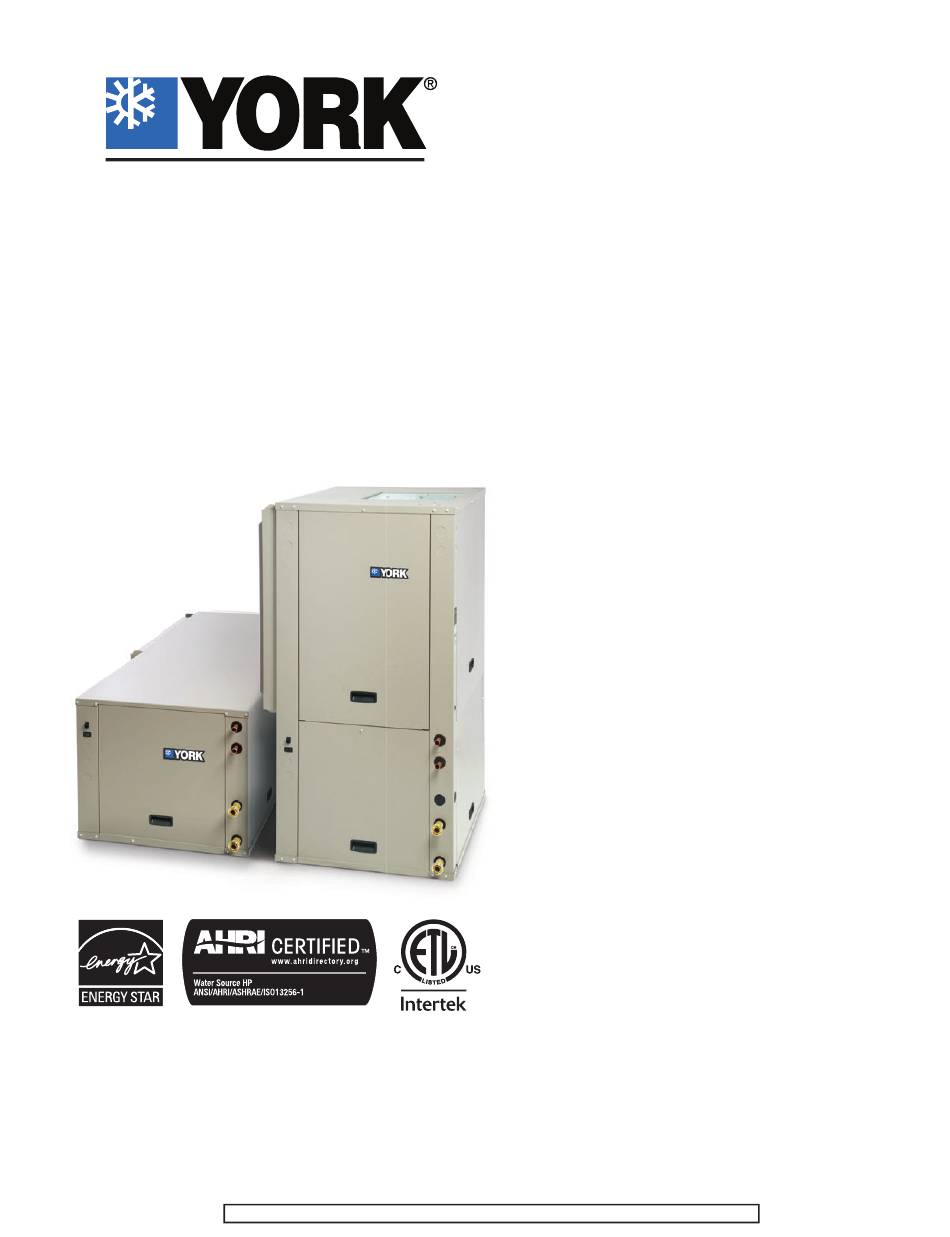

INSTALLATION MANUAL
AFFINITY & AFFINITY ADVANCED
GEOTHERMAL HEAT PUMPS
SINGLE AND DUAL CAPACITY
MODELS:
YAFS012 - 018
(1 THRU 1.5 NOMINAL TONS)
YAFT026 - 072
(2 THRU 6 NOMINAL TONS)
(2 THRU 6 NOMINAL TONS)
Due to continuous product improvement, specifications are
subject to change without notice.
Visit us on the web at www.york-geothermal.com
Additional rating information can found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
MODELS:
YZFS018
YZFT026 - 072
(2 THRU 6 NOMINAL TONS)
