INSTALLATION MANUAL

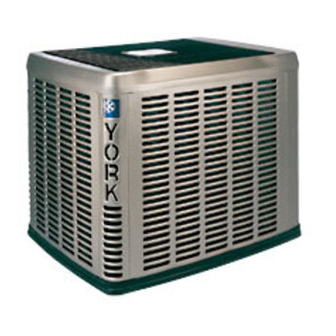

OUTDOOR SPLIT-SYSTEM HEAT PUMP
MODELS:
16 SEER - YZF, HC6B, HL6B SERIES
18 SEER - YZH, HC8B, HL8B SERIES
2 TO 5 TONS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
INDOOR EXPANSION DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
EVACUATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
SYSTEM CHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Typical Installation with Required Clearances . . . . . . . . . . . . . . . . . . . . . . 2
Tubing Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Underground Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Heat Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Typical Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Communications Harness Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
or Furnace using Communicating Interface Control . . . . . . . . . . . . . . . . . . 8
Multi-wire Terminal Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
(with YGVI control) - Modulating Furnace . . . . . . . . . . . . . . . . . . . . . . . . 10
(with YGVI control) - Single Stage Furnace (X-13) . . . . . . . . . . . . . . . . . 11
(with YGVI control) - V/S Air Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
(with YGVI control) - PSC Air Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maximum / Minimum Operating Limit Conditions . . . . . . . . . . . . . . . . .2
SECTION I: GENERAL
The outdoor units are designed to be connected to a matching indoor
coil with sweat connect lines. Sweat connect units are factory charged
with refrigerant for the smallest rated indoor coil plus 15 feet of field
supplied lines.
Matching indoor coils require a thermostatic expansion valve. The
refrigerant charge may need to be changed for some indoor-outdoor
unit combinations, elevation differences, or total line lengths. Refer to
Application Data covering "General Piping Recommendations and
Refrigerant Line Length" (Part Number 247077).
SECTION II: SAFETY
This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal
injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury. It is also used to
LIST OF SECTIONS
ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SYSTEM START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
INSTRUCTING THE OWNER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
START UP SHEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
LIST OF FIGURES
(with YGVI control) - V/S Air Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Two-Stage Variable Speed Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Two-Stage Variable Speed Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Variable Speed Air Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Variable Speed Air Handler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Variable Speed Modulating Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Variable Speed Modulating Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Heat Pump Flow Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wiring Diagram - Single Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
LIST OF TABLES
R-410A Saturation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Defrost Initiate Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
alert against unsafe practices and hazards involving only property dam-
age.
Improper installation may create a condition where the operation of
the product could cause personal injury or property damage.
Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to this manual for assis-
tance or for additional information, consult a qualified contractor,
installer or service agency.
This product must be installed in strict compliance with the enclosed
installation instructions and any applicable local, state, and national
codes including, but not limited to building, electrical, and mechanical
codes.
R-410A systems operate at higher pressures than R-22 systems. Do
not use R-22 service equipment or components on R-410A equip-
ment. Service equipment
®
Must Be Rated
for R-410A.
835966-UIM-E-0814
