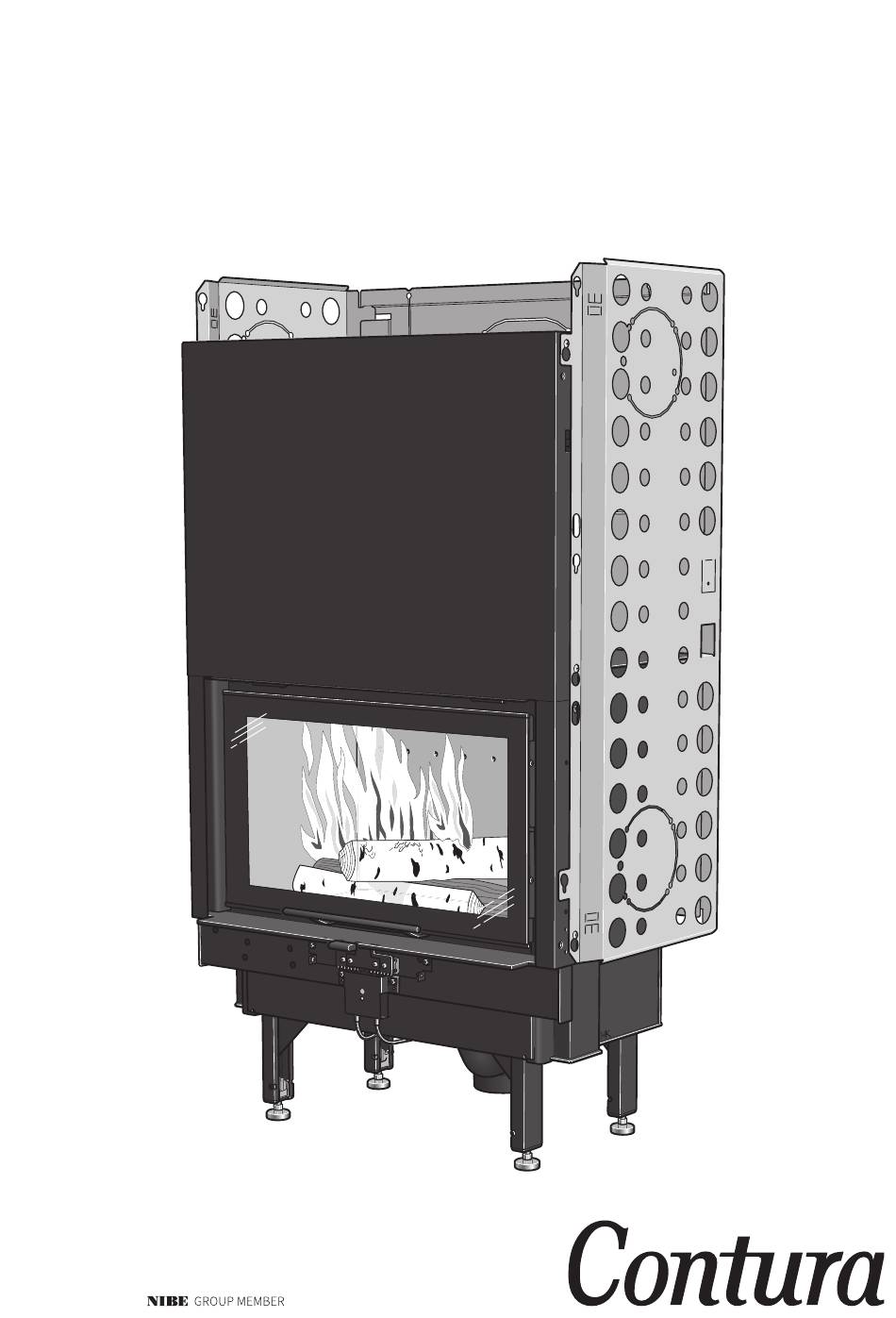

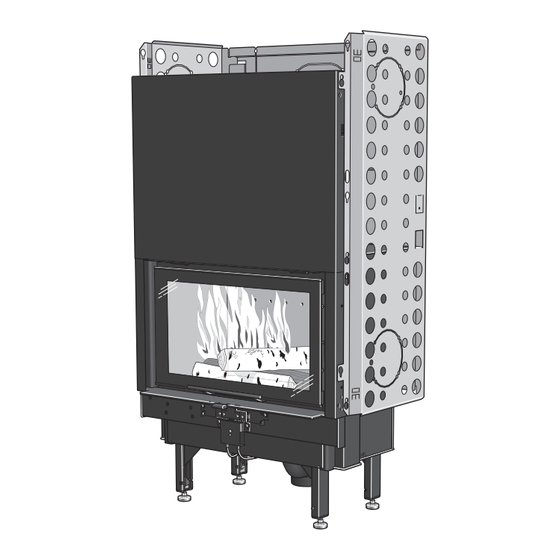

- Page 1 Installation Instructions C i30 www.contura.eu...
- Page 2 Emissions of hazardous substances Pass Nominal output 6,0 kW Efficiency Flue gas temperature in connector at nominal 283°C output The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, September 12, 2013...
- Page 3 CONTENTS A warm welcome to Contura. A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new insert. As a new owner of a Contura insert, you have secured a product with timeless design and long service life. Contura also has a combustion process that is both environmentally friendly and efficient, for the best heat production.
- Page 4 FACTS Technical General Floor plate specifications This manual contains instructions about If the floor under the stove is flammable, Model how Contura i30 must be assembled it must be protected by a non-flammable Output 4-9 kW and installed. To ensure the function material e.g.
- Page 5 IMPORTANT DIMENSIONS / PRIOR TO INSTALLATION Important dimensions C i30 Ext. Ø150 Utv. Ø 150 Justerbar fot Adjustable foot Tilluftsstos Ø100 Air Inlet Ø100 Prior to installation Opening the door...
- Page 6 PRIOR TO INSTALLATION Remove the loose parts from the firebox. The insert is secured to the pallet by the two rails, remove the screws and remove the angle brackets. Reinstall the screws on the legs before moving the insert from the pallet. 3 mm 10 mm...
- Page 7 PRIOR TO INSTALLATION Check wire routing and remove the transport locking device! 10 mm The hatch runners are lubricated at the factory, with special grease that can withstand high temperatures. This type of grease is usually difficult to find on the market and we recommend contacting a Contura dealer to order this special grease when lubricating the runners.
- Page 8 PRIOR TO INSTALLATION Installing the hearth cladding...
- Page 9 PRIOR TO INSTALLATION...
- Page 10 PRIOR TO INSTALLATION Installing heat defl ectors 1 0 m m...
- Page 11 PRIOR TO INSTALLATION...
- Page 12 PRIOR TO INSTALLATION Installing Powerstone Install the Powerstone blocks as illustrated. Ensure there is sufficient space for so that the counterweight can move freely. Test by opening/closing the door.
- Page 13 INSTALLATION Installation Ensure that the installation meets national and regional regulations. The installation must be approved by an authorized inspection body. Supply of combustion air Supply air from open air must be provided. Combustion air can be provided directly via a duct from outside, or indirectly via a vent in the outer wall of the room where the insert is placed.
- Page 14 CHIMNEY Chimney The insert is type approved for and must be connected to a Note that a flue with sharp bends and horizontal routing reduces chimney dimensioned for a flue temperature of 350°C, the the draught in the chimney. The maximum horizontal flue is 1 m, external connection diameter is 150 mm.
- Page 15 RECESSING THE INSERT Recessing the insert When recessing the insert, adjacent walls that are not classed When connecting a steel flue, please refer to the particular as fire walls, or are considered unsuitable for heat loads must manufacturer's installation instructions. Observe the safety be protected by non-combustible material according to the distance to combustible material required by the steel flue Heat specification below.
- Page 16 RECESSING THE INSERT Recess example Wall of combustible material Wall of non-combustible material that is not in contact with combustible The dimensions are the material and therefore has no minimum minimum dimensions, thickness requirement. unless otherwise stated. Chimney breast Wall of non-combustible material, made of 100 mm aerated concrete in the recess example.
- Page 17 RECESSING THE INSERT Sealing Avtätning Area external 600cm Area ut 600 cm Area external 600cm Area ut 600 cm Area internal 600cm Area in 600 cm Area internal 600cm Area in 600 cm * With Powerstone Area external 600cm Area ut 600 cm Area external 600cm Area ut 600 cm Area internal 600cm...
- Page 20 NIBE AB · Box 134 · SE-285 23 · Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811209 IAV SE-EX Ci30-12 time without special notice. The current edition can be 2017-05-23 downloaded from www.contura.eu...
