Summary of Contents for Nibe Contura Ci8

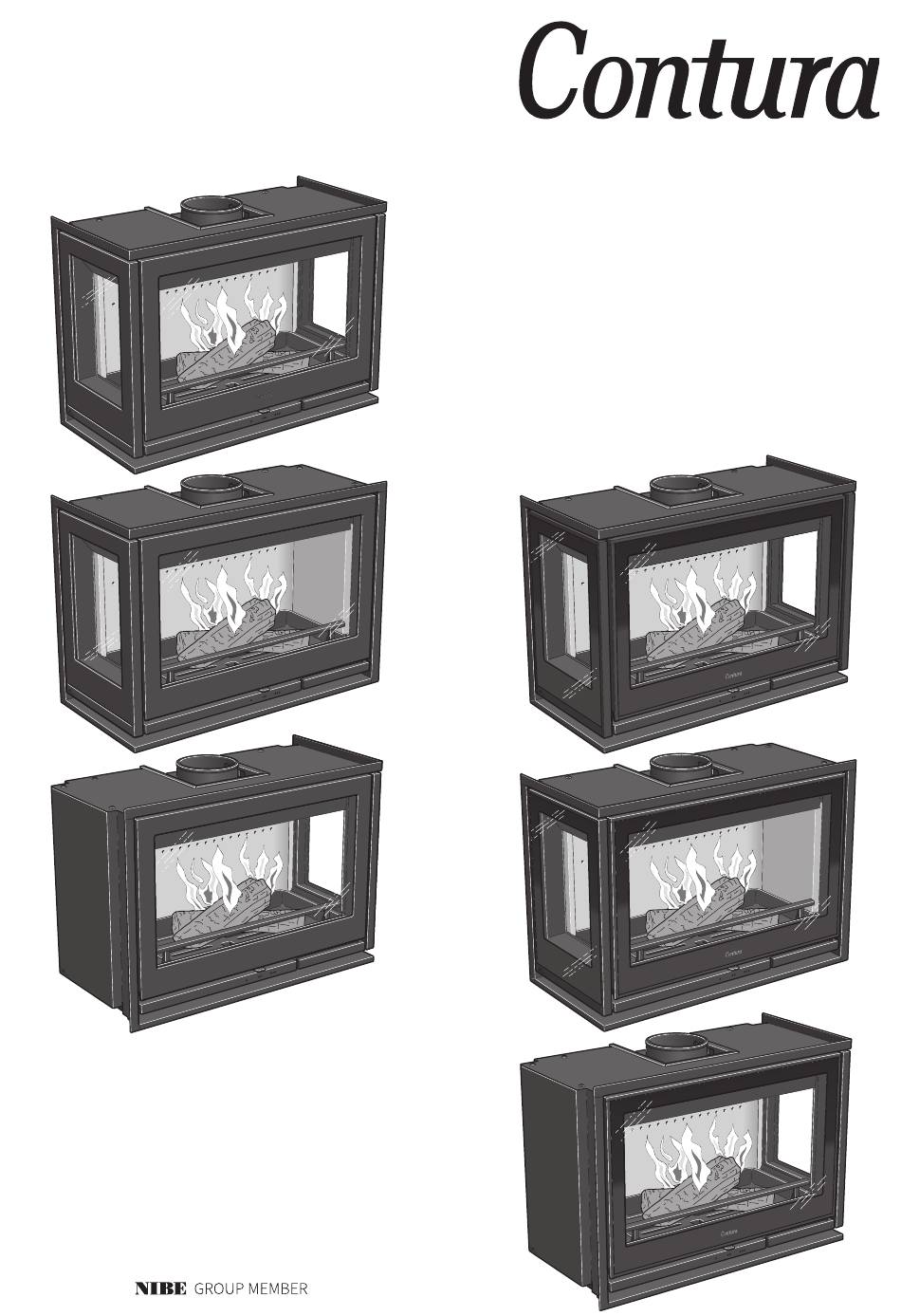

- Page 1 Ci8 Left Ci8 Right Ci8G Ci8G Left Ci8G Right contura.eu...
-
Page 2: Planning Permission
Facts 5-9 kW 530 mm 735 mm 365 mm 100 kg Installation by a licensed Structural support Nominal effect 7 kW Efficiency 77 % professional Check that the wood joists are strong enough to Flue gas temperature in the bear the weight of the stove and chimney. The This manual contains instructions on how to connection at nominal output 324°C... -
Page 3: Recessing The Insert
Recessing the insert Sealing When recessing the insert, adjacent walls that are not classed as fire walls or are considered unsuitable for exposure to heat must be protected by The recess must not go all the way up to the ceiling, leave an air gap of at non-combustible building material in accordance with the specifications least 20 mm closest to the ceiling. -
Page 4: Recess Example
Recess example The dimensions are the minimum dimensions, unless otherwise Wall made of combustible material stated. Aerated wall, comprising at least a 40 mm calcium silicate board and an air space. There must be a 20 mm air space between the building board and the combustible wall. - Page 5 Recess example Sealing Avtätning Area ut min. 200 cm Area ut min. 200 cm Area ext. min. 200 cm Area ext. min. 200 cm 20 mm Luftspalt 20 mm Luftspalt 20 mm Air gap 20 mm Air gap Area int. min. 300 cm Area in min.
-
Page 6: Dimensions Diagram
Dimensions diagram Furnishings and combustible building elements must be at least 1,4 metre from the front of the insert door. Ø150 Ø150 Air inlet Ø65 Air inlet Ø65... - Page 7 Efficiency 77,0% Flue gas temperature at nominal output 324°C Flue gas temperature in flue spigot 389°C The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, January 8, 2020...
-
Page 8: Montage
Montering Før montering Avant de procéder au montage Om insatsen behöver läggas ned för att Hvis innsatsen må legges ned for å flyttes, förflyttas bör lösa delar demonteras. bør løse deler demonteres. Demontering Les éléments non fixés devront être Demontering av eldstadsbeklädnad beskrivs i av brennplater og hvelv er beskrevet mot déposés si l’insert doit être couché... - Page 9 Ci8 Left / Right Handle with care!
- Page 12 For installation in the UK and in smoke control areas Mandatory for smoke control areas Contura i8, 7 kW woodburning stoves has been recommended as The permanent stop must be installed if the appliance is to be suitable for use in smoke control areas. This when burning wood used in a smoke control area, this stop must not be removed in logs and operated in accordance with these instructions and when smoke control areas, otherwise an offence will be committed if...
- Page 15 Installation i befintlig öppen eldstad Installation i eksisterende åbent ildsted Insatsen kan installeras som spiskassett i befintlig godkänd Indsatsen kan installeres som pejseindsats i et eksisterende öppen eldstad. Runt om insatsen skall det vara minst 10 mm godkendt åbent ildsted. Rundt om indsatsen skal der være luftspalt, detta pga.
- Page 16 Anslutningsstos bakåt Anslutningsstos nedåt Används då utrymme finns bakåt. Används då utrymme inte finns bakåt. Tilkoblingsstuss bak Tilkoblingsstuss nedover Brukes når det ikke er plass bak. Brukes når det ikke er plass bak. Manchon de raccordement vers l’arrière Manchon de raccordement vers le bas Utilisé...
- Page 17 Anslutning till befi ntlig murad skorsten Tilslutning til eksisterende muret skorsten För enklast montage rekomenderas att använda flexibel slang Det anbefales at benytte en fleksibel slange for den letteste (säljs som tillbehör). Fäst stosen i slangen. Anslut och täta mellan montering slangen och skorstenen enligt dess separata anvisning.
- Page 21 Ø 6 mm...
- Page 23 3 m m Ci8 Left / Right...
- Page 26 Ci8 Left / Right...
- Page 27 Återmontera de invändiga delarna i omvänd ordning. Sett de innvendige delene tilbake på plass i motsatt rekkefølge. Remontez les éléments intérieurs dans l’ordre inverse. Reinstall the internal components in reverse order. Monter de indvendige dele igen i omvendt rækkefølge. Asenna sisäosat päinvastaisessa järjestyksessä.
- Page 28 811433 IAV SE-EX Ci8-0 NIBE AB · Box 134 · 285 23 Markaryd · Sweden 2020-06-08 contura.eu...
