Operation
instructions
Ci60 / Ci61
contura.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contura Ci60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nibe Contura Ci60

Summary of Contents for Nibe Contura Ci60

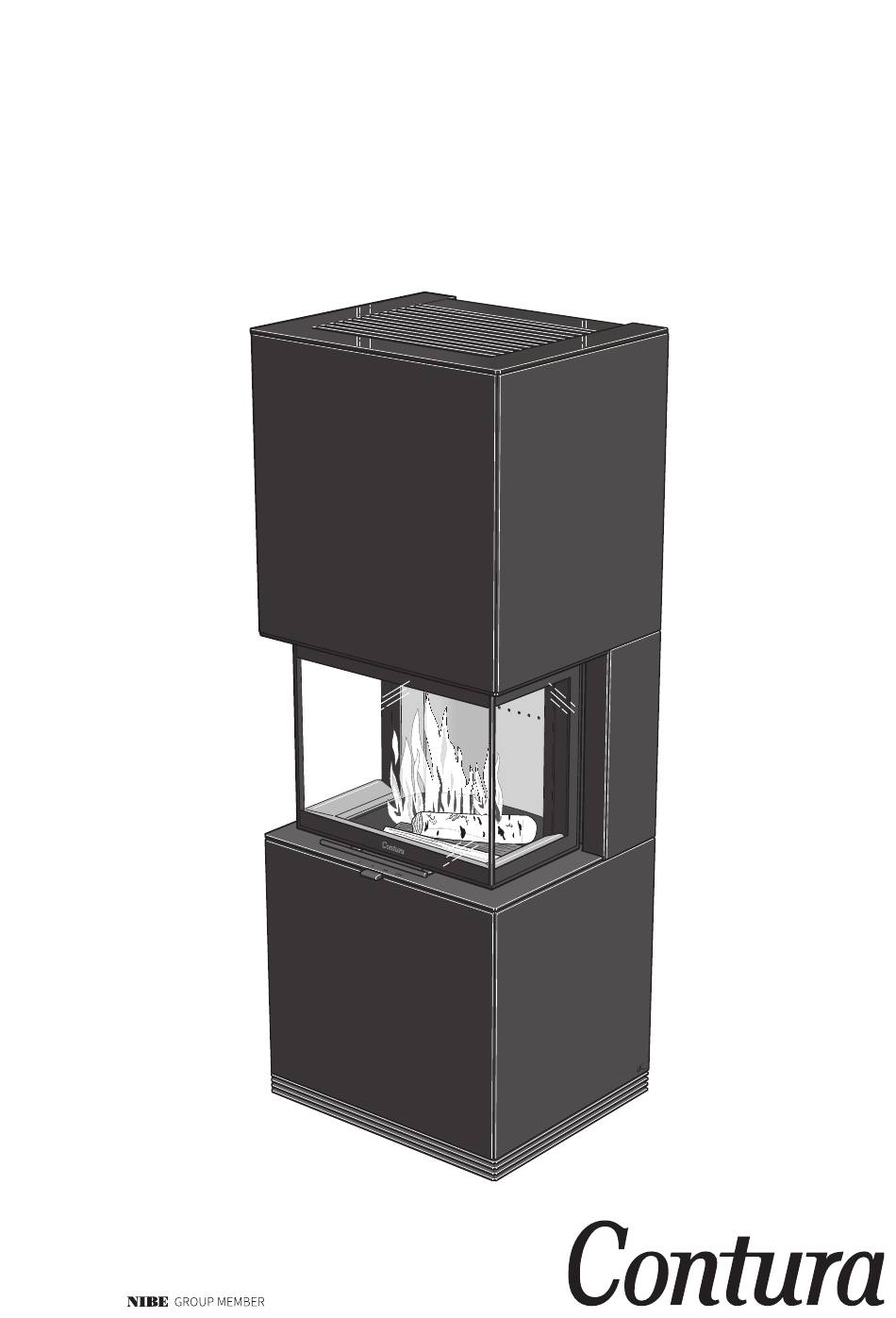

  • Page 1 Operation instructions Ci60 / Ci61 contura.eu...
  • Page 2 Lighting Instructions Lighting in the right way It is important that the correct amount of wood is used, especially when lighting. If you are lighting the fire for the first time you should use a set of scales to see how much 1,8 kg kindling is. Also check what the normal and maximum weights look like.
  • Page 3 Lighting Instructions Adding wood Feeding Wood: The first load of logs after lighting should not be put on until the start-up Split logs fire has turned to embers and no yellow flames are visible. Length: 20-33 cm 1. Open the door. Diameter: 6-9 cm Normal weight: 2.1 kg/hour 2.

  • Page 4: Lighting For The First Time

    Lighting Instructions LIGHTING FOR THE FIRST TIME The insert will emit an odour of excess paint and oil coating that may remain on the panels. The odour will disappear completely after several fires. Choosing fuel All types of wood, such as birch, beech, oak, elm, ash, conifers and fruit trees can be used as fuel in the insert.
  • Page 5 Lighting Instructions Do NOT burn the following Candles Under no circumstances may fossil fuels, pressure impregnated wood, painted or glued wood, chipboard, plastic or colour brochures be used as Do not use old candle stubs as fuel. Melted wax runs down into the stove’s fuel.

  • Page 6: Firebox Maintenance

    Lighting Instructions FIREBOX MAINTENANCE The glass may become sooty with use, even if the insert is lit with dry wood with a moisture content of 15 – 20%. Regular cleaning with dry paper is usually sufficient to keep it clean. If the soot has been on the glass for a long time, dip the damp paper into the soft, none abrasive ashes and wipe clean.

  • Page 7: Health And Safety Precautions

    Lighting Instructions UK Smoke control areas The Contura i60 and i61, 6 kW woodburning stoves has been recommended as suitable for use in smoke control areas. This when burning wood logs and operated in accordance with these instructions and when fitted with a mechanical stop to prevent closure of the air control vent beyond the 19% open position when sold into smoke control areas.

  • Page 8: Combustion Air Supply

    Lighting Instructions Chimney Any bend in the chimney or connecting fluepipe should not exceed 45°. 90° bends should not be used. Combustible material should not be located In order for the stove to perform satisfactorily the chimney height must where the heat dissipating through the walls of fireplaces or flues could be sufficient to ensure an adequate draught of approximately 15 Pa so as ignite it.

  • Page 9: Warning Note

    Lighting Instructions WARNING NOTE IMPORTANT NOTES General Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de ashing and re fuelling may Before lighting the stove check with the installer that the installation work occur.

  • Page 10: Aerosol Sprays

    Lighting Instructions Aerosol sprays USER OPERATING INSTRUCTIONS Do not use an aerosol spray on or near the stove when it is alight. Please read the important notices given above before referring to the main Use of operating tools instruction book for detailed operating instructions. Always use the operating tools provided when handling parts likely to be hot Recommended fuels: when the stove is in use.
  • Page 11 Lighting Instructions Possible causes of malfunctions and how to rectify them There is poor draft in the insert after new installation Abnormal amounts of soot form on the glass There is always a certain amount of soot on the glass and this is added to •...
  • Page 12 Lighting Instructions Managing waste The stove packaging is cardboard, wood and a Hearth plate glass must small amount of plastic. The materials must be be discarded as waste sorted and recycled. material together with pottery and porcelain SWEEPING • During operation, the surfaces of the insert become very hot and can cause burn injury if touched.
  • Page 16 NIBE AB· Box 134 · 285 23 Markaryd · Sweden contura.eu Contura reserves the right to change dimensions and procedures described in these instructions 811413 BAV SE-EX Ci60-4 at any time without special notice. The current 2022-09-26 edition can be downloaded from www.contura.eu...

This manual is also suitable for:

Contura ci61
