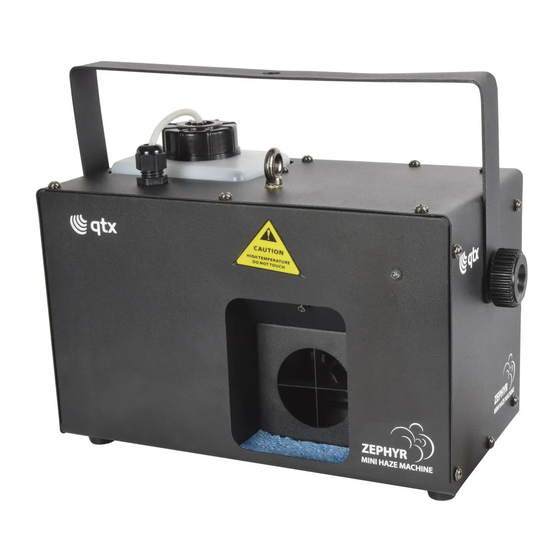

- Page 1 ZEPHYR Item ref: 160.494UK User Manual Compact Haze Machine Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 • Do not use strong solvents for cleaning the housing • Clean the haze mechanism periodically by operating with distilled water instead of haze • It is also recommended to use fog machine cleaning fluid (160.670UK) periodically 160.494UK User Manual...
-
Page 3: Rear Panel
International signal Brown Live Blue Neutral Yellow /Cyan Earth Rear panel LED display 4 button control panel RF remote receiver connection (5-pin DIN) DMX input (3-pin XLR) DMX output (3-pin XLR) IEC mains inlet & fuse holder 160.494UK User Manual... -
Page 4: Operation
If the display is showing the DMX address, the ZEPHYR will operate from DMX control as follows. Channel 1 (start address) 1-255 Haze output 1-100% Channel 2 (start address + 1) 0-255 Fan speed slow to fast 160.494UK User Manual... -
Page 5: Specifications
Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines Errors and omissions excepted. Copyright© 2018. AVSL Goup Ltd 160.494UK User Manual... - Page 6 160.494UK User Manual...
