DESCRIPTION
Demo circuit DC1274A features the LTM
step-down constant current μModule
demonstration circuit is designed to drive a single LED
or string of LEDs at up to 1A from a wide input voltage
range. The maximum LED string voltage is 13V and the
minimum voltage varies depending upon the BIAS pin sup-
ply arrangement. The demonstration circuit is assembled
with the BIAS pin connected to the LEDA pin.
The LTM8040 runs at 500kHz switching frequency by
default. DC1274A can be adjusted to raise the switching
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Current (I
)
LED
Switching Frequency
Maximum Output Voltage (V
), Open LED Voltage
LEDA

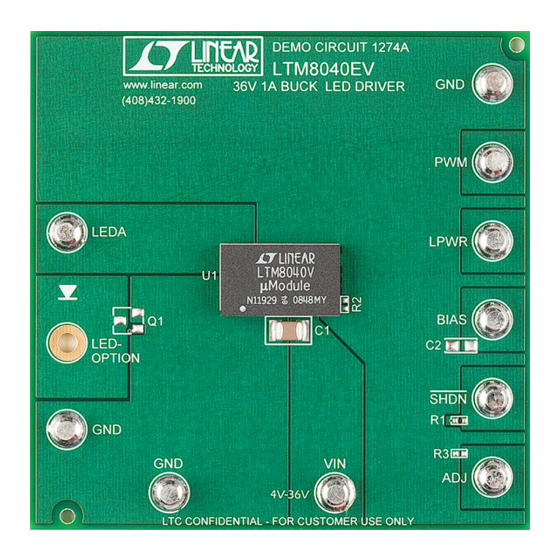

BOARD PHOTO
DEMO MANUAL DC1274A
8040 36V, 1A
frequency, lower the LED current, and implement PWM
®
®
LED driver. The
dimming. The shutdown feature can be examined by con-
necting the shutdown terminal to ground. The LTM8040
data sheet must be read in conjunction with this demo
manual prior to working on or modifying demo circuit
DC1274A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
(T
= 25°C)
A
CONDITIONS/NOTES
I
= 1A, V
= 3.3V
LED
LEDA
R3 = Open
R2 = Open
LTM8040
36V, 1A Step-Down
µModule LED Driver
VALUE
4V to 36V
1A
500kHz
13V
dc1274af
1
