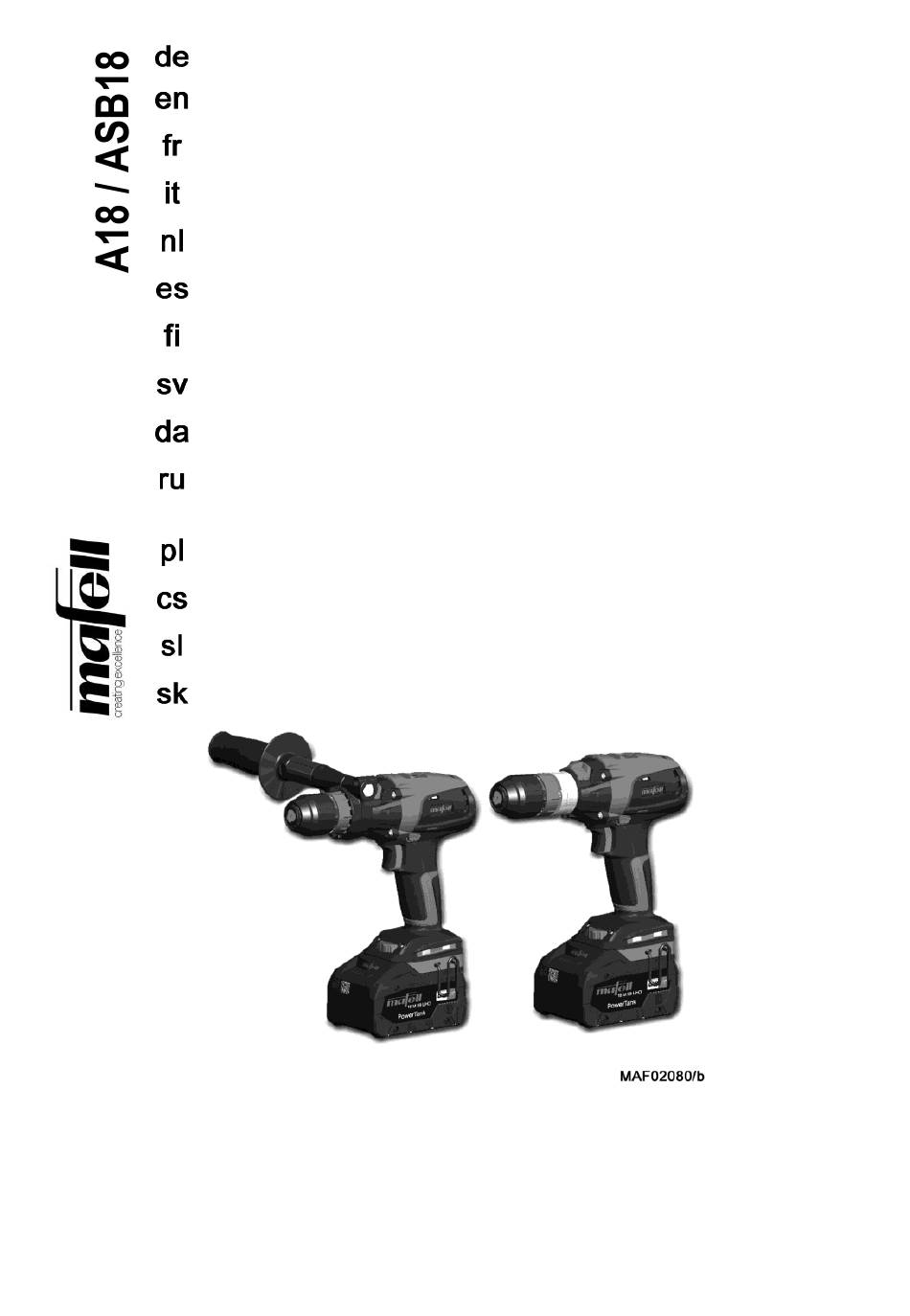

- Page 1 170768.0722/b Akku-Bohr- und Akku-Schlagbohrschrauber Originalbetriebsanleitung Cordless drill driver and cordless impact drill Translation of the original driver operating instructions Perceuse perceuse-visseuse à Traduction de la notice d'emploi percussion, sans fil originale Trapano avvitatore a batteria e trapano a Traduzione delle istruzioni percussione a batteria d’uso originali...
-
Page 2: Table Of Contents
English Table of Contents Signs and symbols ......................17 Product information ......................17 Manufacturer´s data ....................... 17 Machine identification ..................... 17 Technical data ........................ 18 Emissions ........................18 Scope of supply ......................19 Use according to intended purpose ................19 Safety information ...................... -
Page 3: Signs And Symbols
Product information for machines with product no. 91C801, 91C821, 91C901, 91C921 2.1 Manufacturer´s data MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone +49 (0)7423/812-0, Fax +49 (0)7423/812-218, e-mail: mafell@mafell.de 2.2 Machine identification All details required for machine identification are available on the attached rating plate. -
Page 4: Technical Data
2.3 Technical data Model: ASB18 Voltage Speed level 1 0-560 0-560 Speed level 2 0-1960 0-1960 Torque (soft) Torque (impulse) Torque (hard) D max chuck Ø mm D min chuck Ø mm Max. drill diameter: Steel Ø mm Wood Ø mm Concrete Ø... -
Page 5: Scope Of Supply
2.5 Scope of supply Cordless drill driver and cordless impact drill driver A18 and ASB18 complete with: 1 cordless screwdriver 1 quick-release chuck 1 rechargeable battery 4.0 Ah for product no. 91C801, 91C821, 91C901, 91C921 1 rechargeable battery 5.5 Ah for product no. 91C801, 91C821, 91C901, 91C921... -
Page 6: Additional Safety Instructions
bend if allowed to turn freely (without contact with (11) Setting wheel – torque pre-selection, impulse the workpiece); this can lead to injuries. function - Do not apply excessive pressure and only apply (12) Switch trigger pressure in the longitudinal direction to the drill (13) Additional handle bit. -
Page 7: Removing And Inserting The Rechargeable Battery
MAFELL electrical tools. 5.5 Setting drilling or impact drilling mode (see Fig. 1) The spindle enables a quick change between the accessory attachments and a direct ¼‘‘ hexagonal •... -
Page 8: Switching The Led Light On/Off
Unplug the rechargeable battery for all service work. If the angle attachment is not slid onto the clamping collar, the lever MAFELL machines are designed to be low in may not be pushed forcefully down. maintenance. Failure to do so can destroy the Always keep the appliance clean. -
Page 9: Storage
MAFELL electrical tools. domestic waste! Store the appliance in a dry and frost-proof place. For EU countries only: Only use MAFELL accessories and spare parts. Have According to the European components, the replacement of which has not been Directive 2002/96/EC, power tools... -
Page 10: Troubleshooting
Despite this protective function, overload and as a consequence damage to the machine may occur during certain applications. Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, please contact your dealer or the MAFELL customer service directly. Defect Cause... -
Page 11: Optional Accessories
- Torque attachment A-DMVx3 3:1 transmission ratio Order No. 094450 - Drilling station Order No. 961210 - Drilling station S Order No. 961215 Exploded drawing and spare parts list The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com -25-...
