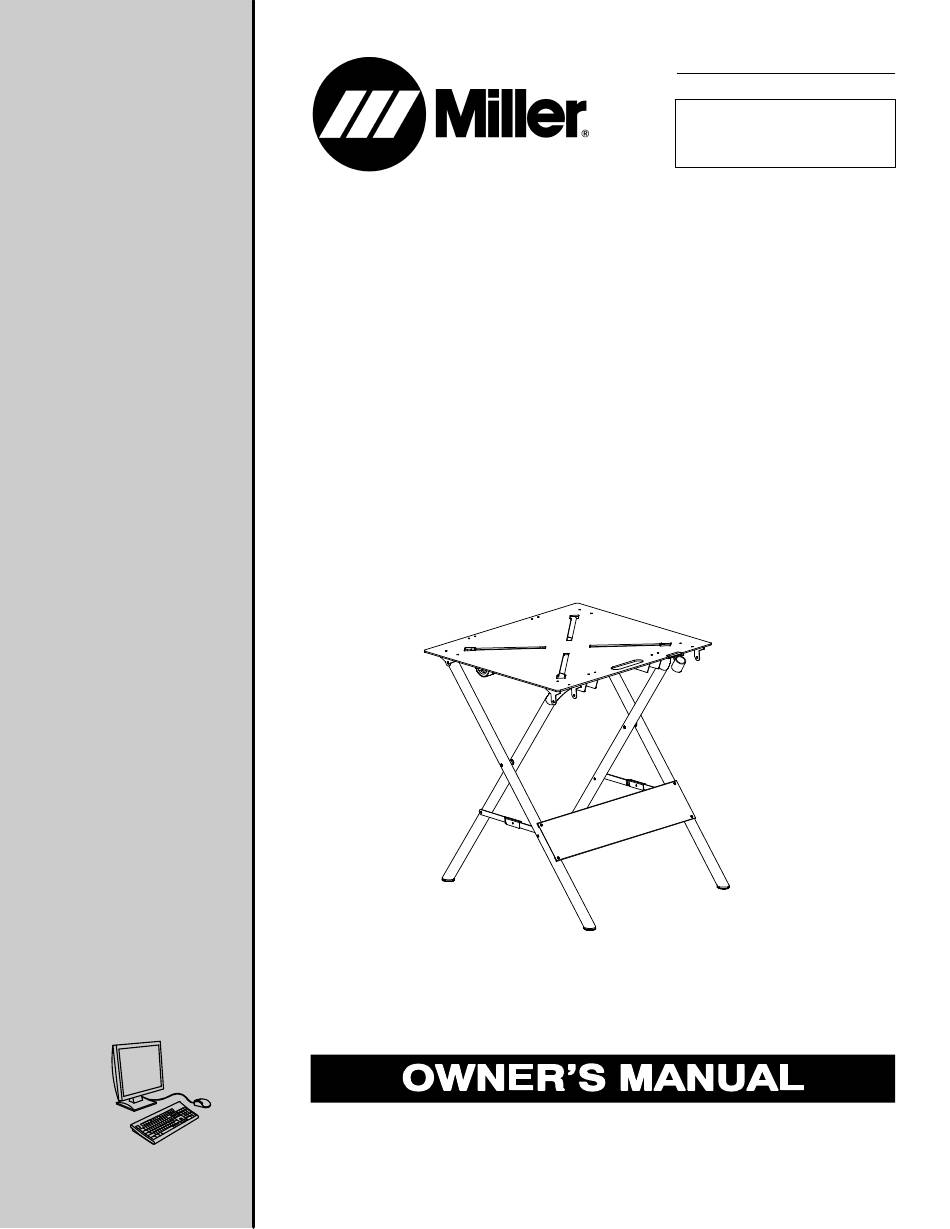

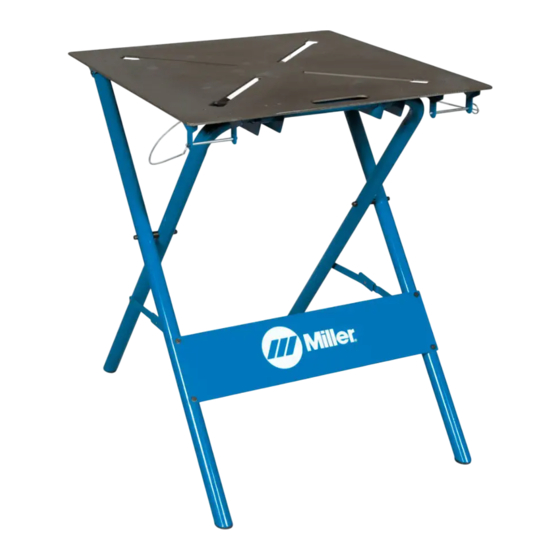

  • Page 1 OM-250 085B 2011−02 Place serial number or lot code sticker here. 30FX ArcStation ™ Visit our website at www.MillerWelds.com...
  • Page 2 We know you don’t have time to do it any other way. That’s why when Niels Miller first started building arc welders in 1929, he made sure his products offered long-lasting value and superior quality.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING ....... . . 1-1.

  • Page 5: Section 1 − Safety Precautions - Read Before Using

    SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING som 2011−01 Protect yourself and others from injury — read and follow these precautions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions. not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.
  • Page 6 D Remove stick electrode from holder or cut off welding wire at FUMES AND GASES can be hazardous. contact tip when not in use. D Wear oil-free protective garments such as leather gloves, heavy Welding produces fumes and gases. Breathing shirt, cuffless trousers, high shoes, and a cap.

  • Page 7: Additional Symbols For Installation, Operation, And Maintenance

    1-3. Additional Symbols For Installation, Operation, And Maintenance FIRE OR EXPLOSION hazard. MOVING PARTS can injure. D Do not install or place unit on, over, or near D Keep away from moving parts such as fans. combustible surfaces. D Keep all doors, panels, covers, and guards D Do not install unit near flammables.

  • Page 8: California Proposition 65 Warnings

    1-4. California Proposition 65 Warnings For Gasoline Engines: Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to Engine exhaust contains chemicals known to the State of cause birth defects and, in some cases, cancer. (California California to cause cancer, birth defects, or other reproduc- Health &...

  • Page 9: Section 2 − Consignes De Sécurité − Lire Avant Utilisation

    SECTION 2 − CONSIGNES DE SÉCURITÉ − LIRE AVANT UTILISATION fre_som_2010−03 Se protéger et protéger les autres contre le risque de blessure — lire et respecter ces consignes. 2-1. Symboles utilisés DANGER! − Indique une situation dangereuse qui si on Indique des instructions spécifiques.
  • Page 10 Il reste une TENSION DC NON NÉGLIGEABLE dans LE SOUDAGE peut provoquer un les sources de soudage onduleur UNE FOIS incendie ou une explosion. l’alimentation coupée. Le soudage effectué sur des conteneurs fermés tels D Arrêter les convertisseurs, débrancher le courant électrique et que des réservoirs, tambours ou des conduites peut décharger les condensateurs d’alimentation selon les instructions provoquer leur éclatement.

  • Page 11: Dangers Supplémentaires En Relation Avec L'installation, Le Fonctionnement Et La Maintenance

    ACCUMULATIONS LES BOUTEILLES peuvent exploser risquent de provoquer des blessures si elles sont endommagées. ou même la mort. Des bouteilles de gaz protecteur contiennent du gaz sous haute pression. Si une bouteille est endom- D Fermer l’alimentation du gaz protecteur en cas magée, elle peut exploser.

  • Page 12: Proposition Californienne 65 Avertissements

    Les PIÈCES MOBILES peuvent RAYONNEMENT HAUTE causer des blessures. FRÉQUENCE (H.F.) risque provoquer des interférences. D Ne pas s’approcher des organes mobiles. D Ne pas s’approcher des points de coincement D Le rayonnement haute fréquence (H.F.) peut tels que des rouleaux de commande. provoquer des interférences avec les équi- pements de radio−navigation et de com- munication, les services de sécurité...

  • Page 13: Principales Normes De Sécurité

    2-5. Principales normes de sécurité Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, 25 West 43rd Street, New York, NY 10036 (téléphone : 212-642-4900, de Global Engineering Documents (téléphone : 1-877-413-5184, site site Internet : www.ansi.org). Internet : www.global.ihs.com). Standard for Fire Prevention During Welding, Cutting, and Other Hot Safe Practices for the Preparation of Containers and Piping for Welding Work, NFPA Standard 51B, de National Fire Protection Association,...
  • Page 14 OM-250 085 Page 10...

  • Page 15: Section 3 − Welding Table Safety Precautions − Read Before Using

    SECTION 3 − WELDING TABLE SAFETY PRECAUTIONS − READ BEFORE USING weld table_2009−09 Protect yourself and others from injury — read and follow these precautions. 3-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if Indicates special instructions. not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.
  • Page 16 OM-250 085 Page 12...

  • Page 17: Section 4 − Unfolding Welding Table

    SECTION 4 − UNFOLDING WELDING TABLE 4-1. Welding Table Specifications A. Specifications Total Maximum Load Capacity 500 lb (227 kg) B. Tools Needed hex bit 3/16 in. 4-2. Unfolding Table Assembly A. Unfolding Procedure Folding Welding Table Securing Pin (2) Outer Legs Hinged Braces Pull securing pins completely out of...
  • Page 18 B. Optional Work Lead Tab Position Tapped Holes For Work Lead Work Lead Tab Attach work lead tab with one bolt Tools Needed: DD to bottom side and at the rear of the top using either one of the two tapped holes.
  • Page 19 D. Gun Holder Position gun holder where ever it does not interfere with folding the table. Folding Welding Table Gun Holder Edge Bracket Slide edge bracket onto edge of table top and secure gun holder with the thumb screw. Once the gun holder is at- tached to the table top there is no need to remove it.

  • Page 20: Section 5 − Folding Welding Table

    SECTION 5 − FOLDING WELDING TABLE 5-1. Folding Table Assembly Folding Welding Table Securing Pin (2) Hinged Braces Inner Legs Remove ground lead from table top (see Section C). Use two people to rotate welding table Rotate the welding table onto its table top as shown.

  • Page 21: Section 6 − Maintenance

    SECTION 6 − MAINTENANCE 6-1. Routine Maintenance Maintain more often during severe conditions. n = Check Z = Change ~ = Clean l = Replace Reference * To be done by Factory Authorized Service Agent Every Months n Tighten Hardware OM-250 085 Page 17...

  • Page 22: Section 7 − Parts List

    SECTION 7 − PARTS LIST Hardware is common and not available unless listed. Figure 7-1. Folding ArcStation Item Dia. Part Mkgs. Description Quantity Figure 7-1. Folding ArcStation ... . . 250 151 Foot, mtg snap−in .
  • Page 23 Effective January 1, 2011 (Equipment with a serial number preface of MB or newer) This limited warranty supersedes all previous Miller warranties and is exclusive with no other Warranty Questions? guarantees or warranties expressed or implied. LIMITED WARRANTY − Subject to the terms and conditions 90 Days —...
  • Page 24 Contact the Delivering Carrier to: File a claim for loss or damage during shipment. For assistance in filing or settling claims, contact your distributor and/or equipment manufacturer’s Transportation Department. © ORIGINAL INSTRUCTIONS − PRINTED IN USA 2011 Miller Electric Mfg. Co. 2011−01...
