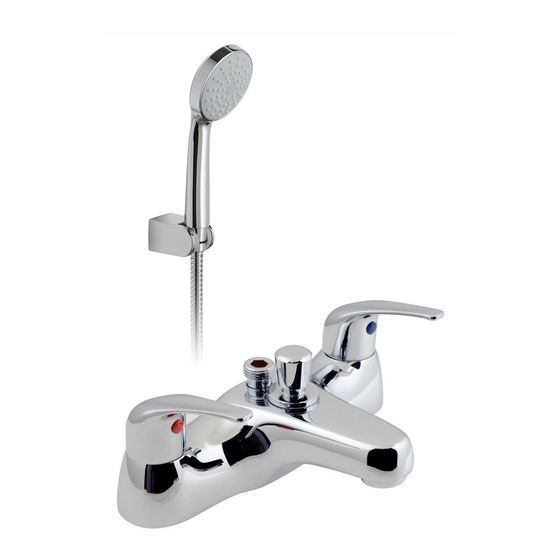

- Page 1 KEEP FOR FUTURE REFERENCE MATRIX This instruction booklet covers model: AX-MAT-130+K-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB BATH SHOWER MIXER tel 01934 744466 fax 01934 744345 WITH SHOWER KIT www.vado.com sales@vado.com Version 1, 1-9-19...
-
Page 2: General Installation
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Dimensions Installation - Quick guide ¾" 103mm 180mm...
-
Page 4: Installation
Installation Hot control handle Cold control Rubber handle washer Seal Hot inlet Cold inlet Rubber washer Rubber washer Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Ensure that the seal is in place underneath of the body. Position the mixer on the bath. -
Page 5: Operation
Installation Operation Handset holder Wall plugs Warning! Please check for any hidden pipes and cables before drilling holes in Diverter the wall. Pull the shower control knob If you are fitting the unit to a partition wall up to turn on the shower, or a wall of particularly soft substrate you turn to lock in position. -
Page 6: Cleaning Instructions
•The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
