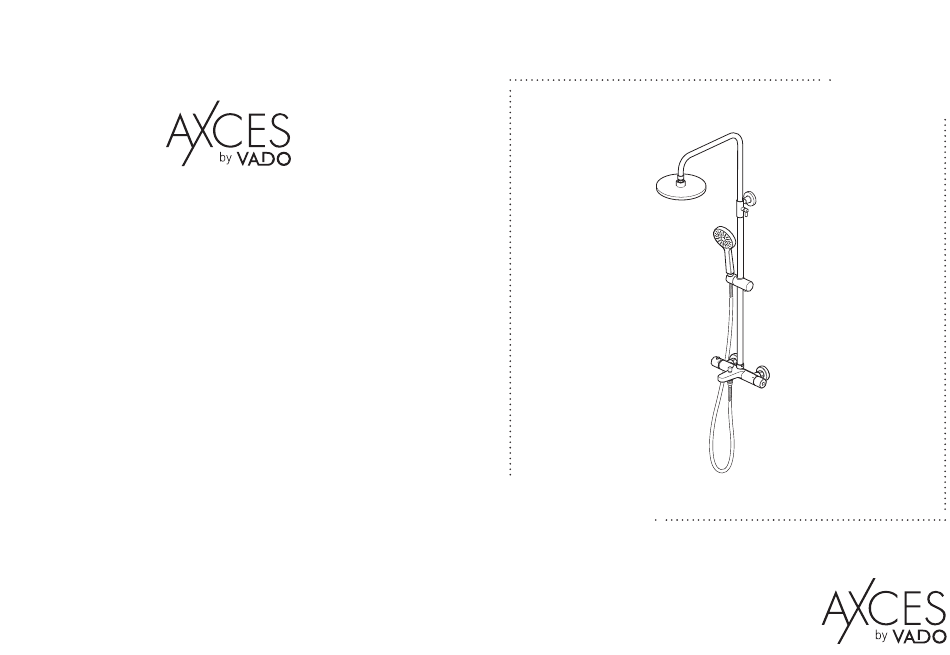

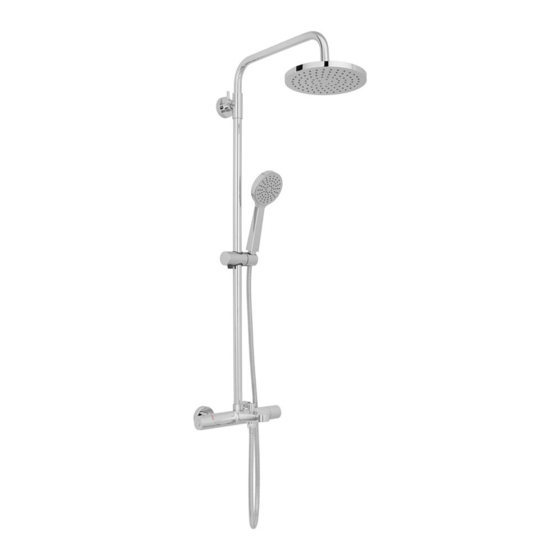

- Page 1 KEEP FOR FUTURE REFERENCE SIRKEL This instruction booklet covers model: AX-SIR-123T-RRK/B-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466 fax 01934 744345 SHOWER COLUMN www.vado.com sales@vado.com Version 1, 1-2-21...
-
Page 2: Important - Please Read
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and Fixing box will invalidate the guarantee. - Page 3 Contents of Packaging Dimensions Wall bracket Riser arm Ø200mm Handset 150mm Handset holder Shower head with washer 282mm Riser rail Shower hose with 2 washers...
-
Page 4: Installation
Installation Installation Warning! Please check for any Slide on the olive, screw on and tighten hidden cables and pipes before drilling the nut. ½" Copper pipe holes in the wall. Before installation flush through the Note: Make sure that the valve is pipe work to ensure removal of debris, positioned to allow room for the riser to turn off the water supply. - Page 5 Installation Installation Carefully push the riser arm down into Warning! Please check for any the riser rail, being careful not to damage hidden cables and pipes before drilling Wall plug Riser arm Bracket the seals. Make sure that the riser arm holes in the wall.
-
Page 6: Operation
Installation - Shower hose Operation Shower head Riser arm Make sure there is a rubber washer in place in the showerhead and screw onto Shower head Spout the riser arm. Washer Pushing down on this Handset button will go beyond 38°C. - Page 7 Operation Commissioning The valve has been factory set under balanced pressures and hot water supply at 65°C. When your specific operating conditions are significantly different from the above, the temperature of the water may vary from the setting. When the difference is too great, you can adjust the calibration of the valve to suit individual requirements of the installation: Note: Mixed water temperature at terminal fitting should never exceed 46°C.
-
Page 8: Cleaning Instructions
Cleaning instructions: Maintenance 5. If there is limescale deposits then it is recommended to immerse the cartridge for a Our products are finished to the highest standard and due care needs to be taken to few minutes in 50% white vinegar + 50% hot water, brush the filters gently and then rinse ensure their looks are retained. - Page 9 Notes: Notes:...
- Page 10 •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
