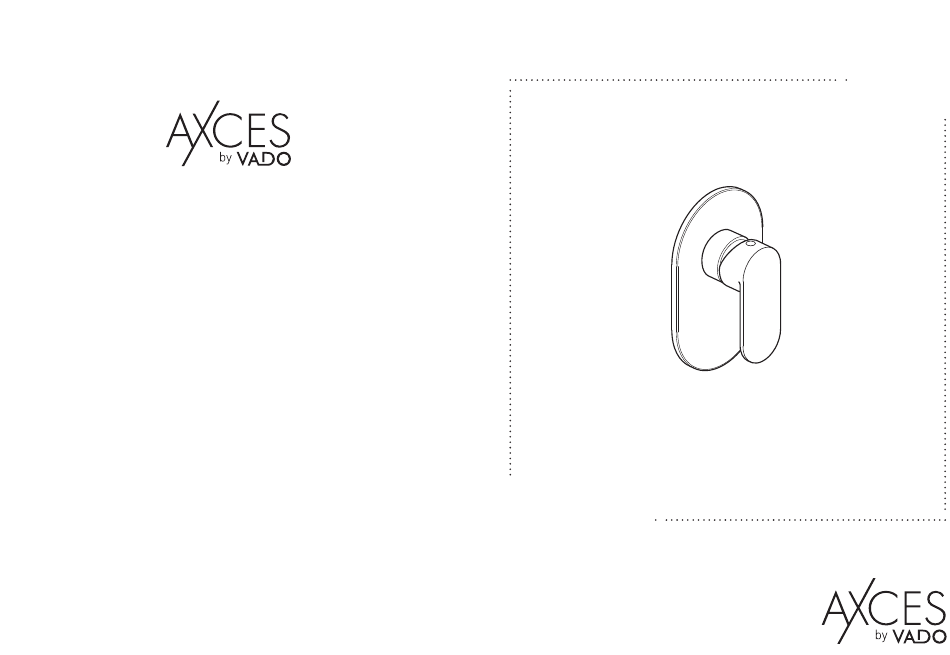

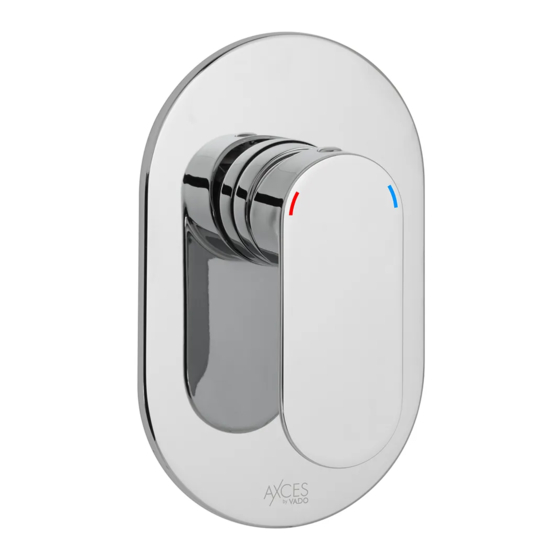

- Page 1 KEEP FOR FUTURE REFERENCE METIZ This instruction booklet covers model: AX-MET-145A-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466 fax 01934 744345 MANUAL VALVE www.vado.com sales@vado.com Version 1, 1-8-19...
- Page 2 Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 Dimensions Installation - Quick guide 1/2” Ø40mm 16mm Cover plate 40-65mm 100mm Ø40mm...
- Page 4 Installation - Quick guide Installation Outlet Cold inlet Wall plugs Hot inlet Screws Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Warning! Please check for any hidden cables and pipes before drilling holes in the wall.
- Page 5 Installation Operation Plate Paper backing Screw cover Grub screw Handle Valve Lever in the off position. Pulling the mixer lever outwards will increase the flow of water. Remove the backing paper from the seal located on the back of the plate. Slide the plate over the valve, push onto the wall until it makes contact.
- Page 6 •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
