Summary of Contents for VADO Axces NURI Series

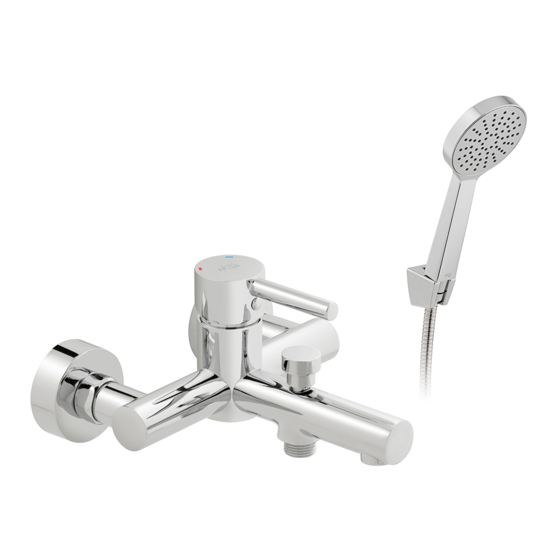

- Page 1 KEEP FOR FUTURE REFERENCE NURI This instruction booklet covers model: AX-NUR-123+K-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB BATH SHOWER MIXER tel 01934 744466 fax 01934 744345 WITH SHOWER KIT www.vado.com sales@vado.com Version 1, 1-8-19...
- Page 2 Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 Dimensions Installation - Quick guide 108mm 150mm 1/2” 140mm 45mm 150±20mm...
- Page 4 Installation - Quick guide Installation Offset connectors ½” connector Shrouds Control handle Cold Locking nuts Rubber filter/washers Shower hose connection Before installing your new mixer, flush through the pipe work to ensure removal of debris, turn off the water supply. Prepare the wall with 2 flush ½”...
- Page 5 Installation Operation: Handset holder Pencil Warning! Please check for any hidden pipes and cables before drilling holes in the wall. If you are fitting the unit to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Holder Select the position for the shower holder bracket and mark the 2 fixing positions...
- Page 6 •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
