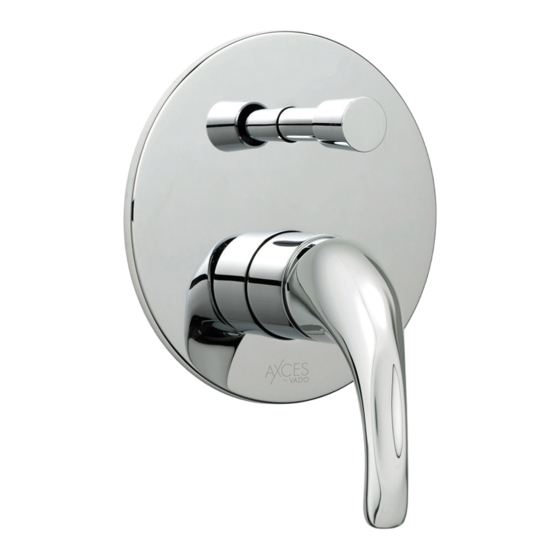

This instruction booklet covers model:
AX-MAT-147A-CP
VADO
Wedmore Road, Cheddar,
Somerset, England BS27 3EB
tel 01934 744466
fax 01934 744345
www.vado.com
sales@vado.com
INSTALLATION /
USER MANUAL
MANUAL VALVE
WITH DIVERTER
Version 1, 1-9-19
KEEP FOR FUTURE REFERENCE
MATRIX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADO AXCES MATRIX
Summary of Contents for VADO AXCES MATRIX
- Page 1 KEEP FOR FUTURE REFERENCE MATRIX This instruction booklet covers model: AX-MAT-147A-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB MANUAL VALVE tel 01934 744466 fax 01934 744345 WITH DIVERTER www.vado.com sales@vado.com Version 1, 1-9-19...
- Page 2 Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 Dimensions Installation - Quick guide 1/2” Ø12.5mm Ø40mm 1/2” 16mm Cover plate 50-70 mm Ø140mm 12.5mm 40mm...
- Page 4 Installation - Quick guide Installation Plastic cover Outlet Cold Outlet Valve Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Warning! Please check for any hidden cables and pipes before drilling holes in the wall.
- Page 5 Installation Operation Plate Backing paper Diverter handle Handle Grub screw Pulling the mixer lever outwards will Pull the diverter handle and turn Valve increase the flow of water. clockwise to lock into position. Turn clockwise again to release the diverter and go back to the primary outlet. Screw cover Remove the backing paper from the seal located on the back of the plate.
- Page 6 •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
