Quick Start Guide
Version

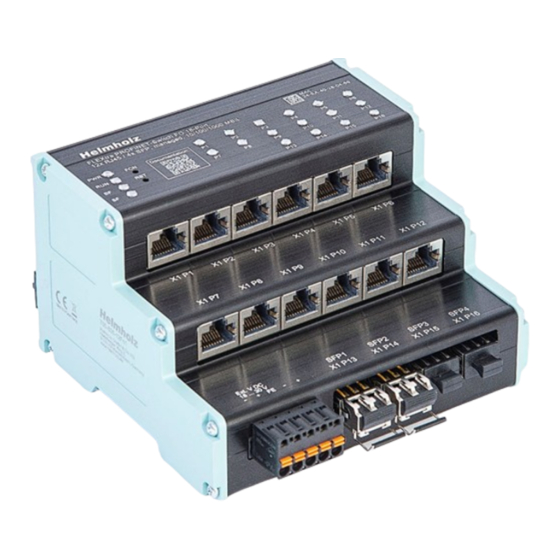

FLEXtra PROFINET-Switch FO, 16 Port,
1
en
10/100/1000 MBps
Order number: 700-856-12F41
As of firmware V1.09
Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany
12.11.2021
Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de
Advertisement
Table of Contents
Related Manuals for Helmholz 700-856-12F41
Summary of Contents for Helmholz 700-856-12F41
- Page 1 FLEXtra PROFINET-Switch FO, 16 Port, 10/100/1000 MBps Order number: 700-856-12F41 As of firmware V1.09 Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany 12.11.2021 Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de...
-
Page 2: Table Of Contents
Content Safety instructions ....................2 Introduction ......................3 Preparing the PROFINET-Switch ................4 Connecting ..........................4 Setup and use ....................... 4 Install GSDML file ......................... 4 Setup in the hardware-configuration .................... 5 Setting the port properties......................6 Use of SFP modules ........................7 Assign the PROFINET switch a name ..................... -
Page 3: Introduction
This document explains the initial commissioning of the FLEXtra PROFINET- Switch FO with a standard use case. The latest version of the document and the detailed manual can be found at www.helmholz.de or scan the QR code directly. Quickstart Guide FLEXtra PROFINET-Switch FO | Version 1 | 12.11.2021... -
Page 4: Preparing The Profinet-Switch
QR code shown. Install the GSDML file "GSDML-V2.41-Helmholz-FX-PN-Switch-FO-...XML" via the TIA Portal menu "Options" / "Manage general station description files (GSD)". Quickstart Guide FLEXtra PROFINET-Switch FO | Version 1 | 12.11.2021... -
Page 5: Setup In The Hardware-Configuration
After installation, the FLEXtra PROFINET-Switch FO is listed in the hardware catalog under "Other field devices PROFINET IO Network Components Helmholz GmbH & Co. KG Helmholz PN-Switch" in the hardware catalog. Insert the "FLEXtra PROFINET-Switch FO, 16 port" device into the project and connect it to your PROFINET network. -
Page 6: Setting The Port Properties
4.3 Setting the port properties Each port of the PROFINET switch can be individually configured. “Activate this port” The port can be switched off here. This option is recommended when the port should not be used. Unauthorized trespass into the network is prevented. -
Page 7: Use Of Sfp Modules
SFP transceivers on the market, we cannot provide a functional guarantee for all transceivers. Helmholz offers the following SFP transceiver modules tested with the FLEXtra PROFINET Switch FO: 700-997-1AM01 SFP Transceiver 1000 Mbps, single mode1310 nm, LC-Anschluss, up to 10 km 700-997-1AN01... -
Page 8: Assign The Profinet Switch A Name
If configuration has taken place correctly, the PROFINET “BF” LED is off. The Helmholz IPSet tool, which can be downloaded at no charge from the Helmholz website, can also be used to set the PROFINET name. Scan the following QR code to download the IPSet tool: Quickstart Guide FLEXtra PROFINET-Switch FO | Version 1 | 12.11.2021... -
Page 9: Further Configuration And Diagnosis Via The Web Interface
4.6 Further configuration and diagnosis via the web interface Via the web interface, the status of the PROFINET switch can be queried and further functions can be configured. Furthermore, a firmware update can be performed via the web interface. The web interface can be operated as soon as the device has a network configuration. -
Page 10: Diagnosis Via Leds
5 Diagnosis via LEDs The two system LEDs "PWR", "RUN" and the two PROFINET LEDs "BF" and "SF" indicate the system status of the switch. After power-on or a reset, all 4 LEDs are permanently on for approx. 5 seconds to indicate the start-up process. The LEDs P1-P16 show the status of the ports. -
Page 11: Technical Data
7 Technical data Order number 700-856-12F41 Name FLEXtra PROFINET-Switch FO, 16-Port, managed, 10/100/1000Mbit Scope of delivery FLEXtra PROFINET-Switch FO, 16-Port with power supply plug Dimensions (D x W x H) 78 x 125 x 111 mm Weight Ca. 550 g... - Page 12 They are also provided in our download area of the respective products under www.helmholz.de. We also offer to send you or any third party the complete corresponding source text of the respective open source software for an at-cost fee of 10.00 Euro as a DVD upon request. This offer is valid for a period of three years, starting from the date of product delivery.
