Quick Start Guide
Version

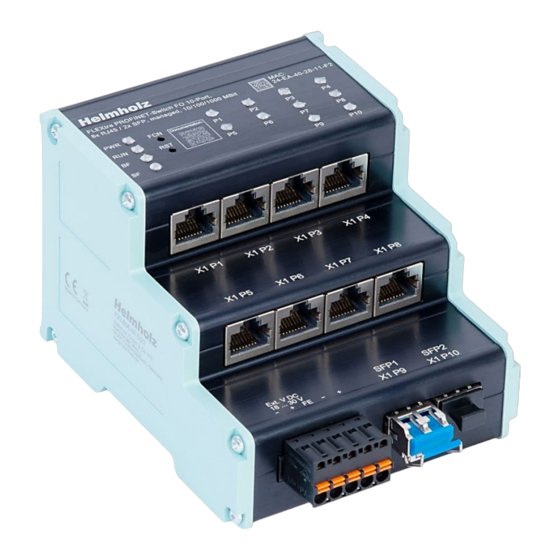

FLEXtra PROFINET-Switch FO, 10 Port,
1
en
10/100/1000 MBps
Order number: 700-856-8FO21
As of firmware V1.10
Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany
11.11.2022
Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Helmholz FLEXtra PROFINET-Switch FO
Summary of Contents for Helmholz FLEXtra PROFINET-Switch FO
- Page 1 FLEXtra PROFINET-Switch FO, 10 Port, 10/100/1000 MBps Order number: 700-856-8FO21 As of firmware V1.10 Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany 11.11.2022 Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de...
-
Page 2: Table Of Contents
Content Safety instructions ....................3 Introduction ......................3 Preparing the PROFINET-Switch ................4 Connecting ..........................4 Setup and use ....................... 5 Install GSDML file ......................... 5 Setup in the hardware-configuration .................... 5 Setup of SFP modules ........................6 Setting the port properties......................7 Use of SFP modules ........................ -
Page 3: Safety Instructions
2 Introduction The managed FLEXtra PROFINET-Switch FO can be used to connect PROFINET components at 100 Mbps as well as Ethernet devices at up to 1000 Mbps. The FLEXtra PROFINET-Switch 10-Port FO has 8 RJ45 ports with up to 1000Mbps and 2 SFP ports for fiber optic transmission with 1000 Mbps. -
Page 4: Preparing The Profinet-Switch
This document explains the initial commissioning of the FLEXtra PROFINET- Switch FO with a standard use case. The latest version of the document and the detailed manual can be found at www.helmholz.de or scan the QR code directly. 3 Preparing the PROFINET-Switch 3.1 Connecting... -
Page 5: Setup And Use
TIA Portal menu "Options" / "Manage general station description files (GSD)". 4.2 Setup in the hardware-configuration After installation, the FLEXtra PROFINET-Switch FO is listed in the hardware catalog under "Other field devices PROFINET IO Network Components Helmholz GmbH & Co. KG Helmholz PN-Switch"... -
Page 6: Setup Of Sfp Modules
The real device must later be assigned the same name as in the project. 4.3 Setup of SFP modules The required SFP modules can be preconfigured for SFP ports 13- 16 in the configuration. The Helmholz SFP modules (see page 8) or an entry for any other SFP module ("Gen_SFP_xxx") are available. -
Page 7: Setting The Port Properties
4.4 Setting the port properties Each port of the PROFINET switch can be individually configured. “Activate this port” The port can be switched off here. This option is recommended when the port should not be used. Unauthorized trespass into the network is prevented. -
Page 8: Use Of Sfp Modules
SFP transceivers on the market, we cannot provide a functional guarantee for all transceivers. Helmholz offers the following SFP transceiver modules tested with the FLEXtra PROFINET Switch FO: 700-997-1AM01 SFP Transceiver 1000 Mbps, single mode1310 nm, LC-Anschluss, up to 10 km... -
Page 9: Assign The Profinet Switch A Name
PLC. In order that the FLEXtra PROFINET-Switch FO can be found by the PROFINET controller, the PROFINET device name must be assigned to the PROFINET switch. To this purpose, use the function “Assign device name”, which you can access in the Online menu with the right mouse button when the PROFINET... -
Page 10: Further Configuration And Diagnosis Via The Web Interface
4.7 Further configuration and diagnosis via the web interface Via the web interface, the status of the PROFINET switch can be queried and further functions can be configured. Furthermore, a firmware update can be performed via the web interface. The web interface can be operated as soon as the device has a network configuration. -
Page 11: Diagnosis Via Leds
5 Diagnosis via LEDs The two system LEDs "PWR", "RUN" and the two PROFINET LEDs "BF" and "SF" indicate the system status of the switch. After power-on or a reset, all 4 LEDs are permanently on for approx. 5 seconds to indicate the start-up process. -
Page 12: Technical Data
Order number 700-856-8FO21 Name FLEXtra PROFINET-Switch FO, 10-Port, managed, 10/100/1000Mbit Scope of delivery FLEXtra PROFINET-Switch FO, 10-Port with power supply plug Dimensions (D x W x H) 78 x 93 x 112 mm Weight Ca. 420 g PROFINET/Ethernet interface (X1) - Page 13 They are also provided in our download area of the respective products under www.helmholz.de. We also offer to send you or any third party the complete corresponding source text of the respective open source software for an at-cost fee of 10.00 Euro as a DVD upon request. This offer is valid for a period of three years, starting from the date of product delivery.
