Thank you for purchasing the electric lift and for the confidence you have shown in our product.
Our produc is a lift for high quality professional installation, positioning and to
lifting equipment as:
- Air conditioners - Shelves
- Pipes - Giant screens
- Cameras - Televisions
- Etc...
1. The telescopic pole is made of treated aluminum and extruded at high temperature to ensure greater compactness and
safety.
2. The operation is carried out without any support in seconds.
3. The feet with telescopic umbrella-like opening are adjustable allowing an installation accurate to the millimeter even on
the stairs.
4. Joystick control with speed controller and inverter for the ascent and descent.
5. Button emergency stop for the ascent and descent.
6. Engine equipped with stop in case of overload.
7. Extension of the inside pole.
8. Platform ideal for the installation of air conditioners over the windows.
9. Thanks to the lightness of the materials and the low encumbrance, a person alone can easily move the lift from one point
to another.
10. The adjustable foot offers the possibility to work directly in parallel to the wall.
MODEL
MAXIMUM WEIGHT CAPACITY
TRA ALTEZZA E PORTATA
MODEL
SINGLE PHASE
AMPERES
POLE WEIGHT
PLATFORM WEIGHT
HEIGHT WHEN FOLDED
TOTAL HEIGHT
FEET FOLDED
FEET UNFOLDED
MAXIMUM LOAD
JOYSTIC COMMAND CABLE
TOTAL WEIGHT

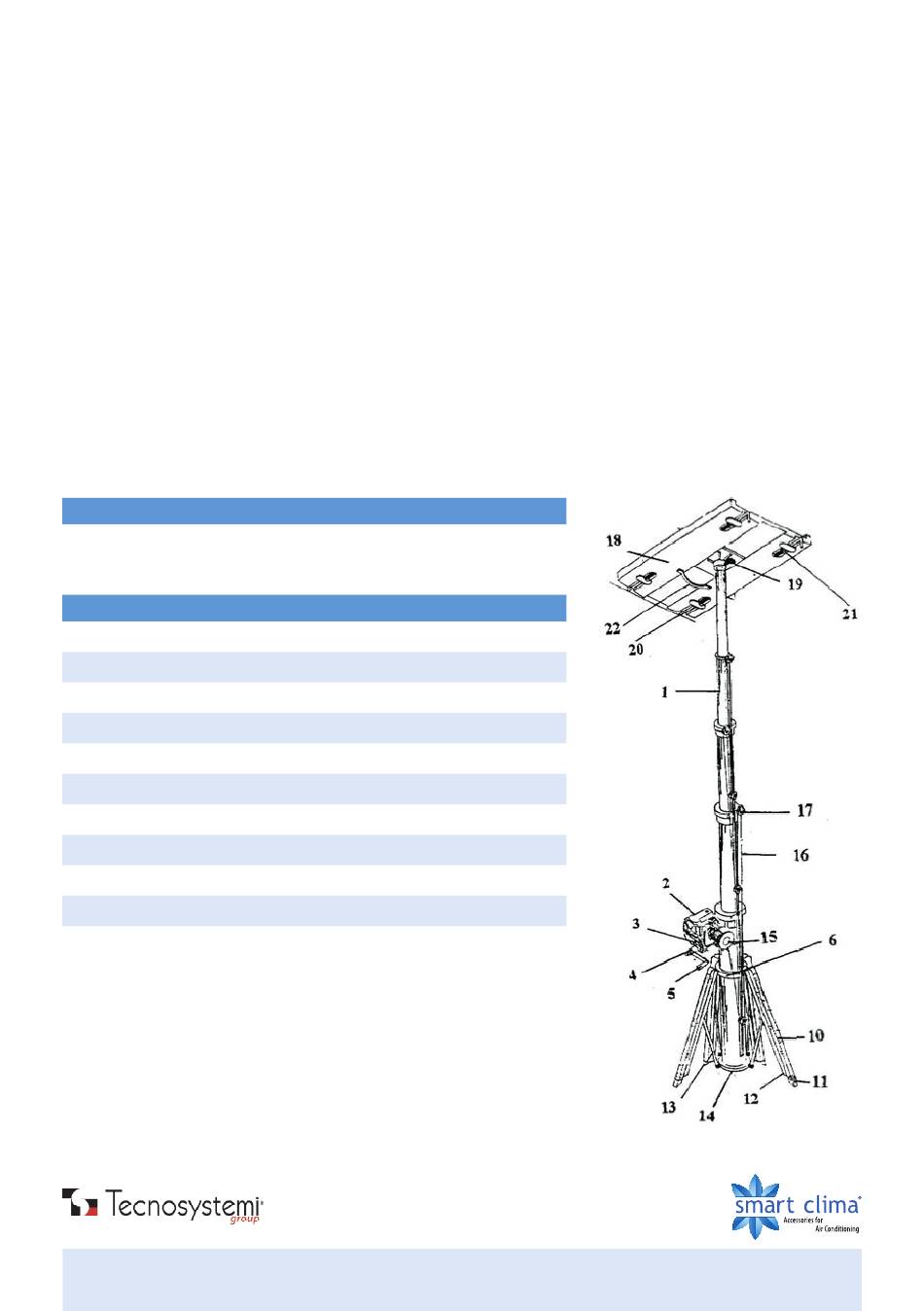

(1) Palo
(2) Engine
(3) Emergency stop
(4) Backset
(5) Crank
(6) mobile bushing
(7) Joystick control
(8) Speed variation button
(9) Cable
(10) Tripod
GIRAFFA 300 GIRAFFA 400
3 mt - 140 kg
3 mt - 130 kg
4 mt - 130 kg
3.30 mt - 120 kg
4,9 mt - 90 kg
GIRAFFA 300 GIRAFFA 400
230 V
4 A
21 kg
5,3 kg
950 mm 1190 mm
3400 mm 4900 mm
300 x 300 mm 380 x 380 mm
1110 x 1110 mm 1500 x 1400 mm
120 kg
3,3 mt
29,8 kg
(11) Foot extension
(12) Button for tripod
(13) Foot support
(14) Bushing
(15) Barrel
(16) Cable
(17) Pulley
(18) Folding Platform
(19) Platform fixing screw
(20) Foldout Support
(21) Command removable support
(22) Platform handle
230 V
4 A
38 kg
5,3 kg
90 kg
3,3 mt
38 kg
