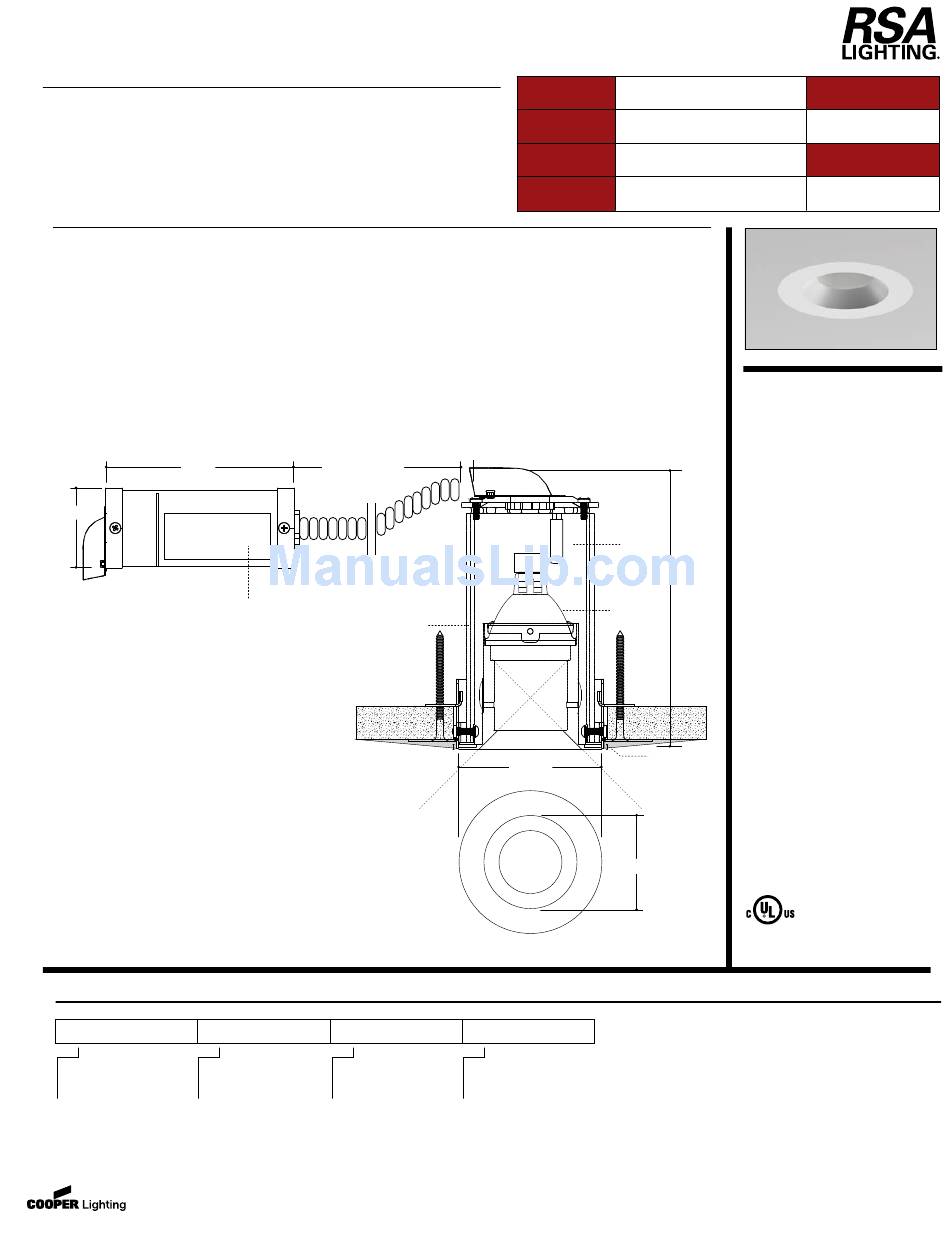

RSA Lighting LYNX LX3004TRMH Specifications

DESCRIPTION
Miniature cylindrical recessed housing and round Trimless Fixture with
smooth regressed splay and 45º cut-off. Includes enclosure with integral
electronic metal halide ballast and wiring compartment.
For new construction or remodel applications. Insulation must be kept 3"
from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
All aluminum construction with 18" of
flexible conduit attached to a cylindrical
ballast/wiring enclosure. Perforated
metal plasterframe adjusts for Trim
Fixtureless mounting in 1/2" - 3/4"
drywall.
B ...Trimless Fixture:
3.2" o.d. round Trimless Fixture with
smooth regressed splay and 45º cut-off.
Perforated metal plasterframe allows
ceiling compound to be applied directly to
the edge of the fixture. Finished in white,
black, industrial silver, stainless steel
(painted), and custom colors.
6.00"
2.00"
ORDERING INFORMATION
LX3004TRMH
__
Fixture Finish
LX3004TRMH WH = White
Regressed Lynx Trimless BK = Black
Fixture with Smooth Regressed S = Industrial Silver
Splay and 45º Cut-off & Housing SS = Stainless Steel (painted)
& Ballast Enclosure PM = Primer
www.cooperlighting.com
C ...System Protection:
Thermal protection inside housing.
Vent holes in housing provide cooler
operation. All aluminum construction
provides overall reduced temperatures.
D ...Electrical
Electronic metal halide ballast housed
in a separate metal enclosure.
Enclosure includes a separated wiring
compartment and entry for primary
leads.
18.00"
Flexible Conduit
D
A
20
Lamp/Ballast Wattage
20 = 20 watts
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
E ...Lamp
ES16 or CMHMR16 Metal Halide in
20 watts. . GX10 twist-lock
(not included)
lamp socket for firm, mechanical lamp
connection. Can accept up to two (2)
optical accessories.
Ceiling Cut-Out: 3.50" dia.
C
E
3.20" dia.
2.31" dia.
__
Voltage
120 = 120 volts
277 = 277 volts
Type
Date
LX3004TRMH
Miniature Round
Trimless Fixture
Regressed Splay
6.75"
Cylindrical Housing
Ballast/Wiring
ES16 Metal Halide 20 watts
CMHMR16 Metal Halide 20 watts
B
U.L. Listed. Suitable for use in
combustible ceilings.
LYNX
w/ Smooth
45º Cut-Off
Enclosure
rev. 011007
