RSA Lighting LYNX LX3004TR Specification Sheet

DESCRIPTION
Miniature cylindrical recessed housing and round Trimless Fixture with
smooth regressed splay and 45º cut-off. Includes enclosure with integral
transformer and wiring compartment.
For new construction or remodel applications. Insulation must be kept 3"
from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
All aluminum construction with 18" of
flexible conduit attached to a cylindrical
transformer/wiring enclosure. Perforated
metal plasterframe adjusts for Trim
Fixtureless mounting in 1/2" - 3/4"
drywall.
B ...Trimless Fixture:
3.2" o.d. round Trimless Fixture with
smooth regressed splay and 45º cut-off.
Perforated metal plasterframe allows
ceiling compound to be applied directly to
the edge of the fixture. Finished in white,
black, industrial silver, stainless steel
(painted), and custom colors.
6.00"
2.00"
ORDERING INFORMATION
LX3004TR
__
Fixture Finish
LX3004TR WH = White
Regressed Lynx Trimless BK = Black
Fixture with Smooth Regressed S = Industrial Silver
Splay and 45º Cut-off & Housing SS = Stainless Steel (painted)
& Transformer Enclosure PM = Primer
www.cooperlighting.com
C ...System Protection:
Thermal protection inside housing.
Vent holes in housing provide cooler
operation. All aluminum construction
provides overall reduced temperatures.
D ...Electrical
Electronic or magnetic transformer
housed in a separate metal enclosure.
Enclosure includes a separated wiring
compartment and entry for primary
leads.
18.00"
Flexible Conduit
D
A
__
Transformer
ELC = Electronic
MAG = Magnetic
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
E ...Lamp
12V MR16 or MR16 IRC 20 watts max.
. "POSI-GRIP" bi-pin lamp
(not included)
socket for firm, mechanical lamp
connection. Can accept up to two (2)
optical accessories.

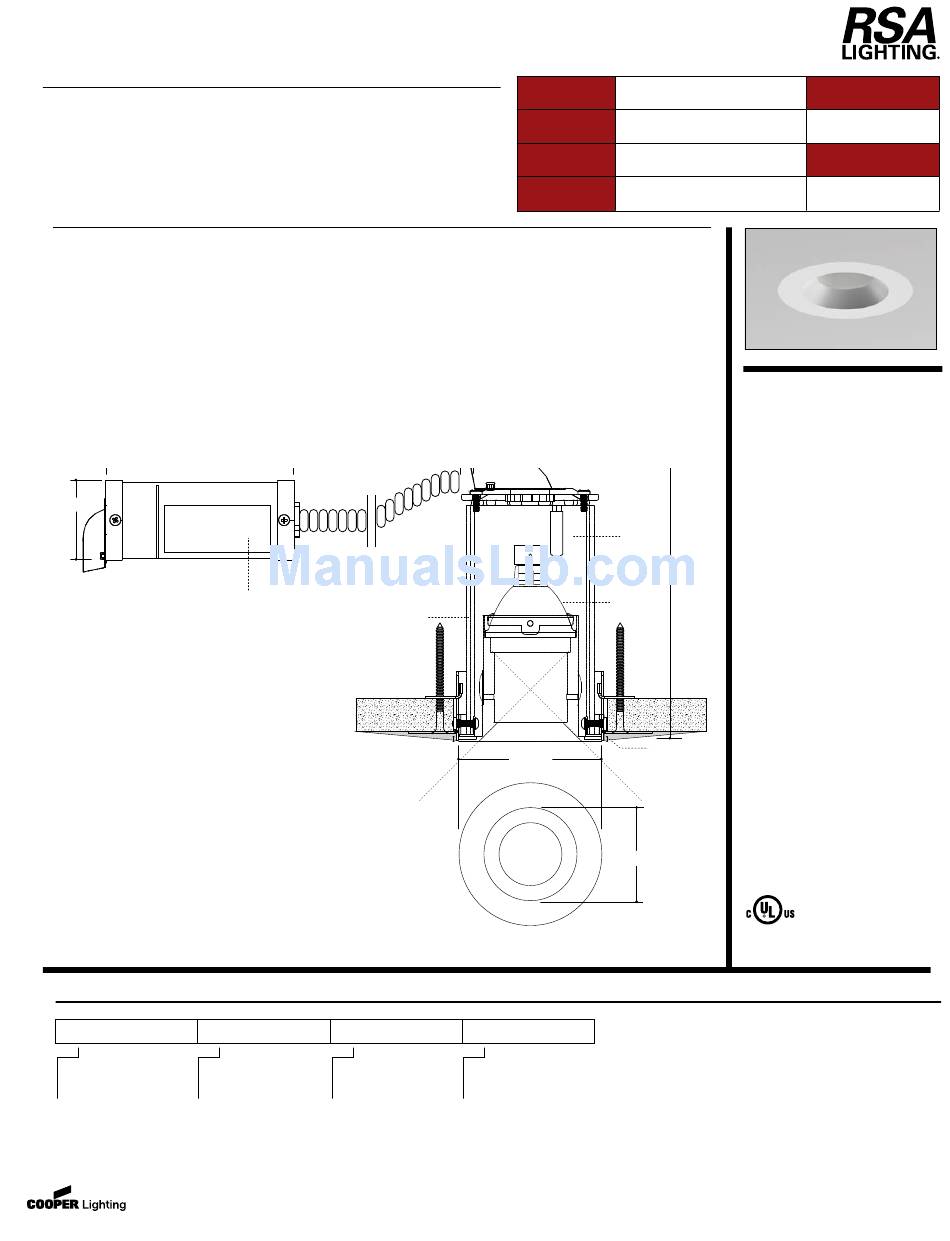

Ceiling Cut-Out: 3.50" dia.
C
E
3.20" dia.
2.31" dia.
__
Voltage
120 = 120 volts
277 = 277 volts
Type
Date
LX3004TR
Miniature Round
Trimless Fixture
Regressed Splay
6.75"
Cylindrical Housing
Transformer/Wiring
12V MR16 20 watts max.
12V MR16-IRC 20 watts max.
B
U.L. Listed. Suitable for use in
combustible ceilings.
LYNX
w/ Smooth
45º Cut-Off
Enclosure
rev. 011007
