Summary of Contents for Pfeiffer Vacuum HPT 200

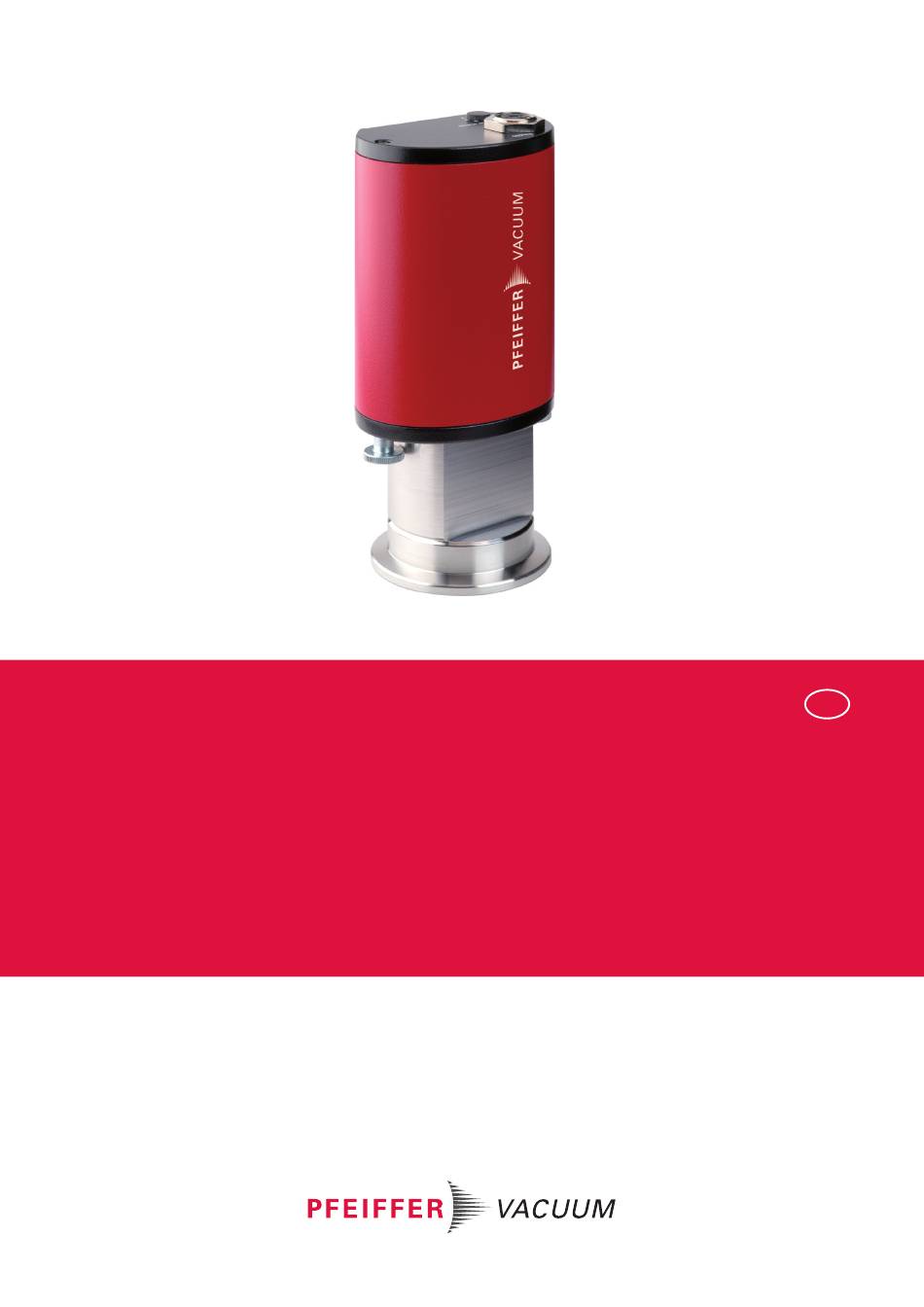

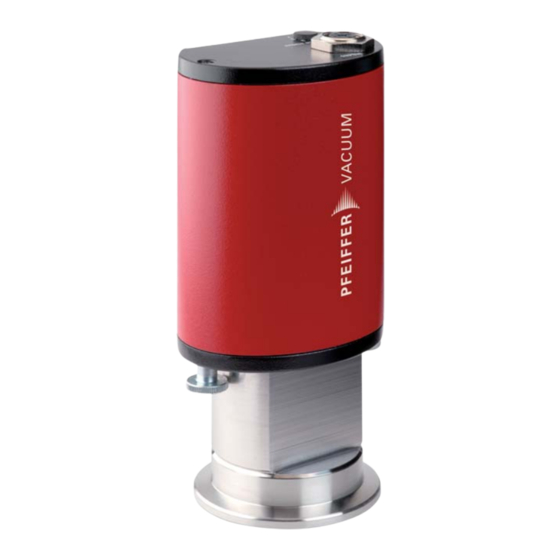

- Page 1 OPERATING INSTRUCTIONS Translation of the Original HPT 200 Digital Pirani/Bayard Alpert gauge...
-
Page 2: Telegram Example
Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new gauge is designed to support you in your individual application with maximum performance and without malfunctions. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service. -
Page 3: Table Of Contents
Transporting the product Storing the product Installation Establishing vacuum connection Creating "RS-485" connection Interfaces Interface RS-485 Pfeiffer Vacuum protocol for RS-485 interface 6.2.1 Telegram frame 6.2.2 Telegram description 6.2.3 Telegram example 1 6.2.4 Telegram example 2 6.2.5 Data types Parameter set... - Page 4 10.2 Calibrating gauge 10.3 Replacing measurement system Malfunctions Shipping Recycling and disposal 13.1 General disposal information 13.2 Dispose of gauges Service solutions by Pfeiffer Vacuum Spare parts Accessories 16.1 Accessory information 16.2 Ordering accessories Technical data and dimensions 17.1 General 17.2 Technical data...
- Page 5 List of tables List of tables Tbl. 1: Applicable documents Tbl. 2: Variants Tbl. 3: Abbreviations used Tbl. 4: Permissible ambient conditions Tbl. 5: Features of the RS-485 interface Tbl. 6: Explanation and meaning of the parameters Tbl. 7: Overview of parameters of HPT gauge Tbl.
- Page 6 Measurement curve for Pirani-only operation and when using the correction factors Fig. 11: Replacing measurement system Fig. 12: HPT 200 with DN 25 ISO-KF Fig. 13: HPT 200 with DN 40 ISO-KF Fig. 14: HPT 200 with DN 40 CF-F...
-
Page 7: About This Manual
Variants The part number is found on the rating plate of the product. Pfeiffer Vacuum reserves the right to make technical changes without prior notification. Information that relates to only one of the products is indicated accordingly. The figures in this document are not to scale. -
Page 8: Conventions
This section describes all the stickers on the product along with their meanings. Rating plate The rating plate is located on the back of the device. D-35614 Asslar Mod. HPT 200 PT R39 xxx 12345678 Range 5.0x10 - 1000 hPa Input... -
Page 9: Abbreviations
About this manual 1.3.4 Abbreviations Abbreviation Explanation Analog/Relay Atmosphere Bayard-Alpert Correction factor for calculating the pressure of gases other than air Sensitivity of the Bayard-Alpert measurement system for nitrogen Electron collector Filament Fluorinated rubber HIMS Hot cathode ionization measurement system High vacuum Ion collector Light emitting diode Limited power source... -
Page 10: Safety
Safety instructions according to product life stages All safety instructions in this document are based on the results of a risk assessment. Pfeiffer Vacuum has taken into account all the relevant life stages of the product. Risks during installation DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. - Page 11 ► Only operate the unit in a dry environment. ► Operate the unit away from fluids and sources of moisture. ► Do not switch on the unit if fluid has entered it. Instead contact Pfeiffer Vacuum Service. ► Always disconnect the power supply before cleaning the unit.
-
Page 12: Safety Precautions
Safety WARNING Health hazard through poisoning from toxic contaminated components or devices Toxic process media result in contamination of devices or parts of them. During maintenance work, there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub- stances causes environmental damage. -
Page 13: Limits Of Use Of The Product
Tbl. 4: Permissible ambient conditions 2.5 Proper use The HPT 200 gauge is used for vacuum measurement of air, gases and gauges outside their explosion limits, within the range of 5 × 10 to 1000 hPa. Use the product according to its intended purpose ►... - Page 14 Safety ● Use outdoors ● Use after technical changes (inside or outside on the product) ● Use with replacement or accessory parts that are not suitable or not approved 14/54...
-
Page 15: Product Description
Product description 3 Product description 3.1 Function RS485 device status RS485 Fig. 1: Structure of the HPT gauge 1 RS-485 address selector switch "RS-485" connector 2 Status LED for the gauge 3.1.1 Gauge mode of operation The Pirani measurement system is always switched on. The Pirani measurement signal is for switching the HIMS on and off, thus protecting the HIMS from burning or excessive contamination. -
Page 16: Bayard-Alpert Measurement System
Product description tion area between P and P is the pressure area in which the gauge proportionally uses both the upper lower Pirani measurement system and the HIMS to determine the pressure. The Pirani proportion decreases as the pressure decreases. In the "hard" switch position, the switchover between Pirani and HIMS is immediate, without a transition. -
Page 17: Identifying The Product
You will need all the data from the rating plate to safely identify the product when communicating with Pfeiffer Vacuum. ► To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always keep all of the information on the rating plate to hand. -
Page 18: Transport And Storage
Transport and storage 4 Transport and storage 4.1 Transporting the product NOTICE Damage caused by incorrect transport Transport in unsuitable packaging or failure to install all transport locks can result in damage to the product. ► Comply with the instructions for safe transport. Packing We recommend keeping the transport packaging and original protective cover. -
Page 19: Installation
Installation 5 Installation 5.1 Establishing vacuum connection DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. ► Connect the product galvanically with the earthed vacuum chamber. ► Ensure that the connection complies with the requirements of a protective bonding according to EN 61010. -
Page 20: Creating "Rs-485" Connection
► Only connect the product to devices which meet the following criteria: ● Requirements of the earthed protective extra-low voltage (PELV) ● Limited power source (LPS) Class 2 ► Secure the line to the product. – Pfeiffer Vacuum measuring and control equipment complies with this requirement. 20/54... - Page 21 Installation NOTICE Property damage due to ground contact of electronics Disconnecting or connecting the "RS-485" plug-and-socket connection with the voltage supply switched leads to the destruction of electronic components. ► Always interrupt the voltage supply before you plug in or unplug the “RS-485” power supply plug. ►...
- Page 22 2. Make sure that all devices connected to the bus have different RS-485 device addresses. 3. Connect all devices with RS-485 D+ and RS-485 D- to the bus. Connect Pfeiffer Vacuum display and control units or a PC ► Use a connecting cable from the DigiLine accessories range.
-
Page 23: Interfaces
3 GND 6.2 Pfeiffer Vacuum protocol for RS-485 interface 6.2.1 Telegram frame The telegram frame of the Pfeiffer Vacuum protocol contains only ASCII code characters [32; 127], the exception being the end character of the telegram C . Basically, a host (e.g. a PC) sends a tele- gram, which a device (e.g. -
Page 24: Telegram Description
Interfaces 6.2.2 Telegram description Data query --> Control command --> Data response / Control command understood --> Error message --> NO_DEF Parameter number n2–n0 no longer exists _RANGE Data dn–d0 outside the permissible range _LOGIC Logical access error 6.2.3 Telegram example 1 Query pressure value Current measured pressure (parameter [P:740], device address: "001") -->... -
Page 25: Data Types
Interfaces 6.2.5 Data types Data type Description Length Example l1 – l0 boolean_old Logical value (false/true) 000000 is equivalent to false 111111 is equivalent to true u_integer Positive whole number 000000 to 999999 u_real Positive fixed point number 001571 corresponds with 15.71 string Any character string with 6 charac-... -
Page 26: Parameter Set
All variables relevant for the function are stored as parameters in the gauge. Each parameter has a three-digit number and a description. The parameter can be accessed via Pfeiffer Vacuum display and control units or via RS-485 using Pfeiffer Vacuum protocol. -
Page 27: Control Commands
Parameter set 7.3 Control commands Description Functions Data type Access Unit min. max. default type Filament selection 000 = auto 001 = filament 1 002 = filament 2 Degas 0 = off 1 = on HIMS on/off 0 = off 1 = controlled by Pirani sensor Switching ranges 0 = switch 1 = trans_LO... - Page 28 Parameter set Description Functions Data Access Unit min. max. default type type Pressure val- Read and set current pressure value (dur- (can be ing calibration) written condi- tionally) Pressure ad- 000= HV calibration justment point 001= ATM calibra- tion Correction Reading and setting 000020 000800...
-
Page 29: Operation
Operation 8 Operation Once the supply voltage has been established, the measurement signal is available at the electrical connection. Meaning No power supply Lights up green Supply voltage OK, measuring mode, valid pressure values, sensor for low pressure range active Green flashing (1 Hz) Sensor for high pressure range active Lights up yellow Device function OK, but due to internal operations (e.g. -
Page 30: Selecting Switching Ranges
Operation Read error code [P:303] ► Read the error code via parameter [P:303]. ● 000000 = No error ● Wrn001 = Filament 1 defective in "auto" mode ● Err001 = Sensor defective ● Err002 = Memory defective ● Err003 = Filament 1 defective ●... -
Page 31: Determining Effective Pressure With Correction Factors
Operation 8.2 Determining effective pressure with correction factors The measuring signal is gas type-dependent. Pressure range > 10 hPa (Pirani operation only) p [hPa] 1E-1 1E-2 1E-3 1E-4 1E-4 1E-3 1E-2 1E-1 [hPa] Fig. 10: Measurement curve for Pirani-only operation and when using the correction factors Gas type Correction factor (C) Nitrogen (N... -
Page 32: Switching Hims Filament On/Off
Operation Gas type Correction factor (C) Carbon dioxide (CO 0.74 Propane (C 0.32 Neon (Ne) 3.50 Krypton (Kr) 0.60 Xenon (Xe) 0.41 Dichlorodifluoromethane (CCl , R12) 0.28 Tetrafluoromethane (CF , R14) 0.57 Tbl. 13: Correction factors for HIMS Using correction factors Reading and setting Pirani correction factor [P:742] ►... -
Page 33: Reading And Setting Relay And Switch-Points
Operation mands for parameter [P:041] during the degas process will trigger error message "_LOGIC" in re- sponse. Switching HIMS with display and control unit on/off ► Switch the HIMS on or off as described in the operating instructions of the display and control unit. Switching HIMS on and off [P:041] ►... -
Page 34: Baking Out Gauge
Operation 8.6 Baking out gauge NOTICE Damage from excessive bakeout temperature If the gauge is installed upright (flange facing down), rising heat during baking out will cause damage to the electronic unit. ► Remove the electronic unit from the measuring system before baking out at temperatures >60 °C. -
Page 35: Disassembly
Disassembly 9 Disassembly DANGER Risk to life due to electric shock An improperly earthed product is potentially fatal in the event of a fault. ► Connect the product galvanically with the earthed vacuum chamber. ► Ensure that the connection complies with the requirements of a protective bonding according to EN 61010. -
Page 36: Maintenance
► Only operate the unit in a dry environment. ► Operate the unit away from fluids and sources of moisture. ► Do not switch on the unit if fluid has entered it. Instead contact Pfeiffer Vacuum Service. ► Always disconnect the power supply before cleaning the unit. -
Page 37: Calibrating Gauge
► Operate the unit away from fluids and sources of moisture. ► Take special precautions if there is a risk of dripping water. ► Do not switch on the unit if fluid has penetrated into it, instead contact the Pfeiffer Vacuum Serv- ice Center. -
Page 38: Replacing Measurement System
Maintenance 10.3 Replacing measurement system NOTICE Impairment from contamination and damage Touching the devices or components with bare hands increases the desorption rate and leads to in- correct measurements. Dirt (e.g. dust, fingerprints, etc.) and damage impair the function. ► When working on high or ultra high vacuum systems, always wear clean, lint-free and powder- free laboratory gloves. -
Page 39: Malfunctions
Malfunctions 11 Malfunctions Warranty Malfunctioning of the equipment as a direct result of contamination or wear, as well as wear parts, is not covered by the warranty. Malfunction Possible cause Remedy Communication error: Gauge No power supply Connect a data cable or power supply pack. -
Page 40: Shipping
► Comply with the instructions for safe distribution. Decontamination subject to charge Pfeiffer Vacuum decontaminates products not clearly declared "Free of contamination" at your expense. Ship product safely ► Do not ship microbiological, explosive or radioactively contaminated products. -
Page 41: Recycling And Disposal
● Help to reduce the wastage of natural resources. ● Prevent contamination. 13.1 General disposal information Pfeiffer Vacuum products contain materials that you must recycle. ► Dispose of our products according to the following: – Iron – Aluminium –... -
Page 42: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 43 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.
-
Page 44: Spare Parts
► Install original spare parts only. Article number Designation Replacement measurement system PT R39 14x A HPT 200, DN 25 ISO-KF PT 120 239 -T PT R39 15x HPT 200, DN 40 ISO-KF PT 120 217 -T PT R39 15x A... -
Page 45: Accessories
Power supply packs for wall- and standard rail mounting to supply power to DigiLine gauges OmniControl control unit Universal control unit for all products with Pfeiffer Vacuum RS-485 protocol. It supplies up to two trans- mitters and is equipped with a display for displaying the pressure of up to 16 measuring channels. -
Page 46: Tbl. 17: Accessories
Accessories Part number Selection field PE D50 000 0 OmniControl 200, rack unit with integrated power supply pack PE E50 000 0 OmniControl 200, table unit with integrated power supply pack Tbl. 17: Accessories 46/54... -
Page 47: Technical Data And Dimensions
Technical data and dimensions 17 Technical data and dimensions 17.1 General mbar Torr | mm Hg mbar 1 · 10 0.75 1000 1000 1 · 10 0.01 0.01 1 · 10 1 · 10 7.5 · 10 0.75 1 · 10 0.01 1000 Torr | mm Hg 1.33... -
Page 48: Tbl. 22: Rs-485 Interface
Technical data and dimensions Parameter Value Protocol ASCII, addressable (RS-485), Pfeiffer Vacuum protocol Data format Bidirectional data traffic, data word length 8 bits, 1 stop bit, no parity bit Baud rate 9600 Connection Binder M12 connector, 5-pole, A-coded Tbl. 22:... -
Page 49: Dimensions
Technical data and dimensions 17.3 Dimensions Fig. 12: HPT 200 with DN 25 ISO-KF Dimensions in mm Fig. 13: HPT 200 with DN 40 ISO-KF Dimensions in mm 49/54... - Page 50 Technical data and dimensions Fig. 14: HPT 200 with DN 40 CF-F Dimensions in mm 50/54...
-
Page 51: Ec Declaration Of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac- turer. Declaration for product(s) of the type: Digital Pirani/Bayard Alpert gauge HPT 200 We hereby declare that the listed product satisfies all relevant provisions of the following European Directives. Electromagnetic compatibility 2014/30/EU... -
Page 52: Declaration Of Conformity
EN IEC 61326-1:2021 EN IEC 63000:2018 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43... - Page 53 53/54...
