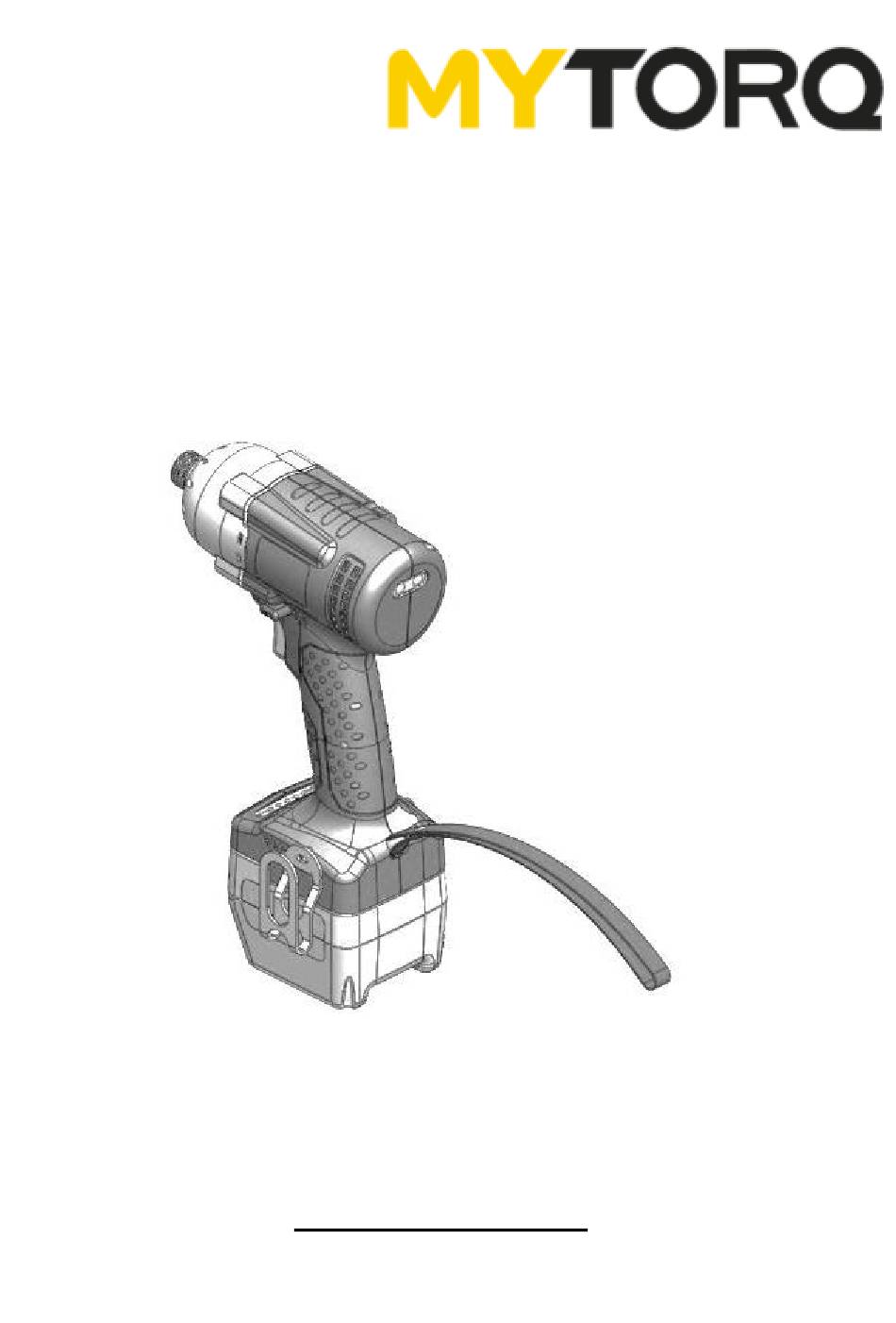

- Page 1 IMPACT SERIES Cordless Screwdriver OPERATION AND MAINTENANCE MANUAL MYBT-IM50 MYBT-IM100 ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F135A-2E-001...
-
Page 2: Icon Instructions
Please read manual carefully before operating the rechargeable impact screwdriver. Icon Instructions 1. Read instruction manual. 6. Do not operate in an explosive atmosphere. 2. Observe caution and safety notes. 7. Do not disassemble. 3. Recyclable. 8. Forbid throwing. 4. For indoor use only. 9. - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. ANLIDAR is not responsible for any personal injury that might cause of disobeying the safety advices.
-
Page 4: Function Of Cordless Protection
Function of Cordless Protection ▉Over electric current protection ▉Prevent from low power ▉Thermal Protector ▉Stall protection ▉Slow rotation protection ▉Reverse control protection ▉Battery Identification ▉Sleeping mode Warning Do not attempt to repair or disassemble this cordless screwdriver, the warranty will be considered void. Make sure to remove the battery pack before maintaining or repairing the device by a qualified technician. -
Page 5: Insert Battery Steps
2.2. Too slow to install the battery may cause error identification so the beep sound and flash would be continuing. In order to function properly, re-assembling it as below process again. Insert Battery Steps (1) Insert the rechargeable battery into the device follow by the arrow as showing. (2) Assembled completely. -
Page 6: Appearance Functions Introduction
Appearance Functions Introduction Function Name Table Description Description Trigger Switch Wrist Strap Forward/Reverse Lever S Waist Hook LED Light Indication Light Bit Sleeve Torque Adjustment Light... -
Page 7: Manual Functions
Manual / Functions 1. Impact cordless screwdriver Screws are continually fastened up while come along with clutch PA-PA-PA sound until the device reaches of Five control the stop time. (1) Trigger switch The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... - Page 8 (5) Wrist Strap Use Wrist Strap with tool for more convenient and safer operation and store. (6) S Waist Hook Use S Waist Hook to fix tool for more convenient and safer operation and carry. (7) Buzzer beep and LED light Indication Light: Operation status LED Lights Buzzer Beep...
-
Page 9: Other Cautions
ANLIDAR is not responsible for any poor performance or damage caused by customers own modification of the tool. It is necessary for the management to have individual operators read and follow up all instructions in this manual. -
Page 10: Specifications
Specifications MYBT-IM100 MYBT-IM50 MODEL Input Voltage DC 18V 0~20 0~40 0~15 Bit torque(N.m) 0~60 0~25 0~80 0~35 0~100 0~50 Rev speed at no load 0~2300 n0: (r/min) )±10% Impact rate (B.P.M) 0~3000 Weight (Kg) 1kg( battery not include ) 0.9kg( battery not include ) 155 mm ＊...
