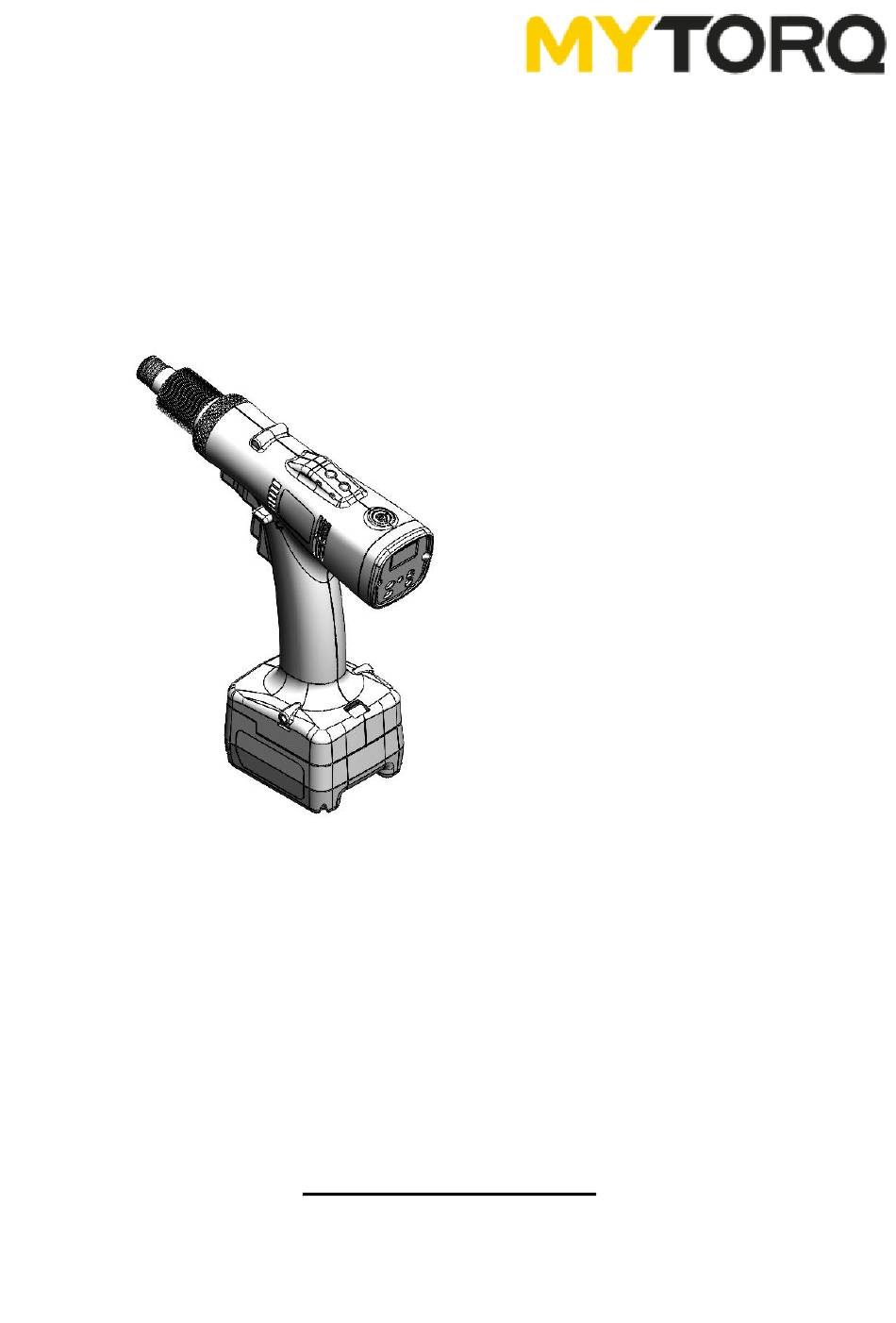

Automatic Industrial Cordless Brushless
Power Torque Screwdrivers Series
OPERATION AND MAINTENANCE MANUAL
CAUTION!!
EP0612/EP0309 SERIES ARE ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN.
TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION.
Rechargeable -Type Automatic Brushless Series
ANLIDAR INDUSTRIAL CO., LTD.
http://www.anlidar.com
MYBT-EP0612
MYBT-EP0309
MYBT-EP0205F
Y2F174A-2-001
Advertisement
Table of Contents
Related Manuals for ANLIDAR MYTORQ MYBT-EP0612
Summary of Contents for ANLIDAR MYTORQ MYBT-EP0612
- Page 1 Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL MYBT-EP0612 MYBT-EP0309 MYBT-EP0205F CAUTION!! EP0612/EP0309 SERIES ARE ADVANCEMENT IN HIGH TORQUE MOTORS DESIGN. TO BE MORE SAFTY, ASSEMBLE THE AUXILIARY HANDLE BEFORE OPERATION. Rechargeable -Type Automatic Brushless Series ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F174A-2-001...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.Read instruction manual. - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for operators to read and follow all operating instructions in this manual. Anlidar is not responsible for any personal injury that might cause of disobeying the safety advices.
-
Page 4: Protection Function
Protection Function ▉Over electric current protection ▉Prevent from low power ▉Thermal Protector ▉Stall protection ▉Slow rotation protection ▉Reverse control protection ▉Battery Identification ▉Sleeping mode Warning Do not attempt to repair or disassemble this cordless screwdriver, the warranty will be considered void. 1. - Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
-
Page 6: Function / Operating Introduction
Function / Operating Introduction (13) (10) (12) (11) Function Name Table Description Description Trigger Switch Indication light Forward/Reverse Lever Torque adjustment ring LED Light (10) Control panel Bit sleeve (11) Wrist strap hole Torque fixing ring (12) Slip resistant soft cover Driver hook hole (13) Key lock... -
Page 7: Manual / Function
Manual / Function 1. Full auto shut-off screwdriver: It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger switch: The LED lights on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... - Page 8 (5) Torque fixing ring/Coupler 1).Torque Fixing Ring: To prevent torque to be adjusted, fixed upside-underside housing and clutch. 2).Coupler: Fixed upside-underside housing and clutch. Coupler Torque fixing ring (6) Driver Hook: It is convenient that the production lines are able to have spring balancers work together with the tools to be more efficiently.
- Page 9 (11) Hole for wrist band: Enable to install the wrist band which is more convenient and safer for users. (12) Slip resistant soft cover Prevent slip and help user grip the screwdriver Torque setting identification. Three colors: blue, yellow, and red can help identify different torque setting by the users.
- Page 10 Panel function Front part Description LCD display main menu 1. Battery status on upper left 2. Lock status on upper middle 3. Connection status on upper right 4. Screwdriver and settings status at bottom (3 digits/letters) Remark: 1. If NS set as [Y], NS will be shown when tightening error occurred. 2.
- Page 11 Screw List –----------------(SL) Screw List (U1-U9) Screw Count----------------(SC) Screw Count (1-99) OKAll alarm time----------(At) OKALL Alarm time ( 0.1 ~ 9.9Sec) when batch complete Slow Start Time------------(RC) Slow Start Time ( 0.1 ~ 9.9Sec) Speed Level ----------------(SP) Slow Start Speed (Full speed activated when slow start time reached) Max Fasten Thread---------(HC)Hi Thread (max.
- Page 12 2. Buttons on panel: Button Description Power wake up Press P to wake up sleep mode screwdriver. In setting mode, press up to select and change value. 1. In setting mode, press down to select and change value. 2. Press and hold for 5 seconds to turn of counter function and turn off DOWN display.
- Page 13 3. Set up functions Functions Default Settings Description setting 1.SL Screw list from U1-U9 Screw count number from 1-99 2.SC Count method: count down When a batch completed, OKALL alarm signal will last for 0.1 ~ 9.9 sec.. 3.At 2.0 sec. Meanwhile buzzer and OK ALL alarm signal will active simultaneously.
- Page 14 ->SL->SC->At-> RC->SP->HC->LC->Ht->Lt->LS->NS->AS->GR->END Step1: Install battery and press [S] for 3 sec. to enter program. ->SL->SC->At-> RC->SP->HC->LC->Ht->Lt->LS->NS->AS->GR->END Step2: Press [S] to set next function. Step3: Use up or down key to increase or decrease value. When setting NS and AS, there are only 2 selections, which are [Y] and [N].
- Page 15 4. Set up functions Functions Settings Description Remark ->SL->SC->At->RC->SP->HC->LC->Ht->LT-->END 1. If no workpiece and (Complete process) screw were not used Auto learning Step1: Step1: Press P+S simultaneously for 5 sec., screen during HC setting. It mode will be flashing and greed LED will be on. will auto save as 99.9 Step2: Start to set up functions step by step until shows HC, use actual workpiece and screw to set up HC.
- Page 16 When a batch completes and OK ALL Green LED 1 long beep triggered. Screwdriver will be locked and LCD Flicks sound displays AS. When an error occurs, screwdriver will be Red LED 1 short beep locked and LCD displays NS. Flicks sound Fastening time...
-
Page 17: Other Cautions
Always have the device serviced by assigned factory or qualified person in order to have the warranty effective continually. Anlidar is not responsible for any poor performance or damage caused by customers own modification of the tool. It is necessary for the management to have individual operators read and follow up all instructions in this manual. -
Page 18: Specifications
Specifications Model (MYBT-) EP0612 EP0309 EP0205F Input Voltage DC 18V (N.m) 6~12 Torque accuracy (%) ±3% Duty cycle 1.0s ON 3.0s OFF Torque adjustment External adjustment 260~880 300~1000 660~2200 Free load n0: (r/min) )±10% 10 steps Machin ≤6 Screw size (mm) 5.0~6.0 4.0~5.0 e screw...
