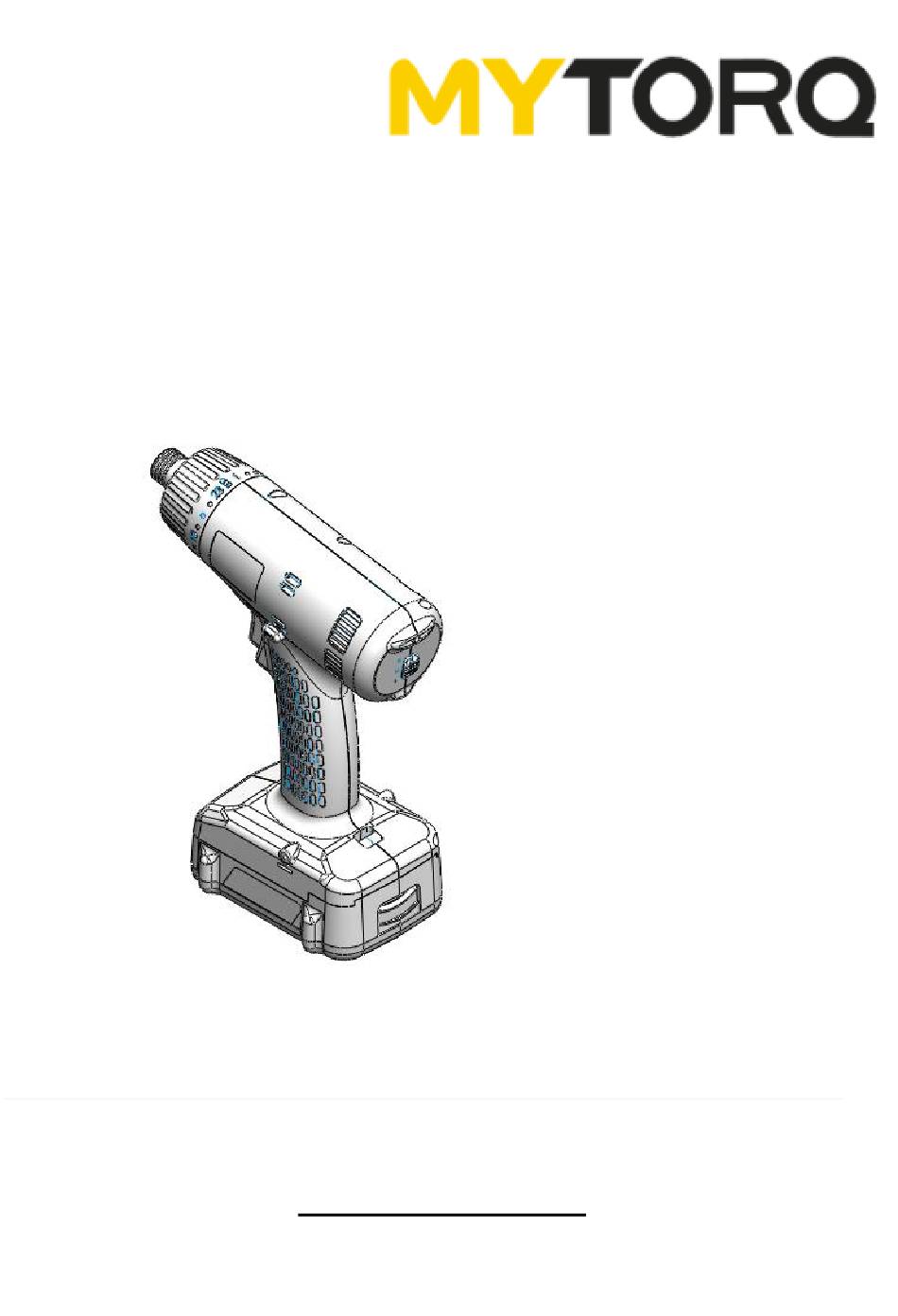

- Page 1 Semi-Automatic Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL MYBT-SC0612 MYBT-SC0408 MYBT-SC1505 Rechargeable -TYPE Semi-automatic Brushless Series ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F103A-2E-001...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely. (Including the spare parts view) The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1. - Page 3 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. ANLIDAR is not responsible for any personal injury that might cause of disobeying the safety advices.
-
Page 4: Function Of Cordless Protection
Function of Cordless Protection ▉Over electric current protection ▉Prevent from low power ▉Thermal Protector ▉Stall protection ▉Slow rotation protection ▉Reverse control protection ▉Battery Identification ▉Sleeping mode Warning Do not attempt to repair or disassemble this cordless screwdriver, the warranty will be considered void. This rechargeable screwdriver maintenance Make sure to remove the battery pack before maintaining or repairing the device by a qualified technician. -
Page 5: Insert Battery Steps
2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing. In order to function properly, re-assembling it as below process again. Insert Battery Steps (1) Insert the rechargeable battery into the device follow by the arrow as showing. (2) Assembled completely. -
Page 6: Function / Operating Introduction
Function / Operating Introduction Function Name Table Description Description Trigger switch Wrist strap hole Forward/Reverse lever S waist hook LED light Indication light Bit sleeve Speed adjustment switch Torque adjustment ring... -
Page 7: Manual / Function
Manual / Function 1. SEMI-AUTO cordless screwdriver Taking the finger off the lever whenever the device reaches the setting torque while comes along with clutch DA-DA-DA sound. Continue running after screws are tightened up which is more than 8~10 clutch noisy may result in overloaded and cause damage of the task. (1) Trigger switch When the start switch is pressed into 1/3 trip, the front end light will be turn on for operation. - Page 8 (5) External Torque adjustment ring The purpose of the torque adjustment is to have the torque level changed from level 1~23; each level has different torque, follow the direction as below showing while the figure value gets bigger means for more torque. Direction of rotation Torque adjustment ring portrayed Digital larger torque...
-
Page 9: Other Cautions
3. ANLIDAR is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have individual operators read and follow up all instructions in this manual. -
Page 10: Specifications
Specifications MODEL MYBT-SC0612 MYBT-SC0408 MYBT-SC1505 INPUT VOLTAGE(DC) DC 18V TORQUE (N.m) 6~12 1.5~5 Torque accuracy (%) ±10% Torque Adjustment Toque adjusting cap 1200→0 2200→0 700→0 Unloaded Speed R.P.M. n0: 900→0 500→0 1600→0 (r/min) )±10% 600→0 1100→0 350→0 Machine Screw size ≤6 5.0~6.0 4.0~5.0... - Page 11 ...
