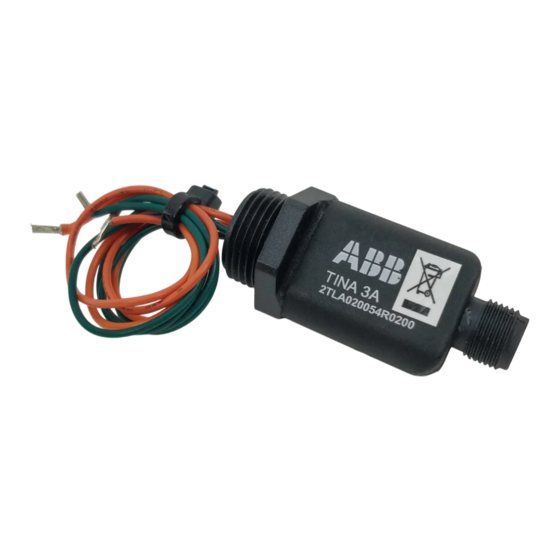

- Page 1 Original instructions Tina 3A/Aps Adaptor unit ABB AB / Jokab Safety Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.abb.com/lowvoltage...
- Page 2 DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of ABB/JOKAB SAFETY for any act exceed the individual price of the product on which liability asserted.
-
Page 3: Table Of Contents
Testing of the safety functions ..........................9 Troubleshooting ..............................9 Operation ............................10 LED indication..............................10 Information output signal attributes ........................10 Technical data ........................... 11 Dimensions ..............................12 EC Declaration of conformity ......................13 2TLC172125M0201, rev. A www.abb.com/lowvoltage 2011-09-20... -
Page 4: Introduction
Introduction Scope The purpose of these instructions is to describe the adaptor units Tina 3A/Aps and to provide the necessary information required for installation and operation. Audience This document is intended for authorized installation personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: Basic knowledge of ABB/Jokab Safety products. -
Page 5: Overview
Overview General description ABB/Jokab Safety adaptor units are used to adapt conventional safety sensors where the safety relies on e.g. one- or two-channel static signals, OSSD outputs, or short circuit detection, to the dynamic safety circuit monitored by a Vital safety module or Pluto safety-PLC. -
Page 6: Connections
NB: The connection cable cross section area is 0.34 mm and cable length is 150 mm. Caution! All cable colours according to ABB/Jokab Safety standard cables. Caution! The safety loop cables (green and orange) should not be extended. The cables should be as short as possible as longer cables increase the risk for electrical interference. -
Page 7: Connection Examples
Connection examples Tina 3A Caution! All cable colours according to ABB/Jokab Safety standard cables. 2TLC172125M0201, rev. A www.abb.com/lowvoltage 2011-09-20... - Page 8 Tina 3Aps Caution! All cable colours according to ABB/Jokab Safety standard cables. 2TLC172125M0201, rev. A www.abb.com/lowvoltage 2011-09-20...
-
Page 9: Installation And Maintenance
(EN 62061:2005). In case of breakdown or damage to the product, contact the nearest ABB/Jokab Safety Service Office or reseller. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 10: Operation
Pluto however does release, which means that a filter (20 ms) must be implemented if this function is needed. Warning! The information output signal is not a failsafe signal and should never be used for the safety purpose(s). 2TLC172125M0201, rev. A www.abb.com/lowvoltage 2011-09-20... -
Page 11: Technical Data
Technical data Manufacturer Address ABB AB / JOKAB SAFETY Varlabergsvägen 11 SE-434 39 Kungsbacka Sweden Article number/Ordering data Tina 3A: 2TLA020054R0200 Tina 3Aps: 2TLA020054R1400 Power supply Operating voltage 24 VDC +15 %, -25 % Total current consumption 17 mA (27 mA with max information output) -
Page 12: Dimensions
Dimensions Tina 3A Tina 3Aps NB: All measurements in millimetres. 2TLC172125M0201, rev. A www.abb.com/lowvoltage 2011-09-20... -
Page 13: Ec Declaration Of Conformity
EC Declaration of conformity EC Declaration of conformity (according to 2006/42/EC, Annex2A) ABB AB declare that the safety components of ABB AB make with type designations and safety JOKAB SAFETY functions as listed below, is in conformity with the Directives Varlabergsvägen 11...
