To avoid possible injury, disconnect battery pack before performing any assembly, adjustments
or repairs.

Using the Head Assembly Lock Pin

Head Assembly Lock Pin
The head assembly lock pin (Fig. 16, 8) is located on the left
side of the pivot post (Fig. 2, 37). It is used to hold the saw's
head assembly (Fig. 14, 28) in the DOWN position. This po-
sition prevents the head from bouncing up and down during
transportation. This also makes the saw more compact for
lifting and storage. This position is also required for some cali-
brating procedures.

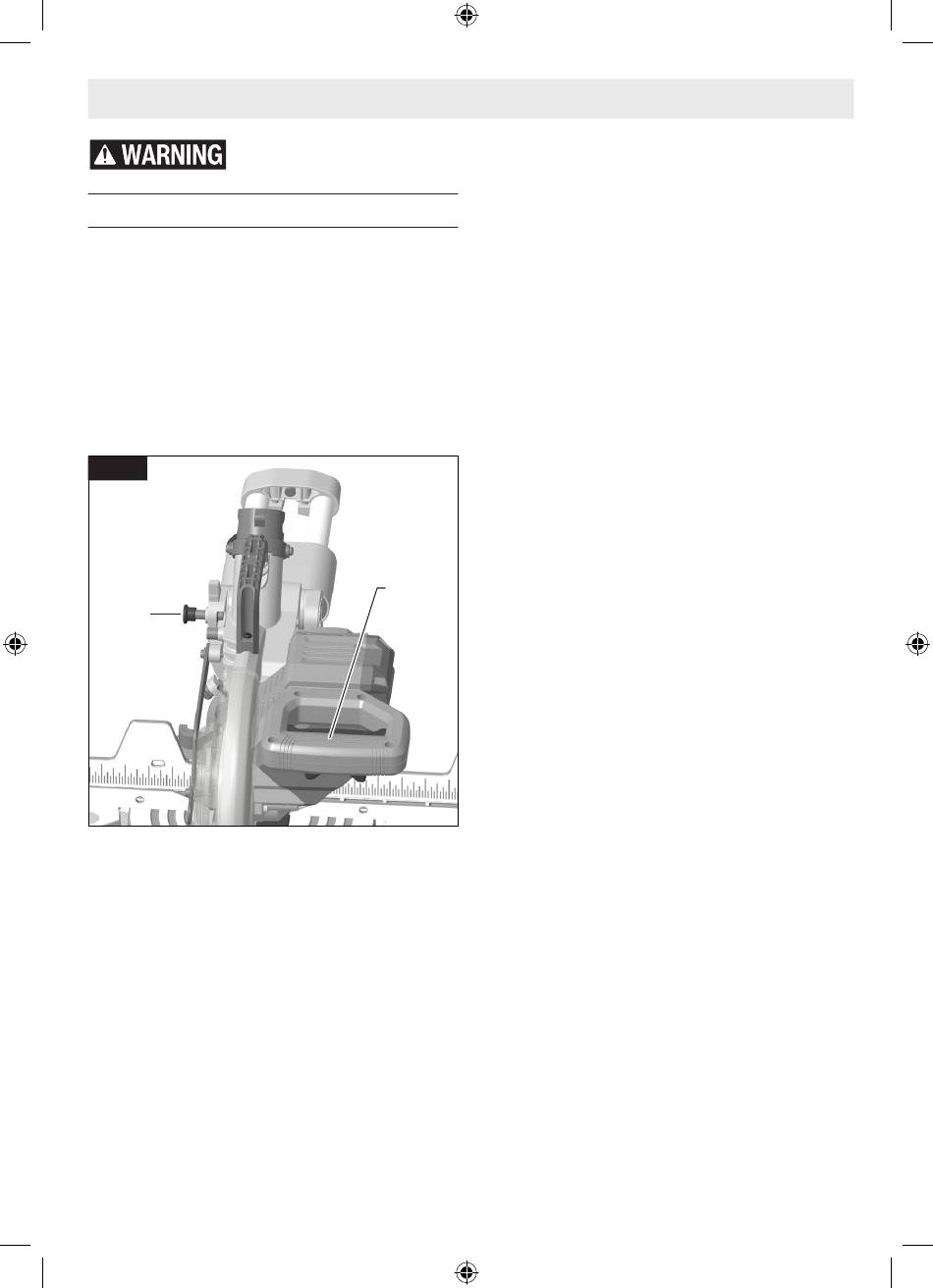

Fig. 16
8
To Engage the Head Assembly Lock Pin
1. Grasp the saw's main handle (Fig. 16, 1) and press down
on the head assembly (Fig. 14, 28).
2. While pressing the saw head down, push in on the head
assembly lock pin (Fig. 16, 8). Release the head assem-
bly. The head will be locked in the DOWN position.

Adjustments

To Disengage the Head Assembly Lock Pin
1. Grasp the main handle (Fig. 16, 1) and press down on
the head assembly (Fig. 14, 28).
2. While pressing the head down, pull out the head as-
sembly lock pin (Fig. 16, 8). Release the lock pin, but
maintain your grip on the main handle. Slowly allow the
spring-loaded saw head to come up to the top of its travel
and then release the handle.
1
-23-
