Assembling Dust Collection System

The dust collection system used on this tool is attached to the
upper guard (Fig. 14, 27). This placement provides superior
dust collection for the majority of cuts. Disconnect battery
pack (Fig. 11, 44) before attaching, adjusting or removing
any dust collection component.

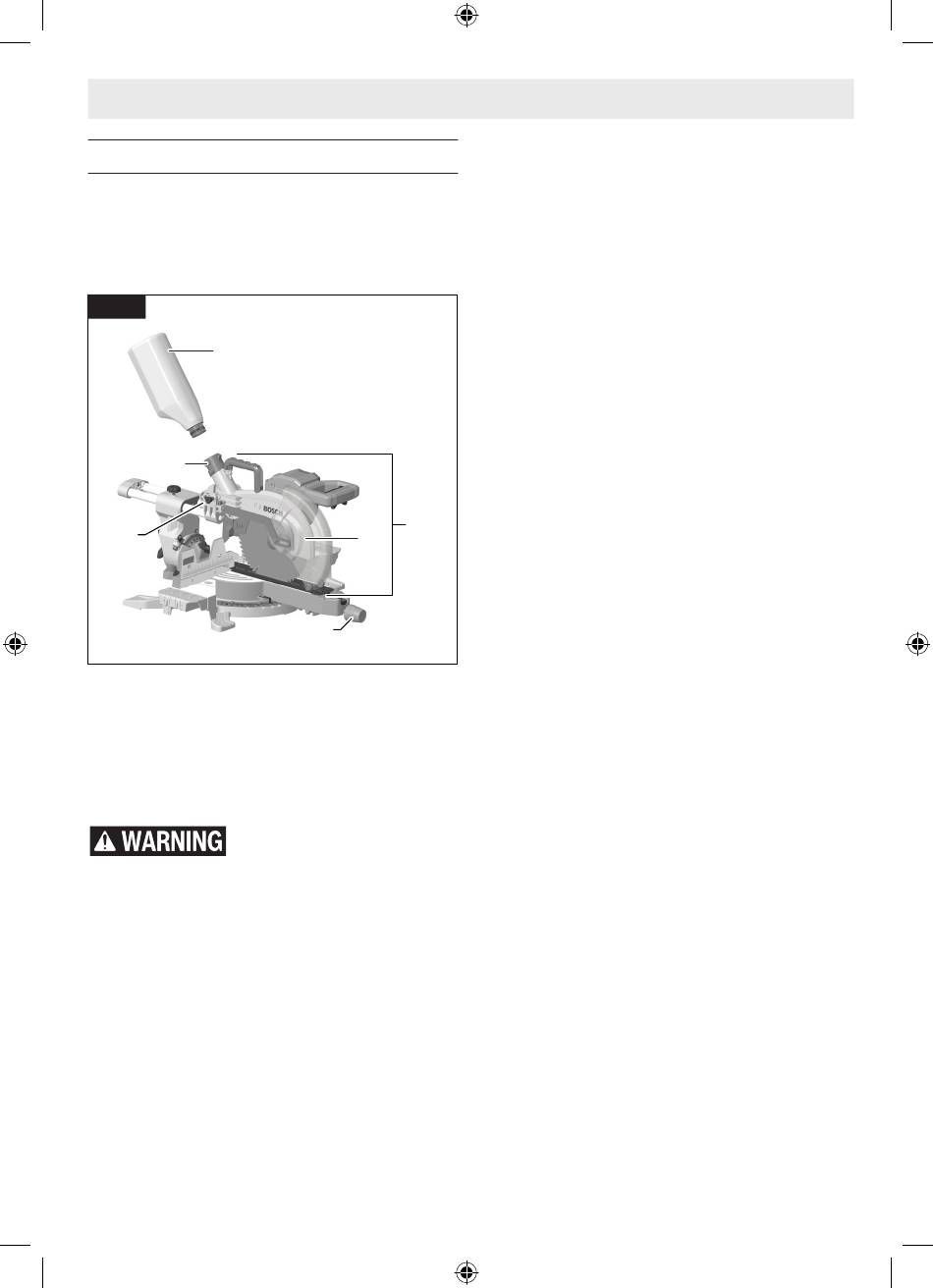

Fig. 14
36
43
8
Attaching the Dust Bag
Attaching and Removing Dust Bag – To attach the dust bag
(Fig. 14, 36), squeeze the two red tabs together and slide the
dust bag into the dust port rib.
Using and Cleaning the Dust Bag
Be extremely careful when dispos-
ing of dust. Materials in fine parti-
cle form may be explosive. Do not throw sawdust on an
open fire. Spontaneous combustion, in time, may result
from the mixture of oil or water with dust particles.
Using Dust Bag – Attach the clean bag to the dust port (Fig.
14, 43).
Cleaning Dust Bag – After the dust bag is 2/3 to 3/4 full, re-
move it from the saw. Bring the bag to a proper container and
pull open the zipper located on the bottom of the bag. Hold
the bag by the coupler end and shake it vigorously until all the
dust and debris fall from it. Close zipper and reattach the bag.
