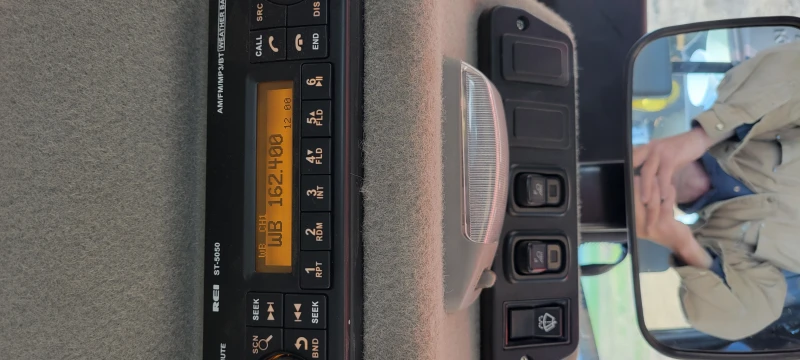

Heavy Duty AM/FM Stereo Weather Band Radio, USB iPod® Control and
Charging, Bluetooth® Hands Free Calling and Wireless Audio Streaming,
Front/Rear Auxiliary Inputs and built in PA
Radio Engineering Industries, Inc.
www.radioeng.com
Rev A.0
Date: 11-03-16
Installation/ Operation Manual
50W x 4
ST-5050
24
Advertisement
Table of Contents
Related Manuals for REI ST-5050
Summary of Contents for REI ST-5050
- Page 1 Heavy Duty AM/FM Stereo Weather Band Radio, USB iPod® Control and Charging, Bluetooth® Hands Free Calling and Wireless Audio Streaming, Front/Rear Auxiliary Inputs and built in PA Radio Engineering Industries, Inc. www.radioeng.com Rev A.0 Date: 11-03-16 Installation/ Operation Manual 50W x 4 ST-5050...
- Page 2 Thank you for purchasing ST-5050 AM/FM/WB/BT/USB Receiver from REI. This NOTES: product is designed and tested to with stand temperature and vibration extremes. Please read the owner’s manual carefully before attempting to install this unit. If you have an installation question or need installation assistance, please call the: SERVICE HOT LINE 1-877-726-4617 Toll Free USA &...
-
Page 3: Controls And Indicators
CONTROLS AND INDICATORS 1. Power/Mute Button 2. Volume/Select Knob 3. Scan /Search Button 4. Band /Back Button 5. Tune /Seek/Track Down Button 6. Tune /Seek/Track Up Button 7. Preset Memory/Recall, Media Control Buttons 8. Call Connect/Transfer Button 9. Call End Button 10. -
Page 4: Operation
AUXILIARY INPUT SPECIFICATIONS OPERATION Input Voltage Maximum Voltage………………………………………………...1.2V Power/Mute Button Frequency Response (+/- 1dB)……………………………...…………20 – 20,000Hz Press the Power Button to turn the unit ON or hold to turn the unit OFF. The button Input impedance………………………………………………………………..10KΩ will illuminate RED when OFF and BLUE when ON. When ON, press to MUTE the audio on/off. - Page 5 Bluetooth CALL Connect/Transfer Button SPECIFICATIONS Press this button to Place or Answer an incoming call when successfully paired using AUDIO SECTION the Hands Free Profile on a Bluetooth® enabled phone. Press this button to transfer Power supply voltage (negative ground) ……………….……….12V DC (10V-18V) the call from the radio to the phone and vise versa.
-
Page 6: Troubleshooting
Discover mode to ON. Delete previously Bluetooth® &/or my device can’t find the Microphone does NOT have on on-board volume control. PA volume paired devices or Reset BT. control is built into the radio. Key the microphone to make adjustments. ST-5050 radio... -
Page 7: Radio Operation
CARBON Microphone has on on-board volume control. Radio will not control the volume. If additional support is needed, bend the included support bracket, and secure it Press VOL/SEL knob to make the desired selection. to the vehicle using a screw. Secure the opposite end to the radio’s rear stud using the ... -
Page 8: Iso Installation
Displays when the FM frequency is tuned in Stereo. ISO INSTALLATION For installations that do NOT require the use of the DIN collar. The radio has Radio Broadcast Data System threaded holes in the chassis side panels for ISO mount applications. If necessary, four M5x10mm screws are included with the hardware pack to assist you. -
Page 9: Electrical Connections
3. Access the” Look for devices” feature of the Mobile device and begin searching. After searching, the Radio should appear in the list of devices as ST-5050. Press to accept. 4. A prompt to bond should appear on your Mobile device. Press to accept and continue the process. -
Page 10: Optional Remote Control
BLUETOOTH® PHONE MODE OPTIONAL REMOTE CONTROL *Requires 2AA Batteries (1) Power Button (2) Language Button (N/A) (3) Menu Button (N/A) (4) Volume Up/Down Buttons (5) Enter Button (N/A) (6) Scroll Buttons 1. Bluetooth Phone ID Displays the ID of previously paired Bluetooth Phones. Rotate to the VOL/SEL (7) Setup Button knob to display other paired devices and press the VOL/SEL to initiate re-connection. - Page 11 Apple Inc., registered in the U.S. and other countries. Functionality may vary by model number, operation is not guaranteed. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REI under license.
-
Page 12: Ipod®/Iphone® Operation
iPod®/iPhone® OPERATION USB OPERATION To listen to audio through your apple device, verify that a 30-pin USB extension is Connect a USB storage device to the unit. The radio will automatically switch connected to the USB pigtail on the rear of the radio. Next, connect the 30-pin MODE’S and begin playback after the media is successfully loaded.
