Heavy Duty AM/FM/CD Stereo Weather Band Radio, USB iPod® Control
and Charging, Bluetooth® Hands Free Calling and Wireless Audio
Streaming, Front/Rear Auxiliary Inputs and built in PA
Radio Engineering Industries, Inc.
www.radioeng.com
Rev 0.1
Date: 12-22-14
Installation/ Operation Manual
50W x 4
CD-5000
24
Advertisement
Table of Contents
Related Manuals for REI CD-5000
Summary of Contents for REI CD-5000

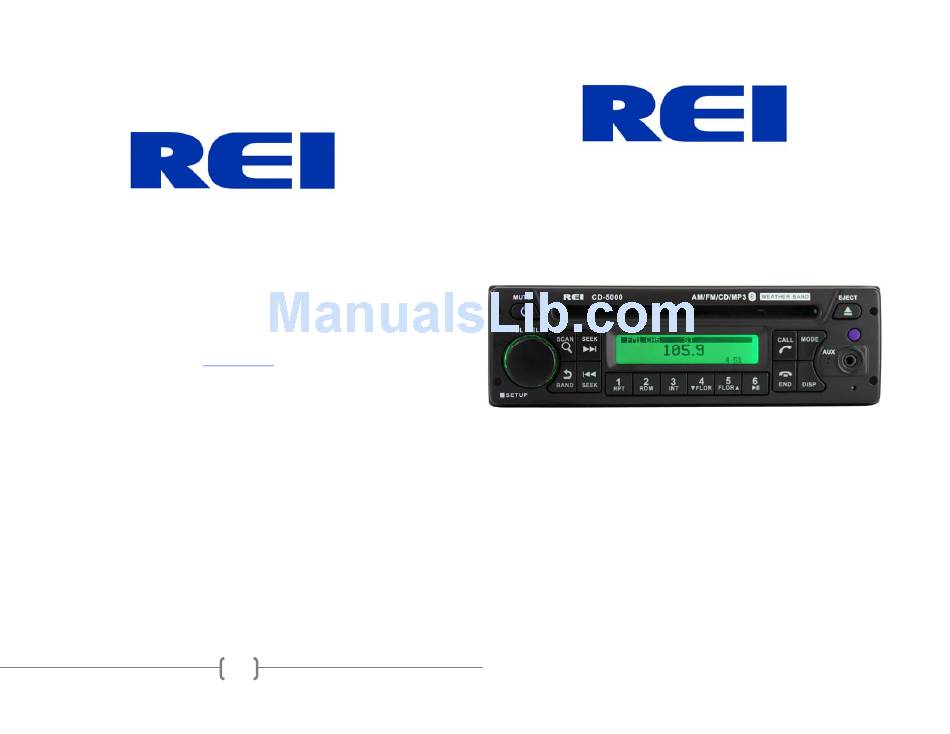

- Page 1 Heavy Duty AM/FM/CD Stereo Weather Band Radio, USB iPod® Control and Charging, Bluetooth® Hands Free Calling and Wireless Audio Streaming, Front/Rear Auxiliary Inputs and built in PA Radio Engineering Industries, Inc. www.radioeng.com Rev 0.1 Date: 12-22-14 Installation/ Operation Manual 50W x 4 CD-5000...
- Page 2 Thank you for purchasing CD-5000 AM/FM/CD Receiver from REI. This product is NOTES: designed and tested to with stand temperature and vibration extremes. Please read the owner’s manual carefully before attempting to install this unit. If you have an installation question or need installation assistance, please call the: SERVICE HOT LINE 1-877-726-4617 Toll Free USA &...
-
Page 3: Controls And Indicators

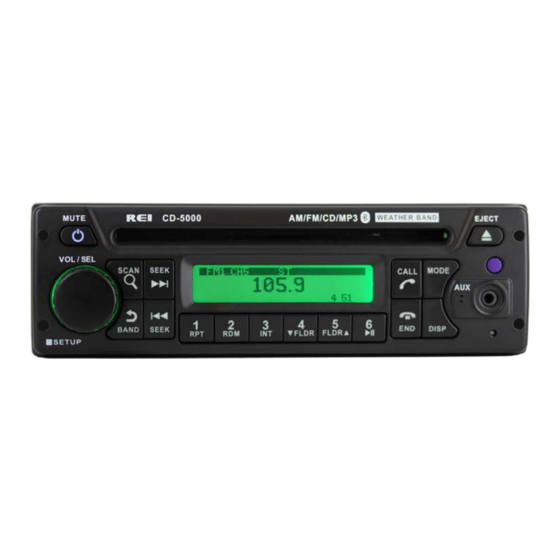

NOTES: CONTROLS AND INDICATORS 1. Power/Mute Button 2. Volume/Select Knob 3. Scan /Search Button 4. Band /Back Button 5. Tune /Seek Down Button 6. Tune /Seek Up Button 7. Preset Memory/Recall, Media Control Buttons 8. Call Connect/Transfer Button 9. Call End Button 10. -
Page 4: Operation
USB INTERFACE OPERATION USB Standard……………………………………………….USB1.1/2.0 (Full Speed) Power/Mute Button Maximum Supply ……….………………………………………………...5V/500mA Press the Power Button to turn the unit ON or hold to turn the unit OFF. The button will illuminate RED when OFF and BLUE when ON. When ON, press to MUTE the File System…………………………………………………………………..Fat16/32 audio on/off. - Page 5 CALL Button SPECIFICATIONS Press this button to Place or Answer an incoming call when successfully paired using AUDIO SECTION the Hands Free Profile on a Bluetooth® enabled phone. Press this button to transfer Power supply voltage (negative ground) ……………….……….12V DC (10V-18V) the call from the radio to the phone and vise versa.
-
Page 6: Troubleshooting
WEATHER BAND MODE NOAA National Weather Radio Broadcasts from over 380 Locations throughout the U.S. on seven VHF/FM frequencies. Tune to receive continuous weather TROUBLE SHOOTING information 24 hours a day on one of the following frequencies. Problem Cause Solution For local station listing see: http://www.nws.noaa.gov/nwr/nwrbro.htm No power to BATTERY wire or blown 10A Check for both ACC &... -
Page 7: Radio Operation
CARBON Microphone has on on-board volume control. Radio will not control the If additional support is needed, bend the included support bracket, and secure it volume. to the vehicle using a screw. Secure the opposite end to the radio’s rear stud using the Press VOL/SEL knob to make the desired selection. -
Page 8: Iso Installation
Radio Broadcast Data System ISO INSTALLATION For installations that do NOT require the use of the DIN collar. The radio has threaded holes in the chassis side panels for ISO mount applications. If necessary, four M5x10mm screws are included with the hardware pack to assist you. 1. -
Page 9: Electrical Connections
CONNECTING A NEW BLUETOOTH® DEVICE ELECTRICAL CONNECTIONS To connect your Bluetooth® device to the Radio, the device must first be paired. Follow this easy wiring diagram when installing Radio and Speakers. You will need to verify that “BLUETOOTH” is set to “ON”. (See BT SET menu), and verify that “DISCOVERY”... -
Page 10: Optional Remote Control
BLUETOOTH® PHONE MODE OPTIONAL REMOTE CONTROL *Requires 2AA Batteries (1) Power Button (2) Language Button (N/A) (3) Menu Button (N/A) (4) Volume Up/Down Buttons (5) Enter Button (N/A) 1. Bluetooth Phone ID Displays the ID of previously paired Bluetooth Phones. Rotate to the VOL/SEL knob to display other paired devices and press the VOL/SEL to initiate (6) Scroll Buttons (N/A) re-connection. - Page 11 Apple Inc., registered in the U.S. and other countries. Functionality may vary by model number, operation is not guaranteed. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REI under license.
-
Page 12: Ipod®/Iphone® Operation
iPod®/iPhone® OPERATION To listen to audio through your apple device, verify that a 30-pin USB extension is USB/CD OPERATION connected to the USB pigtail on the rear of the radio. Next, connect the 30-pin Insert a CD into the disc slot, or connect a USB storage device to the unit. The cable to the Apple device.
