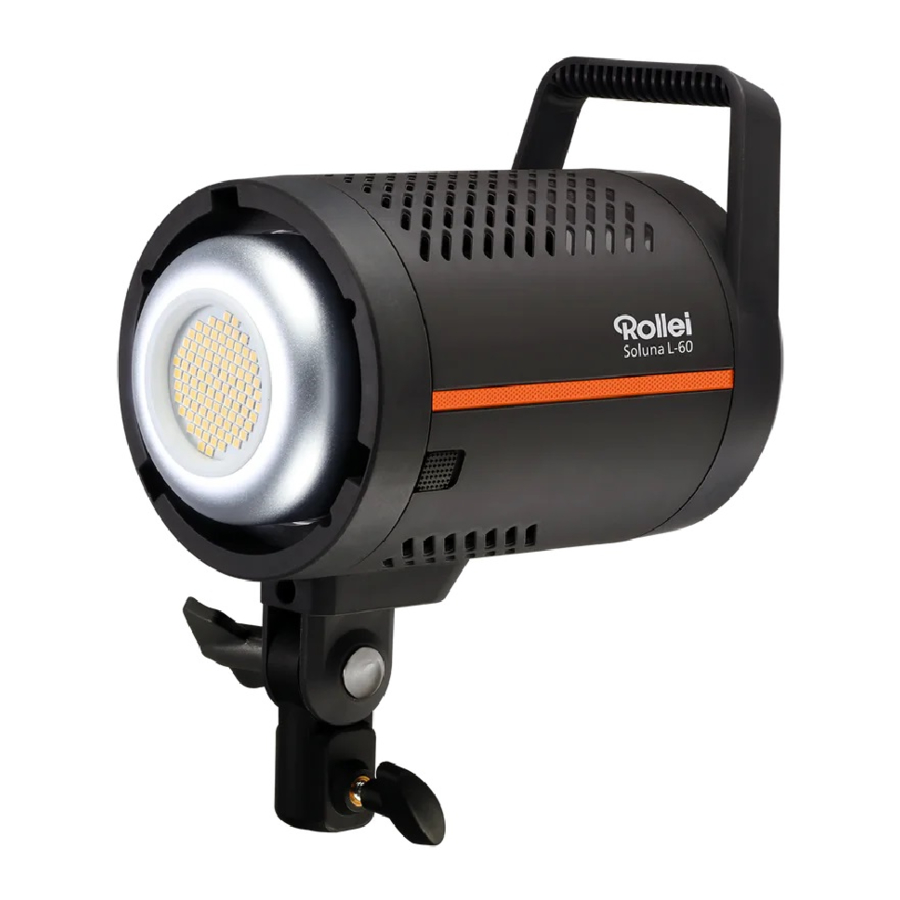

Rollei Soluna L-60 / L-100 - LED Steady Light Manual

Overview

1. Bowens S-type bayonet
2. Soluna L-100: 100 W LED
   Soluna L-60: 60 W LED
3. Bayonet release
4. Umbrella holder / umbrella lock
5. Tripod lock
6. Carrying handle
7. Display
8. Light effect adjustment knob
9. Power cord connector
10. Power control knob / Bluetooth*
11. On/off switch
12. Tilt lock

Operation

1. Light effect indicator
2. Bluetooth* indicator
3. Colour temperature indicator
4. Output power indicator

Switching On

• Plug the mains cable into the appropriate socket on the Soluna L-60 or Soluna L-100, switch the unit on using the on/off switch, the LC display lights up.

Adjusting the Brightness

• Turn the power control knob directly to adjust the brightness. The dimming range is 0 ~ 100%, the accuracy is 1%.
• Briefly press the power control knob, then turn it to adjust the brightness in 10% steps.

*The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rollei is under license. Other trademarks and trade names are those of their respective owners.
**Batteries not included in the delivery.

Light Effects

Turn the light effect adjustment knob, set the desired light effect and select the "FX1 ~ 9" icon.
FX1 = TV
FX2 = Defective light bulb
FX3 = Thunderstorm
FX4 = Flame
FX5 = Pulsation
FX6 = Paparazzi
FX7 = High / low beam
FX8 = SOS
FX9 = Warning light
If there is no FX symbol on the screen, the light effect is switched off.

Bluetooth Connection

• Long press the power control knob to turn Bluetooth^®* on or off.
• Long press the light effect adjustment knob to start the Bluetooth^®* reset function.

Rollei App / Bluetooth

Download the "Rollei Studio" app directly from the App Store or the "Studio" app from the Amazon App Store.

Connection with the Smartphone

1. Activate Bluetooth^®* on your smartphone.
2. Turn on the Rollei Soluna L-60 or Soluna L-100 and use the power control knob to activate Bluetooth^®*.
3. Open the "Rollei (Studio)" app, the connection with the smartphone will be established automatically.
   Note: If you want to connect the LED light to the app on another smartphone, reset the Bluetooth^®* signal by pressing the light effect setting button for about 3 seconds until the Bluetooth^®* symbol flashes three times. The reset is now complete.

Note:

• The connection is established using "Bluetooth^®* Low Energy" (BLE). This requires a location release of the app.
  The connection to the LED light is established directly in the app.

Troubleshooting / Fault Rectification

Unit Does Not Switch On

• Please check that the mains cable is correctly seated during mains operation.
• Please check (if necessary with a suitable measuring device) whether there is voltage for the mains cable at the socket.
• Please check the appliance/house fuse. Replace the fuse(s) if necessary.

If a problem persists, please contact your Rollei dealer.

Technical Data

We reserve the right to update functions or parameters without further notice.

Safety Instructions

Danger from electric current!
Faulty electrical installations or excessive mains voltage can cause electric shock.

• Only connect the product if the mains voltage of the socket corresponds to the specifications on the type plate.
• Connect the product to an easily accessible power outlet so that you can quickly disconnect it from the mains in case of problems.
• Use only the supplied power cord.
• Do not use the product if it is visibly damaged or if the cable is defective.
• If the product or its accessories are damaged, they must be replaced or repaired by the manufacturer, its service department or a similarly qualified person to prevent hazards.
• The housing must not be opened and repairs must only be carried out by a qualified technician. To do this, contact a specialist workshop. Any liability and all warranty claims are excluded in the event of repairs by the user, improper connection or incorrect operation.
• If you do not use the product for a long period of time, always disconnect it from the power source.
• Protect the product from moisture. Do not touch the product with wet/damp hands or immerse it in water.
• This product is not waterproof! Do not use this product in the rain or in wet environments. Never touch the product during a thunderstorm.
• Before disconnecting the power, turn off the power at the main switch.
• Do not store or use the device in locations where it is exposed to strong electromagnetic fields or dust. Keep the unit away from other sources of interference.

Attention!

• Never use the power cord as a carrying handle.
• Keep the product and accessories away from naked flames, hot surfaces and highly flammable materials.
• Lay the power cord so that it does not present a tripping hazard.
• Do not bend the power cord or lay it over sharp edges.

Attention!

Danger for children and persons with limited physical, sensory or mental abilities (e.g. partially disabled, older persons with limited physical and mental abilities) or lack of experience and know-how (e.g. older children).

• This product may be used by persons with reduced physical, sensory or mental abilities or lack of experience and know-how, provided that they are supervised or have received instructions for the safe use of the product and understand the potential hazards arising from its use. Children must not play with the product. The product must not be cleaned or maintained by children. Keep children under eight years of age away from the product and its accessories.
• Do not insert any objects into the product.
• Do not leave the product unattended during operation.
• The product is not a toy. Keep the product, accessories and packaging materials away from children and pets to prevent accidents and suffocation.
• For photographic lighting purposes only. Not suitable for permanent room lighting.
• Do not film car, bus, bicycle, motorbike or train drivers while driving with this product. The driver may be blinded and cause an accident. This also applies to unlisted persons or groups if possible glare could cause an accident.
• Do not shine directly into the eyes of people or animals as this may cause damage to the retina, visual disturbances and even blindness.
• Ensure adequate ventilation during operation. Never cover the ventilation slits of the unit.
• Do not use or store the unit in high temperatures or in closed rooms with direct sunlight. The product should not be used in ambient temperatures above 40°C.
• Mount the device on a tripod with sufficient load-bearing capacity and set up the tripod so that it cannot tip over or slip.
• Allow the device to cool down before packing it for transport or storage.
