M E T R O D C S e r i e s I n s t a l l a t i o n G u i d e
Thanks for choosing our Metro DC Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):-
MMDC133MMR

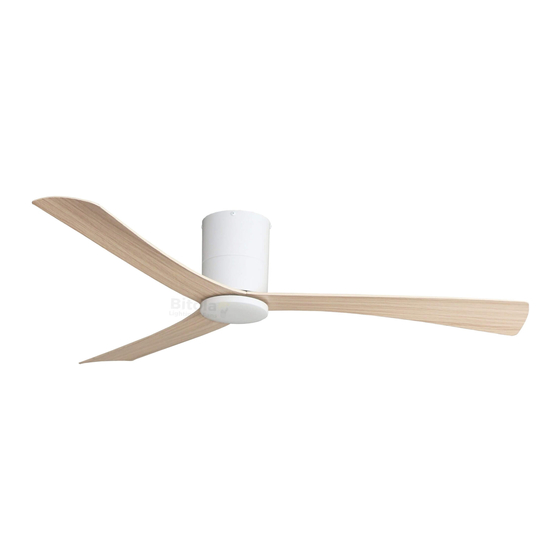

1320mm 3 Blade Ceiling Fan Matt Black with remote control
MMDC133WSR
1320mm 3 Blade Ceiling Fan White Satin with remote control
MMDC133WOR
1320mm 3 Blade Ceiling Fan White Satin/Oak with remote control
Models Parameters (Fan and Light):-
MMDC1333MMR
1320mm 3 Blade Ceiling Fan Matt Black, 15W Tricolour LED Light with remote control
MMDC1333WSR
1320mm 3 Blade Ceiling Fan White Satin, 15W Tricolour LED Light with remote control
MMDC1333WOR
1320mm 3 Blade Ceiling Fan White Satin/Oak, 15W Tricolour LED Light with remote control
Part List:
Qty 1x motor assembly
Qty 1x instruction manual
Qty 1x balancing kit
Qty 1x hanging plate
Application
Flat Surface / Ceiling

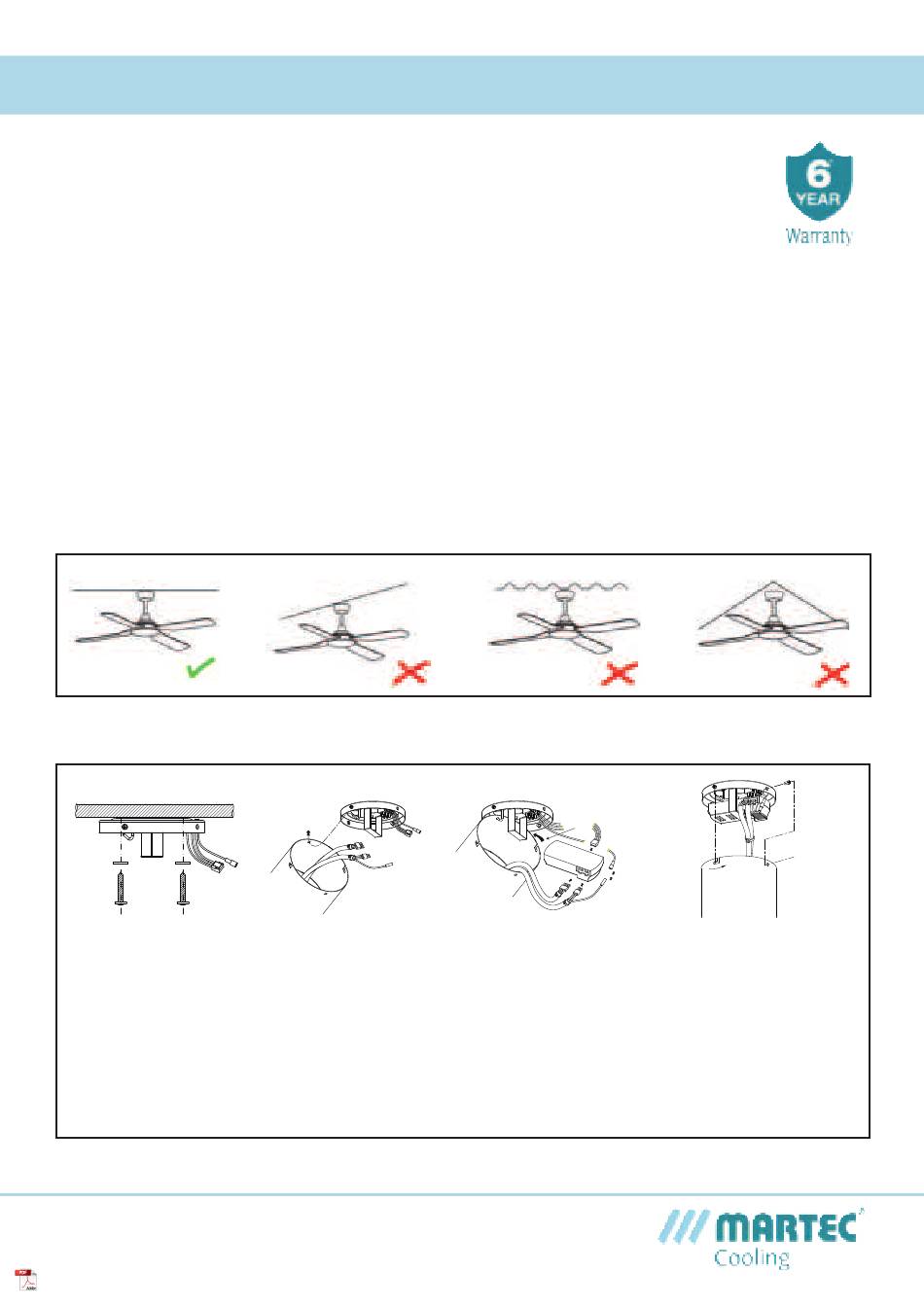

How to Assemble
Fg.1
Secure the ceiling fan
mounting plate to the
ceiling using screws and
washers provided. Ensure
screws are tightened on the
mounting plate.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Slope Ceiling up to 15°
Fg.2
Insert
Align hole in the motor
housing with the hook on
the mounting plate.
Qty 1x screw kit
Qty 1x remote control kit
Corrugated Ceiling
Fg.3
Insert
Connect wires between
the motor housing and the
receiver of remote control.
Qty 3x blades
Apex Ceiling
Fg.4
Before installing the motor
housing into the mounting plate.
Put 2 screws half way into two
opposite screw holes.
Carefully install the motor
housing into the mounting
plate by pushing the 2 screws
into the opening slot. Insert
the remaining 2 screws then
tightened all screws.
