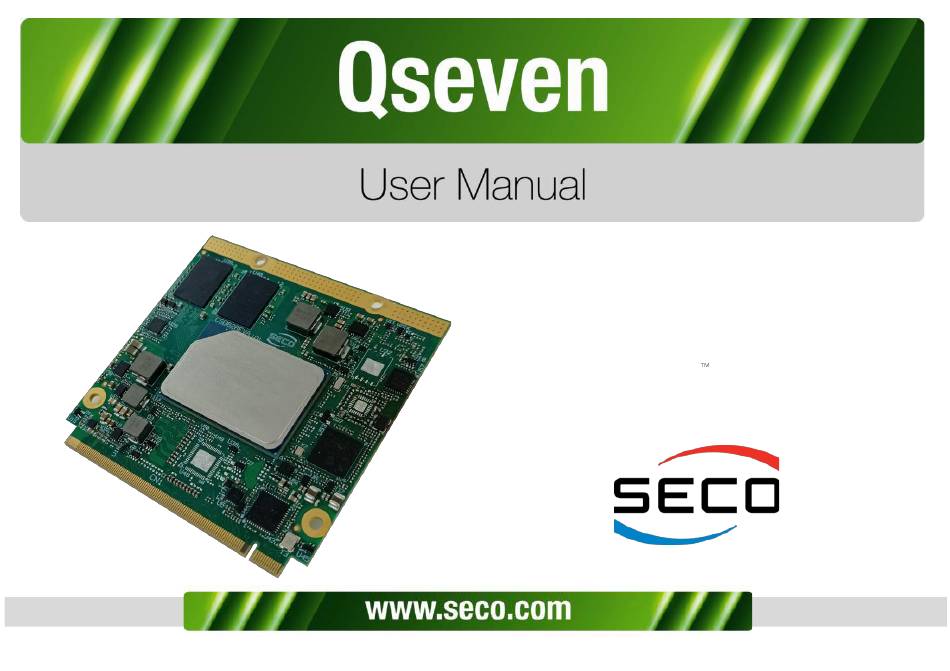

ATLAS

Qseven

Rel. 2.1 Compliant Module

with the Intel

Atom x6000E Series and Intel

Pentium

and Celeron

N and J Series

(formerly Elkhart Lake) SoCs

Table of Contents

Need help?

Do you have a question about the Qseven ATLAS and is the answer not in the manual?

Questions and answers

Summary of Contents for Seco Qseven ATLAS

Page 1 ATLAS ® Qseven Rel. 2.1 Compliant Module ® ® with the Intel Atom x6000E Series and Intel ® ® Pentium and Celeron N and J Series (formerly Elkhart Lake) SoCs...
Page 2 SECO S.r.l. reserves the right to change precise specifications without prior notice to supply the best product possible. For further information on this module or other SECO products, but also to get the required assistance for any and possible issues, please contact us using the dedicated web form available at http://www.seco.com (registration required).
Page 3 Connectors description ..........................................22 ® 3.2.1 Qseven Connector ..........................................22 Appendices ..................................... 79 Thermal Design ............................................80 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 4 Electrostatic Discharges • RoHS compliance • Safety Policy • Terminology and definitions • Reference specifications ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 5 All changes or modifications to the equipment not explicitly approved by SECO S.p.A. could impair the equipment s functionality and could void the warranty. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 6 A RMA Number will be sent within 1 working day (only for on-line RMA requests). ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 7 This board is designed using RoHS compliant components and is manufactured on a lead-free production line. It is therefore fully RoHS compliant. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 8 Install in a way that prevents the access to the board from children; Use along with CPU heatspreader/heatsinks designed according to the thermal and mechanical characteristics. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 9 Medium Access Controller, the hardware implementing the Data Link Layer of ISO/OSI-7 model for communication systems Mbps Megabits per second ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 10 Host Controller Interface, Host controller for USB 3.0 ports, which can also manage USB 2.0 and USB1.1 ports ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 11 ® Qseven specifications https://www.sget.org/fileadmin/file_management/SDT02/Qseven-Spec_2.1.pdf SATA https://www.sata-io.org SD Card https://www.sdcard.org/home SM Bus http://www.smbus.org/specs TMDS http://www.siliconimage.com/technologies/tmds ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 12 USB 2.0 and USB OTG http://www.usb.org/developers/docs/usb_20_070113.zip USB 3.0 http://www.usb.org/developers/docs/usb_30_spec_070113.zip ® Intel Atom Elkhart Lake family https://ark.intel.com/content/www/us/en/ark/products/codename/80644/Elkhart-lake.html#@Embedded ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 13 • Introduction • Technical Specifications • Electrical Specifications • Mechanical Specifications • Block Diagram ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 14 Please refer to following chapter for a complete list of all peripherals integrated and characteristics. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 15 SD interface 2.2 Technical Specifications Optional eMMC Drive soldered onboard Processors 2 x USB 3.0 Host Port Intel Atom /Pentium®/Celeron® Processor "Elkhart Lake" CPUs: 6 x USB2.0 Host ports Celeron® J6413 Quad Core @ 1.8GHz (3GHz Turbo) 10W TDP Networking Pentium®...
Page 16 _U: unswitched ACPI S3 voltages, i.e. power rails that are active both in ACPI’s S0 (Working) and S3 (Standby) state. Examples: +1.5V_U ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 17 2.55uA Suspend (5V_STBY, 5.0V) 275mA 270mA 255mA 266mA Soft-off (5V_STBY, 5.0V) 262mA 250mA 240mA 250mA ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 19 Watchdog Temperature controller Mgmt signals monitor 1x UART Gb Ethernet PHY Gigabit Ethernet DP83867xRRGZ ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 21 Card edge golden finger, pin 228 finger, pin 2 finger, pin 1 finger, pin 229 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 22: Table Of Contents
SATA0_TX+ / SGMII0_TX+ SATA1_TX+ SATA / SGMII SATA / SGMII SATA0_TX- / SGMII0_TX- SATA1_TX- SATA / SGMII ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 23: Pwr
USB_SSRX0+ USB_6_7_OC# USB_4_5_OC# USB_P5- USB_P4- USB_P5+ USB_P4+ USB_2_3_OC# USB_0_1_OC# USB_P3- USB_P2- USB_P3+ USB_P2+ USB_VBUS USB_ID ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 24 TMDS_TX0- / DP_LANE2- USB_SSRX1+ HDMI/DP TMDS_TX2+ / DP_LANE0+ HDMI_CTRL_DAT HDMI HDMI/DP TMDS_TX2- / DP_LANE0- HDMI_CTRL_CLK HDMI ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 25 SPI_MISO SPI_CS1# SPI_CLK MFG_NC4 N.A. +5V_A +5V_A SOC_UART0_RTS# SOC_UART0_RX SOC_UART0_TX SOC_UART0_CTS# N.A. N.C. N.C. N.A. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 26: N.a
On the carrier board, connect it directly to the PCI-e/miniPCI-e connector’s WAKE# signal, or to WAKE# signal of any eventual PCI-e Controller present on the Carrier Board. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 27 PCI-e x4 port, 2 PCI-e x2 ports, one PCI-e x2 + 2 PCI-e ports x1 or 4 PCI-e x1 ports. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 28 The customer acknowledges and agrees to the conditions set forth that these schematics are provided only as an example and that he will conduct an independent analysis and exercise judgment in the use of any and all material. SECO declines all and any liability for use of this or any other material in the customers’...
Page 29: Gbe_Mdi3
® centre tap, therefore the signal GBE_CTREF is not available on Qseven golden finger connector ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 30: Sata1_Tx
SATA0_RXN SATA1_TXP SATA0_TXN SATA1_TXN SATA0_TXP SCREW SATA1_RXN SATA1_RXP VIT3X4-2 0603 M.2 TYPE 2260 WATM-07ABN4B2B8UW APCI0087-P001A ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 31 USB_OTG_PEN: USB Power enable pin for USB Port 1. Active High Output signal, electrical level +3.3V_A. This signal has to be used to enable the Power rail of the USB Port #1 when working in Host mode ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 32 For correct implementation of USB 3.0 connections, the Superspeed port #0 must be paired with USB 2.0 port #0, and the Superspeed port #1 must be paired with USB 2.0 port #1. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 33: Usb_P1
AP2142AMP USB_P2- USB_P3- CC-47uF/10V CC-47uF/10V CC-47uF/10V OUT1 CC-100nF USB_P2+ USB_P3+ CC-100nF DLW21HN900SQ2 DLW21HN900SQ2 USB_2_3_OC# OUT2 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 34 All these signals have to be connected, on the Carrier Board, to an HD Audio Codec. Please refer to the chosen Codec’s Reference Design Guide for correct implementation of audio section on the carrier board. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 35: Lvds_Ppen
LVDS_DID_CLK: DisplayID DDC Clock line for LVDS flat Panel detection. Bidirectional signal, electrical level +3.3V_S with a 2k2Ω pull-up resistor. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 36 LVDS_BLT_CTRL: this signal can be used to adjust the panel backlight brightness in displays supporting Pulse Width Modulated (PWM) regulations. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 37: Hdmi_Cec
Please refer to the following schematics as an example of implementation of HDMI connection + voltage level shifters on the carrier board. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 38: Hdmi_Ctrl_Dat
2N7002 IP4221CZ6-S R-1K HDMI_CTRL_DAT BLM18PG121SN1 +5V_HDMI HDMI_HPD# WHDM-19D5L1BF3U4W +5V_S SN74LVC1G14DBVR SL04 BLM18PG121SN1 R-20K CC-1uF CC-100nF ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 39 Please refer to the following schematics as an example of implementation of multimode DisplayPort connection on the carrier board, which will allow the use of external adapters for the conversion to HDMI/DVI. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 40 DP_LANE3- DAT_AUX- +3.3V_S R-0 /X 2N7002K CC-100nF DP_HPD R-0 /X IP4283CZ10 IP4283CZ10 IP4283CZ10 DP_HPD# NC7S32 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 41 SPI_CS0#: SPI Chip select #0, active low output signal (+3.3V_S electrical level). SPI_CS1#: SPI Chip select #1, active low output signal (+3.3V_S electrical level). ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 42 SMB_CLK: SM Bus control clock line for System Management. Bidirectional signal, electrical level +3.3V_A with a 1kΩ pull-up resistor. It is managed by the SOCs’ PCU System Management Bus controller. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 43 It is not possible at all to use these pins to trace the software (for debug purposes) ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 44 Advanced menu • Chipset menu • Security menu • Boot menu • Save & Exit menu ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 45 <Enter> key allows to display or change the setup option listed for a particular setup item. The <Enter> key can also allow displaying the setup sub- screens. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 46 Note: The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00. The system date is in the format mm/dd/yyyy. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 47 See submenu Add/remove RAM disks User Password Management Driver Health Health Status for the Drivers/Controllers ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 48 SMM Use Block Indication Disabled / Enabled Enable/Disable usage of SMM_BLOCKED MSR for MP sync in SMI ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 49 View/Configure Turbo Options See Submenu View/Configure Turbo Options See Submenu CPU VR Settings CPU VR Settings ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 50 When set, will map IO_read instructions sent to IO registers. Enabled / Disabled IO MWAIT Redirection PMG_IO_BASE_ADDRBASE+offset to MWAIT (offset) ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 51 Active power-down current (Idd3P) in milliamps from datasheet. Must be calculated on a per DIMM basis See submenu CPU Lock Configuration CPU Lock Configuration 4.3.2.1.1 View/Configure Turbo Options ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 52 Recommended only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 53 AC Loadline defined in 1/100 mOhms. A value of 100 = 1.00 mOhm, and 1255 = 12.55 mOhm. Range is AC Loadline 0-6249 (0-62.49 mOhms). 0 = AUTO/HW default. Uses BIOS mailbox command 0x2 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 54 MHz, and the default h/w frequency is 139.6 MHz. For a frequency of 139.6 MHz, enter 1396 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 55 Configure ME debug options. NOTE: This menu is provided testing purposes. It is recommended to leave ME Debug Configuration See submenu the options in their default states ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 56 Adds and Removes HECI2 Device from PCI space Enabled / Disabled KT Device Enable/Disable KT Device ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 57 Select to tell OS to support PPI Spec Version 1.2 or 1.3. Please note that some HCK tests might not support Physical Presence Spec Version 1.2 / 1.3 ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 58 4.3.6.1 Console Redirection Settings (COM#) Menu Item Options Description VT100 Emulation: Terminal Type VT100+ ANSI: Extended ASCII Char set. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 59 Select Serial port Transmission Speed. The speed must be matched on the other side. Long or ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 60 Delay range in seconds, in one second increment, visible when delay is set to Manual 4.3.9 Network Stack configuration Menu Item Options Description ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 61 Serial Port IO Base Address 3 / 4 / 5 / 7 / 10 / 11 Serial Port IRQ ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 62 Negative / Positive Horizontal Sync Polarity LVDS Advanced Options See Submenu LVDS Advanced Options Configurations ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 63 4.3.15 Embedded Controller Menu Item Options Description Embedded Controller information Shows Embedded Controller specific information ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 64 Enabled / Disabled Clear from log For Happened events if Enabled will require system reset ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 65 Create a RAM disk from a given file Remove selected RAM disk(s) Remove selected RAM disks ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 66 Select the size of DVMT (Dynamic Video Memory) 5.0 that the Internal Graphics Device will use ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 67 Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item 1280x1024 LVDS 1400x1050 LVDS 1 1400x1050 LVDS 2 1600x1200 LVDS ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 68 Storage and Communication Subsystem (SCS) Configuration PSE Configuration See submenu Programmable Service Engine (PSE) Configuration ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 69 Auto / Gen1 / Gen2 / PCIe Speed Configure PCIe Speed Gen3 4.4.2.2 SATA Configuration Menu Item Options Description ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 70 Tables installed) will be used HD Audio Advanced Configuration See submenu HD Audio Subystem Advanced Configuration Settings ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 71 Configure Serial IO Controller --> Set specific parameters Serial IO UART# Settings Configure Serial IO Controller --> Set specific parameters ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 72 Enabled / Disabled Enables/Disables PSE JTAG Pin Mux. Not allowed if Sci Pin Mux is enabled. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 73 Enabled / Disabled Enables / Disables DMA test Device 4.4.2.9 TSN GBE Configuration Menu Item Options Description ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 74 PCH TSN GBE # Link Speed PCH TSN GBE # Link Speed configuration 38.4MHz 2.5Gbps 38.4MHz 1bps ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 75 Allow the image to run in Secure Boot mode. Enrol SHA256 Hash certificate of a PE Image into Authorized File System Image Enroll Efi Image Signature Database (db) (db) ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 76 2. Authenticated UEFI Variable OS Recovery Signatures 3. EFI PE/COFF Image (SHA256), Key Source: Factory, External, Mixed ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 77 Specifies the Boot Device Priority sequence from available UEFI SD Drivers UEFI SD Drive BBS Priorities ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 78 Boot Override selection will not be effective. Boot Override selection will be effective when no changes are applied to BIOS parameters. ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
Page 80 SECO can provide specific heatspreaders and heatsinks for this module, but please remember that their use must be evaluated accurately inside the final system, and that they should be used only as a part of a more comprehensive ad-hoc cooling solutions.
Page 81 SECO Srl - Via Calamandrei 91 52100 Arezzo - ITALY Ph: +39 0575 26979 - Fax: +39 0575 350210 www.seco.com ATLAS ATLAS User Manual - Rev. First Edition: 1.0 - Last Edition: 1.2 - Author: S.O. - Reviewed by C.M. Copyright © 2023 SECO S.r.l.
