Summary of Contents for Seco TANARO Series

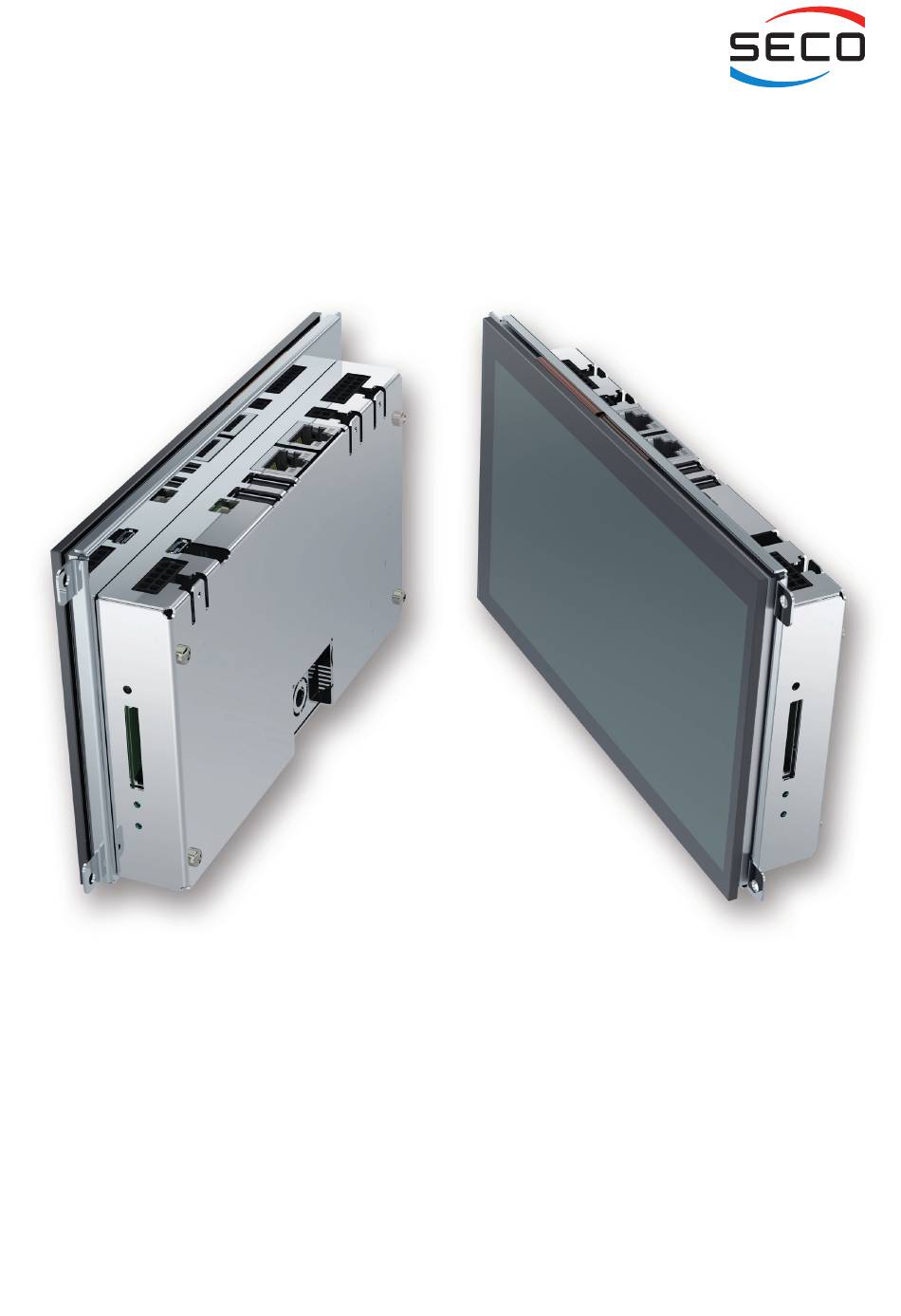

- Page 1 TANARO x4 Mini 7.0 OF PCT 1K Cortex -A53 Panel Mount ® ® Product Manual...
- Page 2 Revision Date Author Description 21.09.2021 Initial Release 17.12.2021 SECO CI Update 2022 Text extension chapter IV. Approvals & weight 31.01.2022 correction of the power supply in the technical data Online support on edge.seco.com...
-
Page 3: Table Of Contents
Annex E: Guidelines and Standards ..............32 RoHS Declaration ...................32 Supplier Declaration – Directive EG 1907/2006 REACH ......32 E-3 UL Certification ....................32 SECO Northern Europe Conformity Statement .........33 Annex F: Common Documentation ..............34 Warranty hints ....................34 Field of Application..................35 Annex G: Technical Support ................ -
Page 4: Introduction
TANARO Introduction Thank you very much for purchasing a SECO Northern Europe product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 5: Safety Hints
Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. SECO Northern Europe embedded systems have been built and tested by us and left the company in a perfectly safe condition.In order to maintain this condition and ensure safe operation, the user must observe the instructions and warnings contained in this manual. - Page 6 PRODUCT MANUAL TANARO IV. Approvals The TANARO may be equipped with a certified transmitting module. Please check for your application what country specific approvals you have to run through with your end-device before you are allowed to sell it on the market and what markings you need to attach. ...
-
Page 7: Product Introduction
PRODUCT MANUAL TANARO Product Introduction This document is applicable for hardware revisions 1.1 or later of the TANARO series. „Annex D: Hardware Revision Information“: Please find the hardware version grid in TANARO is an Embedded System to be used as human machine interface (HMI) in various applications. Please refer to Annex „F-2 Field of Application“... -
Page 8: Product Names And Variants
PRODUCT MANUAL TANARO For service and later identification of the device, the type plate contains important information. Product Names and Variants Product name definition: TANARO <CPU> <7.0> <BX> <PCT> <IPS> <additional description> <Vx.y.z> Explanation: TANARO Product family name (invariable) <CPU> x4 Mini (number of cores inside the i.MX8M Mini processor) <7.0>... -
Page 9: Related Documents And Online Support
PRODUCT MANUAL TANARO Related Documents and Online Support OPERATING SYSTEMS Contains information about Linux BSP with development environment Linux Yocto Dunfell Linux Embedded System Yocto (Codename: Dunfell, Version X) includes first information about the bootloader Flash-N-Go https://bit.ly/3y3xEuB http://support.garz-fricke.com/projects/Tanaro/Linux-Yocto/Releases/yocto-dunfell-tanaro-overview.html... -
Page 10: Technical Data
PRODUCT MANUAL TANARO This document contains operating system specific information. The following additional documentations are available: CPU Type i.MX8M Mini Quad Core Class Cortex -A53 ® ® Core Clock 1,8 GHz Media Processing Engine (MPE) with NEON technology for SIMD: Floating Point Unit (FPU) Support of 64-bit v8-A architecture A53: 32 KB L1 cache for instruction and 32 KB for data M4: 16 KB L1 cache for ®... - Page 11 PRODUCT MANUAL TANARO Housing Front 3.0 mm toughened glass, RAL 9005 Frame None Rear 1.4016 stainless steel, foam seal Ingress Protection Front IP20/Rear IP20 Device Dimensions W x H x D 183.8 x 104.0 x 33.5 mm Weight 800g Power Supply Supply Voltage Nom.
- Page 12 PRODUCT MANUAL TANARO adapter cable with a strain relief. Option The selection of a variant eliminates the other. Block Diagram TANARO 9-32 V DC i.MX8M MINI Step Down 2-pole Phoenix 12 V / 5 V MIPI to Dual LVDS MIPI DSI PMIC LVDS 20-pole Hirose...
-
Page 13: Block Diagram Sbc
PRODUCT MANUAL TANARO Block Diagram SBC As this manual describes a boxed version, only the external interfaces will be mentioned in the following chapter. (Exemplary Illustration. It shows the fully equipped TANARO 7.0" OF.) Pos. Description Ethernet U16 (Gigabit) Ethernet J20 (10/100 MBit) Power (J9) CAN/RS-485/UART Interface (J12) Optional with galvanic isolation... -
Page 14: Connectors
PRODUCT MANUAL TANARO (Exemplary Illustration (cutout) both sides) Pos. Description Reset Switch (SW1) Boot - Select Swich (SW2) SD Card Slot (J11) Power LED (D36) Connectors... -
Page 15: Installation And Start Up
PRODUCT MANUAL TANARO For the function of this switch please refer to the Flash N Go User Manual. Installation and Start Up The content of this document is limited to explain the device connectors and how to access TANARO via FTP over your local area network (LAN) within a few seconds. -
Page 16: Connection Scheme
PRODUCT MANUAL TANARO Connection Scheme Notice An incorrectly dimensioned power supply can destroy the HMI device. Use a DC power supply with adequate amperage; see Chapter 4. Technical Data Notice Safe electrical isolation For the DC supply, use only power supply units with safe electrical isolation in accordance with IEC 60364-4-41 or HD 384.04.41 (VDE 0100, Part 410), e.g. -
Page 17: Connecting The Hmi Device
PRODUCT MANUAL TANARO Connecting the HMI device Internal and External Interfaces Name Description Information TX+/TD0+ TX-/TD0- RX+/TD1+ Rx/Tx might be swapped TD2+ (Auto-MDIX) +/- might be swapped TD2- (Autom. polarity correction) RX-/TD1- TD3+ TD3- Header: RJ45 Gigabit Ethernet (U16) LED on the left (link) is default off and turns on when link is detected. Color mapping: green = 1 Gbit data transfer speed yellow = 100 Mbit data transfer speed... -
Page 18: Power (J9)
PRODUCT MANUAL TANARO off = 10 Mbit data transfer speed. Name Description Level DC Ground Vcc_In DC Input voltage Nom. 9 to 32 V DC Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Shielding with 6,3 mm male spade terminal connector. Power (J9) Caution: Power supplies connected to this device must comply with the requirements of "limited power... -
Page 19: Can/Rs-485 Interface (J12)
PRODUCT MANUAL TANARO to prevent the end-user from danger in case of a fault. CAN/RS-485 Interface (J12) Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group CAN1_TERM To enable CAN1-Termination, bridge with CAN1_H CAN1_H CAN bus 1 high +24 V CAN1_L CAN bus 1 low +24 V... -
Page 20: Usb Host 1 (J7)
PRODUCT MANUAL TANARO This connector can be configured to your needs in following combinations: Name Description Level USB_H1_VBUS Power supply +5 V DC max 500mA USB_H1_DN Data minus (D-) USB_H1_DP Data plus (D+) Ground Header: USB Type A CAN/RS-485; 2x RS-485; CAN/UART Name Description Level... -
Page 21: Usb Host 4 (J24, Internal [Not Illustrated])
PRODUCT MANUAL TANARO USB Host 4 (J24, internal [not illustrated]) Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) RS232_RTS2 Port#2: Request-to-send (Output) RS232_CTS2... -
Page 22: Usb Otg (J5)
PRODUCT MANUAL TANARO RS-485/RS-485 * Name Description Level USB1_VBUS Power supply +5 V DC max 500mA USB1_DN Data minus (D-) USB1_DP Data plus (D+) USB1_ID Device ID Ground Header: Micro-USB Type AB * alternative assembly upon request 6.10 USB OTG (J5) Name Description Level... -
Page 23: Sd Card Slot (X31)
PRODUCT MANUAL TANARO 6.12 SD Card Slot (X31) 6.13 Power LED (D36) Should be green if the device is powered up. 6.14 Status LED (D22) Should blink when device is active 6.15 Bootselect Switch (SW2) Push during a power on sequence to boot into the secondary OS. -
Page 24: Reset Switch (Sw1)
PRODUCT MANUAL TANARO 6.16 Reset Switch (SW1) Name Description Level 3.3 V +- 3% max. 1.500 mA 3.3 V +- 3% LVDS0_TX0_N Differential Output See table LVDS LVDS0_TX0_P LVDS0_TX1_N Differential Output See table LVDS LVDS0_TX1_P LVDS0_TX2_N Differential Output See table LVDS LVDS0_TX2_P LVDS0_TXCLK_N Differential Clock... - Page 25 PRODUCT MANUAL TANARO Push for a power on reset. Name Description Level Supply CR1220 Ground Header: AUK BH19VWG-R5H-H Battery: CR1220...
-
Page 26: Display Lvds (J13, J14)
PRODUCT MANUAL TANARO 6.17 Display LVDS (J13, J14) 6.18 Battery-Holder (BAT1) Battery Battery Specifications Type SECO Northern Europe Article Number Battery type CR1220 010-0091R Battery type CR1220 010-0059R Manufacturer Model Alpha 3 Manufacturing Ltd. YOBCR1220 Varta CR1220 The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. -
Page 27: Replacement Of The Internal Battery
PRODUCT MANUAL TANARO Do not dispose of used CMOS batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e. g. to the collecting points for disposal of batteries). Replacement of the Internal Battery The internal battery is placed as per figure below. -
Page 28: Supercap
Supercap 06 05 04 03 02 01 183,8 176,5 161,7 154,2(AA) center A.A.) Index Bezeichnung/designation male spade terminal CAN/RS-485 Interface (shielding/Abschirmung) Power depiction shows full equipment/ Ethernet 1 GBit Darstellung zeigt Vollausstattung Ethernet 100 MBit USB 2.0 Anzuwendende Normen / Maßstab / scale Gewicht / weight entgraten und... - Page 29 PRODUCT MANUAL TANARO Instead of using a battery to hold date and time of the integrated real-time-clock, a 220mF supercap can be assembled upon request. Data will be held for a few hours, only. Defect Type Specification Count(N) Bright Dots - Random One dot = one subpixel One pixel consists of Bright Dots - 2 Dots Adjacent/Pair three sub-pixels (dots),...
-
Page 30: Annex A: Technical Drawing
PRODUCT MANUAL TANARO Annex A: Technical Drawing Annex B: Quality and Incoming Inspections Display and Touch Annex C: Evaluation criteria of standard display module Evaluated Zone 1: Areas in the immediate viewing area: dirt and dust enclosures / stains / striae / scratches from max. 500 μm (diameter) or 0.02 mm2 (surface), 5 pcs. per dm2 are permitted, but no clustering. - Page 31 PRODUCT MANUAL TANARO Lighting condition: 1000 LUX on test object Viewing time: Platform Article Number Marking on PCB TANARO x4 Mini 7.0 OF PCT 1K 900-4556R 0774 TANARO V1.1 Hardware Revision Changes Marking on PCB V1.1 Initial Release 0774 TANARO V1.1...
-
Page 32: Annex D: Hardware Revision Information
Supplier Declaration – Directive EG 1907/2006 REACH SECO Northern Europe is manufacturer of electronic products, thus - in the sense of REACH - we are so called „downstream users“. The products we supply to you are solely non-chemical products (goods). Moreover and under normal and reasonably foreseeable circumstances of application, the goods supplied to you shall not release any substance. -
Page 33: Seco Northern Europe Conformity Statement
These solutions are offered exclusively as OEM products. They do not include any application software that is intended for the end user. Therefore, we do not make any EU declarations of conformity in the name of SECO Northern Europe GmbH and do not provide the products with the CE mark. -
Page 34: Annex F: Common Documentation
If the product has been returned with or without prior notice and no failure or malfunction can be detected or the failure or malfunction is caused by inappropriate handling or the device has been returned after expiry of warranty period, SECO Northern Europe reserve the right to charge the user for repair or replacement. -
Page 35: Field Of Application
If you intend to use these products in applications as quoted in (II) we highly recommend a personal contact with our consultants and/or technical sales team. (I) Recommended application areas for SECO Northern Europe embedded systems Even for these applications, we recommend to get in contact with our technical sales team. We offer a wide range of support, even at an early stage of evaluation and/or design-in phase. -
Page 36: Annex G: Technical Support
Gasoline stations and oil raffineries Annex G: Technical Support Before contacting the SECO Northern Europe support team, please try to help yourself by the means of this manual or any other documentation provided by SECO Northern Europe or the related websites. -
Page 37: Annex H: General Information
For exact technical drawings please refer to our sales team or product manager All other product or service names are the property of their respective owners. All rights reserved. Products subject to technical changes, improvements and misprints. © 2022 SECO Northern Europe GmbH...
