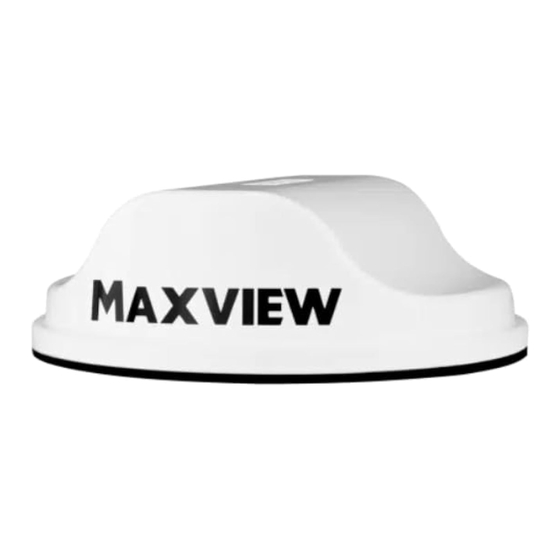

Introduction Thank you for purchasing this product, should you have any difficulty using your Antenna please contact our friendly Customer Helpline on +44 (0)1553 811000 or email support@maxview.co.uk. Contents Additional Information Installation Instructions General Safety Warnings Terms and Conditions Positioning your Antenna...
Page 3
Accessories - Sold separately Bracket Fixing Kit - For roof mounting Weatherproof Socket with SMA Connectors The raiser bracket allows you the flexibility to The Weatherproof Socket provides an external entry mount your antenna anywhere on your roof and point into the side of any vehicle. Available with 2 enter the cable at your preferred point using the SMA connections, making it ideal when using the supplied cable entry cover.
Positioning your Antenna Distance between Router and Antenna For best performance, we recommend mounting the router in close proximity to the roof mounted antenna. For best performance, only use the antennas standard 0.8m coaxial cables. This means, once you have a suitable location for the router inside the vehicle, you must also ensure there is a suitable space on the roof to position the antenna in close proximity to the router.
Fitting the Antenna These instructions are for the standard through-the-roof installation as supplied. Once you have a suitable position for the antenna, At the marked centre position, drill a 2.5mm pilot cut out the supplied template. Use to mark the 25mm hole through the roof.
Page 6
Front of vehicle Clean the surface where the antenna will be Pass the cables through the hole and remove the installed, ensuring it is free from debris and grease. self-adhesive backing from the 3M seal. Pass the cables through the roof and position the antenna with the embossed arrow facing the front of the vehicle and the outside edge of the antenna aligning with the marks added earlier.
Terms and conditions In no event shall Maxview be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies both during and after terms of the guarantee. This does not affect your statutory rights.
A guarantee authorisation must be obtained from Maxview prior to work commencing. c) Maxview is responsible for the cost of a replacement part if the original part is determined to be defective under the terms of the guarantee.
